IQD展示超微型LVDS/LVPECL振荡器
世界上最小的LVDS / LVPECL振荡器之一
对更小、更高性能和更可靠的电子解决方案的需求日益增长。这促使频率产品制造商生产更小、更高频率的器件，以实现设计目标并支持缩小PCB尺寸。LVPECL和LVDS输出差分晶振提供“互补对”逻辑，与CMOS逻辑信号相比，有助于在更高频率下降低噪声。新型时钟振荡器提供2.5V或3.3V两种电压，无论指定哪种输出，相位抖动均小于0.5PS RMS（12kHz至20MHz范围内）。

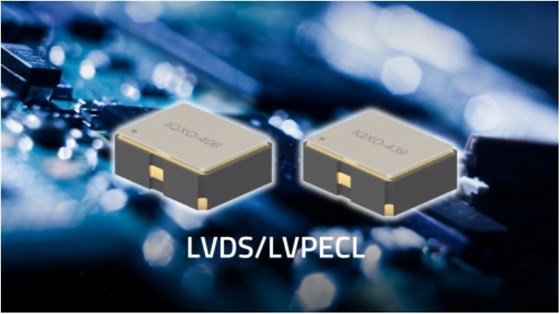

IQD推出其最新的LVDS/LVPECL时钟振荡器IQXO-406和IQXO-439，采用超微型尺寸2.0x1.6mm封装，四脚贴片晶振，有源晶振，石英晶振振荡器，新型时钟振荡器的频率范围从50MHz到250MHz，在一个完整的器件中提供小型化和高速运行。常见的应用包括5G、以太网(10G/100G/1000G)、光纤通道、物联网、SONET/SDH和可穿戴设备。
IQD展示超微型LVDS/LVPECL振荡器
IQXO-406带LVDS的简单封装石英晶体振荡器(SPXO)输出采用金属密封陶瓷封装盖子。
频率参数：频率50.0兆赫至250.0兆赫，频率稳定性:50.00ppm至100.00ppm 25°C时每年最大老化5ppm，频率稳定性:包括25°C工作温度下的容差，温度范围，电源电压变化，负载变化和1年老化。
电气参数：电源电压2.5V±5%
工作温度范围：-10至70摄氏度，-40至85摄氏度
输出详细信息：输出兼容性LVDS 驱动能力100ω 差分输出电压(Vod):典型值0.33V 差分输出电压摆幅(Vopp): 0.25V峰峰值最小值 失调电压(Vos): 1.125V ~ 1.375V
输出控制：启动时间:最大10ms
噪声参数：相位抖动(12kHz至20MHz):最大0.5皮秒均方根值 时钟抖动(n=50000个周期):最大5ps RMS
IQD展示超微型LVDS/LVPECL振荡器One of the world’s smallest LVDS / LVPECL oscillators
The demand for smaller, higher performance and more reliable electronic solutions is ever-growing. This is driving frequency product manufacturers to produce even smaller, higher frequency devices to reach design goals and support downsizing PCBs.The LVPECL and LVDS outputs provide a ‘complementary-pair’ logic to help with noise reduction at higher frequencies compared with CMOS logic signals.The new clock oscillators are available at either 2.5 V or 3.3 V with a phase jitter of less than 0.5 ps RMS (over 12 kHz to 20 MHz) irrespective of which output is specified.
IQD presents its newest LVDS / LVPECL clock oscillators, the IQXO-406 & IQXO-439, housed in a ultra-miniature 2.0 x 1.6 mm package. Available in a frequency range from 50 MHz to 250 MHz the new clock oscillators provide both miniaturisation and higher speed operation in one complete device. Common applications include 5G, Ethernet (10G/100G/1000G), Fibre Channel, IoT, SONET/SDH and Wearables.
晶振料号
型号
频率
频率稳定性
工作温度范围
电压
LFSPXO067367REEL
CFPS-40
50.0MHz
±50ppm
-40°C to 85°C
2.5V
LFSPXO082471CUTT
CFPS-41
74.25MHz
±100ppm
-10°C to 70°C
1.8V
LFSPXO076723REEL
CFPS-41
100.0MHz
±25ppm
-40°C to 85°C
1.8V
LFSPXO066007CUTT
CFPS-36
25.0MHz
±50ppm
-40°C to 85°C
1.8V
LFSPXO066007REEL
CFPS-36
25.0MHz
±50ppm
-40°C to 85°C
1.8V
LFSPXO026465BULK
CFPS-37
100.0MHz
±50ppm
-40°C to 85°C
2.5V
LFSPXO083339CUTT
CFPS-37
125.0MHz
±25ppm
-40°C to 85°C
2.5V
LFSPXO083339REEL
CFPS-37
125.0MHz
±25ppm
-40°C to 85°C
2.5V
LFSPXO026882REEL
CFPS-31
8.0MHz
±50ppm
-10°C to 70°C
1.8V
LFSPXO057666CUTT
CFPS-31
10.0MHz
±50ppm
-10°C to 70°C
1.8V
LFSPXO057666REEL
CFPS-31
10.0MHz
±50ppm
-10°C to 70°C
1.8V
LFSPXO025612REEL
CFPS-31
20.0MHz
±50ppm
-40°C to 85°C
1.8V
LFSPXO025767BULK
CFPS-31
25.0MHz
±50ppm
-40°C to 85°C
1.8V
LFSPXO025767CUTT
CFPS-31
25.0MHz
±50ppm
-40°C to 85°C
1.8V
LFSPXO025767REEL
CFPS-31
25.0MHz
±50ppm
-40°C to 85°C
1.8V
LFSPXO027477BULK
CFPS-31
25.0MHz
±50ppm
-10°C to 70°C
1.8V
LFSPXO027477CUTT
CFPS-31
25.0MHz
±50ppm
-10°C to 70°C
1.8V
LFSPXO027477REEL
CFPS-31
25.0MHz
±50ppm
-10°C to 70°C
1.8V
LFSPXO054635BULK
CFPS-31振荡器
25.0MHz
±25ppm
-40°C to 85°C
1.8V
LFSPXO026514REEL
CFPS-31
28.6363MHz
±50ppm
-40°C to 85°C
1.8V
LFSPXO084193CUTT
CFPS-31
29.4912MHz
±50ppm
-40°C to 85°C
1.8V
LFSPXO025857BULK
CFPS-31
30.0MHz
±100ppm
-40°C to 85°C
1.8V
LFSPXO025857REEL
CFPS-31
30.0MHz
±100ppm
-40°C to 85°C
1.8V
LFSPXO065319REEL
CFPS-31
48.0MHz
±50ppm
-40°C to 85°C
1.8V
LFSPXO071917BULK
CFPS-31
50.0MHz
±100ppm
-40°C to 85°C
1.8V
LFSPXO067039BULK
CFPS-31
60.0MHz
±50ppm
-10°C to 70°C
1.8V
LFSPXO067064BULK
CFPS-31
125.0MHz
±50ppm
-40°C to 85°C
1.8V
LFSPXO067064REEL
CFPS-31
125.0MHz
±50ppm
-40°C to 85°C
1.8V
