530AC622M080DG提供卓越的频率稳定性和可靠性

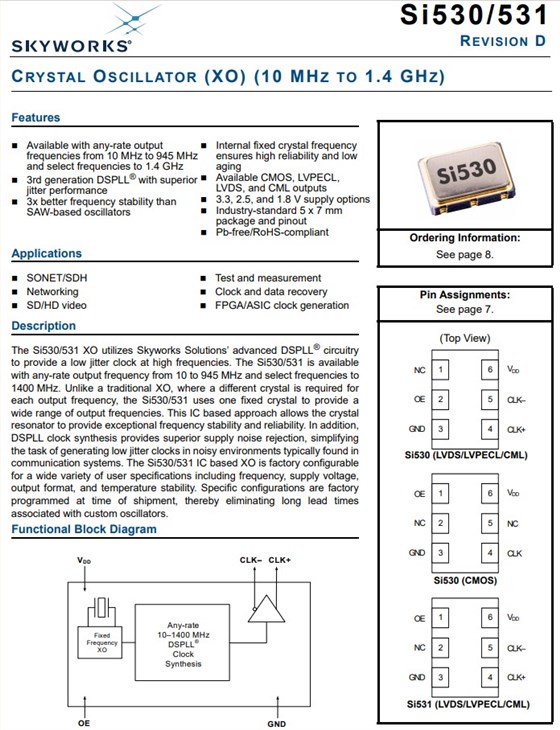

美国Silicon晶振系列Si530/Si531 XO采用Skyworks Solutions的先进DSPLL®电路，以在高频下提供低抖动时钟。Si530/Si531振荡器具有从10到945MHz的任意速率输出频率，并选择频率1400兆赫。与传统XO不同，传统XO需要不同的晶体，每个输出频率，Si530/531使用一个固定晶体来提供宽范围的输出频率。这种基于IC的方法允许晶体，530AC622M080DG提供卓越的频率稳定性和可靠性。此外，DSPLL时钟合成提供卓越的电源噪声抑制，简化了在通信系统中常见的噪声环境中产生低抖动时钟的任务。晶体振荡器Si530/531 IC的XO在工厂可配置用于各种用户规格，包括频率、电源电压、输出格式和温度稳定性。特定配置在发货时进行工厂编程，从而消除了与定制振荡器相关的长交付周期。

晶振料号	品牌	型号	频率	电压	频率稳定度	包装/封装
530FB125M000DG	Silicon晶振	Si530	125MHz	2.5V	±20ppm	6-SMD, No Lead
530BB125M000DG	Silicon晶振	Si530	125MHz	3.3V	±20ppm	6-SMD, No Lead
530FB200M000DG	Silicon晶振	Si530	200MHz	2.5V	±20ppm	6-SMD, No Lead
530BC156M250DG	Silicon晶振	Si530	156.25MHz	3.3V	±7ppm	6-SMD, No Lead
530BA125M000DG	Silicon晶振	Si530	125MHz	3.3V	±50ppm	6-SMD, No Lead
530BB100M000DG	Silicon晶振	Si530	100MHz	3.3V	±20ppm	6-SMD, No Lead
530FC156M250DG	Silicon晶振	Si530	156.25MHz	2.5V	±7ppm	6-SMD, No Lead
530FA156M250DG	Silicon晶振	Si530	156.25MHz	2.5V	±50ppm	6-SMD, No Lead
530FC125M000DG	Silicon晶振	Si530	125MHz	2.5V	±7ppm	6-SMD, No Lead
530AC622M080DG	Silicon晶振	Si530	622.08MHz	3.3V	±7ppm	6-SMD, No Lead
530AC125M000DG	Silicon晶振	Si530	125MHz	3.3V	±7ppm	6-SMD, No Lead
530AC200M000DG	Silicon晶振	Si530	200MHz	3.3V	±7ppm	6-SMD, No Lead
530BC200M000DG	Silicon晶振	Si530	200MHz	3.3V	±7ppm	6-SMD, No Lead
530FC200M000DG	Silicon晶振	Si530	200MHz	2.5V	±7ppm	6-SMD, No Lead
530AC156M250DG	Silicon晶振	Si530	156.25MHz	3.3V	±7ppm	6-SMD, No Lead
530AC155M520DG	Silicon晶振	Si530	155.52MHz	3.3V	±7ppm	6-SMD, No Lead
530BC148M500DG	Silicon晶振	Si530	148.5MHz	3.3V	±7ppm	6-SMD, No Lead
530AC106M250DG	Silicon晶振	Si530	106.25MHz	3.3V	±7ppm	6-SMD, No Lead
530EC106M250DG	Silicon晶振	Si530	106.25MHz	2.5V	±7ppm	6-SMD, No Lead
530FC106M250DG	Silicon晶振	Si530	106.25MHz	2.5V	±7ppm	6-SMD, No Lead
530BC106M250DG	Silicon晶振	Si530	106.25MHz	3.3V	±7ppm	6-SMD, No Lead
530EC155M520DG	Silicon晶振	Si530	155.52MHz	2.5V	±7ppm	6-SMD, No Lead
530EC187M500DG	Silicon晶振	Si530	187.5MHz	2.5V	±7ppm	6-SMD, No Lead
530AC000110DG	Silicon晶振	Si530	148.35165MHz	3.3V	±7ppm	6-SMD, No Lead
530AC148M500DG	Silicon晶振	Si530	148.5MHz	3.3V	±7ppm	6-SMD, No Lead
530EC000110DG	Silicon晶振	Si530	148.35165MHz	2.5V	±7ppm	6-SMD, No Lead
530FC000110DG	Silicon晶振	Si530	148.35165MHz	2.5V	±7ppm	6-SMD, No Lead
530BC155M520DG	Silicon晶振	Si530	155.52MHz	3.3V	±7ppm	6-SMD, No Lead

530AC622M080DG提供卓越的频率稳定性和可靠性，Si530/531 XO支持多种选项，包括频率、温度稳定性、输出格式和VDD。装运时，Si530/531中已编程设定了具体的器件配置。配置可以是使用下面的零件号配置表指定。Skyworks解决方案提供了一个基于网络浏览器的零件号配置实用程序来简化此过程。Si530和Si531 XO系列采用符合RoHS标准的工业标准6- 衬垫，小体积7.0x5.0mm包装。Si531系列支持LVPECL、LVDS差分晶体振荡器和的备用OE引脚排列(引脚#1) CML输出格式。

原厂代码	品牌	型号	频率	电压	频率稳定度	包装/封装
531BB125M000DG	Silicon晶振	Si531	125MHz	3.3V	±20ppm	6-SMD, No Lead
531FB200M000DG	Silicon晶振	Si531	200MHz	2.5V	±20ppm	6-SMD, No Lead
531FC250M000DG	Silicon晶振	Si531	250MHz	2.5V	±7ppm	6-SMD, No Lead
531FB125M000DG	Silicon晶振	Si531	125MHz	2.5V	±20ppm	6-SMD, No Lead
531BC000110DG	Silicon晶振	Si531	148.35165MHz	3.3V	±7ppm	6-SMD, No Lead
531BC200M000DG	Silicon晶振	Si531	200MHz	3.3V	±7ppm	6-SMD, No Lead
531BC250M000DG	Silicon晶振	Si531	250MHz	3.3V	±7ppm	6-SMD, No Lead
531BC125M000DG	Silicon晶振	Si531	125MHz	3.3V	±7ppm	6-SMD, No Lead
531FB106M250DG	有源晶体	Si531	106.25MHz	2.5V	±20ppm	6-SMD, No Lead
531AC156M250DG	Silicon晶振	Si531	156.25MHz	3.3V	±7ppm	6-SMD, No Lead
531AC200M000DG	Silicon晶振	Si531	200MHz	3.3V	±7ppm	6-SMD, No Lead
531BC148M500DG	Silicon晶振	Si531	148.5MHz	3.3V	±7ppm	6-SMD, No Lead
531BC156M250DG	Silicon晶振	Si531	156.25MHz	3.3V	±7ppm	6-SMD, No Lead
531AC125M000DG	Silicon晶振	Si531	125MHz	3.3V	±7ppm	6-SMD, No Lead
531FC125M000DG	Silicon晶振	Si531	125MHz	2.5V	±7ppm	6-SMD, No Lead
531FC156M250DG	Silicon晶振	Si531	156.25MHz	2.5V	±7ppm	6-SMD, No Lead
531FC148M500DG	Silicon晶振	Si531	148.5MHz	2.5V	±7ppm	6-SMD, No Lead
531AC155M520DG	Silicon晶振	Si531	155.52MHz	3.3V	±7ppm	6-SMD, No Lead
531BC155M520DG	Silicon晶振	Si531	155.52MHz	3.3V	±7ppm	6-SMD, No Lead
531FC200M000DG	Silicon晶振	Si531	200MHz	2.5V	±7ppm	6-SMD, No Lead
531AC622M080DG	Silicon晶振	Si531	622.08MHz	3.3V	±7ppm	6-SMD, No Lead
531AC312M500DG	Silicon晶振	Si531	312.5MHz	3.3V	±7ppm	6-SMD, No Lead
531AC106M250DG	Silicon晶振	Si531	106.25MHz	3.3V	±7ppm	6-SMD, No Lead
531EC106M250DG	Silicon晶振	Si531	106.25MHz	2.5V	±7ppm	6-SMD, No Lead
531BC187M500DG	Silicon晶振	Si531	187.5MHz	3.3V	±7ppm	6-SMD, No Lead
531EC155M520DG	Silicon晶振	Si531	155.52MHz	2.5V	±7ppm	6-SMD, No Lead

530AC622M080DG提供卓越的频率稳定性和可靠性

产品特点：
可用于任何速率的输出频率从10MHz到945MHz，并选择1.4GHz的频率
第三代DSPLL，内置高级抖动性能
频率稳定性比高3倍基于SAW的振荡器
内部固定晶体频率确保高可靠性和低老化
可用CMOS、LVPECL、 LVDS和CML输出贴片晶振
3.3、2.5和1.8V电源选项
行业标准5 x 7毫米封装和引脚排列
无铅/符合RoHS标准

应用于：声纳/SDH，网络，SD/HD视频，测试和测量，时钟和数据恢复，FPGA/AASIC时钟生成
