NX20SA系列高性能可编程晶体振荡器,NX3211C0125.000000,低抖动晶振,ECERA晶振

2022-07-14 15:30:52 康华尔电子

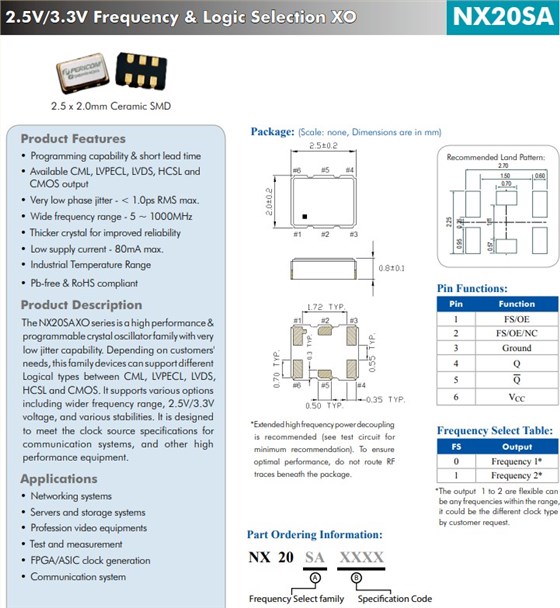

百利通亚陶晶振NX20SA XO系列是具有极低抖动能力的高性能可编程晶体振荡器系列。小体积晶振尺寸2.5mmx2.0mm,双频逻辑可编程XO,根据客户的需求,该系列器件可以支持差分晶体振荡器CML、LVPECL、LVDS、HCSL和CMOS之间的不同逻辑类型。它支持多种选择,包括更宽的频率范围、2.5V/3.3V电压和各种稳定性。它旨在满足通信系统和其他高性能设备的时钟源规范

产品特点:
编程能力和交货时间短
可用的CML、LVPECL、LVDS、HCSL和CMOS输出
非常低的相位抖动-< 1.0ps RMS最大值。
宽频率范围- 5~1000MHz有源晶体
更厚的晶体以提高可靠性
低电源电流-最大80mA。
应用:网络系统,服务器和存储系统,专业视频设备,测试和测量,FPGA/ASIC时钟生成,通讯系统,工业温度范围,无铅且符合RoHS标准

NX20SA系列高性能可编程晶体振荡器,NX3211C0125.000000,低抖动晶振,ECERA晶振

JT255CF0026.000000 Diodes Incorporated SaRonix-eCera™ JT 26MHz ±500ppb -30°C ~ 85°C
FRBST1061 Diodes Incorporated SaRonix-eCera™ FR 61.44MHz ±50ppm -40°C ~ 85°C
JT2551T0039.000000 Diodes Incorporated SaRonix-eCera™ JT 39MHz ±2.5ppm -40°C ~ 85°C
JT2551T0039.000000 Diodes Incorporated SaRonix-eCera™ JT 39MHz ±2.5ppm -40°C ~ 85°C
JT2551T0039.000000 Diodes Incorporated SaRonix-eCera™ JT 39MHz ±2.5ppm -40°C ~ 85°C
KM3270004 Diodes Incorporated SaRonix-eCera™ KM 32.768kHz ±25ppm -40°C ~ 85°C
FK2500021 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±50ppm -40°C ~ 85°C
FN4000159 Diodes Incorporated SaRonix-eCera™ FN 40MHz ±50ppm -40°C ~ 85°C
FK0800003 Diodes Incorporated SaRonix-eCera™ FK 8MHz ±50ppm -20°C ~ 70°C
PRBST1122 Diodes Incorporated SaRonix-eCera™ FR 122.88MHz ±50ppm -40°C ~ 85°C
PRBST1122 Diodes Incorporated SaRonix-eCera™ FR 122.88MHz ±50ppm -40°C ~ 85°C
PRBST1122 Diodes Incorporated SaRonix-eCera™ FR 122.88MHz ±50ppm -40°C ~ 85°C
KJ3270001 Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±25ppm -40°C ~ 85°C
KJ3270001 Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±25ppm -40°C ~ 85°C
KJ3270001 Diodes Incorporated SaRonix-eCera™ KJ 32.768kHz ±25ppm -40°C ~ 85°C
FK2500022 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±50ppm -40°C ~ 85°C
FK2500022 Diodes Incorporated SaRonix-eCera™ FK 25MHz ±50ppm -40°C ~ 85°C
FK5000013 Diodes Incorporated SaRonix-eCera™ FK 50MHz ±50ppm -40°C ~ 85°C
FK5000013 Diodes Incorporated SaRonix-eCera™ FK 50MHz ±50ppm -40°C ~ 85°C
FD2500050 Diodes Incorporated SaRonix-eCera™ FD 25MHz ±50ppm -20°C ~ 70°C
FD2500050 Diodes Incorporated SaRonix-eCera™ FD 25MHz ±50ppm -20°C ~ 70°C
FDSAS2062 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 62.5MHz ±50ppm -20°C ~ 70°C
FDSAS2062 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 62.5MHz ±50ppm -20°C ~ 70°C
FDSAS2062 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 62.5MHz ±50ppm -20°C ~ 70°C
FK1200011 Diodes Incorporated SaRonix-eCera™ FK 12MHz ±50ppm -40°C ~ 85°C
1

2

FK1200011 Diodes Incorporated SaRonix-eCera™ FK 12MHz ±50ppm -40°C ~ 85°C
FNSAS2075 Diodes Incorporated SaRonix-eCera™ ASSP XO™ 75MHz ±50ppm -20°C ~ 70°C
FD6250012 Diodes Incorporated SaRonix-eCera™ FD 62.5MHz ±50ppm -20°C ~ 70°C
KN3270028 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm -20°C ~ 70°C
KD3270032 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm -20°C ~ 70°C
KN3270031 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm -20°C ~ 70°C
KD3270042 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm -20°C ~ 70°C
KN3270022 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm -20°C ~ 70°C
KD3270036 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm -20°C ~ 70°C
KN3270032 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm -40°C ~ 85°C
KN3270033 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm -40°C ~ 85°C
KD3270034 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±50ppm -40°C ~ 85°C
KX3211B0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -20°C ~ 70°C
KX3211C0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm -20°C ~ 70°C
KX3211E0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm -40°C ~ 85°C
KX3211G0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm 0°C ~ 70°C
KX3213B0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -20°C ~ 70°C
KX3213C0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm -20°C ~ 70°C
KX3213G0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm 0°C ~ 70°C
KX3211H0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm 0°C ~ 85°C
KD3270043 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm -20°C ~ 70°C
KN3270026 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm -20°C ~ 70°C
KN3270034 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm -20°C ~ 70°C
KD3270012 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm -20°C ~ 70°C
KK3270040 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm -20°C ~ 70°C

NX20SA系列高性能可编程晶体振荡器,NX3211C0125.000000,低抖动晶振,ECERA晶振

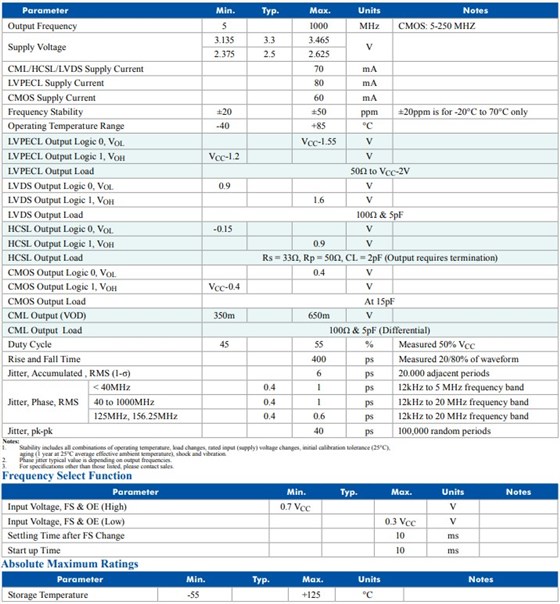

产品参数:
产品系列 NX2SA
家庭 XO
输出逻辑 CMOS/LVPECL/LVDS/HCSL/CML(可选)差分输出晶振
电源电压 3.3V, 2.5V
频率范围 5MHz到1000MHz
抖动均方根 (ps) <1
包装类型 陶瓷缝
包装尺寸2.5x2.0x0.9mm
垫 6脚

Product Parameters

ProductSeries NX2SA
Family XO
Output Logic CMOS/LVPECL/LVDS/HCSL/CML (Selectable)
Supply Voltage (V) 3.3, 2.5
Freq Range (MHz) 5 to 1000
Jitter RMS (ps) <1
PkgType Ceramic Seam
Package Size (mm) 2.5x2.0x0.9
Pads 6

KK3270042 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm -40°C ~ 85°C
KK3270044 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm -20°C ~ 70°C
KN3270027 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±20ppm -20°C ~ 70°C
KD3270033 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±20ppm -20°C ~ 70°C
KN3270030 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±20ppm -20°C ~ 70°C
KD3270039 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±20ppm -20°C ~ 70°C
KN3270023 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±50ppm -40°C ~ 85°C
FNC500129 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±50ppm -20°C ~ 70°C
KN3270036 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm -40°C ~ 85°C
KN3270029 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm -40°C ~ 85°C
KX2511B0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -20°C ~ 70°C
KX2511C0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm -20°C ~ 70°C
KX2511E0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm -40°C ~ 85°C
KX2511H0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm 0°C ~ 85°C
KX2513C0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm -20°C ~ 70°C
KX2513E0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm -40°C ~ 85°C
KX2513H0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm 0°C ~ 85°C
KX2513B0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -20°C ~ 70°C
KD3270038 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm -20°C ~ 70°C
KD3270038 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm -20°C ~ 70°C
KD3270038 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm -20°C ~ 70°C
KN3270025 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm -20°C ~ 70°C
KX2513A0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±20ppm -20°C ~ 70°C
KD3270041 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±20ppm -20°C ~ 70°C
KN3270024 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±20ppm -20°C ~ 70°C
NX20SA系列高性能可编程晶体振荡器,NX3211C0125.000000,低抖动晶振,ECERA晶振

我们的晶体振荡器(CXO)提供高价值、卓越的性能和功能以及卓越的品质和服务。我们为批量生产提供快速周转样品、响应式技术支持和快速交货时间。

提供多种类型和特性:
1) 尺寸从7x5mm到2.0x1.6mm,
2) 传统 CXO 的温度稳定性为±5PPM,
3) CMOS/TTL、LVPECL、LVDS、HCSL的输出逻辑格式,和慢性粒细胞白血病。
我们的CXO被领先制造商用于各种要求苛刻的应用,从消费类到工业、汽车(AEC-Q200/AEC-Q104)、网络、存储、计算、电信等。

KK3270047 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±50ppm -20°C ~ 70°C
KD3270044 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm -40°C ~ 85°C
KD3270044 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm -40°C ~ 85°C
KD3270044 Diodes Incorporated SaRonix-eCera™ KD 32.768kHz ±25ppm -40°C ~ 85°C
KN3270035 Diodes Incorporated SaRonix-eCera™ KN 32.768kHz ±25ppm -40°C ~ 85°C
KK3270007 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -20°C ~ 70°C
KK3270053 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±20ppm -20°C ~ 70°C
KK3270041 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±20ppm -20°C ~ 70°C
KK3270043 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±25ppm -40°C ~ 85°C
S1700C-20.0000 Diodes Incorporated SaRonix™ S1700 20MHz ±100ppm 0°C ~ 70°C
KK3270048 Diodes Incorporated SaRonix-eCera™ KK 32.768kHz ±20ppm -20°C ~ 70°C
KX3213H0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm 0°C ~ 85°C
KX3213E0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm -40°C ~ 85°C
KX3213A0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±20ppm -20°C ~ 70°C
KX3213D0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -40°C ~ 85°C
KX3213Z0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz - -
KX2511G0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm 0°C ~ 70°C
NX5011C0056.000000 Diodes Incorporated SaRonix-eCera™ NX 56MHz ±50ppm -20°C ~ 70°C
KX2511D0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±25ppm -40°C ~ 85°C
KX2511Z0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz - -
NX7011E0059.000000 Diodes Incorporated SaRonix-eCera™ NX 59MHz ±50ppm -40°C ~ 85°C
FRSONT019 Diodes Incorporated SaRonix-eCera™ FR 19.44MHz ±25ppm -20°C ~ 70°C
FRXDSL035 Diodes Incorporated SaRonix-eCera™ FR 35.328MHz ±25ppm -20°C ~ 70°C
FRSONT038 Diodes Incorporated SaRonix-eCera™ FR 38.88MHz ±25ppm -20°C ~ 70°C
KX2013C0032.768000 Diodes Incorporated SaRonix-eCera™ KX 32.768kHz ±50ppm -20°C ~ 70°C

NX20SA系列高性能可编程晶体振荡器,NX3211C0125.000000,低抖动晶振,ECERA晶振

NX20SA 标准 20~50 2.5x2.0x0.9 CMOS/LVPECL/LVDS/HCSL/CML(可选) 3.32.5 6 - 2.5mmx2.0mm 双频逻辑可编程XO
NX20SB 标准 20~50 2.5x2.0x0.9 CMOS/LVPECL/LVDS/HCSL/CML(可选) 3.32.5 6 - 2.5mmx2.0mm 四频和逻辑可编程 XO
NX21SA 标准 20~50 2.5x2.0x0.9 CMOS 3.32.5 6 - 2.5mmx2.0mm CMOS 2 频可编程晶振XO
NX21SB 标准 20~50 2.5x2.0x0.9 CMOS 3.32.5 6 - 2.5mmx2.0mm CMOS 四频可编程XO
NX22SA 标准 20~50 2.5x2.0x0.9 LVPECL 3.32.5 6 - 2.5mmx2.0mm LVPECL 2频可编程XO
NX22SB 标准 20~50 2.5x2.0x0.9 LVPECL 3.32.5 6 - 2.5mmx2.0mm LVPECL 4频可编程XO
