NX51SA系列小体积晶振尺寸5032mm晶振,NX51500001,可编程晶体振荡器,ECERA差分晶振

2022-07-16 10:32:30 康华尔电子

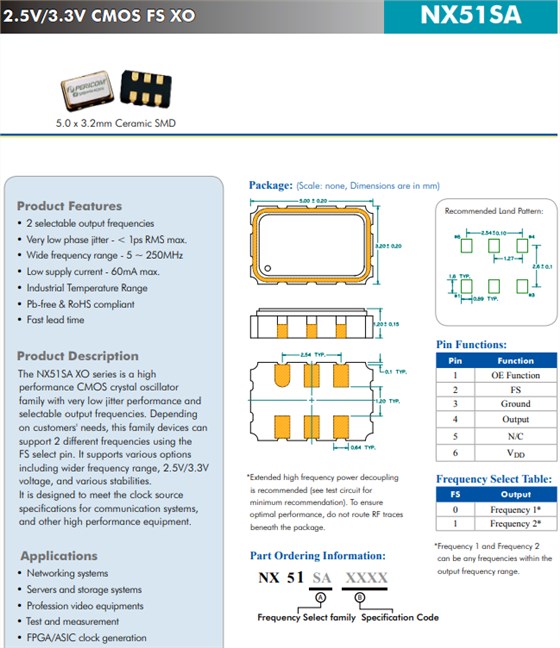

NX51SA XO系列是高性能CMOS晶体振荡器系列,小体积晶振尺寸5.0mmx3.2mm,CMOS 2频可编程晶振XO,具有极低的抖动性能和可选的输出频率。根据客户的需求,该系列器件可以使用FS选择引脚支持2个不同的频率。它支持多种选择,包括更宽的频率范围、2.5V/3.3V电压和各种稳定性。它旨在满足通信系统和其他高性能设备的时钟源规范。

特征:
2个可选输出频率晶体振荡器
非常低的相位抖动 -<1ps RMS max.
宽频率范围 - 5~250MHz
低电源电流 - 最大60mA。
工业温度范围
无铅且符合RoHS标准
交货时间快
应用:
网络系统
服务器和存储系统
专业视频设备
测试和测量
FPGA/ASIC时钟生成

NX51SA系列小体积晶振尺寸5032mm晶振,NX51500001,可编程晶体振荡器,ECERA差分晶振

FN8000056 Diodes Incorporated SaRonix-eCera™ FN 80MHz ±50ppm -40°C ~ 85°C
FN8000059 Diodes Incorporated SaRonix-eCera™ FN 80MHz ±50ppm -20°C ~ 70°C
FN8330020 Diodes Incorporated SaRonix-eCera™ FN 83.33MHz ±50ppm -40°C ~ 85°C
FN8500004 Diodes Incorporated SaRonix-eCera™ FN 85MHz ±50ppm -20°C ~ 70°C
FN9000013 Diodes Incorporated SaRonix-eCera™ FN 90MHz ±50ppm -20°C ~ 70°C
FN9600006 Diodes Incorporated SaRonix-eCera™ FN 96MHz ±25ppm -20°C ~ 70°C
FN9830014 Diodes Incorporated SaRonix-eCera™ FN 98.304MHz ±50ppm -20°C ~ 70°C
FNA000068 Diodes Incorporated SaRonix-eCera™ FN 100MHz ±50ppm -40°C ~ 85°C
FNA000070 Diodes Incorporated SaRonix-eCera™ FN 100MHz ±50ppm -20°C ~ 70°C
FNA000071 Diodes Incorporated SaRonix-eCera™ FN 100MHz ±50ppm -40°C ~ 85°C
FNA000072 Diodes Incorporated SaRonix-eCera™ FN 100MHz ±50ppm -20°C ~ 70°C
FNA000073 Diodes Incorporated SaRonix-eCera™ FN 100MHz ±25ppm -20°C ~ 70°C
FNA620047 Diodes Incorporated SaRonix-eCera™ FN 106.25MHz ±50ppm -20°C ~ 70°C
FNA620048 Diodes Incorporated SaRonix-eCera™ FN 106.25MHz ±25ppm -20°C ~ 70°C
FNA620049 Diodes Incorporated SaRonix-eCera™ FN 106.25MHz ±50ppm -40°C ~ 85°C
FNA620050 Diodes Incorporated SaRonix-eCera™ FN 106.25MHz ±25ppm -20°C ~ 70°C
FNA620052 Diodes Incorporated SaRonix-eCera™ FN 106.25MHz ±50ppm -40°C ~ 85°C
FNA800007 Diodes Incorporated SaRonix-eCera™ FN 108MHz ±50ppm -20°C ~ 70°C
FNA800008 Diodes Incorporated SaRonix-eCera™ FN 108MHz ±25ppm -20°C ~ 70°C
FNC500106 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±25ppm -20°C ~ 70°C
FNC500126 Diodes Incorporated SaRonix-eCera™ FN 125.001MHz ±25ppm -20°C ~ 70°C
FNC500128 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±50ppm -20°C ~ 70°C
FNC500130 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±50ppm -40°C ~ 85°C
FNC500132 Diodes Incorporated SaRonix-eCera™ FN 125MHz ±25ppm -20°C ~ 70°C
FNC500138 Diodes Incorporated SaRonix-eCera™ FN 125.003MHz ±25ppm -20°C ~ 70°C
FNC510001 Diodes Incorporated SaRonix-eCera™ FN 125.12Mhz ±50ppm -40°C ~ 85°C
晶振

参数

FNC700004 Diodes Incorporated SaRonix-eCera™ FN 127MHz ±50ppm -20°C ~ 70°C
FND300015 Diodes Incorporated SaRonix-eCera™ FN 133MHz ±25ppm -20°C ~ 70°C
FND300017 Diodes Incorporated SaRonix-eCera™ FN 133MHz ±50ppm -20°C ~ 70°C
FND300020 Diodes Incorporated SaRonix-eCera™ FN 133MHz ±50ppm -40°C ~ 85°C
FND330007 Diodes Incorporated SaRonix-eCera™ FN 133.333MHz ±50ppm -20°C ~ 70°C
PBF000008 Diodes Incorporated SaRonix-eCera™ PB 150MHz ±50ppm -20°C ~ 70°C
PBF550004 Diodes Incorporated SaRonix-eCera™ PB 155.52MHz ±50ppm -20°C ~ 70°C
PBF930003 Diodes Incorporated SaRonix-eCera™ PB 159.375MHz ±50ppm -20°C ~ 70°C
PBG110003 Diodes Incorporated SaRonix-eCera™ PB 161.133MHz ±50ppm -20°C ~ 70°C
PD5000002 Diodes Incorporated SaRonix-eCera™ PD 50MHz ±50ppm -20°C ~ 70°C
PD5000004 Diodes Incorporated SaRonix-eCera™ PD 50MHz ±50ppm -20°C ~ 70°C
PD6250003 Diodes Incorporated SaRonix-eCera™ PD 62.5MHz ±50ppm -20°C ~ 70°C
PD7500001 Diodes Incorporated SaRonix-eCera™ PD 75MHz ±50ppm -20°C ~ 70°C
PD7770001 Diodes Incorporated SaRonix-eCera™ PD 77.76MHz ±50ppm -20°C ~ 70°C
PDA620003 Diodes Incorporated SaRonix-eCera™ PD 106.25MHz ±50ppm -20°C ~ 70°C
PDC500003 Diodes Incorporated SaRonix-eCera™ PD 125MHz ±50ppm -20°C ~ 70°C
PDF000003 Diodes Incorporated SaRonix-eCera™ PD 150MHz ±50ppm -20°C ~ 70°C
PDF550003 Diodes Incorporated SaRonix-eCera™ PD 155.52MHz ±50ppm -20°C ~ 70°C
PDF620003 Diodes Incorporated SaRonix-eCera™ PD 156.25MHz ±50ppm -20°C ~ 70°C
PDF930002 Diodes Incorporated SaRonix-eCera™ PD 159.375MHz ±50ppm -20°C ~ 70°C
PDG110003 Diodes Incorporated SaRonix-eCera™ PD 161.133MHz ±50ppm -20°C ~ 70°C
PXA620006 Diodes Incorporated SaRonix-eCera™ PX 106.25MHz ±50ppm -20°C ~ 70°C
PXA620008 Diodes Incorporated SaRonix-eCera™ PX 106.25MHz ±50ppm -20°C ~ 70°C
PXF000010 Diodes Incorporated SaRonix-eCera™ PX 150MHz ±50ppm -20°C ~ 70°C
PXF000011 Diodes Incorporated SaRonix-eCera™ PX 150MHz ±50ppm -20°C ~ 70°C

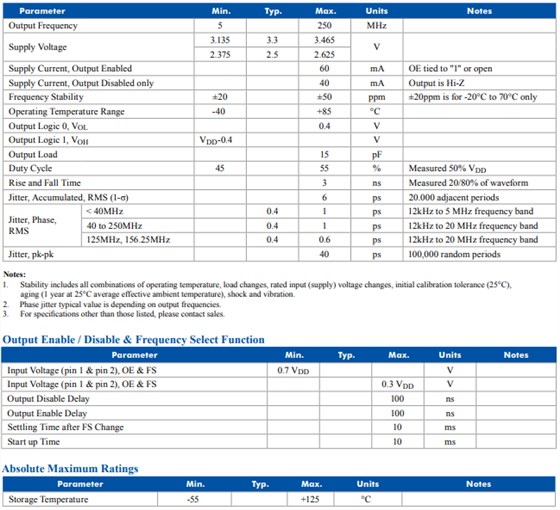

Product Parameters

ProductSeries NX5
Family XO
Output Logic CMOS
Supply Voltage (V) 3.3, 2.5
Freq Range (MHz) 5 to 250
Jitter RMS (ps) <1
PkgType Ceramic Seam
Package Size (mm) 5.0 x 3.2 x 1.5
Pads 6

NX51SA系列小体积晶振尺寸5032mm晶振,NX51500001,可编程晶体振荡器,ECERA差分晶振

产品参数:

产品系列 NX5
家庭 XO 有源晶体
输出逻辑 CMOS
电源电压 3.3V, 2.5V
频率范围 (MHz) 5到250
抖动均方根 (ps) <1
包装类型 陶瓷缝
包装尺寸 5.0x3.2x1.5mm
垫 6脚
PXF620009 Diodes Incorporated SaRonix-eCera™ PX 156.25MHz ±50ppm -20°C ~ 70°C
PXF620014 Diodes Incorporated SaRonix-eCera™ PX 156.25MHz ±50ppm -20°C ~ 70°C
SPA000001 Diodes Incorporated SaRonix-eCera™ SP 100MHz ±50ppm -40°C ~ 85°C
SPA000002 Diodes Incorporated SaRonix-eCera™ SP 100MHz ±50ppm -40°C ~ 85°C
SQA000002 Diodes Incorporated SaRonix-eCera™ SQ 100MHz ±50ppm -40°C ~ 85°C
NX5021E0312.500000 Diodes Incorporated SaRonix-eCera™ NX 312.5MHz ±50ppm -40°C ~ 85°C
PBF550007 Diodes Incorporated SaRonix-eCera™ PB 155.52MHz ±50ppm -40°C ~ 85°C
PBF620012 Diodes Incorporated SaRonix-eCera™ PB 156.25MHz ±50ppm -40°C ~ 85°C
PBF930001 Diodes Incorporated SaRonix-eCera™ PB 159.375MHz ±50ppm -40°C ~ 85°C
PBG110005 Diodes Incorporated SaRonix-eCera™ PB 161.133MHz ±50ppm -40°C ~ 85°C
PD5000001 Diodes Incorporated SaRonix-eCera™ PD 50MHz ±50ppm -40°C ~ 85°C
PD6250002 Diodes Incorporated SaRonix-eCera™ PD 62.5MHz ±50ppm -40°C ~ 85°C
PD7500002 Diodes Incorporated SaRonix-eCera™ PD 75MHz ±50ppm -40°C ~ 85°C
PD7770002 Diodes Incorporated SaRonix-eCera™ PD 77.76MHz ±50ppm -40°C ~ 85°C
PDA000001 Diodes Incorporated SaRonix-eCera™ PD 100MHz ±50ppm -40°C ~ 85°C
PDA620001 Diodes Incorporated SaRonix-eCera™ PD 106.25MHz ±50ppm -40°C ~ 85°C
PDC500001 Diodes Incorporated SaRonix-eCera™ PD 125MHz ±50ppm -40°C ~ 85°C
PDF000002 Diodes Incorporated SaRonix-eCera™ PD 150MHz ±50ppm -40°C ~ 85°C
PDF550001 Diodes Incorporated SaRonix-eCera™ PD 155.52MHz ±50ppm -40°C ~ 85°C
PDF930001 Diodes Incorporated SaRonix-eCera™ PD 159.375MHz ±50ppm -40°C ~ 85°C
PDG110001 Diodes Incorporated SaRonix-eCera™ PD 161.133MHz ±50ppm -40°C ~ 85°C
PXA000012 Diodes Incorporated SaRonix-eCera™ PX 100MHz ±50ppm -40°C ~ 85°C
PXA620004 Diodes Incorporated SaRonix-eCera™ PX 106.25MHz ±50ppm -40°C ~ 85°C
PXA620005 Diodes Incorporated SaRonix-eCera™ PX 106.25MHz ±50ppm -40°C ~ 85°C
PXC500011 Diodes Incorporated SaRonix-eCera™ PX 125MHz ±50ppm -40°C ~ 85°C

NX51SA系列小体积晶振尺寸5032mm晶振,NX51500001,可编程晶体振荡器,ECERA差分晶振


NX51SA CMOS 3.32.5 5 到 250 <1 5.0 x 3.2 x 1.5 6 5.0mmx3.2mm CMOS 2 频可编程 XO
NX51SB CMOS 3.32.5 5 到 250 <1 5.0 x 3.2 x 1.5 6 5.0mmx3.2mm CMOS差分晶体振荡器
NX52SA LVPECL 3.32.5 5 到 1000 <1 5.0 x 3.2 x 1.5 6 5.0mmx3.2mm LVPECL 2频可编程XO
NX52SB LVPECL 3.32.5 5 到 1000 <1 5.0 x 3.2 x 1.5 6 5.0mmx3.2mm LVPECL 4频可编程XO
NX53SA LVDS 3.32.5 5 到 1000 <1 5.0 x 3.2 x 1.5 6 5.0mmx3.2mm LVDS 2 频可编程 XO
NX53SB LVDS 3.32.5 5 到 1000 <1 5.0 x 3.2 x 1.5 6 5.0mmx3.2mm LVDS 4 频可编程 XO
NX54SA HCSL 3.32.5 5 至 212.5 <1 5.0 x 3.2 x 1.5 6 5.0mmx3.2mm HCSL 2频可编程XO
NX54SB HCSL 3.32.5 5 至 212.5 <1 5.0 x 3.2 x 1.5 6 5.0mmx3.2mm HCSL 四频可编程XO

PXF620011 Diodes Incorporated SaRonix-eCera™ PX 156.25MHz ±50ppm -40°C ~ 85°C
PXF620012 Diodes Incorporated SaRonix-eCera™ PX 156.25MHz ±50ppm -40°C ~ 85°C
SNI750005 Diodes Incorporated SaRonix-eCera™ SN 187.5MHz ±50ppm -20°C ~ 70°C
SNK000006 Diodes Incorporated SaRonix-eCera™ SN 200MHz ±50ppm -20°C ~ 70°C
SNL250004 Diodes Incorporated SaRonix-eCera™ SN 212.5MHz ±50ppm -20°C ~ 70°C
PD6250001 Diodes Incorporated SaRonix-eCera™ PD 62.5MHz ±25ppm -20°C ~ 70°C
PDA000003 Diodes Incorporated SaRonix-eCera™ PD 100MHz ±25ppm -20°C ~ 70°C
PDA620002 Diodes Incorporated SaRonix-eCera™ PD 106.25MHz ±25ppm -20°C ~ 70°C
PDC500002 Diodes Incorporated SaRonix-eCera™ PD 125MHz ±25ppm -20°C ~ 70°C
PXA000011 Diodes Incorporated SaRonix-eCera™ PX 100MHz ±25ppm -20°C ~ 70°C
PXC500008 Diodes Incorporated SaRonix-eCera™ PX 125MHz ±25ppm -20°C ~ 70°C
PXC500009 Diodes Incorporated SaRonix-eCera™ PX 125MHz ±25ppm -20°C ~ 70°C
PXF550003 Diodes Incorporated SaRonix-eCera™ PX 155.52MHz ±25ppm -20°C ~ 70°C
PXF620010 Diodes Incorporated SaRonix-eCera™ PX 156.25MHz ±25ppm -20°C ~ 70°C
SQF620001 Diodes Incorporated SaRonix-eCera™ SQ 156.25MHz ±25ppm -20°C ~ 70°C
PBF550006 Diodes Incorporated SaRonix-eCera™ PB 155.52MHz ±20ppm -20°C ~ 70°C
PBF620010 Diodes Incorporated SaRonix-eCera™ PB 156.25MHz ±20ppm -20°C ~ 70°C
PBG110004 Diodes Incorporated SaRonix-eCera™ PB 161.133MHz ±20ppm -20°C ~ 70°C
PDF550002 Diodes Incorporated SaRonix-eCera™ PD 155.52MHz ±20ppm -20°C ~ 70°C
PDF620002 Diodes Incorporated SaRonix-eCera™ PD 156.25MHz ±20ppm -20°C ~ 70°C
PDG110002 Diodes Incorporated SaRonix-eCera™ PD 161.133MHz ±20ppm -20°C ~ 70°C
PXA000009 Diodes Incorporated SaRonix-eCera™ PX 100MHz ±20ppm -20°C ~ 70°C
JX5021E0312.500000 Diodes Incorporated SaRonix-eCera™ JX 312MHz ±50ppm -40°C ~ 85°C
FN9830010 Diodes Incorporated SaRonix-eCera™ FN 98.304MHz ±50ppm -20°C ~ 70°C
FNA000074 Diodes Incorporated SaRonix-eCera™ FN 100MHz ±25ppm -40°C ~ 85°C

NX51SA系列小体积晶振尺寸5032mm晶振,NX51500001,可编程晶体振荡器,ECERA差分晶振

我们提供一流的晶体(Xtal)和晶体振荡器(XO),针对您的设计要求进行了优化。
我们广泛的晶体和晶体振荡器提供:
输出频率范围从kHz到GHz
完整的输出组合:CMOS、CML、LVPECL、LVDS、削波正弦波和HCSL
完整的XO振荡器产品组合,包括标准XO、VCXO、TCXO到超低抖动和高温XO
从1.0V到3.3V的多个电压范围(甚至是传统的 5V)
大量SMT封装选项组合,可满足您的封装要求
