爱普生所推出的车载应用小体积2016封装晶体振荡器,自带电压1.8V、2.8V、3V、3.3V具有Standby(ST)功能,长2.0mm宽1.6mm厚度为0.7mm,拥有如此精细体积,大大的节省了产品空间位置,并且丝毫不会影响到产品的功能性.

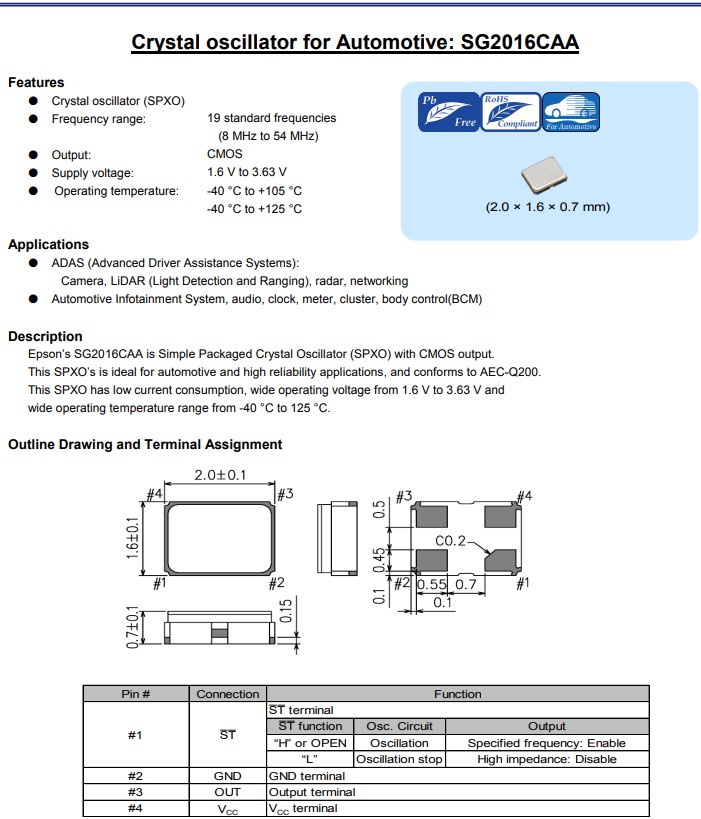

爱普生晶振SG2016CAA是具有CMOS输出的简单封装晶体振荡器(SPXO)，石英晶体振荡器频率可选范围在8MHZ至54MHZ之间.完全符合AEC-Q200要求,爱普生2016mm振荡器应用于车载中其工作温度可以达到-40℃至+125℃,频率稳定度控制在±50x10-6,在产品中使用振荡启动时间为3ms Max.
SG2016CAA晶振编码X1G005341001500拥有车载应用小体积2016封装晶体振荡器
                         产品编码
|
  型号
|
  频率
|
  有源晶体
|
  输出波
|
 电源电压
|
| X1G005341000200 | SG2016CAA | 27.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341000400 | SG2016CAA | 40.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341000900 | SG2016CAA | 25.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341001100 | SG2016CAA | 24.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341001300 | SG2016CAA | 27.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341001500 | SG2016CAA | 48.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341001700 | SG2016CAA | 12.288000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341001900 | SG2016CAA | 48.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341002400 | SG2016CAA | 20.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341002700 | SG2016CAA | 24.576000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341002900 | SG2016CAA | 24.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341003400 | SG2016CAA | 50.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341003500 | SG2016CAA | 25.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341003700 | SG2016CAA | 54.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341003800 | SG2016CAA | 54.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341004100 | SG2016CAA | 8.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341004400 | SG2016CAA | 12.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341004500 | SG2016CAA | 24.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341004600 | SG2016CAA | 33.333300MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341005000 | SG2016CAA | 50.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341005100 | SG2016CAA | 14.745600MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341005300 | SG2016CAA | 33.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341005400 | SG2016CAA | 16.666600MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341005600 | SG2016CAA | 8.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341005700 | SG2016CAA | 10.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341005800 | SG2016CAA | 12.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341005900 | SG2016CAA | 16.666600MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341006000 | SG2016CAA | 22.579200MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341006100 | SG2016CAA | 11.289600MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
| X1G005341006200 | SG2016CAA | 20.000000MHz | 2.00x1.60x0.70mm | CMOS | 1.600 to 3.630V |
SG2016CAA晶振编码X1G005341001500拥有车载应用小体积2016封装晶体振荡器
小型SMD进口有源晶体,从最初超大体积到现在7050mm,6035mm,5032mm,3225mm,2520mm体积,有着翻天覆地的改变,体积的变小也试产品带来了更高的稳定性能,接缝密封石英晶体振荡器,精度高,覆盖频率范围宽的特点.
随着汽车电子的发展,各大进口晶振品牌纷纷看向智能汽车车载系统市场,日本进口晶振NDK品牌以及KDS品牌相继推出了超小体积晶体振荡器以应对智能汽车发展.爱普生晶体元器件将进一步致力于小型,高稳定,高精度晶体元器件的开发,为现有的应用程序以及生活新蓝图开拓广阔前景. 爱普生晶振在KHZ,MHZ,以及GHZ上都有重大突破,使得爱普生拓优科梦的晶体元器件已以23%的市场占有率位于业界第一.
