12.000MHzMF/20/30/-10+60/18pF/60R,6035mm,EUROQUARTZ欧洲石英，英国进口晶振，EUROQUARTZ欧洲石英晶振，型号：MF系列，编码为：12.000MHzMF/20/30/-10+60/18pF/60R，频率为：12.000MHz，四脚贴片晶振，较准公差：±20ppm，温度稳定性：±30ppm，工作温度范围：-0℃至+60℃，负载电容：18pF，等效串联电阻：60R，小体积晶振尺寸：6.0x3.5mm，微型表面安装的MF晶体包括一个陶瓷基板和密封的金属盖，紧凑的尺寸和低质量与高规格晶体的结合，石英晶振，石英晶体谐振器，无源晶振，6035晶振，无铅晶振。具有超小性，轻薄型，高精度，高抗冲击和振动性，高性能，高可靠性，高品质等特点，适用于：高密度应用，PDA、GPS、PCMCIA，手持设备和通信设备的理想选择。
12.000MHzMF/20/30/-10+60/18pF/60R,6035mm,EUROQUARTZ欧洲石英,参数表
Frequency Range
AT-Cut Fundamental:
12.000MHz
AT-Cut 3rd Overtone:
40.0MHz to 125.0MHz
Calibration Tolerance at 25ºC*:
from ±5ppm
(±10, ±20 or ±30ppm standard)
Frequency stability
-10° to +60°C
from ±5ppm
-20° to +70°C
from ±10ppm (±5ppm ask)
-40° to +85°C
from ±15ppm
Storage Temperature:
-50°~+105°C
Equivalent Series Resistance:
See table
Load Capacitance (CL):
Series or from 8pF to 32pF
(Customer specified CL)
Ageing:
<±3ppm per year at +25°C
Drive level:
10μW typ. 100μW max.
Reflow Soldering:
10s maximum, 260°C twice
or 180s at 230°C, once.
Package:
Ceramic base, metal lid,
Hermetic seal
Packaging:
16mm EIA tape and reel
1000 pieces per reel

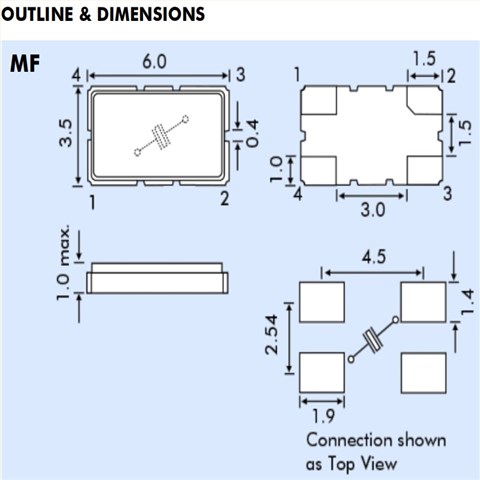

12.000MHzMF/20/30/-10+60/18pF/60R,6035mm,EUROQUARTZ欧洲石英,尺寸图
