536BB150M000DGR,思佳讯LVDS高精度晶振,路由器6G晶振

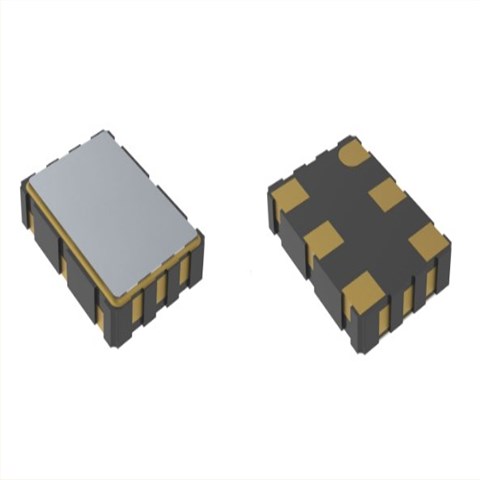

536BB150M000DGR,思佳讯LVDS高精度晶振,路由器6G晶振，进口晶振，Skyworks思佳讯晶振，型号：Si536，编码为：536BB150M000DGR，频率为：150.000MHz，电压3.3V，小体积晶振尺寸：7.0x5.0mm封装，LVDS输出差分贴片晶振，六脚贴片晶振，石英晶振，有源晶振，石英晶体振荡器。Si536 XO利用天空解决方案的先进DSPLL®电路提供一个高速差分频率的超低抖动时钟。与传统的XO不同，每个输出频率都需要一个不同的晶体，而Si536使用一个固定的晶体来提供一个大范围的输出频率。这种基于集成电路的方法允许晶体谐振器提供特殊的频率稳定性和可靠性。此外，DSPLL时钟合成提供了优越的电源噪声抑制，简化了在通信系统中通常发现的噪声环境中产生低抖动时钟的任务。有源晶振Si536 IC的XO在装运时被工厂编程，从而消除了与自定义振荡器相关的长时间的前置时间。应用于：移动通讯，物联网，无线蓝牙，交换机/路由器，光纤通道/SAS/存储，企业服务器，网络，电信，光模块，北斗导航等应用。

536BB150M000DGR,思佳讯LVDS高精度晶振,路由器6G晶振，进口晶振，Skyworks思佳讯晶振，型号：Si536，编码为：536BB150M000DGR，频率为：150.000MHz，电压3.3V，小体积晶振尺寸：7.0x5.0mm封装，LVDS输出差分贴片晶振，六脚贴片晶振，石英晶振，有源晶振，石英晶体振荡器。Si536 XO利用天空解决方案的先进DSPLL®电路提供一个高速差分频率的超低抖动时钟。与传统的XO不同，每个输出频率都需要一个不同的晶体，而Si536使用一个固定的晶体来提供一个大范围的输出频率。这种基于集成电路的方法允许晶体谐振器提供特殊的频率稳定性和可靠性。此外，DSPLL时钟合成提供了优越的电源噪声抑制，简化了在通信系统中通常发现的噪声环境中产生低抖动时钟的任务。有源晶振Si536 IC的XO在装运时被工厂编程，从而消除了与自定义振荡器相关的长时间的前置时间。应用于：移动通讯，物联网，无线蓝牙，交换机/路由器，光纤通道/SAS/存储，企业服务器，网络，电信，光模块，北斗导航等应用。

536BB150M000DGR,思佳讯LVDS高精度晶振,路由器6G晶振，参数表

Parameter

Symbol

Test Condition

Min

Typ

Max

Unit

Nominal Frequency1

fO

LVPECL/LVDS

150

MHz

Initial Accuracy

fi

Measured at +25 °C at time of shipping

—

±1.5

—

ppm

Temperature Stability1,2

–7 –20

— —

+7 +20

ppm

Aging

fa

Frequency drift over first year

±3

ppm

Frequency drift over 20 year life

—

—

±10

ppm

Total Stability2

Temp stability = ±20 ppm

—

—

±31.5

ppm

Temp stability = ±7 ppm

—

—

20

Powerup Time3

tOSC

TA= –40°C — +85°C

10

ms

536BB150M000DGR,思佳讯LVDS高精度晶振,路由器6G晶振，尺寸图

536BB150M000DGR,思佳讯LVDS高精度晶振,路由器6G晶振

产品特点：

可选频率从100 MHz到312.5MHz
具有卓越抖动性能和高功率电源噪声抑制的第三代DSPLL®
频率稳定性是SAW振荡器的3倍
可提供LVPECL和LVDS输出振荡器
3.3V和2.5V电源选项
行业标准5 x 7 mm封装和引脚
无铅/符合RoHS

晶振料号	品牌	系列	频率	输出	电压
536BB125M000DG	Skyworks晶振	Si536	125 MHz	LVDS	3.3V
536FB125M000DG	Skyworks晶振	Si536	125 MHz	LVDS	2.5V
536FB156M250DG	Skyworks晶振	Si536	156.25 MHz	LVDS	2.5V
536AB156M250DG	Skyworks晶振	Si536	156.25 MHz	LVPECL	3.3V
536BB156M250DG	Skyworks晶振	Si536	156.25 MHz	LVDS	3.3V
536AC125M000DG	Skyworks晶振	Si536	125 MHz	LVPECL	3.3V
536AC156M250DG	Skyworks晶振	Si536	156.25 MHz	LVPECL	3.3V
536BB000172DGR	Skyworks晶振	Si536	166.6286 MHz	LVDS	3.3V
536BB000175DGR	Skyworks晶振	Si536	167.3316 MHz	LVDS	3.3V
536BB106M250DGR	Skyworks晶振	Si536	106.25 MHz	LVDS	3.3V
536BB150M000DGR	Skyworks晶振	Si536	150 MHz	LVDS	3.3V
536BB155M520DGR	Skyworks晶振	Si536	155.52 MHz	LVDS	3.3V
536BB159M375DGR	Skyworks晶振	Si536	159.375 MHz	LVDS	3.3V
536BC000172DGR	Skyworks晶振	Si536	166.6286 MHz	LVDS	3.3V
536BC000175DGR	Skyworks晶振	Si536	167.3316 MHz	LVDS	3.3V
536BC000292DGR	Skyworks晶振	Si536	161.1328 MHz	LVDS	3.3V
536BC000305DGR	Skyworks晶振	Si536	156.2578 MHz	LVDS	3.3V
536BC106M250DGR	Skyworks晶振	Si536	106.25 MHz	LVDS	3.3V
536BC155M520DGR	Skyworks晶振	Si536	155.52 MHz	LVDS	3.3V
536BC159M375DGR	Skyworks晶振	Si536	159.375 MHz	LVDS	3.3V
536BC312M500DGR	Skyworks晶振	Si536	312.5 MHz	LVDS	3.3V
536FB000172DGR	Skyworks晶振	Si536	166.6286 MHz	LVDS	2.5V
536FB000175DGR	Skyworks晶振	Si536	167.3316 MHz	LVDS	2.5V
536FB000292DGR	Skyworks晶振	Si536	161.1328 MHz	LVDS	2.5V
536FB000305DGR	Skyworks晶振	Si536	156.2578 MHz	LVDS	2.5V
536FB106M250DGR	Skyworks晶振	Si536	106.25 MHz	LVDS	2.5V
536FB150M000DGR	Skyworks晶振	Si536	150 MHz	LVDS	2.5V
536FB155M520DGR	Skyworks晶振	Si536	155.52 MHz	LVDS	2.5V
536FB159M375DGR	Skyworks晶振	Si536	159.375 MHz	LVDS	2.5V
536FC000172DGR	Skyworks晶振	Si536	166.6286 MHz	LVDS	2.5V
536FC000175DGR	Skyworks晶振	Si536	167.3316 MHz	LVDS	2.5V
536FC000292DGR	Skyworks晶振	Si536	161.1328 MHz	LVDS	2.5V
536FC000305DGR	Skyworks晶振	Si536	156.2578 MHz	LVDS	2.5V
536FC000338DGR	Skyworks晶振	Si536	338 kHz	LVDS	2.5V
536FC106M250DGR	Skyworks晶振	Si536	106.25 MHz	LVDS	2.5V
536FC150M000DGR	Skyworks晶振	Si536	150 MHz	LVDS	2.5V
536FC155M520DGR	Skyworks晶振	Si536	155.52 MHz	LVDS	2.5V
536FC156M250DGR	Skyworks晶振	Si536	156.25 MHz	LVDS	2.5V
536FC159M375DGR	Skyworks晶振	Si536	159.375 MHz	LVDS	2.5V
536FC212M500DGR	石英晶振	Si536	212.5 MHz	LVDS	2.5V
536FC312M500DGR	Skyworks晶振	Si536	312.5 MHz	LVDS	2.5V
536FC159M375DG	Skyworks晶振	Si536	159.375 MHz	LVDS	2.5V
536FC212M500DG	Skyworks晶振	Si536	212.5 MHz	LVDS	2.5V
536FC312M500DG	Skyworks晶振	Si536	312.5 MHz	LVDS	2.5V
536BB000172DG	Skyworks晶振	Si536	166.6286 MHz	LVDS	3.3V
536BB000175DG	Skyworks晶振	Si536	167.3316 MHz	LVDS	3.3V
536BB106M250DG	Skyworks晶振	Si536	106.25 MHz	LVDS	3.3V
536BB150M000DG	Skyworks晶振	Si536	150 MHz	LVDS	3.3V
536BB155M520DG	Skyworks晶振	Si536	155.52 MHz	LVDS	3.3V
536BB159M375DG	Skyworks晶振	Si536	159.375 MHz	LVDS	3.3V
536BC000172DG	Skyworks晶振	Si536	166.6286 MHz	LVDS	3.3V
536BC000175DG	Skyworks晶振	Si536	167.3316 MHz	LVDS	3.3V
536BC000292DG	Skyworks晶振	Si536	161.1328 MHz	LVDS	3.3V
536BC000305DG	Skyworks晶振	Si536	156.2578 MHz	LVDS	3.3V
536BC106M250DG	Skyworks晶振	Si536	106.25 MHz	LVDS	3.3V
536BC155M520DG	Skyworks晶振	Si536	155.52 MHz	LVDS	3.3V
536BC159M375DG	Skyworks晶振	Si536	159.375 MHz	LVDS	3.3V
536BC312M500DG	Skyworks晶振	Si536	312.5 MHz	LVDS	3.3V
536FB000172DG	Skyworks晶振	Si536	166.6286 MHz	LVDS	2.5V
536FB000175DG	Skyworks晶振	Si536	167.3316 MHz	LVDS	2.5V
536FB000292DG	Skyworks晶振	Si536	161.1328 MHz	LVDS	2.5V
536FB000305DG	Skyworks晶振	Si536	156.2578 MHz	LVDS	2.5V
536FB106M250DG	Skyworks晶振	Si536	106.25 MHz	LVDS	2.5V
536FB150M000DG	Skyworks晶振	Si536	150 MHz	LVDS	2.5V
536FB155M520DG	Skyworks晶振	Si536	155.52 MHz	LVDS	2.5V
536FB159M375DG	Skyworks晶振	Si536	159.375 MHz	LVDS	2.5V
536FC000172DG	Skyworks晶振	Si536	166.6286 MHz	LVDS	2.5V
536FC000175DG	Skyworks晶振	Si536	167.3316 MHz	LVDS	2.5V
536FC000292DG	Skyworks晶振	Si536	161.1328 MHz	LVDS	2.5V
536FC000305DG	Skyworks晶振	Si536	156.2578 MHz	LVDS	2.5V
536FC000338DG	Skyworks晶振	Si536	338 kHz	LVDS	2.5V
536FC106M250DG	Skyworks晶振	Si536	106.25 MHz	LVDS	2.5V
536FC150M000DG	Skyworks晶振	Si536	150 MHz	LVDS	2.5V
536FC155M520DG	Skyworks晶振	Si536	155.52 MHz	LVDS	2.5V
536FC156M250DG	Skyworks晶振	Si536	156.25 MHz	LVDS	2.5V
536AB000335DGR	Skyworks晶振	Si536	156.2539 MHz	LVPECL	3.3V
536AB100M000DGR	Skyworks晶振	Si536	100 MHz	LVPECL	3.3V
536AB125M000DGR	Skyworks晶振	Si536	125 MHz	LVPECL	3.3V
536AB155M520DGR	Skyworks晶振	Si536	155.52 MHz	LVPECL	3.3V
536AB156M250DGR	Skyworks晶振	Si536	156.25 MHz	LVPECL	3.3V
536BB000292DGR	Skyworks晶振	Si536	161.1328 MHz	LVDS	3.3V
536BB000305DGR	Skyworks晶振	Si536	156.2578 MHz	LVDS	3.3V
536BB000335DGR	Skyworks晶振	Si536	156.2539 MHz	LVDS	3.3V
536BB100M000DGR	Skyworks晶振	Si536	100 MHz	LVDS	3.3V
536BB125M000DGR	Skyworks晶振	Si536	125 MHz	LVDS	3.3V
536BB156M250DGR	Skyworks晶振	Si536	156.25 MHz	LVDS	3.3V
536EB000119DGR	Skyworks晶振	Si536	167.331646 MHz	LVPECL	2.5V
536EB100M000DGR	Skyworks晶振	Si536	100 MHz	LVPECL	2.5V
536EB125M000DGR	Skyworks晶振	Si536	125 MHz	LVPECL	2.5V
536EB156M250DGR	Skyworks晶振	Si536	156.25 MHz	LVPECL	2.5V
536FB100M000DGR	Skyworks晶振	Si536	100 MHz	LVDS	2.5V
536FB125M000DGR	Skyworks晶振	Si536	125 MHz	LVDS	2.5V
536FB156M250DGR	Skyworks晶振	Si536	156.25 MHz	LVDS	2.5V
536AB000335DG	Skyworks晶振	Si536	156.2539 MHz	LVPECL	3.3V
536AB000172DG	Skyworks晶振	Si536	166.6286 MHz	LVPECL	3.3V
536AB000175DG	Skyworks晶振	Si536	167.3316 MHz	LVPECL	3.3V
536AB000292DG	Skyworks晶振	Si536	161.1328 MHz	LVPECL	3.3V
536AB000305DG	Skyworks晶振	Si536	156.2578 MHz	LVPECL	3.3V
536AB106M250DG	Skyworks晶振	Si536	106.25 MHz	LVPECL	3.3V
536AB150M000DG	Skyworks晶振	Si536	150 MHz	LVPECL	3.3V
536AB159M375DG	Skyworks晶振	Si536	159.375 MHz	LVPECL	3.3V
536AB312M500DG	Skyworks晶振	Si536	312.5 MHz	LVPECL	3.3V
536AC000172DG	Skyworks晶振	Si536	166.6286 MHz	LVPECL	3.3V
