571AFA000133DG/思佳讯6GWIFI模块晶振/Si571压控有源振荡器

571AFA000133DG/思佳讯6GWIFI模块晶振/Si571压控有源振荡器571AFA000133DG/思佳讯6GWIFI模块晶振/Si571压控有源振荡器

产品简介

571AFA000133DG/思佳讯6GWIFI模块晶振/Si571压控有源振荡器,尺寸7.0×5.0mm,频率500MHZ,输出逻辑LVPECL,频率稳定性50ppm,Skyworks差分晶振,进口有源晶振,思佳讯差分晶振,八脚差分晶振,LVPECL输出晶振,LVPECL差分晶振,差分晶体振荡器,LVPECL压控晶振,差分压控振荡器,压控晶体振荡器,贴片差分晶振,有源差分晶振,石英差分晶振,石英压控晶振,7050mm压控晶振,高频差分晶振,低功耗差分晶振,低电压差分晶振,低抖动差分晶振,低相位差分晶振,高品质差分晶振,高性能差分晶振,6GWIFI差分晶振,室内基站差分晶振,仪器设备差分晶振,测试测量专用差分晶振,光学模块差分晶振,具有低抖动低相位的特点。

SPXO振荡器产品适用于范围比较广泛,尤其适合用于6GWIFI,室内基站振,仪器设备,测试测量,光学模块等应用场景.571AFA000133DG/思佳讯6GWIFI模块晶振/Si571压控有源振荡器.

产品详情

Japan1

571AFA000133DG/思佳讯6GWIFI模块晶振/Si571压控有源振荡器,尺寸7.0×5.0mm,频率500MHZ,输出逻辑LVPECL,频率稳定性50ppm,Skyworks差分晶振,进口有源晶振,思佳讯差分晶振,八脚差分晶振,LVPECL输出晶振,LVPECL差分晶振,差分晶体振荡器,LVPECL压控晶振,差分压控振荡器,压控晶体振荡器,贴片差分晶振,有源差分晶振,石英差分晶振,石英压控晶振,7050mm压控晶振,高频差分晶振,低功耗差分晶振,低电压差分晶振,低抖动差分晶振,低相位差分晶振,高品质差分晶振,高性能差分晶振,6GWIFI差分晶振,室内基站差分晶振,仪器设备差分晶振,测试测量专用差分晶振,光学模块差分晶振,具有低抖动低相位的特点。

SPXO振荡器产品适用于范围比较广泛,尤其适合用于6GWIFI,室内基站振,仪器设备,测试测量,光学模块等应用场景.571AFA000133DG/思佳讯6GWIFI模块晶振/Si571压控有源振荡器.Japan2571AFA000133DG/思佳讯6GWIFI模块晶振/Si571压控有源振荡器参数表

Parameter Symbol Test Condition Min Typ Max Unit
Supply Voltage1 VDD 3.3 V option 2.97 3.3 3.63 V
2.5 V option 2.25 2.5 2.75
1.8 V option 1.71 1.8 1.89
Supply Current IDD Output enabled
LVPECL
CML
LVDS
CMOS



120
108
99
90
130
117
108
98
mA
TriState mode 60 75
Output Enable (OE)2,
Serial Data (SDA),
Serial Clock (SCL)
VIH 0.75 x VDD V
VIL 0.5
Operating Temperature Range TA –40 85 ºC
Parameter Symbol Test Condition Min Typ Max Unit
Control Voltage Tuning Slope1,2,3 KV VC10 to 90% of VDD 33
45
90
135
180
356
ppm/V
Control Voltage Linearity4 LVC BSL –5 ±1 +5 %
Incremental –10 ±5 +10
Modulation Bandwidth BW 9.3 10.0 10.7 kHz
VCInput Impedance ZVC 500
Nominal Control Voltage5 VCNOM @ fO VDD/2 V
Control Voltage Tuning Range VC 0 VDD V
Parameter Symbol Test Condition Min Typ Max Unit
Programmable Frequency
Range1,2
fO LVPECL/LVDS/CML
500
MHz
CMOS 10 160
Temperature Stability1,3 TA= –40 to +85 ºC –7
–20
–50
–100



7
+20
+50
+100
ppm
Initial Accuracy 1.5 ppm
Aging fa Frequency drift over first year ±3 ppm
Frequency drift over 20-year life ±10 ppm
Total Stability Temp stability = ±7 ppm ±20 ppm
Temp stability = ±20 ppm ±31.5 ppm
Temp stability = ±50 ppm ±61.5 ppm
Absolute Pull Range1,3 APR ±12 ±375 ppm
Power up Time4 tOSC 10 ms

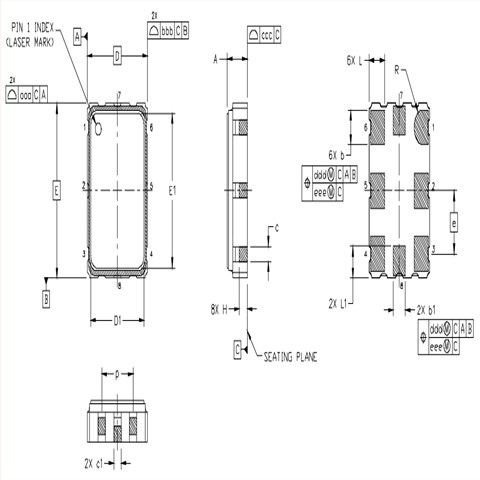

Japan3571AFA000133DG/思佳讯6GWIFI模块晶振/Si571压控有源振荡器 尺寸图Si570 Si571 571AFA000133DG/思佳讯6GWIFI模块晶振/Si571压控有源振荡器

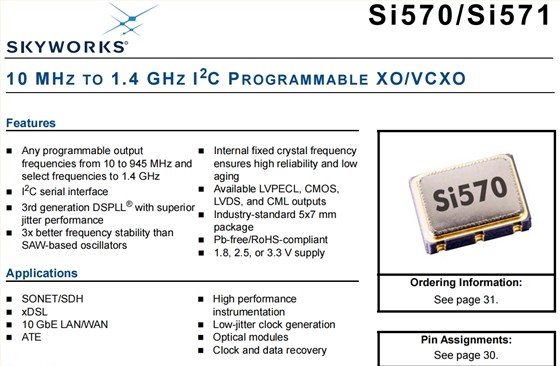

振荡器产品特性:

任何可编程输出频率为10至945MHz

选择频率至1.4 GHz

2C串行接口

具有卓越性能的第三代DSPLL®抖动性能

频率稳定性比SAW振荡器

内部固定晶体频率确保高可靠性和低成本变老

可用LVPECL、CMOS、LVDS和CML输出

行业标准5x7mm包裹

无铅/符合RoHS

1.8、2.5或3.3 V电源

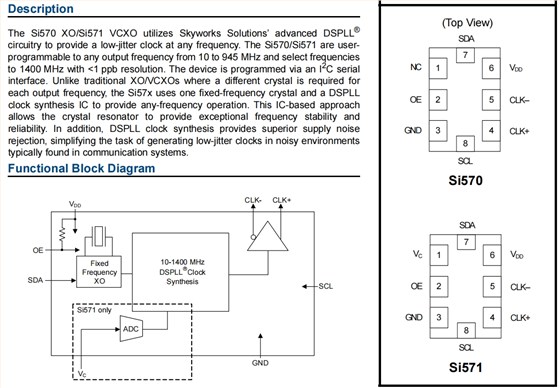

Si570 Si571 1Si570 Si571 2

Mfr Part # Mfr Description Series Frequency Output
571ACA000141DG Skyworks振荡器 XTAL OSC VCXO 56.3200MHZ LVPECL Si571 56.32 MHz LVPECL
571ACA000148DG Skyworks振荡器 XTAL OSC VCXO 24.5760MHZ LVPECL Si571 24.576 MHz LVPECL
571ACA000206DG Skyworks振荡器 XTAL OSC VCXO 321.4000MHZ LVPECL Si571 321.4 MHz LVPECL
571ACA000209DG Skyworks振荡器 XTAL OSC VCXO 14.1000MHZ LVPECL Si571 14.1 MHz LVPECL
571ADA000107DG Skyworks振荡器 XTAL OSC VCXO 10.0000MHZ LVPECL Si571 10 MHz LVPECL
571ADA000112DG Skyworks振荡器 XTAL OSC VCXO 10.0000MHZ LVPECL Si571 10 MHz LVPECL
571ADA000382DG Skyworks振荡器 XTAL OSC VCXO 1.3750GHZ LVPECL Si571 1.375 GHz LVPECL
571ADA001549DG Skyworks振荡器 XTAL OSC VCXO 993.409691MHZ LVPE Si571 993.409691 MHz LVPECL
571ADA001841DG Skyworks振荡器 XTAL OSC VCXO 802.5000MHZ LVPECL Si571 802.5 MHz LVPECL
571AFA000122DG Skyworks振荡器 XTAL OSC VCXO 1.0000GHZ LVPECL Si571 1 GHz LVPECL
571AFA000133DG Skyworks振荡器 XTAL OSC VCXO 500.0000MHZ LVPECL Si571 500 MHz LVPECL
571BCA000107DG Skyworks振荡器 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS
571BCA000112DG Skyworks振荡器 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS
571BCA000121DG Skyworks振荡器 XTAL OSC VCXO 100.0000MHZ LVDS Si571 100 MHz LVDS
571BCA000395DG Skyworks振荡器 XTAL OSC VCXO 904.6400MHZ LVDS Si571 904.64 MHz LVDS
571BCA000675DG Skyworks振荡器 XTAL OSC VCXO 51.8400MHZ LVDS Si571 51.84 MHz LVDS
571BDA000107DG Skyworks振荡器 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS
571BDA001064DG Skyworks振荡器 XTAL OSC VCXO 589.8240MHZ LVDS Si571 589.824 MHz LVDS
571BDA001122DG Skyworks振荡器 XTAL OSC VCXO 1.4000GHZ LVDS SMD Si571 1.4 GHz LVDS
571BDA001628DG Skyworks振荡器 XTAL OSC VCXO 156.2500MHZ LVDS Si571 156.25 MHz LVDS
571BDA001721DG Skyworks振荡器 XTAL OSC VCXO 830.0000MHZ LVDS Si571 830 MHz LVDS
571ADA000164DG Skyworks振荡器 XTAL OSCILLATOR Si571 400 MHz LVPECL
571ADA000233DG Skyworks振荡器 XTAL OSCILLATOR Si571 10 MHz LVPECL
571ADA001971DG Skyworks振荡器 XTAL OSCILLATOR Si571 873.51542 MHz LVPECL
571ECA000112DG Skyworks振荡器 XTAL OSCILLATOR Si571 10 MHz LVPECL
571ECA000399DG Skyworks振荡器 XTAL OSCILLATOR Si571 10 MHz LVPECL
571ECA002033DG Skyworks振荡器 XTAL OSCILLATOR Si571 10 MHz LVPECL
571FFA000161DG Skyworks振荡器 XTAL OSCILLATOR Si571 491.52 MHz LVDS
571ADA000106DG Skyworks振荡器 DIFFERENTIAL/SINGLE-ENDED Si571 155.52 MHz LVPECL
571ACA000106DG Skyworks振荡器 DIFFERENTIAL/SINGLE-ENDED Si571 155.52 MHz LVPECL
571ADA002143DG Skyworks振荡器 DIFFERENTIAL/SINGLE-ENDED Si571 444 MHz LVPECL
571BDA000115DG Skyworks振荡器 DIFFERENTIAL/SINGLE-ENDED I2C PR Si571 125 MHz LVDS
571BDA000112DG Skyworks振荡器 DIFFERENTIAL/SINGLE-ENDED I2C PR Si571 10 MHz LVDS
571ADA000991DG Skyworks振荡器 DIFFERENTIAL/SINGLE-ENDED I2C PR Si571 135 MHz LVPECL
571ADA000115DG Skyworks振荡器 DIFFERENTIAL/SINGLE-ENDED I2C PR Si571 125 MHz LVPECL
571BDA000436DG Skyworks振荡器 DIFFERENTIAL/SINGLE-ENDED I2C PR Si571 10 MHz LVDS
571BGA000107DGR Skyworks振荡器 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS
571BGA000112DGR Skyworks振荡器 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS
571BGA000121DGR Skyworks振荡器 XTAL OSC VCXO 100.0000MHZ LVDS Si571 100 MHz LVDS
571BGA000122DGR Skyworks振荡器 XTAL OSC VCXO 1.0000GHZ LVDS SMD Si571 1 GHz LVDS
571BGA001666DGR Skyworks振荡器 XTAL OSC VCXO 125.0000MHZ LVDS Si571 125 MHz LVDS
571BHA000107DGR Skyworks振荡器 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS
571BHA000170DGR Skyworks振荡器 XTAL OSC VCXO 915.0000MHZ LVDS Si571 915 MHz LVDS
571BHA000278DGR Skyworks振荡器 XTAL OSC VCXO 146.5200MHZ LVDS Si571 146.52 MHz LVDS
571BJA000107DGR Skyworks振荡器 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS
571BJA000112DGR Skyworks振荡器 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS
571BJA000118DGR Skyworks振荡器 XTAL OSC VCXO 156.2500MHZ LVDS Si571 156.25 MHz LVDS
571BJA000372DGR Skyworks振荡器 XTAL OSC VCXO 800.0000MHZ LVDS Si571 800 MHz LVDS
571BJA001082DGR Skyworks振荡器 XTAL OSC VCXO 320.0000MHZ LVDS Si571 320 MHz LVDS
571BJA001118DGR Skyworks振荡器 XTAL OSC VCXO 784.247202MHZ LVDS Si571 784.247202 MHz LVDS
571BJA001898DGR Skyworks振荡器 XTAL OSC VCXO 102.4000MHZ LVDS Si571 102.4 MHz LVDS
571BMA000107DGR Skyworks振荡器 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS
571BMA000112DGR Skyworks振荡器 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS
571BMA000118DGR Skyworks晶振 XTAL OSC VCXO 156.2500MHZ LVDS Si571 156.25 MHz LVDS
571BMA000121DGR Skyworks振荡器 XTAL OSC VCXO 100.0000MHZ LVDS Si571 100 MHz LVDS
571BMA000122DGR Skyworks振荡器 XTAL OSC VCXO 1.0000GHZ LVDS SMD Si571 1 GHz LVDS
571BMA000164DGR Skyworks振荡器 XTAL OSC VCXO 400.0000MHZ LVDS Si571 400 MHz LVDS
571BMA000179DGR Skyworks振荡器 XTAL OSC VCXO 312.5000MHZ LVDS Si571 312.5 MHz LVDS
571BMA000788DGR Skyworks振荡器 XTAL OSC VCXO 438.0000MHZ LVDS Si571 438 MHz LVDS
571BMA000804DGR Skyworks振荡器 XTAL OSC VCXO 156.2500MHZ LVDS Si571 156.25 MHz LVDS
571EJA000763DGR Skyworks振荡器 XTAL OSC VCXO 1.0900GHZ LVPECL Si571 1.09 GHz LVPECL
571FGA000126DGR Skyworks振荡器 XTAL OSC VCXO 200.0000MHZ LVDS Si571 200 MHz LVDS
571FHA000103DGR Skyworks振荡器 XTAL OSC VCXO 155.5200MHZ LVDS Si571 155.52 MHz LVDS
571FJA000107DGR Skyworks振荡器 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS
571FJA000466DGR Skyworks振荡器 XTAL OSC VCXO 161.733417MHZ LVDS Si571 161.733417 MHz LVDS
571FJA000741DGR Skyworks振荡器 XTAL OSC VCXO 156.2500MHZ LVDS Si571 156.25 MHz LVDS
571FJA000742DGR Skyworks振荡器 XTAL OSC VCXO 156.2500MHZ LVDS Si571 156.25 MHz LVDS
571FJA000743DGR Skyworks振荡器 XTAL OSC VCXO 156.2500MHZ LVDS Si571 156.25 MHz LVDS
571FJA000744DGR Skyworks振荡器 XTAL OSC VCXO 156.2500MHZ LVDS Si571 156.25 MHz LVDS
571FJA000745DGR Skyworks振荡器 XTAL OSC VCXO 156.2500MHZ LVDS Si571 156.25 MHz LVDS
571FMA000107DGR Skyworks振荡器 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS
571MHA000107DGR Skyworks振荡器 XTAL OSC VCXO 10.0000MHZ LVPECL Si571 10 MHz LVPECL
571MJA000121DGR Skyworks振荡器 XTAL OSC VCXO 100.0000MHZ LVPECL Si571 100 MHz LVPECL
571MJA000542DGR Skyworks振荡器 XTAL OSC VCXO 698.812335MHZ LVPE Si571 698.812335 MHz LVPECL
571MMA000107DGR Skyworks振荡器 XTAL OSC VCXO 10.0000MHZ LVPECL Si571 10 MHz LVPECL
571MMA000122DGR Skyworks振荡器 XTAL OSC VCXO 1.0000GHZ LVPECL Si571 1 GHz LVPECL
571NEA001677DGR Skyworks振荡器 XTAL OSC VCXO 873.5150MHZ LVDS Si571 873.515 MHz LVDS
571NHA000399DGR Skyworks振荡器 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS
571NJA000112DGR Skyworks振荡器 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS
571NJA000143DGR Skyworks振荡器 XTAL OSC VCXO 117.0000MHZ LVDS Si571 117 MHz LVDS
571NMA000107DGR Skyworks振荡器 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS
571NMA000409DGR Skyworks振荡器 XTAL OSC VCXO 10.0000MHZ LVDS Si571 10 MHz LVDS
571SHA000115DGR Skyworks振荡器 XTAL OSC VCXO 125.0000MHZ LVDS Si571 125 MHz LVDS
571SHA001843DGR Skyworks振荡器 XTAL OSC VCXO 1.29948467GHZ LVDS Si571 1.29948467 GHz LVDS
571AEA000107DGR Skyworks振荡器 XTAL OSC VCXO 10.0000MHZ LVPECL Si571 10 MHz LVPECL
571AEA000112DGR Skyworks振荡器 XTAL OSC VCXO 10.0000MHZ LVPECL Si571 10 MHz LVPECL
571AEA000121DGR Skyworks振荡器 XTAL OSC VCXO 100.0000MHZ LVPECL Si571 100 MHz LVPECL
571AEA000133DGR Skyworks振荡器 XTAL OSC VCXO 500.0000MHZ LVPECL Si571 500 MHz LVPECL
571AEA000197DGR Skyworks振荡器 XTAL OSC VCXO 614.4000MHZ LVPECL Si571 614.4 MHz LVPECL
571AEA000227DGR Skyworks振荡器 XTAL OSC VCXO 980.0000MHZ LVPECL Si571 980 MHz LVPECL
571AEA000444DGR Skyworks振荡器 XTAL OSC VCXO 1.0000GHZ LVPECL Si571 1 GHz LVPECL
571AEA000462DGR Skyworks振荡器 XTAL OSC VCXO 1.0000GHZ LVPECL Si571 1 GHz LVPECL
571AEA000467DGR Skyworks振荡器 XTAL OSC VCXO 990.0000MHZ LVPECL Si571 990 MHz LVPECL
571AEA000498DGR Skyworks振荡器 XTAL OSC VCXO 825.0000MHZ LVPECL Si571 825 MHz LVPECL
571AEA000928DGR Skyworks振荡器 XTAL OSC VCXO 1.0000GHZ LVPECL Si571 1 GHz LVPECL
571AEA001455DGR Skyworks振荡器 XTAL OSC VCXO 100.0000MHZ LVPECL Si571 100 MHz LVPECL
571AEA001677DGR Skyworks振荡器 XTAL OSC VCXO 873.5150MHZ LVPECL Si571 873.515 MHz LVPECL
571AEA001678DGR Skyworks振荡器 XTAL OSC VCXO 993.4100MHZ LVPECL Si571 993.41 MHz LVPECL
571AEA001679DGR Skyworks振荡器 XTAL OSC VCXO 873.5150MHZ LVPECL Si571 873.515 MHz LVPECL
571AEA001680DGR Skyworks振荡器 XTAL OSC VCXO 993.4100MHZ LVPECL Si571 993.41 MHz LVPECL
571AEA001796DGR Skyworks振荡器 XTAL OSC VCXO 873.51542MHZ LVPEC Si571 873.51542 MHz LVPECL
571AGA000107DGR Skyworks振荡器 XTAL OSC VCXO 10.0000MHZ LVPECL Si571 10 MHz LVPECL
571AGA000112DGR Skyworks振荡器 XTAL OSC VCXO 10.0000MHZ LVPECL Si571 10 MHz LVPECL
