75.000MHzMJ/20/30/-10+60/18pF/60R,5032mm,EUROQUARTZ品牌，英国进口晶振，EUROQUARTZ欧洲石英晶振，型号：MJ系列，编码为：75.000MHzMJ/20/30/-10+60/18pF/60R，频率：75.000MHz，较准公差：±20ppm，温度稳定性：±30ppm，工作温度范围：0℃至+60℃，负载电容：18pF，等效串联电阻：60R，小体积晶振尺寸：5.0x3.2x1.0mm，四脚贴片晶振，石英晶振，石英晶体谐振器，无源晶振。具有超小性，轻薄型，高性能，高可靠性，高品质等特点。MJ晶体是由陶瓷基板和接缝焊接的金属盖生产的微型表面安装晶体，它们紧凑的尺寸和轻薄型使下摆成为高密度应用的理想晶体。适用于：掌上电脑、全球定位系统、PCMCIA、无线局域网等。
75.000MHzMJ/20/30/-10+60/18pF/60R,5032mm,EUROQUARTZ品牌，产品特点：
迷你尺寸：5.0x3.2x1.0mm贴片晶振
镀金陶瓷底座，带金属缝焊盖
为了最大限度地减少EMI，可以将整个晶体接地
高抗冲击和振动性

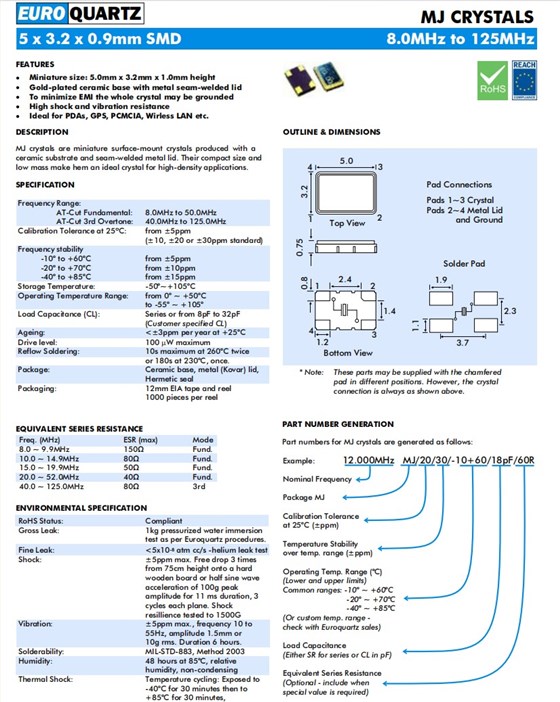

75.000MHzMJ/20/30/-10+60/18pF/60R,5032mm,EUROQUARTZ品牌,参数表
Frequency Range:
AT-Cut Fundamental:
8.0MHz to 50.0MHz
AT-Cut 3rd Overtone:
75.000MHz
Calibration Tolerance at 25ºC:
from ±5ppm
(±10, ±20 or ±30ppm standard)
Frequency stability
-10° to +60°C
from ±5ppm
-20° to +70°C
from ±10ppm
-40° to +85°C
from ±15ppm
Storage Temperature:
from 0°~+55°C
Operating Temperature Range:
to -55° ~ +105°
Load Capacitance (CL):
Series or from 8pF to 32pF
(Customer specified CL)
Ageing:
<±3ppm per year at +25°C
Drive level:
100 μW maximum
Reflow Soldering:
10s maximum at 260°C twice
or 180s at 230°C, once.
Package:
Ceramic base, metal (Kovar) lid,
Hermetic seal
Packaging:
12mm EIA tape and reel
1000 pieces per reel

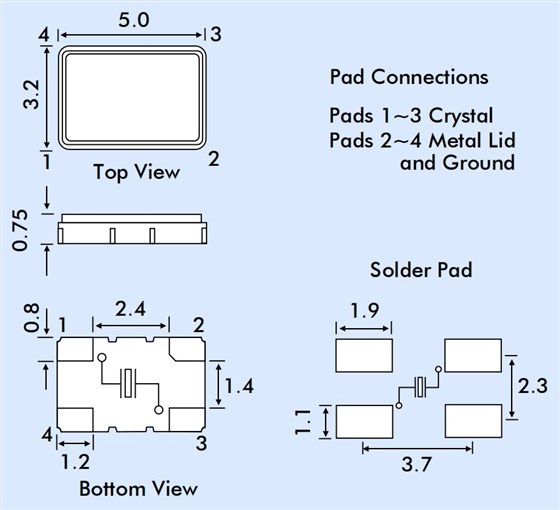

75.000MHzMJ/20/30/-10+60/18pF/60R,5032mm,EUROQUARTZ品牌,尺寸图
