EC2600TS-120.000M,7050mm,120MHz,Ecliptek石英晶体振荡器

EC2600TS-120.000M,7050mm,120MHz,Ecliptek石英晶体振荡器EC2600TS-120.000M,7050mm,120MHz,Ecliptek石英晶体振荡器

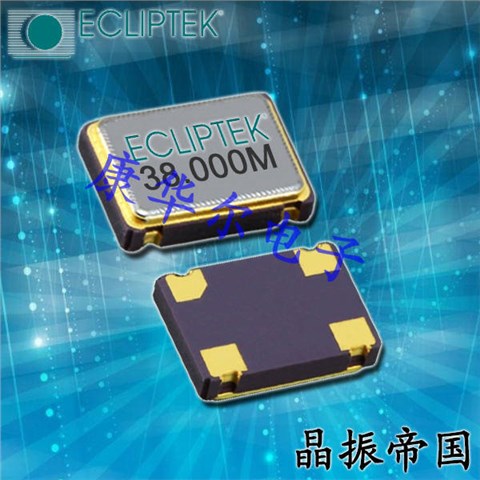

产品简介

EC2600TS-120.000M,7050mm,120MHz,Ecliptek石英晶体振荡器,美国进口晶振,Ecliptek晶振,日蚀晶振,型号:EC26系列晶振,编码为:EC2600TS-120.000M,频率:120.000MHz,电压:3.3V,频率稳定性:±100ppm,工作温度范围:-10℃至+70℃,小体积晶振尺寸:7.0x5.0mm封装,石英晶体振荡器,四脚贴片晶振,石英晶振,7050晶振,CMOS输出晶振,有源晶振。具有超小型,轻薄型,高品质,高性能等特点。应用于:通讯设备晶振,无线蓝牙晶振,车载导航晶振,物联网等应用。

产品详情

Japan1EC2600TS-120.000M,7050mm,120MHz,Ecliptek石英晶体振荡器,美国进口晶振,Ecliptek晶振,日蚀晶振,型号:EC26系列晶振,编码为:EC2600TS-120.000M,频率:120.000MHz,电压:3.3V,频率稳定性:±100ppm,工作温度范围:-10℃至+70℃,小体积晶振尺寸:7.0x5.0mm封装,石英晶体振荡器四脚贴片晶振,石英晶振,7050晶振,CMOS输出晶振,有源晶振。具有超小型,轻薄型,高品质,高性能等特点。应用于:通讯设备晶振,无线蓝牙晶振,车载导航晶振,物联网等应用。

Japan2EC2600TS-120.000M,7050mm,120MHz,Ecliptek石英晶体振荡器,参数表

Nominal Frequency 120.000 MHz
Frequency Tolerance/Stability Inclusive of all conditions: Calibration Tolerance at 25°C, Frequency Stability over the Operating Temperature Range,
Supply Voltage Change, Output Load Change, First Year Aging at 25°C, Shock, and Vibration
±100ppm Maximum
±50ppm Maximum
±20ppm Maximum
±25ppm Maximum
Aging at 25°C ±5ppm/year Maximum
Operating Temperature Range - 10°C to +70°C
-40°C to +85°C
Supply Voltage 3.3Vdc ±10%
Input Current 10mA Maximum over Nominal Frequency of 1.544MHz to 32MHz
18mA Maximum over Nominal Frequency of 32MHz to 50MHz
20mA Maximum over Nominal Frequency of 50.000001MHz to 70MHz
40mA Maximum over Nominal Frequency of 70.000001MHz to 125MHz
60mA Maximum over Nominal Frequency of 125.000001MHz to 200MHz
Output Voltage Logic High (VOH) IOH = -8mA
90% of Vdd Minimum
Output Voltage Logic Low (VOL) IOL = +8mA
10% of Vdd Maximum
Rise/Fall Time Measured at 20% to 80% of waveform
5nSec Maximum (w/15pF Load), 7nSec Maximum (w/30pF Load) over Nominal Frequency of 1.544MHz to 35MHz
3nSec Maximum over Nominal Frequency of 35.000001MHz to 165MHz
2nSec Maximum over Nominal Frequency of 165.000001MHz to 200MHz
Duty Cycle Measured at 50% of waveform
50 ±10(%)
50 ±5(%)
Load Drive Capability 30pF Maximum over Nominal Frequency of 1.544MHz to 35MHz
15pF Maximum over Nominal Frequency of 35.0000001MHz to 200MHz
Output Logic Type CMOS
Pin 1 Connection Tri-State (High Impedance)
Output Control Input Voltage Logic
High (Vih)
70% of Vdd Minimum or No Connect to Enable Output.
Output Control Input Voltage Logic
Low (Vil)
30% of Vdd Maximum to Disable Output (High Impedance)
Standby Current Disabled Output, High Impedance
10µA Maximum
RMS Phase Jitter 12kHz to 20MHz offset frequency
1pSec Maximum
Start Up Time 10mSec Maximum
Storage Temperature Range -55°C to +125°C

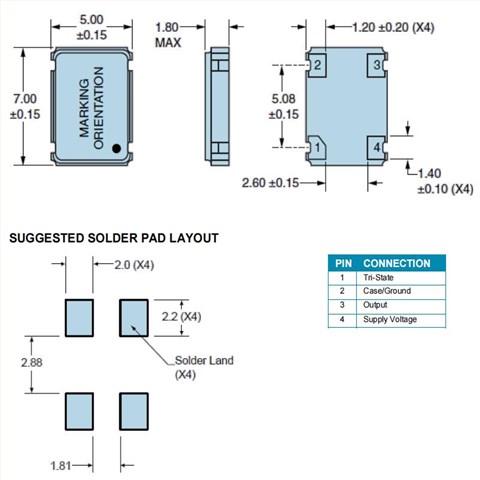

Japan3EC2600TS-120.000M,7050mm,120MHz,Ecliptek石英晶体振荡器,尺寸图

EC26,7050

EC26

EC26-1

晶振料号 品牌 型号 频率
EC2600ETTS-14.318M Ecliptek晶振 EC26 14.318 MHz 7mm 5mm 1.6mm
EC2600ETTS-14.7456M Ecliptek晶振 EC26 14.7456 MHz 7mm 5mm 1.6mm
EC2600ETTS-14.7456M TR Ecliptek晶振 EC26 14.7456 MHz 7mm 5mm 1.6mm
EC2600ETTS-16.000M Ecliptek晶振 EC26 16 MHz 7mm 5mm 1.6mm
EC2600ETTS-16.384M TR Ecliptek晶振 EC26 16.384 MHz 7mm 5mm 1.6mm
EC2600ETTS-33.000M Ecliptek晶振 EC26 33 MHz 7mm 5mm 1.6mm
EC2600ETTS-33.000M TR Ecliptek晶振 EC26 33 MHz 7mm 5mm 1.6mm
EC2600ETTS-66.666M TR Ecliptek晶振 EC26 66.666 MHz 7mm 5mm 1.6mm
EC2600ETTTS-10.000M Ecliptek晶振 EC26 10 MHz 7mm 5mm 1.6mm
EC2600ETTTS-12.000M TR Ecliptek晶振 EC26 12 MHz 7mm 5mm 1.6mm
EC2600ETTTS-50.000M TR Ecliptek晶振 EC26 50 MHz 7mm 5mm 1.6mm
EC2600ETTTS-64.000M Ecliptek晶振 EC26 64 MHz 7mm 5mm 1.6mm
EC2600ETTTS-7.3728M Ecliptek晶振 EC26 7.3728 MHz 7mm 5mm 1.6mm
EC2600TS-1.8432M TR Ecliptek晶振 EC26 1.8432 MHz 7mm 5mm 1.6mm
EC2600TS-11.0592M TR Ecliptek晶振 EC26 11.0592 MHz 7mm 5mm 1.6mm
EC2600TS-120.000M Ecliptek晶振 EC26 120 MHz 7mm 5mm 1.6mm
EC2600TS-120.000M TR Ecliptek晶振 EC26 120 MHz 7mm 5mm 1.6mm
EC2600TS-15.000M TR Ecliptek晶振 EC26 15 MHz 7mm 5mm 1.6mm
EC2600TS-19.440M 日蚀晶振 EC26 19.44 MHz 7mm 5mm 1.6mm
EC2600TS-200.000M TR Ecliptek晶振 EC26 200 MHz 7mm 5mm 1.6mm
EC2600TS-24.576M TR Ecliptek晶振 EC26 24.576 MHz 7mm 5mm 1.6mm
EC2600TS-25.000M Ecliptek晶振 EC26 25 MHz 7mm 5mm 1.6mm
EC2600TS-25.000M TR Ecliptek晶振 EC26 25 MHz 7mm 5mm 1.6mm
EC2600TS-33.000M TR Ecliptek晶振 EC26 33 MHz 7mm 5mm 1.6mm
EC2600TS-40.000M Ecliptek晶振 EC26 40 MHz 7mm 5mm 1.6mm
EC2600TS-40.000M TR Ecliptek晶振 EC26 40 MHz 7mm 5mm 1.6mm
EC2600TS-48.000M TR Ecliptek晶振 EC26 48 MHz 7mm 5mm 1.6mm
EC2600TS-5.000M TR Ecliptek晶振 EC26 5 MHz 7mm 5mm 1.6mm
EC2600TS-50.000M Ecliptek晶振 EC26 50 MHz 7mm 5mm 1.6mm
EC2600TS-50.000M TR Ecliptek晶振 EC26 50 MHz 7mm 5mm 1.6mm
