ELM3-20.000MHz-D2Y-T,5032mm,AEL品牌,20MHz，英国进口晶振，AEL艾尔晶振，型号：ELM3晶振，编码为：ELM3-20.000MHz-D2Y-T，频率为：20.000MHz，工作温度范围：-40℃至+85℃，精度：±20ppm，频率稳定性：±30ppm，小体积晶振尺寸：5.0x3.2mm封装，两脚贴片晶振，石英晶体谐振器，无源贴片晶振，石英晶振，SMD晶振，无铅环保晶振。具有超小型，轻薄型，高精度，高性能，高品质，高温度等特点。被广泛应用于：移动通讯设备晶振，汽车电子晶振，导航仪晶振，无线蓝牙晶振，平板电脑晶振，智能手机晶振，智能家居晶振，安防设备等应用。
ELM3-20.000MHz-D2Y-T,5032mm,AEL品牌,20MHz，产品特点：
●SMD石英晶体谐振器
●公差： ±15ppm可用石英晶振
●工作温度-10°C至+60°C至-40°C至+125°C

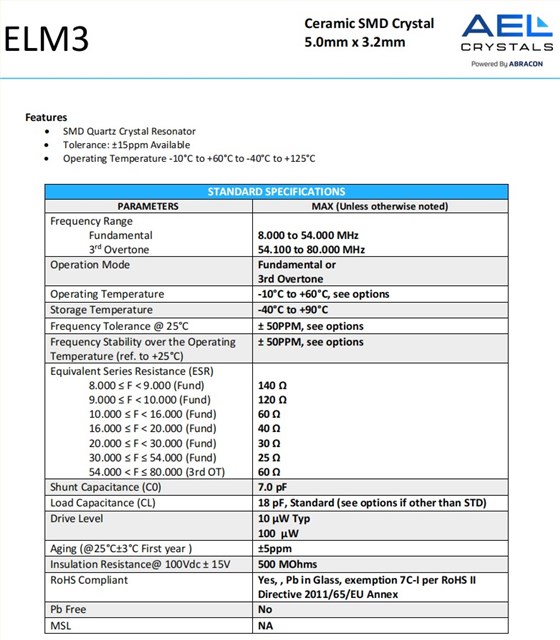

ELM3-20.000MHz-D2Y-T,5032mm,AEL品牌,20MHz,参数表
STANDARD SPECIFICATIONS
PARAMETERS
MAX (Unless otherwise noted)
Frequency Range
Fundamental
3rdOvertone
20.000MHz
Operation Mode
Fundamental or
3rd Overtone
Operating Temperature
-10°C to +60°C, see options
Storage Temperature
-40°C to +90°C
Frequency Tolerance @ 25°C
± 50PPM, see options
Frequency Stability over the Operating
Temperature (ref. to +25°C)
± 50PPM, see options
Equivalent Series Resistance (ESR)
8.000 ≤ F < 9.000 (Fund)
9.000 ≤ F < 10.000 (Fund)
10.000 ≤ F < 16.000 (Fund)
16.000 ≤ F < 20.000 (Fund)
20.000 ≤ F < 30.000 (Fund)
30.000 ≤ F ≤ 54.000 (Fund)
54.000 < F ≤ 80.000 (3rd OT)
140 Ω
120 Ω
60 Ω
40 Ω
30 Ω
25 Ω
60 Ω
Shunt Capacitance (C0)
7.0 pF
Load Capacitance (CL)
18 pF, Standard (see options if other than STD)
Drive Level
10 μW Typ
100 μW
Aging (@25°C±3°C First year )
±5ppm
Insulation Resistance@ 100Vdc ± 15V
500 MOhms
RoHS Compliant
Yes, , Pb in Glass, exemption 7C-I per RoHS II
Directive 2011/65/EU Annex
Pb Free
No
MSL
NA

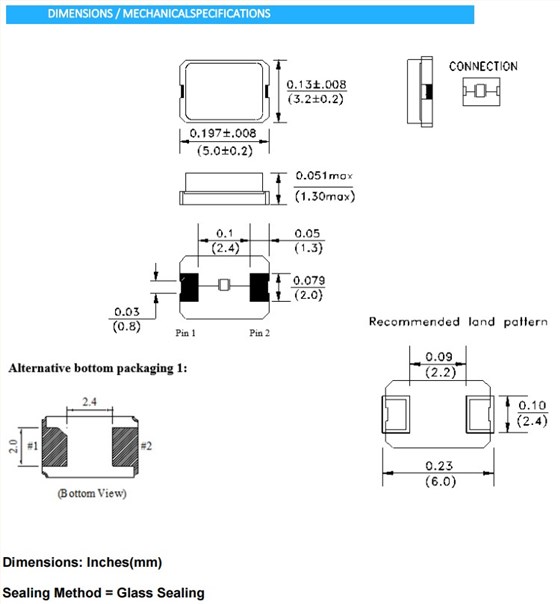

ELM3-20.000MHz-D2Y-T,5032mm,AEL品牌,20MHz,尺寸图
