FMXMC4S118HJB-33.860000MHz,4025mm,FMI四脚贴片晶振，美国进口晶振，FMI晶振，型号：FMXMC4S，编码为：FMXMC4S118HJB-33.860000MHz，负载：18pF，精度：±30ppm，稳定性：±50ppm，工作温度范围：-20℃至+70℃，频率为：33.860MHz，小体积晶振尺寸：4.0x2.5x0.8mm，四脚贴片晶振，石英晶振，SMD晶振，无源晶振，石英晶体谐振器。具有超小型，轻薄型，高性能，高品质，高质量等特点。应用于：通讯设备晶振，无线蓝牙晶振，无线局域网晶振，平板电脑晶振，数码电子等应用。
FMXMC4S118HJB-33.860000MHz,4025mm,FMI四脚贴片晶振，产品特点：
陶瓷SMD 4.0x2.5x0.8mm微处理器晶体
表面安装陶瓷包装，
高可靠性，紧固性

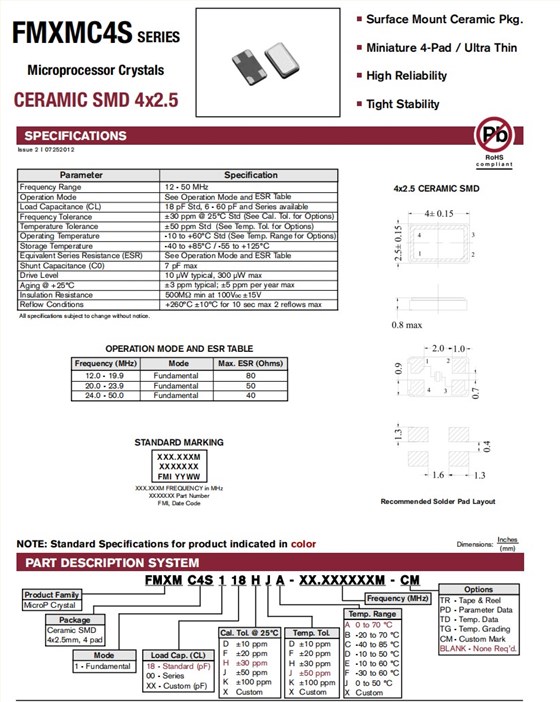

FMXMC4S118HJB-33.860000MHz,4025mm,FMI四脚贴片晶振,参数表
Parameter
Specification
Frequency Range
33.860MHz
Operation Mode
See Operation Mode and ESR Table
Load Capacitance (CL)
18 pF Std, 6 - 60 pF and Series available
Frequency Tolerance
±30 ppm @ 25°C Std (See Cal. Tol. for Options)
Temperature Tolerance
±50 ppm Std(See Temp. Tol. for Options)
Operating Temperature
-10 to +60°C Std (See Temp. Range for Options)
Storage Temperature
-40 to +85°C / -55 to +125°C
Equivalent Series Resistance (ESR)
See Operation Mode and ESR Table
Shunt Capacitance (C0)
7 pF max
Drive Level
10 µWtypical, 300 µW max
Aging @ +25°C
±3 ppm typical; ±5 ppm per year max
Insulation Resistance
500MΩ min at 100VDC±15V
Reflow Conditions
+260ºC ±10ºC for 10 sec max 2 reflows max
FMXMC4S118HJB-33.860000MHz,4025mm,FMI四脚贴片晶振,尺寸图
