福克斯VCTCXO振荡器,FT9CVDPH48.0-T1,低电源电压晶振，美国进口晶振，FOX晶振，福克斯晶振，型号：FT9CV系列，(Former FOX801AELF/ FOX801BELF Series)，编码为：FT9CVDPH48.0-T1，频率为：48.000MHz，小体积晶振尺寸：11.4mmx9.6mm封装，最大高度2.0mm，四脚贴片晶振，削波正弦输出，VCTCXO电压控制温度补偿晶体振荡器，压控温补晶振，有源晶振，石英晶振，SMD晶振，电压3V，工作温度范围：-30℃至+75℃。具有超小型，轻薄型，低抖动，低功耗，低相位噪声，低电源电压，低电平，高精度，高性能，高品质等特点。贴片晶振，被广泛应用于：移动通讯设备，无线网络，蓝牙模块，GPS定位，导航仪，物联网，罗拉LORA模块，汽车电子，医疗设备，安防设备，数码电子，智能家居等应用。

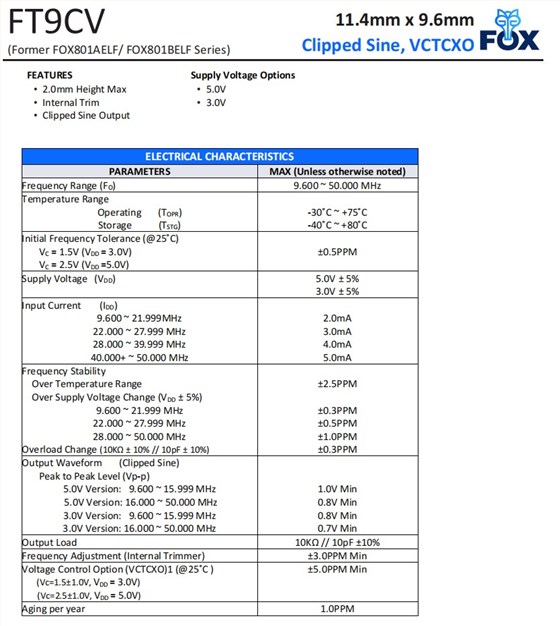

福克斯VCTCXO振荡器,FT9CVDPH48.0-T1,低电源电压晶振,参数表
PARAMETERS
MAX (Unless otherwise noted)
Frequency Range (FO)
48.000 MHz
Temperature Range
Operating
Storage
(TOPR)
(TSTG)
-30℃ ~ +75℃
-40℃ ~ +80℃
Initial Frequency Tolerance (@25℃)
VC= 1.5V (VDD= 3.0V)
VC= 2.5V (VDD=5.0V)
±0.5PPM
Supply Voltage(VDD)
5.0V ± 5%
3.0V ± 5%
Input Current
(IDD)
9.600 ~ 21.999MHz
2.0mA
3.0mA
4.0mA
5.0mA
22.000 ~ 27.999 MHz
28.000 ~ 39.999 MHz
40.000+ ~ 50.000 MHz
Frequency Stability
Over Temperature Range
Over Supply Voltage Change (VDD± 5%)
9.600 ~ 21.999 MHz
22.000 ~ 27.999 MHz
28.000 ~ 50.000 MHz
Overload Change(10KΩ ± 10% // 10pF ± 10%)
±2.5PPM
±0.3PPM
±0.5PPM
±1.0PPM
±0.3PPM
Output Waveform(Clipped Sine)
Peak to Peak Level (Vp-p)
5.0V Version:9.600 ~ 15.999 MHz
5.0V Version: 16.000 ~ 50.000 MHz
3.0V Version:9.600 ~ 15.999 MHz
3.0V Version: 16.000 ~ 50.000 MHz
1.0V Min
0.8V Min
0.8V Min
0.7V Min
Output Load
10KΩ // 10pF ±10%
Frequency Adjustment (Internal Trimmer)
±3.0PPM Min
Voltage Control Option (VCTCXO)1 (@25℃ )
(Vc=1.5±1.0V,VDD= 3.0V)
(Vc=2.5±1.0V,VDD= 5.0V)
±5.0PPM Min
Aging per year
1.0PPM

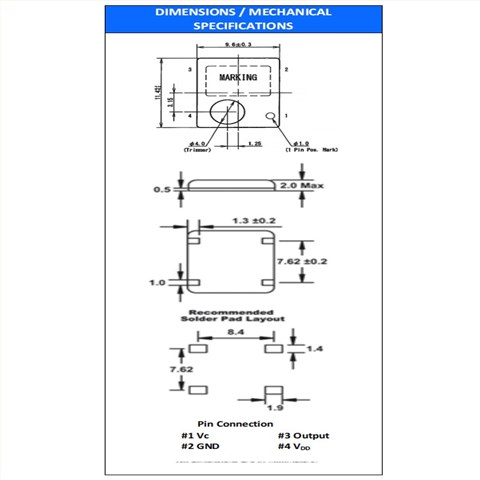

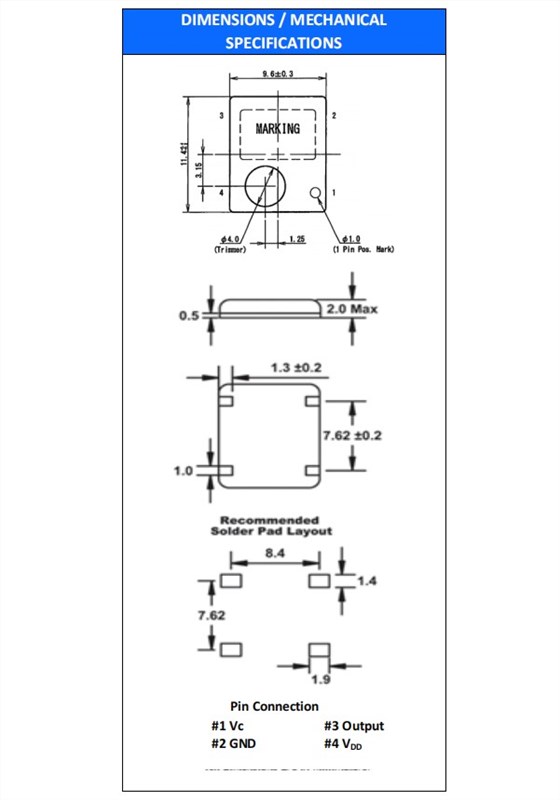

福克斯VCTCXO振荡器,FT9CVDPH48.0-T1,低电源电压晶振,尺寸图
福克斯VCTCXO振荡器,FT9CVDPH48.0-T1,低电源电压晶振
产品特点：
最大高度2.0mm
内部装饰
削波正弦输出石英晶体振荡器
电源电压选项：3.0V，5.0V
