FOX压控温补晶振,FT9HVBPH25.0-T1,罗拉LORA模块晶振，美国进口晶振，FOX晶振，福克斯晶振，型号：FT9HV系列，(Former FOX801BHCLF)，编码为：FT9HVBPH25.0-T1，频率为：25.000MHz，小体积晶振尺寸：11.4x9.6mm封装，四脚贴片晶振，HCMOS输出晶体振荡器，VCTCXO电压控制温度补偿晶体振荡器，压控温补晶振，有源晶振，石英晶振，SMD晶振，电压3.3V，工作温度范围：-30℃至+75℃。具有超小型，轻薄型，低抖动，低电源电压，低功耗，低相位噪声，低电平，高精度，高性能，高品质等特点。被广泛应用于：移动通讯设备，无线网络，蓝牙模块，GPS定位，导航仪，物联网，罗拉LORA模块，汽车电子，医疗设备，安防设备，数码电子，智能家居等应用。

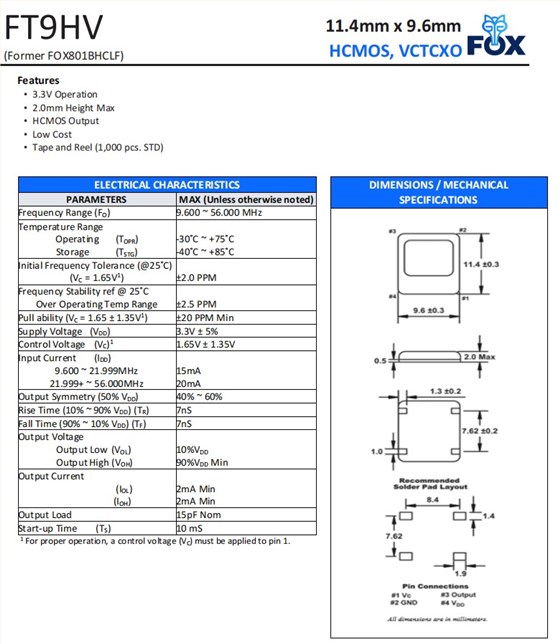

FOX压控温补晶振,FT9HVBPH25.0-T1,罗拉LORA模块晶振,参数表
PARAMETERS
MAX (Unless otherwise noted)
Frequency Range (FO)
25.000 MHz
Temperature Range
Operating
Storage
(TOPR)
(TSTG)
-30℃ ~ +75℃
-40℃ ~ +85℃
Initial Frequency Tolerance (@25℃)
(VC = 1.65V1 )
±2.0 PPM
Frequency Stability ref @ 25℃
Over Operating Temp Range
±2.5 PPM
Pull ability (VC= 1.65 ± 1.35V1)
±20 PPM Min
Supply Voltage(VDD)
3.3V ± 5%
Control Voltage(VC)1
1.65V ± 1.35V
Input Current(IDD)
9.600 ~ 21.999MHz
21.999+ ~ 56.000MHz
15mA
20mA
Output Symmetry (50% VDD)
40% ~ 60%
Rise Time (10% ~ 90% VDD) (TR)
7nS
Fall Time (90% ~ 10% VDD) (TF)
7nS
Output Voltage
Output Low (VOL)
Output High (VOH)
10%VDD
90%VDDMin
Output Current
(IOL)
(IOH)
2mA Min
2mA Min
Output Load
15pF Nom
Start-up Time(TS)
10 mS

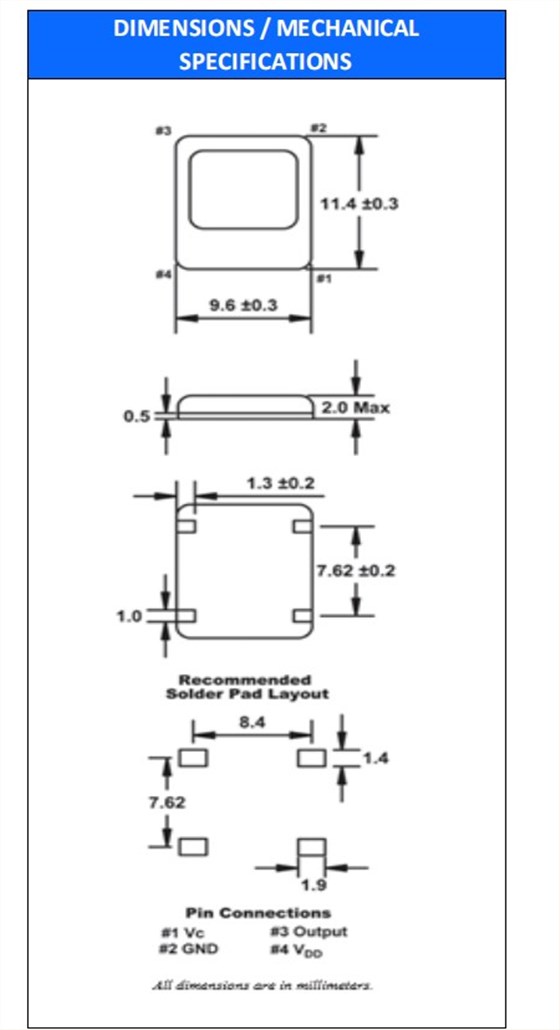

FOX压控温补晶振,FT9HVBPH25.0-T1,罗拉LORA模块晶振,尺寸图
FOX压控温补晶振,FT9HVBPH25.0-T1,罗拉LORA模块晶振
产品特点：
3.3V操作
最大高度2.0mm
HCMOS输出石英晶体振荡器
低成本

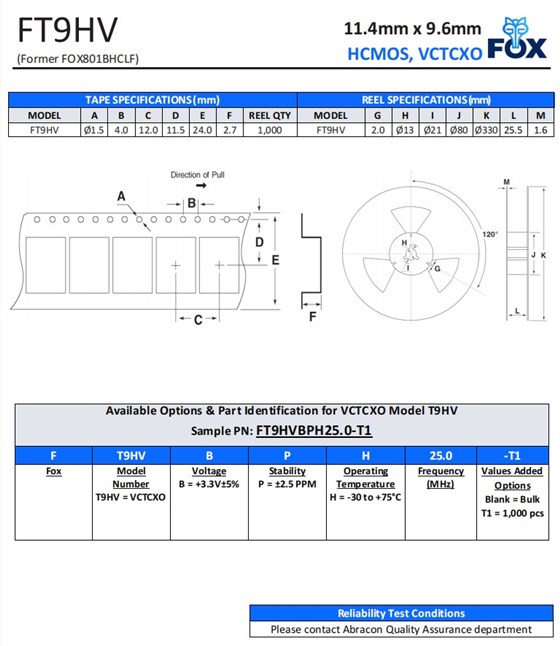

磁带和卷轴（1000个STD）
