FOX压控晶振,FY7HCJM27.0-T2,HCMOS输出低电源电压晶振，美国进口晶振，FOX晶振，福克斯晶振，型号：FY7H，VCS系列，编码为：FY7HCJM27.0-T2，频率为：27.000MHz，小体积晶振尺寸：7.0x5.0mm封装，VCXO晶振，压控晶振，压控晶体振荡器，HCMOS输出石英晶体振荡器，六脚贴片晶振，有源晶振，石英晶振，SMD晶振，电压3.3V，工作温度范围：-40℃至+85℃。7050晶振，具有超小型，轻薄型，低抖动，低电源电压，低功耗，低相位噪声，低电平，低损耗，低耗能等特点。被广泛应用于：通讯设备，无线网络，蓝牙模块，GPS定位，导航仪，物联网，汽车电子，医疗设备，安防设备，数码电子，智能家居等应用。

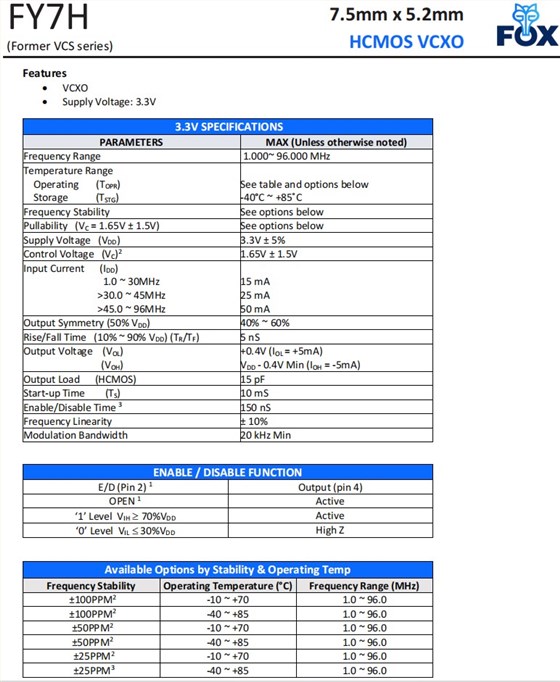

FOX压控晶振,FY7HCJM27.0-T2,HCMOS输出低电源电压晶振,参数表
| PARAMETERS | MAX (Unless otherwise noted) | ||||||||||||||
| Frequency Range | 27.000 MHz | ||||||||||||||
|
Temperature Range Operating(TOPR) Storage(TSTG) |
See table and options below -40℃~ +85℃ |
||||||||||||||
| Frequency Stability | See options below | ||||||||||||||
| Pullability(VC= 1.65V ± 1.5V) | See options below | ||||||||||||||
| Supply Voltage(VDD) | 3.3V ± 5% | ||||||||||||||
| Control Voltage(VC)2 | 1.65V ± 1.5V | ||||||||||||||
|
Input Current(IDD) 1.0 ~ 30MHz >30.0 ~ 45MHz >45.0 ~ 96MHz |
15 mA 25 mA 50 mA |
||||||||||||||
| Output Symmetry (50% VDD) | 40% ~ 60% | ||||||||||||||
| Rise/Fall Time(10% ~ 90% VDD) (TR/TF) | 5 nS | ||||||||||||||
|
Output Voltage(VOL) (VOH) |
+0.4V (IOL= +5mA) VDD- 0.4V Min (IOH= -5mA) |
||||||||||||||
| Output Load(HCMOS) | 15 pF | ||||||||||||||
| Start-up Time(TS) | 10 mS | ||||||||||||||
| Enable/Disable Time3 | 150 nS | ||||||||||||||
| Frequency Linearity | ± 10% | ||||||||||||||
| Modulation Bandwidth | 20 kHz Min | ||||||||||||||

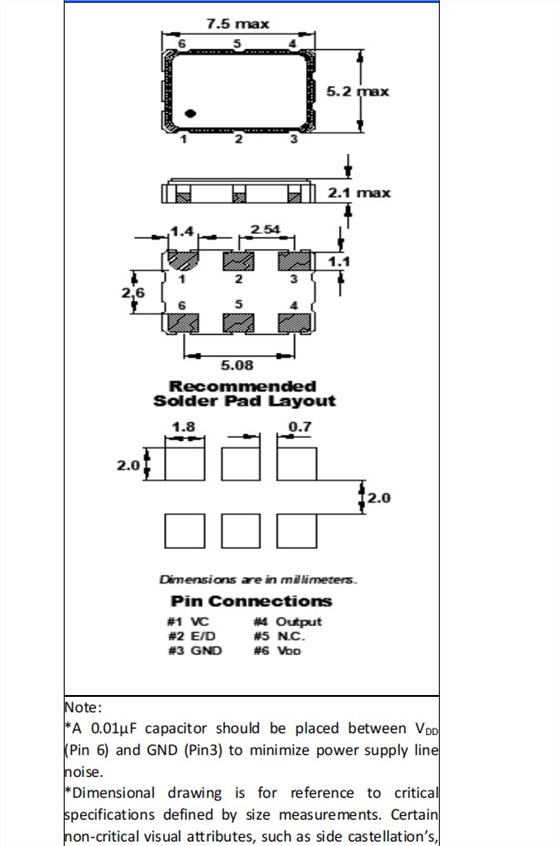

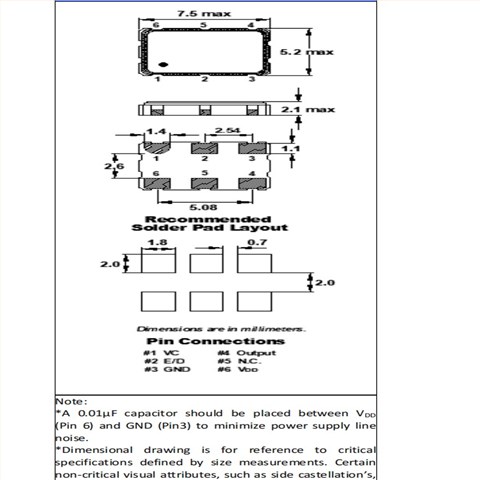

FOX压控晶振,FY7HCJM27.0-T2,HCMOS输出低电源电压晶振,尺寸图
FOX压控晶振,FY7HCJM27.0-T2,HCMOS输出低电源电压晶振
VCXO压控晶振主要由石英晶体谐振器、变容二极管和振荡电路组成，其工作原理是通过控制电压来改变变容二极管的电容，从而“牵引”石英谐振器的频率，以达到频率调制的目的。VCXO压控晶振大多用于锁相技术、频率负反馈调制的目的。
| 晶振料号 | 品牌 | 型号 | 类型 | 频率 | 电压 | 包装/封装 |
| FOX924B-12.000 | Fox晶振 | FOX924 | TCXO | 12MHz | 3.3V | 4-SMD, No Lead |
| FOX924B-16.000 | Fox晶振 | FOX924 | TCXO | 16MHz | 3.3V | 4-SMD, No Lead |
| FOX924B-20.000 | Fox晶振 | FOX924 | TCXO | 20MHz | 3.3V | 4-SMD, No Lead |
| FOX924B-27.000 | Fox晶振 | FOX924 | TCXO | 27MHz | 3.3V | 4-SMD, No Lead |
| FOX924B-10.000 | Fox晶振 | FOX924 | TCXO | 10MHz | 3.3V | 4-SMD, No Lead |
| FOX924B-14.7456 | Fox晶振 | FOX924 | TCXO | 14.7456MHz | 3.3V | 4-SMD, No Lead |
| FOX924B-25.000 | Fox晶振 | FOX924 | TCXO | 25MHz | 3.3V | 4-SMD, No Lead |
| F135-25 | Fox晶振 | F135 | XO (Standard) | 25MHz | 3.3V | 4-SMD, No Lead |
| F335-40 | Fox晶振 | F335 | XO (Standard) | 40MHz | 3.3V | 4-SMD, No Lead |
| F316R-20.000 | Fox晶振 | F310R | XO (Standard) | 20MHz | 1.8V | 4-SMD, No Lead |
| F316R-24.000 | Fox晶振 | F310R | XO (Standard) | 24MHz | 1.8V | 4-SMD, No Lead |
| FOX924B-12.288 | Fox晶振 | FOX924 | TCXO | 12.288MHz | 3.3V | 4-SMD, No Lead |
| F32K-327 | Fox晶振 | F32K | XO (Standard) | 32.768kHz | 3.3V | 4-SMD, No Lead |
| FOX924B-19.440 | Fox晶振 | FOX924 | TCXO | 19.44MHz | 3.3V | 4-SMD, No Lead |
| FOX914B-20.000 | Fox晶振 | FOX914 | TCXO | 20MHz | 3V | 4-SMD, No Lead |
| FOX914B-12.800 | Fox晶振 | FOX914 | TCXO | 12.8MHz | 3V | 4-SMD, No Lead |
| F535L-25 | Fox晶振 | F535L | XO (Standard) | 25MHz | 3.3V | 4-SMD, No Lead |
| F535L-33.333 | Fox晶振 | F535L | XO (Standard) | 33.333MHz | 3.3V | 4-SMD, No Lead |
| F235-40 | Fox晶振 | F235 | XO (Standard) | 40MHz | 3.3V | 4-SMD, No Lead |
| F235-48 | Fox晶振 | F235 | XO (Standard) | 48MHz | 3.3V | 4-SMD, No Lead |
| F535L-24.576 | Fox晶振 | F535L | XO (Standard) | 24.576MHz | 3.3V | 4-SMD, No Lead |
| F535L-24 | Fox晶振 | F535L | XO (Standard) | 24MHz | 3.3V | 4-SMD, No Lead |
| F535L-50 | Fox晶振 | F535L | XO (Standard) | 50MHz | 3.3V | 4-SMD, No Lead |
| F535L-27 | 有源晶振 | F535L | XO (Standard) | 27MHz | 3.3V | 4-SMD, No Lead |
| F535L-12 | Fox晶振 | F535L | XO (Standard) | 12MHz | 3.3V | 4-SMD, No Lead |
| F535L-48 | Fox晶振 | F535L | XO (Standard) | 48MHz | 3.3V | 4-SMD, No Lead |
| F535L-10 | Fox晶振 | F535L | XO (Standard) | 10MHz | 3.3V | 4-SMD, No Lead |
| F535L-40 | Fox晶振 | F535L | XO (Standard) | 40MHz | 3.3V | 4-SMD, No Lead |
| F316R-33.333 | Fox晶振 | F310R | XO (Standard) | 33.333MHz | 1.8V | 4-SMD, No Lead |
| F216R-24.000 | Fox晶振 | F210R | XO (Standard) | 24MHz | 1.8V | 4-SMD, No Lead |
| F235-12 | Fox晶振 | F235 | XO (Standard) | 12MHz | 3.3V | 4-SMD, No Lead |
| F235-50 | Fox晶振 | F235 | XO (Standard) | 50MHz | 3.3V | 4-SMD, No Lead |
| F235-24 | Fox晶振 | F235 | XO (Standard) | 24MHz | 3.3V | 4-SMD, No Lead |
| F335-25 | Fox晶振 | F335 | XO (Standard) | 25MHz | 3.3V | 4-SMD, No Lead |
| F335-50 | Fox晶振 | F335 | XO (Standard) | 50MHz | 3.3V | 4-SMD, No Lead |
| F335-48 | Fox晶振 | F335 | XO (Standard) | 48MHz | 3.3V | 4-SMD, No Lead |
| F335-12 | Fox晶振 | F335 | XO (Standard) | 12MHz | 3.3V | 4-SMD, No Lead |
| F335-16 | Fox晶振 | F335 | XO (Standard) | 16MHz | 3.3V | 4-SMD, No Lead |
| F316R-48.000 | Fox晶振 | F310R | XO (Standard) | 48MHz | 1.8V | 4-SMD, No Lead |
| F535L-16 | Fox晶振 | F535L | XO (Standard) | 16MHz | 3.3V | 4-SMD, No Lead |
| F316R-12.288 | Fox晶振 | F310R | XO (Standard) | 12.288MHz | 1.8V | 4-SMD, No Lead |
| F316R-14.31818 | Fox晶振 | F310R | XO (Standard) | 14.31818MHz | 1.8V | 4-SMD, No Lead |
| F316R-16.000 | Fox晶振 | F310R | XO (Standard) | 16MHz | 1.8V | 4-SMD, No Lead |
| F316R-18.432 | Fox晶振 | F310R | XO (Standard) | 18.432MHz | 1.8V | 4-SMD, No Lead |
| F316R-26.000 | Fox晶振 | F310R | XO (Standard) | 26MHz | 1.8V | 4-SMD, No Lead |
| F316R-27.000 | Fox晶振 | F310R | XO (Standard) | 27MHz | 1.8V | 4-SMD, No Lead |
| F316R-30.000 | Fox晶振 | F310R | XO (Standard) | 30MHz | 1.8V | 4-SMD, No Lead |
| F316R-44.000 | Fox晶振 | F310R | XO (Standard) | 44MHz | 1.8V | 4-SMD, No Lead |
| F216R-16.000 | Fox晶振 | F210R | XO (Standard) | 16MHz | 1.8V | 4-SMD, No Lead |
