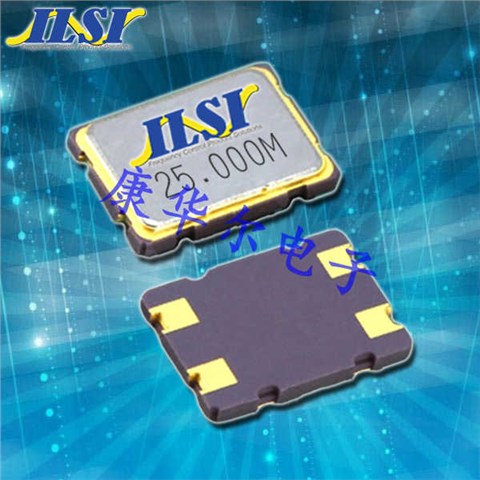

ILSI艾尔西7050mm谐振器,ILCX04-FB1F18-20.000,服务器晶振

产品简介

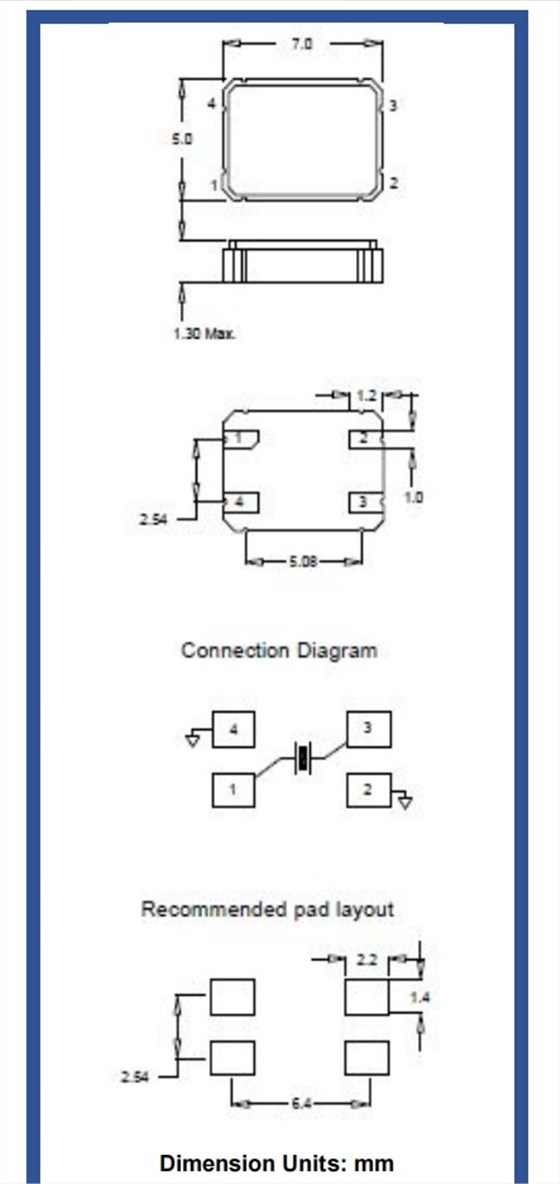

ILSI艾尔西7050mm谐振器,ILCX04-FB1F18-20.000,服务器晶振，美国进口晶振，ILSI艾尔西晶振，型号：ILCX04，编码为：ILCX04-FB1F18-20.000，频率：20.000MHz，小体积晶振尺寸：7.0x5.0mm，四脚贴片晶振，无源晶振，7050晶振，石英晶振，石英晶体谐振器，SMD晶振，无铅晶振，工作温度范围：0℃至+70℃，具有超小型，轻薄型，高精度，高性能，高品质，耐热及耐环境特点。贴片晶振，被广泛应用于：通讯设备，仪器仪表设备，蓝牙模块，汽车电子，服务器，存储，光纤通道，物联网，汽车电子，智能家居，安防设备，医疗设备等应用。

产品详情

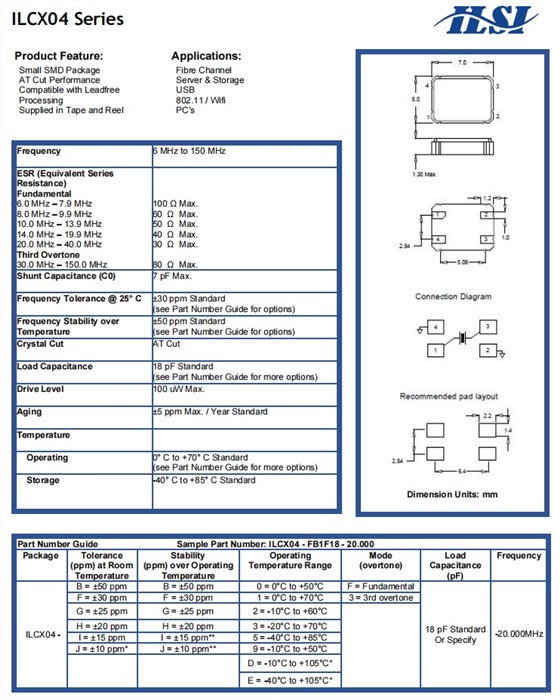

ILSI艾尔西7050mm谐振器,ILCX04-FB1F18-20.000,服务器晶振,参数表

Frequency	20.000 MHz
ESR (Equivalent Series Resistance) Fundamental 6.0 MHz – 7.9 MHz 8.0 MHz – 9.9 MHz 10.0 MHz – 13.9 MHz 14.0 MHz – 19.9 MHz 20.0 MHz – 40.0 MHz Third Overtone 30.0 MHz – 150.0 MHz	100 Ω Max. 60 ΩMax. 50 ΩMax. 40 ΩMax. 30 ΩMax. 80 ΩMax.
Shunt Capacitance (C0)	7 pF Max.
Frequency Tolerance @ 25° C	±30 ppm Standard (see Part Number Guide for options)
Frequency Stability over Temperature	±50 ppm Standard (see Part Number Guide for options)
Crystal Cut	AT Cut
Load Capacitance	18 pF Standard (see Part Number Guide for more options)
Drive Level	100 uW Max.
Aging	±5 ppm Max. / Year Standard
Temperature
Operating	0° C to +70° C Standard (see Part Number Guide for more options)
Storage	-40° C to +85° C Standard
