LFXTAL066198,IQXC-90,32.768KHz,1610mm,IQD手表晶振，英国进口晶振，IQD晶振，伊克德晶振，产品编码：LFXTAL066198，型号为：IQXC-90，频率为：32.768KHz，频率公差：±20ppm，负载电容：9pF，工作温度范围：-40℃至+85℃，小体积晶振尺寸：1.6x1.0晶振，SMD晶体，两脚贴片晶振，无源晶振，石英晶振，手表晶振，石英晶体谐振器，无铅晶振。具有超小型晶振，轻薄型晶振，高性能晶振，高品质晶振，高质量晶振，耐热及耐环境特点。音叉谐振器，特别适用于实时时钟应用程序，钟表电子，可穿戴设备，仪器设备晶振，数字显示晶振，计时器等应用。
LFXTAL066198,IQXC-90,32.768KHz,1610mm,IQD手表晶振,参数表
Frequency
32.768kHz
Frequency Tolerance
±20.00ppm
Tolerance Condition
@ 25°C ±5°C
Ageing
±3ppm max per year @ 25°C
±3°C
Frequency Stability Coefficient:
-0.036ppm°C² ±10%
Load Capacitance (CL)
4.0pF to 12.5pF
Shunt Capacitance (C0)
1.2pF typ
Drive Level
500nW max
Operating Temperature Ranges
-40 to 85°C
Storage Temperature Range:
-55 to 125°C

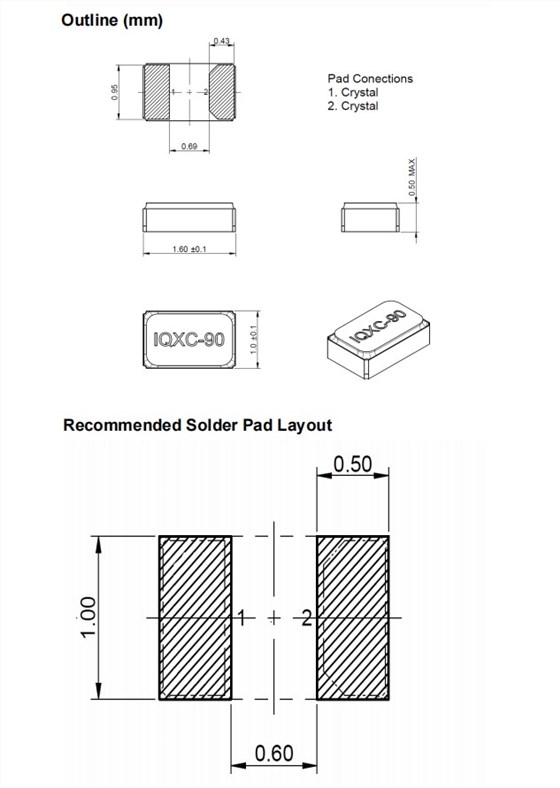

LFXTAL066198,IQXC-90,32.768KHz,1610mm,IQD手表晶振,尺寸图
| 晶振料号 | 制造商 | 系列 | 描述 | 频率 |
| LFXTAL084882REEL | IQD晶振 | IQXC-217 | 32.7680KHZ CRYSTAL IQXC-217 | 32.768 kHz |
| LFXTAL051643REEL | IQD晶振 | IQXC-25 | CRYSTAL 32.7680KHZ 9PF SMD | 32.768 kHz |
| LFXTAL050789REEL | IQD晶振 | IQXC-25 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz |
| LFXTAL084883REEL | IQD晶振 | IQXC-217 | 32.7680KHZ CRYSTAL IQXC-217 | 32.768 kHz |
| LFXTAL066198REEL | IQD晶振 | IQXC-90 | CRYSTAL 32.7680KHZ 9PF SMD | 32.768 kHz |
| LFXTAL009678REEL | IQD晶振 | CFPX-217 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz |
| LFXTAL084884REEL | IQD晶振 | IQXC-217 | 32.7680KHZ CRYSTAL IQXC-217 | 32.768 kHz |
| LFXTAL084885REEL | IQD晶振 | IQXC-217 | 32.7680KHZ CRYSTAL IQXC-217 | 32.768 kHz |
| LFXTAL073264REEL | IQD晶振 | IQXC-25 | CRYSTAL 32.7680KHZ 6PF SMD | 32.768 kHz |
| LFXTAL059461REEL | IQD晶振 | IQXC-25 | CRYSTAL 32.7680KHZ 7PF SMD | 32.768 kHz |
| LFXTAL062558REEL | IQD晶振 | IQXC-25 | CRYSTAL 32.7680KHZ 9PF SMD | 32.768 kHz |
| LFXTAL065455REEL | IQD晶振 | IQXC-25 | CRYSTAL 32.7680KHZ 6PF SMD | 32.768 kHz |
| LFXTAL025159REEL | IQD晶振 | CFPX-56 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz |
| LFXTAL002996BULK | IQD晶振 | WATCH | CRYSTAL 32.7680KHZ 12.5PF TH | 32.768 kHz |
| LFXTAL025159BULK | IQD晶振 | CFPX-56 | CRYSTAL 32.7680KHZ 12.5PF TH | 32.768 kHz |
| LFXTAL014219BULK | IQD晶振 | WATCH | CRYSTAL 32.7680KHZ 6PF TH | 32.768 kHz |
| LFXTAL002995BULK | IQD晶振 | WATCH | CRYSTAL 32.7680KHZ 12.5PF TH | 32.768 kHz |
| LFXTAL002997BULK | IQD晶振 | WATCH | CRYSTAL 32.7680KHZ 12.5PF TH | 32.768 kHz |
| LFXTAL016178REEL | IQD晶振 | 85SMX | CRYSTAL 32.7680KHZ 6PF SMD | 32.768 kHz |
| LFXTAL003000REEL | IQD晶振 | 85SMX | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz |
| LFXTAL050632REEL | IQD晶振 | 85SMX | CRYSTAL 32.7680KHZ 6PF SMD | 32.768 kHz |
| LFXTAL066431REEL | 石英晶振 | IQXC-90 | CRYSTAL 32.7680KHZ 7PF SMD | 32.768 kHz |
| LFXTAL054236REEL | IQD晶振 | CFPX-217 | CRYSTAL 32.7680KHZ 6PF SMD | 32.768 kHz |
| LFXTAL009709REEL | IQD晶振 | CFPX-217 | CRYSTAL 32.7680KHZ 7PF SMD | 32.768 kHz |
| LFXTAL009706REEL | IQD晶振 | CFPX-217 | CRYSTAL 32.7680KHZ 9PF SMD | 32.768 kHz |
| LFXTAL065253REEL | IQD晶振 | IQXC-90 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz |
| LFXTAL066834REEL | IQD晶振 | CFPX-217 | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz |
| LFXTAL003000BULK | IQD晶振 | 85SMX | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz |
| LFXTAL016178BULK | IQD晶振 | 85SMX | CRYSTAL 32.7680KHZ 6PF SMD | 32.768 kHz |
| LFXTAL015822REEL | IQD晶振 | 90SMX | CRYSTAL 32.7680KHZ 6PF SMD | 32.768 kHz |
| LFXTAL003003REEL | IQD晶振 | 91SMX | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz |
| LFXTAL003004REEL | IQD晶振 | 90SMX | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz |
| LFXTAL010193REEL | IQD晶振 | 91SMX | CRYSTAL 32.7680KHZ 6PF SMD | 32.768 kHz |
| LFXTAL010193BULK | IQD晶振 | 91SMX | CRYSTAL 32.7680KHZ 6PF SMD | 32.768 kHz |
| LFXTAL003003BULK | IQD晶振 | 91SMX | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz |
| LFXTAL015822BULK | IQD晶振 | 90SMX | CRYSTAL 32.7680KHZ 6PF SMD | 32.768 kHz |
| LFXTAL003004BULK | IQD晶振 | 90SMX | CRYSTAL 32.7680KHZ 12.5PF SMD | 32.768 kHz |
