NZ2016SH-24.000MHZNSC5022C|NDK车规晶振|3.3V|24M|CMOS

产品简介

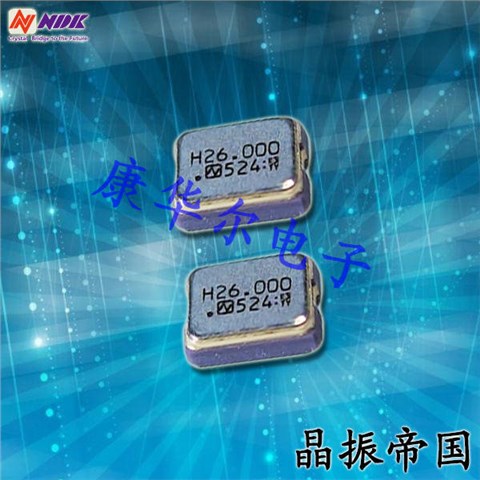

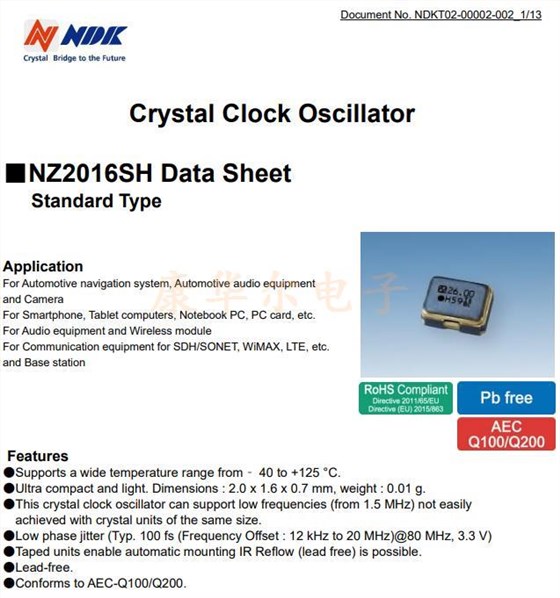

NZ2016SH-24.000MHZNSC5022C|NDK车规晶振|3.3V|24M|CMOS，是一款高质量的时钟进口有源晶体振荡器，NDK车规晶振,汽车导航系列晶振,有源振荡器,汽车音响设备日本进口晶振,车规晶振,产品特征：支持- 40至+125°C的宽温度范围。小巧轻便，尺寸:2.0 x 1.6 x 0.7 mm，这种晶体时钟振荡器可以支持低频率(从1.5 MHz)，低相位抖动(类型:100fs(频率偏移:12khz至20mhz)@ 80mhz,3.3V)，应用于汽车导航系统，汽车音响设备和照相机，适用于智能手机、平板电脑、笔记本电脑、PC卡，音频设备和无线模块，SDH/SONET、WiMAX、LTE，通信设备和基站等应用产品.

我们还开发了用于汽车应用的晶体振荡器。此外，还有大量符合汽车电子委员会(AEC)标准的汽车晶体振荡器。NDK将继续引领行业并支持电子产品的发展，成为高可靠性、高质量和高精度产品的顶级晶体器件制造商。NZ2016SH-24.000MHZNSC5022C|NDK车规晶振|3.3V|24M|CMOS.

产品详情

Japan1

NZ2016SH-24.000MHZNSC5022C|NDK车规晶振|3.3V|24M|CMOS 参数表

NZ2016SH		ElectricalSpec.
Parameters	SYM	min	typ	max	Units	Notes
NominalFrequency	fnom	1.5		80	MHz
SupplyVoltage	VCC	+1.8to+3.3			V
Current Consumption (Operating)	ICC	SeeTable.2			mA	at 25℃
Current Consumption (Stand-by)	IST			20	mA	at 25℃
OutputLevel	-	CMOS
LoadCapacitance	CL			15	pF
Operating Temperature Range	Topr	[-10to+60]to[-40to+125]			℃	Table.1
Overall Frequency Tolerance	Df/fnom	±20to±100			ppm	Table.1*1
OutputVoltage	VOL			0.1VCC	V
OutputVoltage	VOH	0.9VCC			V
Rise Time(tr), Fall Time(tf)	tr/tf			5	ns	+2.5 V to +3.3 V 0.1 VCCto 0.9 VCC
Rise Time(tr), Fall Time(tf)	tr/tf			6	ns	+1.8 V 0.1 VCC to 0.9 VCC
Symmetry	SYM	45		55	%	at1/2VCC
Start-upTime	tsu			4	ms
OutputWaveForm	-	Squarewave
Stand-byFunction	#1PADinput				#3PADoutput
	Hlevel(0.7VCCtoVCC)or openLlevel(0.3VCCmax)				Operating
	Hlevel(0.7VCCtoVCC)or openLlevel(0.3VCCmax)				Highimpedance

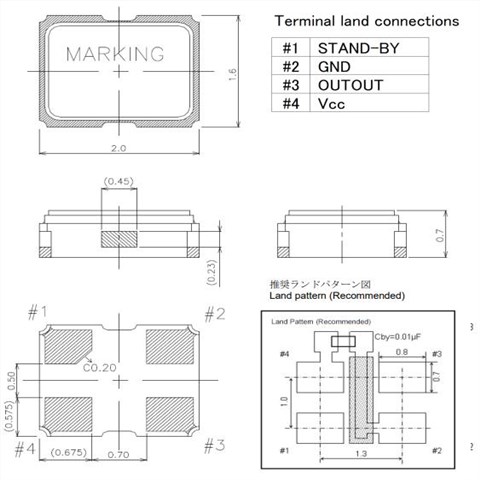

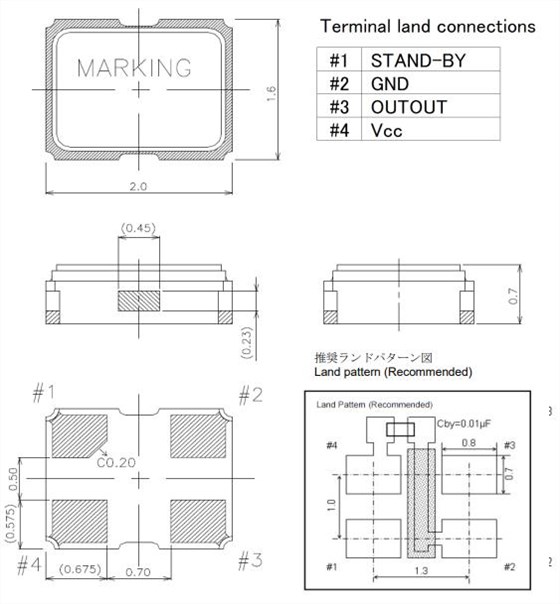

NZ2016SH-24.000MHZNSC5022C|NDK车规晶振|3.3V|24M|CMOS 尺寸图

Manufacturer Part Number	日本进口晶振	Series	Frequency 频率	Voltage - Supply电压
NZ2520SA-22.000000MHZ	NDK振荡器	NZ2520SA	22MHz	3V
NZ2520SA-40.000000MHZ	NDK振荡器	NZ2520SA	40MHz	3V
NZ2520SA-44.000000MHZ	NDK振荡器	NZ2520SA	44MHz	3V
NT3225SA-52.000000MHZ-S1	NDK振荡器	NT3225SA	52MHz	2.4V
NZ2520SA-19.200MHZ	NDK振荡器	NZ2520SA	19.2MHz	3V
NZ2520SA-25.600MHZ	NDK振荡器	NZ2520SA	25.6MHz	3V
NZ2520SA-38.900MHZ	NDK振荡器	NZ2520SA	38.9MHz	3V
NZ2520SA-41.360MHZ	NDK振荡器	NZ2520SA	41.36MHz	3V
NZ2520SB-22.000000MHZ	NDK振荡器	NZ2520SB	22MHz	3V
NZ2520SB-25.600MHZ	NDK振荡器	NZ2520SB	25.6MHz	3V
NZ2520SB-38.900MHZ	NDK振荡器	NZ2520SB	38.9MHz	3V
NZ2520SB-40.000000MHZ	NDK振荡器	NZ2520SB	40MHz	3V
NZ2520SB-41.360MHZ	NDK振荡器	NZ2520SB	41.36MHz	3V
NZ2520SB-44.000000MHZ	NDK振荡器	NZ2520SB	44MHz	3V
NT3225SA-26.000000MHZ-G5	NDK振荡器	NT3225SA	26MHz	2.4V
NT3225SA-26.000000MHZ-G7	NDK振荡器	NT3225SA	26MHz	2.7V
NT3225SA-26.000000MHZ-G8	NDK振荡器	NT3225SA	26MHz	2.75V
NT3225SA-19.200000MHZ-T3	NDK振荡器	NT3225SA	19.2MHz	2.8V
2775W-2.176	NDK振荡器	2775W	2.176MHz	5V
2765E-2.457600MHZ	NDK振荡器	2765E	2.4576MHz	3.3V
2765E-16.666700MHZ	NDK振荡器	2765E	16.6667MHz	3.3V
2765E-25.000000MHZ	NDK振荡器	2765E	25MHz	3.3V
2765E-33.333300MHZ	NDK振荡器	2765E	33.3333MHz	3.3V
2765E-40.000000MHZ	NDK振荡器	2765E	40MHz	3.3V
2765E-50.000000MHZ	NDK振荡器	2765E	50MHz	3.3V
2765E-66.000000MHZ	NDK振荡器	2765E	66MHz	3.3V
2765E-66.667000MHZ	NDK振荡器	2765E	66.667MHz	3.3V
2765E-80.000000MHZ	NDK振荡器	2765E	80MHz	3.3V
NZ2520SA-2.750000MHZ	NDK振荡器	NZ2520SA	2.75MHz	3V
NZ2520SA-5.000000MHZ	NDK振荡器	NZ2520SA	5MHz	3V
NZ2520SA-7.600000MHZ	NDK振荡器	NZ2520SA	7.6MHz	3V
NZ2520SA-10.000000MHZ	NDK振荡器	NZ2520SA	10MHz	3V
NZ2520SA-20.000000MHZ	NDK振荡器	NZ2520SA	20MHz	3V
