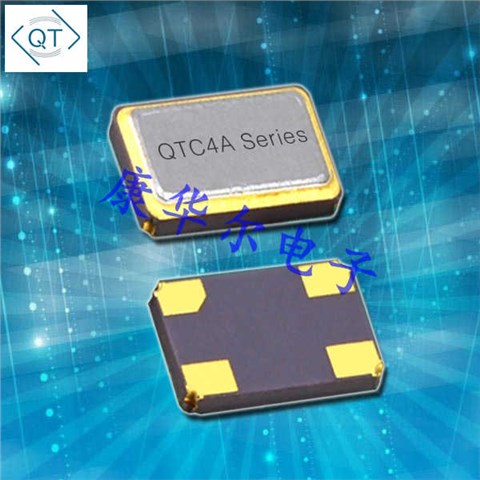

QTC4A24.0000FBT3I30R,24MHz,4025mm,QuartzChnik品牌，德国进口晶振，Quarztechnik夸克晶振，型号：QTC4A，编码为：QTC4A24.0000FBT3I30R，负载：12pF，精度：±30ppm，工作温度范围：-40℃至+85℃，频率稳定性：±30ppm，频率为：24.000MHz，尺寸：4.0x2.5x0.8mm，四脚贴片晶振，SMD石英晶振，无源晶振，石英晶振，石英晶体谐振器，无铅晶振。具有超小型，轻薄型，高精度，高性能，高品质，耐热及耐环境特点。应用于：高密度应用，调制解调器、通信和测试设备，PMCIA，无线应用，蓝牙模块，汽车电子，医疗设备，安防设备，数码电子等应用。
QTC4A24.0000FBT3I30R,24MHz,4025mm,QuartzChnik品牌，产品特点：
外形尺寸：4.0mmx2.5mm
频率范围：12.000MHz~52.000MHz
高度低，适用于薄型设备
陶瓷封装和金属盖确保高可靠性
具有紧密的公差和稳定性石英晶振
应用程序：
高密度应用
调制解调器、通信和测试设备
PMCIA，无线应用

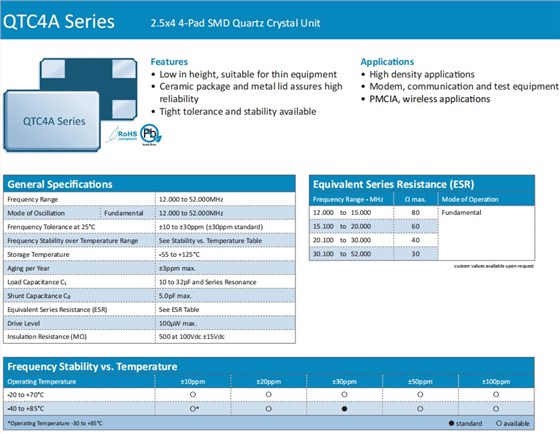

QTC4A24.0000FBT3I30R,24MHz,4025mm,QuartzChnik品牌,参数表
| Frequency Range | 24.000MHz |
| Mode of Oscillation，Fundamental | 12.000 to 52.000MHz |
| Frenquency Tolerance at 25°C | ±10 to ±30ppm (±30ppm standard) |
| Frequency Stability over Temperature Range | See Stability vs. Temperature Table |
| Storage Temperature | -55 to +125°C |
| Aging per Year | ±3ppm max. |
| Load Capacitance CL | 10 to 32pF and Series Resonance |
| Shunt Capacitance C0 | 5.0pF max. |
| Equivalent Series Resistance (ESR) | See ESR Table |
| Drive Level | 100μW max. |
| Insulation Resistance (MΩ) | 500 at 100Vdc ±15Vdc |

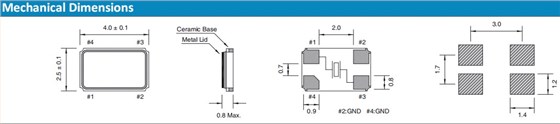

QTC4A24.0000FBT3I30R,24MHz,4025mm,QuartzChnik品牌,尺寸图
| 晶振料号 | 频率 | 负载电容 | 精度 | 稳定性 | 工作温度范围 |
| QTC7A8.00000FDT1I20M | 8.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A10.0000FDT1I20M | 10.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A11.0592FDT1I20M | 11.0592 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A12.0000FDT1I20M | 12.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A14.31818FDT1I20M | 14.31818 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A14.7456FDT1I20M | 14.7456 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A16.0000FDT1I20M | 16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A19.6608FDT1I20M | 19.6608 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A24.0000FDT1I20M | 24.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A25.0000FDT1I20M | 25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A27.0000FDT1I20M | 27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A32.0000FDT1I20M | 32.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A8.00000FDT1I20M | 8.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A11.0592FDT1I20M | 11.0592 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A12.0000FDT1I20M | 12.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A14.7456FDT1I20M | 14.7456 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A16.0000FDT1I20M | 16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A20.0000FDT1I20M | 20.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A24.0000FDT1I20M | 24.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A25.0000FDT1I20M | 25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A27.0000FDT1I20M | 27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A32.0000FDT1I20M | 32.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A8.00000FDT1I20M | 8.0 MHz贴片晶振 | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A12.0000FDT1I20M | 12.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A12.2880FDT1I20M | 12.288 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A15.3600FDT1I20M | 15.360 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A16.0000FDT1I20M | 16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A18.4320FDT1I20M | 18.432 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A20.0000FDT1I20M | 20.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A24.5760FDT1I20M | 24.576 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A25.0000FDT1I20M | 25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A27.0000FDT1I20M | 27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A30.0000FDT1I20M | 30.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A40.0000FDT1I20M | 40.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A48.0000FDT1I20M | 48.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC3216.0000FDT1I20M | 16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC3218.4320FDT1I20M | 18.432 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC3220.0000FDT1I20M | 20.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC3224.0000FDT1I20M | 24.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC3225.0000FDT1I20M | 25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC3227.0000FDT1I20M | 27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
