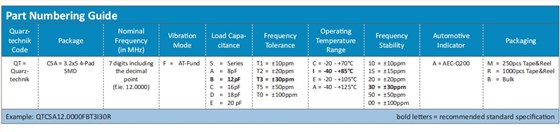

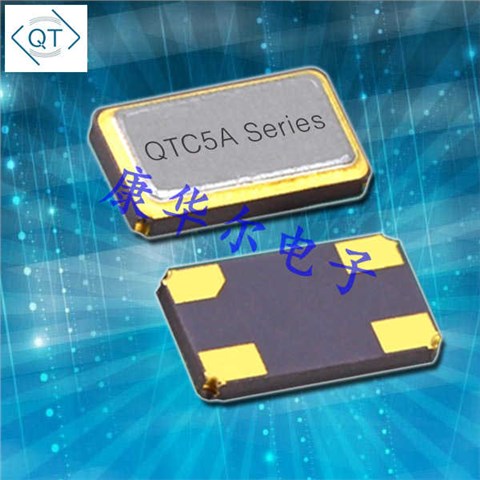

QTC5A33.0000FET3I30R/5032mm,/33MHz/QuartzChnik晶振，德国进口晶振，Quarztechnik夸克晶振，型号：QTC5A，编码为：QTC5A33.0000FET3I30R，负载：20pF，精度：±30ppm，工作温度范围：-40℃至+85℃，频率稳定性：±30ppm，频率为：33.000MHz，小体积晶振尺寸：5.0x3.2mm封装，四脚贴片晶振，无源晶振，5032晶振，石英晶振，SMD晶振，石英晶体谐振器。具有超小型，轻薄型，高精度，高性能，高品质，耐热及耐环境特点。应用于：高密度应用，调制解调器、通信和测试设备，PMCIA，无线应用，蓝牙模块，汽车电子设备，医疗设备，安防设备，数码电子等应用。
外形尺寸：5.0mmx3.2mm贴片晶振
频率范围：8.000MHz~160.000MHz
高度低，适用于薄型设备
陶瓷封装和金属盖确保高可靠性
具有紧密的公差和稳定性

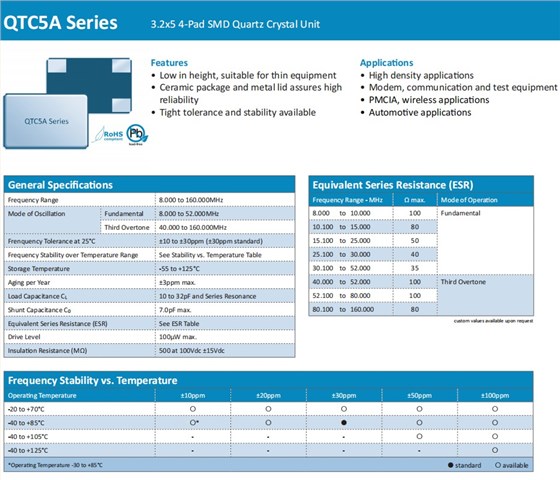

QTC5A33.0000FET3I30R/5032mm,/33MHz/QuartzChnik晶振,参数表
Frequency Range
33.000 MHz
Mode of Oscillation
Fundamental
8.000 to 52.000MHz
Third Overtone
40.000 to 160.000MHz
Frenquency Tolerance at 25°C
±10 to ±30ppm (±30ppm standard)
Frequency Stability over Temperature Range
See Stability vs. Temperature Table
Storage Temperature
-55 to +125°C
Aging per Year
±3ppm max.
Load Capacitance CL
10 to 32pF and Series Resonance
Shunt Capacitance C0
7.0pF max.
Equivalent Series Resistance (ESR)
See ESR Table
Drive Level
100μW max.
Insulation Resistance (MΩ)
500 at 100Vdc ±15Vdc

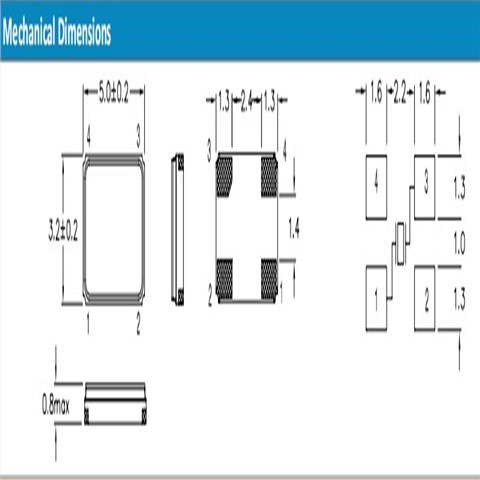

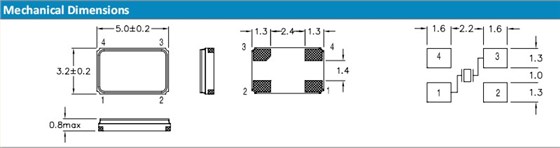

QTC5A33.0000FET3I30R/5032mm,/33MHz/QuartzChnik晶振,尺寸图
| 高品质石英晶振 | 频率 | 负载电容 | 精度 | 稳定性 | 工作温度范围 |
| QTC7A8.00000FDT1I20M | 8.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A10.0000FDT1I20M | 10.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A11.0592FDT1I20M | 11.0592 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A12.0000FDT1I20M | 12.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A14.31818FDT1I20M | 14.31818 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A14.7456FDT1I20M | 14.7456 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A16.0000FDT1I20M | 16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A19.6608FDT1I20M | 19.6608 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A24.0000FDT1I20M | 24.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A25.0000FDT1I20M | 25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A27.0000FDT1I20M | 27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC7A32.0000FDT1I20M | 32.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A8.00000FDT1I20M | 8.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A11.0592FDT1I20M | 11.0592 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A12.0000FDT1I20M | 12.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A14.7456FDT1I20M | 14.7456 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A16.0000FDT1I20M | 16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A20.0000FDT1I20M | 20.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A24.0000FDT1I20M | 24.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A25.0000FDT1I20M | 25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A27.0000FDT1I20M | 27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC6A32.0000FDT1I20M | 32.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A8.00000FDT1I20M | 8.0 MHz石英晶振 | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A12.0000FDT1I20M | 12.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A12.2880FDT1I20M | 12.288 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A15.3600FDT1I20M | 15.360 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A16.0000FDT1I20M | 16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A18.4320FDT1I20M | 18.432 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A20.0000FDT1I20M | 20.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A24.5760FDT1I20M | 24.576 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A25.0000FDT1I20M | 25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A27.0000FDT1I20M | 27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A30.0000FDT1I20M | 30.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A40.0000FDT1I20M | 40.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC5A48.0000FDT1I20M | 48.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC3216.0000FDT1I20M | 16.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC3218.4320FDT1I20M | 18.432 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC3220.0000FDT1I20M | 20.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC3224.0000FDT1I20M | 24.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC3225.0000FDT1I20M | 25.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
| QTC3227.0000FDT1I20M | 27.0 MHz | 18 pF | ±10ppm | ±20ppm | -40 - +85°C |
