R1612-24.000-8-F-1530-TR,1612mm,24MHz,rubyquartz卢柏晶体

产品简介

R1612-24.000-8-F-1530-TR,1612mm,24MHz,rubyquartz卢柏晶体，美国进口晶振，Rubyquartz卢柏晶振，型号：R1612，编码为：R1612-24.000-8-F-1530-TR，频率为：24.000MHz，负载：8pF，公差±15ppm，稳定性±30ppm，从-10°C到+60°C，磁带和卷轴包装，小体积晶振尺寸：1.6x1.2mm封装，四脚贴片晶振，无源晶振，石英晶体谐振器，1612晶振，超小型晶振，轻薄型晶振。石英晶振，应用于：通讯设备，无线蓝牙晶振，智能穿戴设备，小型便捷式设备，智能手机，平板电脑，安防设备，数码电子等应用。

产品详情

R1612-24.000-8-F-1530-TR,1612mm,24MHz,rubyquartz卢柏晶体，产品特点：

●超小超薄型

●可自动安装

●可能回流

●非常适合高密度应用

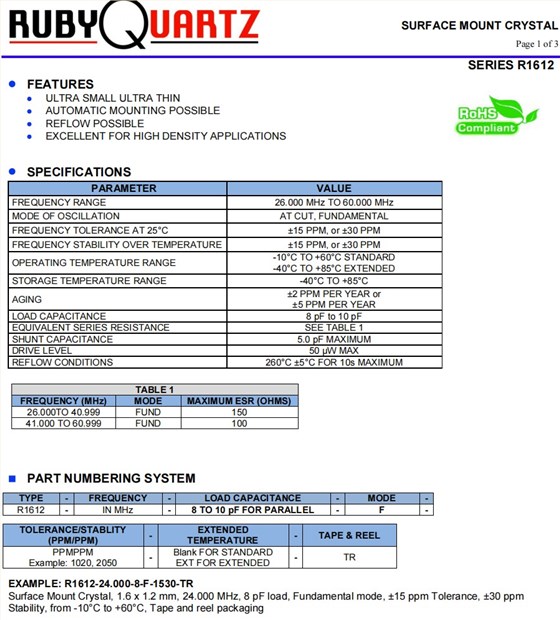

R1612-24.000-8-F-1530-TR,1612mm,24MHz,rubyquartz卢柏晶体,参数表

PARAMETER	VALUE
FREQUENCY RANGE	24.000 MHz
MODE OF OSCILLATION	AT CUT, FUNDAMENTAL
FREQUENCY TOLERANCE AT 25°C	±15 PPM, or ±30 PPM
FREQUENCY STABILITY OVER TEMPERATURE	±15 PPM, or ±30 PPM
OPERATING TEMPERATURE RANGE	-10°C TO +60°C STANDARD -40°C TO +85°C EXTENDED
STORAGE TEMPERATURE RANGE	-40°C TO +85°C
AGING	±2 PPM PER YEAR or ±5 PPM PER YEAR
LOAD CAPACITANCE	8 pF to 10 pF
EQUIVALENT SERIES RESISTANCE	SEE TABLE 1
SHUNT CAPACITANCE	5.0 pF MAXIMUM
DRIVE LEVEL	50 µW MAX
REFLOW CONDITIONS	260°C ±5°C FOR 10s MAXIMUM
