大真空5032晶体,1C707600CC1B,DSX530GA贴片陶瓷晶振，尺寸5.0x3.2mm，频率7.6MHZ，负载电容10pF,精度30ppm，陶瓷晶振，无源陶瓷晶体，无源贴片晶振，5032mm贴片晶振，水晶振动子，两脚贴片晶振，无源晶振，陶瓷谐振器，SMD晶振，绿色环保晶振，轻薄型晶振，汽车导航专用晶振，汽车音响晶振，多媒体设备晶振，影音系统晶振，便携式设备晶振，智能手机晶振，高可靠晶振，高品质晶振，低损耗晶振，低功耗晶振，具有高品质低损耗的特点。
无源晶振产品超级适合用于汽车导航，汽车音响等多媒体设备，便携式设备，影音系统，智能手机等领域。大真空5032晶体,1C707600CC1B,DSX530GA贴片陶瓷晶振.
大真空5032晶体,1C707600CC1B,DSX530GA贴片陶瓷晶振参数表
型号名称
DSX530GA
频率范围
7.6MHz
8~12MHz
12~20MHz
20?54MHz
泛音阶
功能
负载容量
8pF，10pF，12pF
激励电平
10μW (300μW max.)
频率允许偏差
±30×10-6( at 25℃)
串联电阻
200ω最大。
150ω最大。
100ω最大。
50ω最大。
频率温度特性
±100×10-6/-40?+125℃ (Ref. to 25℃)
保存温度范围
-40?+150℃
可靠性规格
AEC-Q200
包装单位(1)
1000pcs./reel (φ180 )

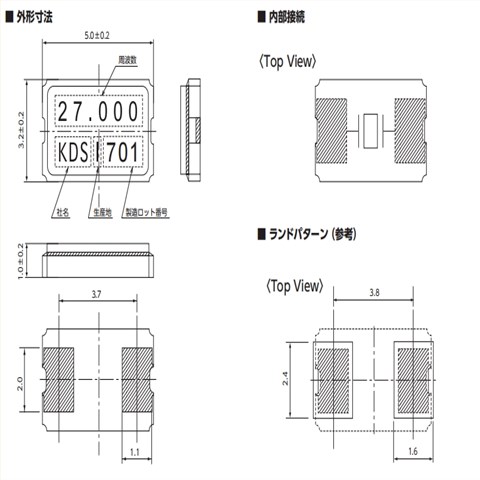

大真空5032晶体,1C707600CC1B,DSX530GA贴片陶瓷晶振尺寸图

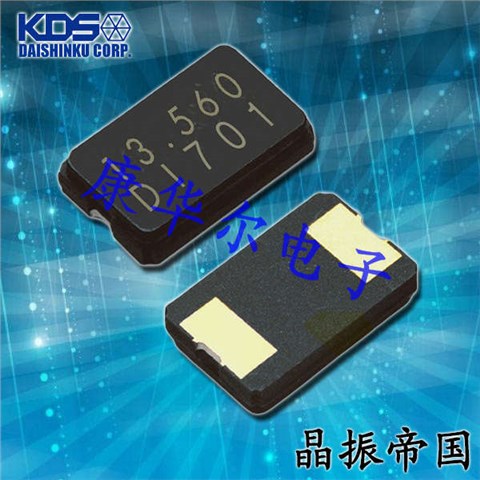

大真空5032晶体,1C707600CC1B,DSX530GA贴片陶瓷晶振
5032陶瓷面晶振产品特性：
小型薄型表面安装型石英振子(厚度1.0mm )
环境特性、耐热特性优异，可靠性高
符合AEC-Q200标准
| 品牌 | 原厂代码 | 型号 | 尺寸 | 频率 | 负载/电压 | 精度 | 温度 |
| KDS晶振 | 1TJS060DJ4A739Q | DMX-26S | 8038 | 32.768K | 6PF | 20PPM | |
| KDS晶振 | 1ZZCAA24000BE0B | DSX211G | 2016 | 24.000M | 10PF | 20PPM | |
| KDS晶振 | 1ZZCAA27120BB0D | DSX211G | 2016 | 27.12M | 10PF | 20PPM | |
| KDS晶振 | 1ZZNAE48000ZZ0R | DSX211SH | 2016 | 48.000M | 7PF | 20PPM | |
| KDS晶振 | 1C707600CC1B | DSX530GA | 5032晶振 | 7.600M | 10PF | 30PPM | |
| KDS晶振 | 1ZZNAE26000AB0J | DSX211SH | 2016 | 26.000M | 7PF | 10PPM | |
| KDS晶振 | 1ZCP37400AA0H | DSX211AL | 2016 | 37.400M | |||
| KDS晶振 | 1ZZNAE38400AB0A | DSX211SH | 2016 | 38.400M | 10PF | 10PPM | |
| KDS晶振 | 1ZZHAM24000BB0B | DSX1612S | 1612 | 24.000M | |||
| KDS晶振 | 1ZZHAM26000AB0A | DSX1612S | 1612 | 26.000M | |||
| KDS晶振 | 1ZZCAA27120CD0A | DSX211G | 2016 | 27.12M | |||
| KDS晶振 | 1ZZNAE38400AA0C | DSX211SH | 2016 | 38.400M | |||
| KDS晶振 | 7AE01200A00 | DSX221G | 2520 | 12.000M | 8PF | ||
| KDS晶振 | 1ZCB26000AB0R | DSX221G | 2520 | 26.000M | |||
| KDS晶振 | 1ZCT24000BD0A | DSX320GE | 3225 | 24.000M | |||
| KDS晶振 | 1XTV36864HBA | DSA321SCM | 3225 | 36.864M | |||
| KDS晶振 | 1CG12288EE1C | DSX630G | 6035 | 12.288M | |||
| KDS晶振 | 1ZNA16000AB0P | DSX221G | 2520 | 16.000M | 9PF | 10ppm | |
| KDS晶振 | 1ZNA32000BB0B | DSX221G | 2520 | 32.000M | 12PF | 15ppm | |
| KDS晶振 | ZC13727 | DSX221SH | 2520 | 24.000M | 10PF | 30ppm | |
| KDS晶振 | 1ZN326000AB0A | DSX221SH | 2520 | 26.000M | 7PF | 10PPM | |
| KDS晶振 | 1C208000BC0R | DSX321G | 3225 | 8.000M | 12PF | 20PPM | |
| KDS晶振 | 7AD00800A1C | DSX321G | 3225 | 8.000M | 12PF | 20PPM | |
| KDS晶振 | 1C208000CE0H | DSX321G | 3225 | 8.000M | 10PF | 20PPM | |
| KDS晶振 | 1C208000EE0BL | DSX321G | 3225 | 8.000M | 12PF | 20PPM | 40~125度 |
| KDS晶振 | 1ZCM080000EE0A汽车 | DSX320G | 3225 | 8.000M | 8PF | 20PPM | 40~85度 |
| KDS晶振 | 1C208000EZ0G汽车 | DSX321G | 3225 | 8.000M | 8PF | 30PPM | 40~85度 |
| KDS晶振 | 1N210000EE0X | DSX321G | 3225 | 10.000M | 10PF | ||
| KDS晶振 | 7AD01200A1R | DSX321G | 3225 | 12.000M | 8PF | 20ppm | |
| KDS晶振 | 1N212000BC0AK | DSX321G | 3225 | 12.000M | 10PF | 20ppm | |
| KDS晶振 | 1C213080CC0A | DSX321G | 3225 | 13.080M | 8PF | ||
| KDS晶振 | 1C232000ABOV | DSX321G | 3225 | 32.000M | 6PF | 10PPM | |
| KDS晶振 | 1N254000BB0M | DSX321G | 3225 | 54.000M | 19PF | 15PPM | |
| KDS晶振 | 1ZCM12000BC0A | DSX320G | 3225 | 12.000M | 8PF | ||
| KDS晶振 | 1C216000EE0AW | DSX321G | 3225 | 16.000M | 8PF | 50PPM | |
| KDS晶振 | 1N216000EE0BE | DSX321G | 3225 | 16.000M | 8PF | 50PPM | |
| KDS晶振 | 1C216000BF0B | DSX321G | 3225 | 16.000M | |||
| KDS晶振 | 1C319200AA0A | DSX321G | 3225 | 19.200M | 8PF | 10PPM | |
| KDS晶振 | 1C220000AA0K | DSX321G | 3225 | 20.000M | |||
| KDS晶振 | 1C224000BE0K | DSX321G | 3225 | 24.000M | |||
| KDS晶振 | 1N225000BC0CT | DSX321G | 3225 | 25.000M | 7.5PF | ||
| KDS晶振 | 1N226000AA0G | DSX321G | 3225 | 26.000M | 12.5PF | 10ppm | |
| KDS晶振 | 1N226000AA0E | DSX321G | 3225 | 26.000M | 8.1PF | 10PPM | |
| KDS晶振 | 1C214745CE0E | DSX321G | 3225 | 14.7456M | |||
| KDS晶振 | 1C224576AC0A | DSX321G | 3225 | 24.576M | |||
| KDS晶振 | 1N226000AB0M | DSX321G | 3225 | 26.000M | 8PF | 8PPM | |
| KDS晶振 | 1N226000AB0J | DSX321G | 3225 | 26.000M | 11PF | 10PPM | |
| KDS晶振 | 1C226000BE0D | DSX321G | 3225 | 26.000M | |||
| KDS晶振 | 1N227000AB0N | DSX321G | 3225 | 27.000M | |||
| KDS晶振 | 1C233333BC0G | DSX321G | 3225 | 33.333333M | |||
| KDS晶振 | 1N340000LA0B | DSX321G | 3225 | 40.000M | |||
| KDS晶振 | 1C340000LA0A | DSX321G | 3225 | 40.000M | 8PF | ||
| KDS晶振 | 1C262400BK0A | DSX321G | 3225 | 62.4M | |||
| KDS晶振 | 1N227000EE0L | DSX321G | 3225 | 27.000M | 9PF | 50ppm | |
| KDS晶振 | 1BASAMPLE | DSX321G | 3225 | 27.000M | 9PF | 50ppm | |
| KDS晶振 | 1C227000BBAH | DSX321G | 3225 | 27.000M | 11PF | 12ppm | |
| KDS晶振 | 1N227000BB0AK | DSX321G | 3225 | 27.000M | 11PF | 12PPM | |
| KDS晶振 | 1C228322EE0D | DSX321G | 3225 | 28.322M | 10PF | 50PPM | |
| KDS晶振 | 1N230000AB0C | DSX321G | 3225 | 30.000M | 10PF | 30PPM | |
| KDS晶振 | 1C338400AA0B | DSX321G | 3225 | 38.400M | 10PF | 10PPM | |
| KDS晶振 | 1C241600CDAA | DSX321G | 3225 | 41.6M | 10PF | 30PPM | |
| KDS晶振 | 1C254000CC0C | DSX321G | 3225 | 54.000M | 10PF | 30PPM | |
| KDS晶振 | 1N232000AA0N | DSX321G | 3225 | 32.000M | 12PF | ||
| KDS晶振 | 1N240000AB0J | DSX321G | 3225 | 40.000M | 15PF | 15PPM | 40~125度 |
| KDS晶振 | 1C240000AB0G | DSX321G | 3225 | 40.000M | 10PF | 10PPM | |
| KDS晶振 | X4S013000DA1H-W | HSX421S | 4025 | 13.000M | 10PF | 20ppm | |
| KDS晶振 | X1H013000B81H | HSX531S | 5032 | 13.000M | 8PF | 10ppm | |
| KDS晶振 | 1C736864CC1A | DSX530GA | 5032 | 36.864M | 8PF | 25PPM | |
| KDS晶振 | 1HX12288CD1A | DSX840GA | 8045 | 12.288M | 20PF | 30PPM | |
| KDS晶振 | 1CX40000EE1O | DSX840GA | 8045 | 40.000M | 18PF | 50ppm | |
| KDS晶振 | 1CW04000KK3C | DSX151GAL | 11.8*5.5 | 4.000M | |||
| KDS晶振 | 1CW08192EK3A | DSX151GAL | 11.8*5.5 | 8.192M | 15PF | 20ppm | |
| KDS晶振 | CW08000EK3B | DSX151GAL | 11.8*5.5 | 8.000M | |||
| KDS晶振 | 1AJ039286A | SMD-49 | 3.928231M | ||||
| KDS晶振 | 1AJ040003DJ | SMD-49 | 4.000M | ||||
| KDS晶振 | 1AJ043324C | SMD-49 | 11*4.6 | 4.332M | 12PF | 20PPM | |
| KDS晶振 | 1AJ073726AV | SMD-49 | 7.3728M | ||||
| KDS晶振 | 1AJ099976A | SMD-49 | 9.9975M | ||||
| KDS晶振 | 1AR11059CEB | SMD-49 | 11.0592M | 16PF | 30PPM | ||
| KDS晶振 | 1AJ160006BL | SMD-49 | 16.000M | ||||
| KDS晶振 | 1AJ16000EEL | SMD-49 | 16.000M | ||||
| KDS晶振 | 1AJ160003D | SMD-49 | 16.000M | 30PPM | |||
| KDS晶振 | 1AJ17408AAGA | SMD-49 | 11*4.6 | 17.408M | 16PF | 50PPM | |
| KDS晶振 | 1AJ240006AEA | SMD-49 | 11*4.6 | 24.000M | 16PF | 50PPM | |
| KDS晶振 | 1AJ240006AK | SMD-49 | 11*4.6 | 24.000M | 16PF | 30PPM | |
| KDS晶振 | 1AJ240006BB | SMD-49 | 11*4.6 | 24.000M | 16PF | 30PPM | |
| KDS晶振 | 1AJ245765C | SMD-49 | 11*4.6 | 24.576M | 18PF | 30PPM | |
| KDS晶振 | 1AR245766AZ | SMD-49 | 11*4.6 | 24.576M | 20PF | 30ppm | |
| KDS晶振 | 1AR245766BE | SMD-49 | 11*4.6 | 24.576M | |||
| KDS晶振 | 1AJ250004B | SMD-49 | 11*4.6 | 25.000M | 20PF | 30PPM |
