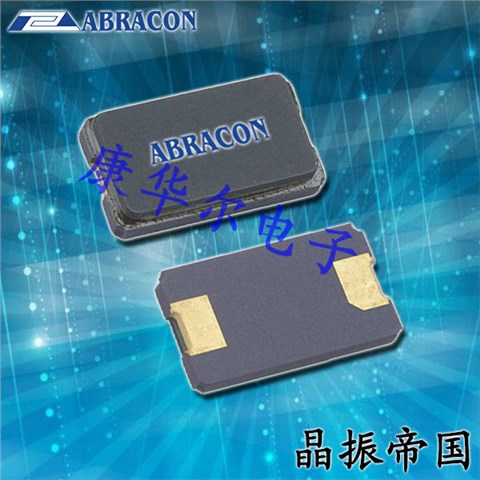

ABM3-25.000MHZ-D2Y-T,5032无源晶振,Abracon陶瓷晶振

ABM3-25.000MHZ-D2Y-T,5032无源晶振,Abracon陶瓷晶振ABM3-25.000MHZ-D2Y-T,5032无源晶振,Abracon陶瓷晶振

产品简介

ABM3-25.000MHZ-D2Y-T,5032无源晶振,Abracon进口陶瓷晶振,尺寸5×3.2×1.3mm,体积小巧轻薄,适配各类紧凑型贴片电路设计.产品搭载优质陶瓷玻璃密封封装工艺,电气参数稳定可控,负载电容18pF,等效串联电阻30Ohms,频率容差±20ppm,频率稳定性±20ppm,精度表现优异.器件支持基频工作模式,适配无铅RoHS回流焊工艺,符合行业环保生产标准,耐温区间宽泛,可适应-40℃至+85℃严苛工作环境.作为工业级无源谐振器件,参数一致性高,批量稳定性强,是嵌入式设备,通信模块的核心时钟优选,康华尔电子全程提供正品货源与技术支持.


产品详情

Japan1

ABM3-25.000MHZ-D2Y-T,5032无源晶振,Abracon陶瓷晶振

康华尔电子原装代理美国Abracon进口晶振品牌ABM3-25.000MHZ-D2Y-T属于5032无源陶瓷晶振,高性价比,高稳定性,咨询订购:0755-27838351.该晶振兼顾高品质与高适配性,依托Abracon成熟的生产工艺,精准控制频率误差,±20ppm频差,±30ppm稳定度的参数配置,完全满足绝大多数民用,工业电子设备的精度需求.相较于同规格竞品,其采用陶瓷密封结构,使用寿命更长,故障率更低,量产兼容性更好,大幅降低设备售后故障率.标准5032贴片尺寸无需改板适配,18pF标准负载电容适配主流电路设计,无需额外调试,直接贴装即可使用.货源均为原厂原装,批次稳定,参数统一,杜绝翻新,散新器件,适合工厂批量采购,项目研发打样,是25MHz无源晶振选型中高性价比的优质方案.

Japan2

ABM3-25.000MHZ-D2Y-T,5032无源晶振,Abracon陶瓷晶振

品牌 ABRACON
编码 ABM3-25.000MHZ-D2Y-T
型号 ABM3晶振
频率 25MHz
精度 ±20ppm
负载 18pF
尺寸 5032
工作温度 -40+85°C

Japan3

ABM3-25.000MHZ-D2Y-T,5032无源晶振,Abracon陶瓷晶振

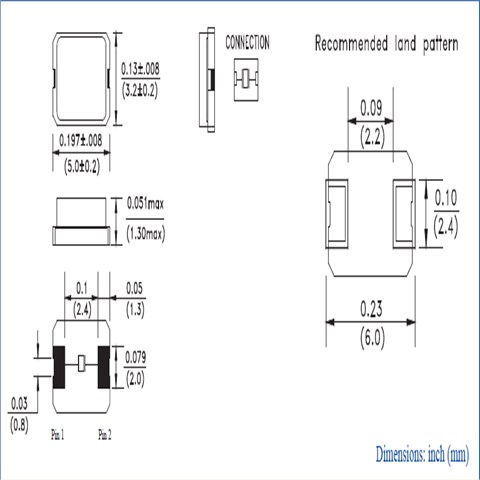

abm3 5.0-3.2-1.3

更多相关晶振参考

编码 品牌 系列 频率 频率容差 负载电容
Q 40.0-JXS11-8-10/10-FU-LF Jauch JXS11 40MHz ±10ppm 8pF
Q 26.0-JXS11-12-10/10-FU-LF Jauch JXS11 26MHz ±10ppm 12pF
Q 32.0-JXS11-8-10/10-FU-LF Jauch JXS11 32MHz ±10ppm 8pF
Q 50.0-JXS11-8-10/10-FU-LF Jauch JXS11 50MHz ±10ppm 8pF
Q 32.0-JXS11-10-10/10-FU-LF Jauch JXS11 32MHz ±10ppm 10pF
Q 27.120-JXS11-8-10/10-FU-LF Jauch JXS11 27.12MHz ±10ppm 8pF
Q 50.0-JXS11-12-10/20-T1-FU-LF Jauch JXS11 50MHz ±10ppm 12pF
Q 27.120-JXS11-8-10/20-T1-FU-LF Jauch JXS11 27.12MHz ±10ppm 8pF
Q 32.0-JXS11-10-10/20-T1-FU-LF Jauch JXS11 32MHz ±10ppm 10pF
Q 40.0-JXS11-12-10/10-FU-LF Jauch JXS11 40MHz ±10ppm 12pF
Q 40.0-JXS11-10-10/10-FU-LF Jauch JXS11 40MHz ±10ppm 10pF
Q 25.0-JXS11-12-10/10-FU-LF Jauch JXS11 25MHz ±10ppm 12pF
Q 25.0-JXS11-12-10/20-T1-FU-LF Jauch JXS11 25MHz ±10ppm 12pF
Q 50.0-JXS11-8-10/20-T1-FU-LF Jauch JXS11 50MHz ±10ppm 8pF
Q 50.0-JXS11-10-10/20-T1-FU-LF Jauch JXS11 50MHz ±10ppm 10pF
Q 26.0-JXS11-12-10/20-T1-FU-LF Jauch JXS11 26MHz ±10ppm 12pF
Q 38.40-JXS11-12-10/10-FU-LF Jauch JXS11 38.4MHz ±10ppm 12pF
Q 25.0-JXS11-8-10/10-FU-LF Jauch JXS11 25MHz ±10ppm 8pF
Q 27.120-JXS11-12-10/10-FU-LF Jauch JXS11 27.12MHz ±10ppm 12pF
Q 24.0-JXS11-10-10/10-FU-LF Jauch JXS11 24MHz ±10ppm 10pF
Q 38.40-JXS11-10-10/20-T1-FU-LF Jauch JXS11 38.4MHz ±10ppm 10pF
Q 38.40-JXS11-8-10/10-FU-LF Jauch JXS11 38.4MHz ±10ppm 8pF
Q 50.0-JXS11-10-10/10-FU-LF Jauch JXS11 50MHz ±10ppm 10pF
Q 40.0-JXS11-8-10/20-T1-FU-LF Jauch JXS11 40MHz ±10ppm 8pF
Q 27.120-JXS11-10-10/10-FU-LF Jauch JXS11 27.12MHz ±10ppm 10pF
Q 27.0-JXS11-12-10/10-FU-LF Jauch JXS11 27MHz ±10ppm 12pF
Q 26.0-JXS11-10-10/10-FU-LF Jauch JXS11 26MHz ±10ppm 10pF
Q 38.40-JXS11-10-10/10-FU-LF Jauch JXS11 38.4MHz ±10ppm 10pF
Q 27.0-JXS11-10-10/10-FU-LF Jauch JXS11 27MHz ±10ppm 10pF
Q 30.0-JXS11-12-10/10-FU-LF Jauch JXS11 30MHz ±10ppm 12pF
Q 27.0-JXS11-8-10/10-FU-LF Jauch JXS11 27MHz ±10ppm 8pF
Q 30.0-JXS11-10-10/10-FU-LF Jauch JXS11 30MHz ±10ppm 10pF
Q 26.0-JXS11-8-10/10-FU-LF Jauch JXS11 26MHz ±10ppm 8pF
Q 32.0-JXS11-12-10/10-FU-LF Jauch JXS11 32MHz ±10ppm 12pF
Q 25.0-JXS11-10-10/10-FU-LF Jauch JXS11 25MHz ±10ppm 10pF
Q 24.0-JXS11-12-10/10-FU-LF Jauch JXS11 24MHz ±10ppm 12pF
Q 24.0-JXS11-8-10/10-FU-LF Jauch JXS11 24MHz ±10ppm 8pF
Q 30.0-JXS11-8-10/10-FU-LF Jauch JXS11 30MHz ±10ppm 8pF
Q 50.0-JXS11-12-10/10-FU-LF Jauch JXS11 50MHz ±10ppm 12pF
Q 30.0-JXS11-12-10/20-T1-FU-LF Jauch JXS11 30MHz ±10ppm 12pF
Q 27.120-JXS11-12-10/20-T1-FU-LF Jauch JXS11 27.12MHz ±10ppm 12pF
Q 26.0-JXS11-8-10/20-T1-FU-LF Jauch JXS11 26MHz ±10ppm 8pF
Q 40.0-JXS11-12-10/20-T1-FU-LF Jauch JXS11 40MHz ±10ppm 12pF
Q 30.0-JXS11-10-10/20-T1-FU-LF Jauch JXS11 30MHz ±10ppm 10pF
Q 27.0-JXS11-12-10/20-T1-FU-LF Jauch JXS11 27MHz ±10ppm 12pF
Q 24.0-JXS11-8-10/20-T1-FU-LF Jauch JXS11 24MHz ±10ppm 8pF
Q 24.0-JXS11-10-10/20-T1-FU-LF Jauch JXS11 24MHz ±10ppm 10pF
Q 24.0-JXS11-12-10/20-T1-FU-LF Jauch JXS11 24MHz ±10ppm 12pF
Q 38.40-JXS11-8-10/20-T1-FU-LF Jauch JXS11 38.4MHz ±10ppm 8pF
Q 40.0-JXS11-10-10/20-T1-FU-LF Jauch JXS11 40MHz ±10ppm 10pF
Q 25.0-JXS11-10-10/20-T1-FU-LF Jauch JXS11 25MHz ±10ppm 10pF
Q 25.0-JXS11-8-10/20-T1-FU-LF Jauch JXS11 25MHz ±10ppm 8pF
Q 30.0-JXS11-8-10/20-T1-FU-LF Jauch JXS11 30MHz ±10ppm 8pF
Q 26.0-JXS11-10-10/20-T1-FU-LF Jauch JXS11 26MHz ±10ppm 10pF
Q 32.0-JXS11-8-10/20-T1-FU-LF Jauch JXS11 32MHz ±10ppm 8pF
Q 38.40-JXS11-12-10/20-T1-FU-LF Jauch JXS11 38.4MHz ±10ppm 12pF
Q 27.120-JXS11-10-10/20-T1-FU-LF Jauch JXS11 27.12MHz ±10ppm 10pF
Q 27.0-JXS11-8-10/20-T1-FU-LF Jauch JXS11 27MHz ±10ppm 8pF
Q 27.0-JXS11-10-10/20-T1-FU-LF Jauch JXS11 27MHz ±10ppm 10pF
Q 32.0-JXS11-12-10/20-T1-FU-LF Jauch JXS11 32MHz ±10ppm 12pF
