鸿星超小型晶振,ETSB48E007500ECBB8,ETSB可穿戴设备6G晶振

频率：48MHz

尺寸：1.6x1.2x0.37mm

鸿星超小型晶振,ETSB48E007500ECBB8,ETSB可穿戴设备6G晶振，台湾Hosonic鸿星晶振，ETSB系列晶振，编码为：ETSB48E007500ECBB8，频率为：48MHz，小体积晶振尺寸：1.6x1.2x0.37mm封装，四脚贴片晶振，无源晶振，石英晶振，石英晶体谐振器，SMD石英晶体，无铅晶振。具有超小型，轻薄型，高精度，高性能，高品质，耐热及耐环境特点。理想的可穿戴设备和短程无线模块无铅。满足使用无铅焊料进行再流分析的要求。1612晶振被广泛应用于：可穿戴设备晶振，小型便携式设备，智能手机，笔记本电脑，无线网络，蓝牙模块，游戏机设备，玩具晶振，数码电子，家用电器等应用。

订购热线：0755-27838351

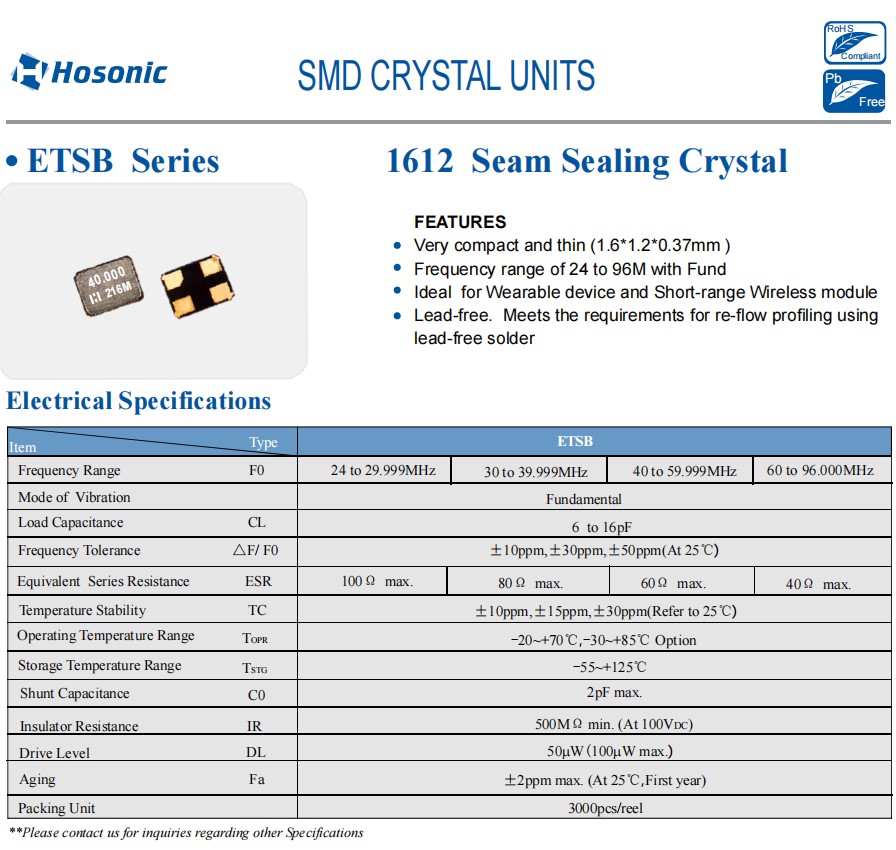

鸿星超小型晶振,ETSB48E007500ECBB8,ETSB可穿戴设备6G晶振，参数表

Item	Type	ETSB
Frequency Range	F0	24 to 29.999MHz	30 to 39.999MHz	40 to 59.999MHz	60 to 96.000MHz
Mode of Vibration		Fundamental
Load Capacitance	CL	6 to 16pF
Frequency Tolerance	ΔF/ F0	±10ppm, ±30ppm, ±50ppm(At 25℃)
Equivalent Series Resistance	ESR	100Ω max.	80Ω max.	60Ω max.	40Ω max.
Temperature Stability	TC	±10ppm, ±15ppm, ±30ppm(Refer to 25℃)
Operating Temperature Range	TOPR	-20~+70℃,-30~+85℃ Option
Storage Temperature Range	TSTG	-55~+125℃
Shunt Capacitance	C0	2pF max.
Insulator Resistance	IR	500MΩ min. (At 100VDC)
Drive Level	DL	50μW(100μW max.)
Aging	Fa	±2ppm max. (At 25℃,First year)
Packing Unit		3000pcs/reel

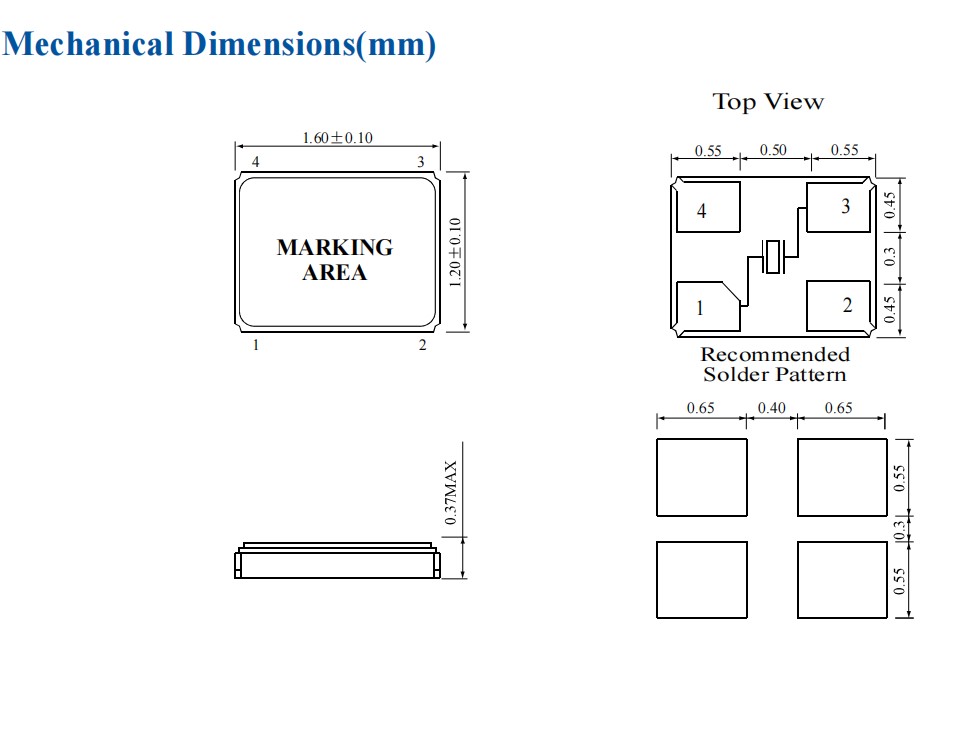

鸿星超小型晶振,ETSB48E007500ECBB8,ETSB可穿戴设备6G晶振，尺寸图

鸿星超小型晶振,ETSB48E007500ECBB8,ETSB可穿戴设备6G晶振

1612mm体积的晶振,可以说是目前小型数码产品的福音,目前超小型的智能手机里面所应用的就是小型的石英晶振,该产品最适用于无线通讯系统,通讯设备晶振,无线局域网,已实现低相位噪声,低电压,低消费电流和高稳定度,超小型,质量轻等产品特点,产品本身编带包装方式,可对应自动高速贴片机应用,以及高温回流焊接（产品无铅对应）,为无铅产品.

晶振料号	品牌	系列	频率	频率稳定性	负载电容
ETSB37E0X0014E	Hosonic鸿星	ETSB	37.4MHz	±10ppm	16pF
ETSB38E0X0005E	Hosonic鸿星	ETSB	38.4MHz	±10ppm	10pF
ETSB24E000003E	Hosonic鸿星	ETSB	24MHz	±10ppm	8pF
ETSB48E007500ECBB8	Hosonic鸿星	ETSB	48MHz	±15ppm	10pF
ETSB48E007502E	Hosonic鸿星	ETSB	48MHz	±15ppm	10pF
ETSB32E000003E	Hosonic鸿星	ETSB	32MHz	±10ppm	8pF
ETSB60E003700E	Hosonic鸿星	ETSB	60MHz	±20ppm	9pF
ETSB27E0X0003E	Hosonic鸿星	ETSB	27.12MHz	±10ppm	10pF
ETSB25E004800E	Hosonic鸿星	ETSB	25MHz	±15ppm	8pF
ETST00327000JE	Hosonic鸿星	ETST	32.768kHz	±20ppm	12.5pF
E5FA8E000000DE	Hosonic鸿星	E5FA	8MHz	±20ppm	20pF
E5SB8E0000000E	Hosonic鸿星	E5SB	8MHz	±10ppm	10pF
E5SB8E0000015E10C0	Hosonic鸿星	E5SB	8MHz	±20ppm	10pF
E5SB8.00000F10E11	Hosonic鸿星	E5SB	8MHz	10ppm	10pF
E5FA8.00000F20E22	Hosonic鸿星	E5FA	8MHz	±20ppm	20PF
E5FA8.00000F20E11	Hosonic鸿星	E5FA	8MHz	±20ppm	20PF
E5FA10.0000F18E33	Hosonic鸿星	E5FA	10MHz	±30ppm	18pF
E5FA12E00000ME	Hosonic鸿星	E5FA	12MHz	±30ppm	18pF
E5FA13.5600F18E33	Hosonic鸿星	E5FA	13.56MHz	±30ppm	18pF
E5FA14.7456F18E33	Hosonic鸿星	E5FA	14.7456MHz	±30ppm	18pF
E5FA16.0000F18E33	贴片晶振	E5FA	16MHz	±30ppm	18pF
E5FA18.4320F18E33	Hosonic鸿星	E5FA	18.432MHz	±30ppm	18pF
E5FA24.0000F18E33	Hosonic鸿星	E5FA	24MHz	±30ppm	18pF
E5FA24.0000F20D33	Hosonic鸿星	E5FA	24MHz	±30ppm	20pF
E5FA24.5760F18E33	Hosonic鸿星	E5FA	24.576MHz	±30ppm	18pF
E5FA25E00000KE	Hosonic鸿星	E5FA	25MHz	±30ppm	16pF
E5FA25E00000TE	Hosonic鸿星	E5FA	25MHz	±30ppm	18pF
E5SB11E0X0006E	Hosonic鸿星	E5SB	11.0592MHz	±30ppm	18pF
E5SB12.0000F18E33	Hosonic鸿星	E5SB	12MHz	±30ppm	18pF
E5SB13.5600F18E33	Hosonic鸿星	E5SB	13.56MHz	±30ppm	18pF
E5SB14.7456F18E33	Hosonic鸿星	E5SB	14.7456MHz	±30ppm	18pF
E5SB20.0000F18E33	Hosonic鸿星	E5SB	20MHz	±30ppm	18pF
E5SB24.0000F18M12	Hosonic鸿星	E5SB	24MHz	±30ppm	18pF
E5SB24.5760F18E33	Hosonic鸿星	E5SB	24.576MHz	±30ppm	18pF
E5SB25.0000F18E33	Hosonic鸿星	E5SB	25MHz	±30ppm	18pF
E5SB25E00001LE	Hosonic鸿星	E5SB	25MHz	±30ppm	18pF
E5SB27.0000F18E33	Hosonic鸿星	E5SB	27MHz	±30ppm	18pF
