思佳讯VCXO压控晶振,Si515人工智能晶振,515BDA156M250BAGR

思佳讯VCXO压控晶振,Si515人工智能晶振,515BDA156M250BAGR思佳讯VCXO压控晶振,Si515人工智能晶振,515BDA156M250BAGR

产品简介

思佳讯VCXO压控晶振,Si515人工智能晶振,515BDA156M250BAGR,尺寸5.0×3.2mm，频率200MHZ，输出逻辑LVDS，电压3.3V，频率稳定性20ppm，思佳讯有源差分晶振，Skyworks压控振荡器，5032mm差分晶振，LVDS差分晶振，贴片差分晶振，压控晶体振荡器，LVDS输出晶振，压控差分晶振，VCXO压控晶振，六脚差分振荡器，石英差分振荡器，差分晶体振荡器，高频差分晶振，高质量差分晶振，低抖动差分晶振，低耗能差分晶振，低功耗差分晶振，低相位差分晶振，低电压差分晶振，高性能差分晶振，人工智能专用差分晶振，航空电子差分晶振，广播视频差分晶振，交换机差分晶振，仪器仪表专用晶振，无线网络差分晶振，医疗设备差分晶振，具有高性能高质量的特点。

OSC晶振产品广泛应用于人工智能，航空电子，广播视频，交换机，仪器仪表，无线网络，医疗设备等领域。思佳讯VCXO压控晶振,Si515人工智能晶振,515BDA156M250BAGR.

产品详情

Japan1

思佳讯VCXO压控晶振,Si515人工智能晶振,515BDA156M250BAGR,尺寸5.0×3.2mm，频率200MHZ，输出逻辑LVDS，电压3.3V，频率稳定性20ppm，思佳讯有源差分晶振，Skyworks压控振荡器，5032mm差分晶振，LVDS差分晶振，贴片差分晶振，压控晶体振荡器，LVDS输出晶振，压控差分晶振，VCXO压控晶振，六脚差分振荡器，石英差分振荡器，差分晶体振荡器，高频差分晶振，高质量差分晶振，低抖动差分晶振，低耗能差分晶振，低功耗差分晶振，低相位差分晶振，低电压差分晶振，高性能差分晶振，人工智能专用差分晶振，航空电子差分晶振，广播视频差分晶振，交换机差分晶振，仪器仪表专用晶振，无线网络差分晶振，医疗设备差分晶振，具有高性能高质量的特点。

OSC晶振产品广泛应用于人工智能，航空电子，广播视频，交换机，仪器仪表，无线网络，医疗设备等领域。思佳讯VCXO压控晶振,Si515人工智能晶振,515BDA156M250BAGR.Japan2思佳讯VCXO压控晶振,Si515人工智能晶振,515BDA156M250BAGR参数表

Parameter Symbol Test Condition Min Typ Max Unit
Supply Voltage VDD 3.3 V option 2.97 3.3 3.63 V
2.5 V option 2.25 2.5 2.75 V
Supply Current IDD CMOS, 100 MHz,
single-ended 		— 24 29 mA
LVDS
(output enabled) 		— 22 26 mA
LVPECL
(output enabled) 		— 42 46 mA
HCSL
(output enabled) 		— 44 47 mA
Tristate
(output disabled) 		— — 22 mA
OE “1” Setting VIH See Note 0.80 x VDD — — V
OE “0” Setting VIL See Note — — 0.20 x VDD V
OE Internal Pull-Up/
Pull-Down Resistor* 		RI — 45 — kΩ
Operating Temperature TA –40 — 85 oC
Parameter Symbol Test Condition Min Typ Max Unit
Control Voltage Range VC 0.1 x VDD VDD/2 0.9 x VDD V
Control Voltage Tuning Slope
(10 to 90% VDD) 		Kv Positive slope,
ordering option 		60, 90, 120, 150 ppm/V
Kv Variation Kv_var — — ±10 %
Control Voltage Linearity LVC BSL –5 ±1 +5 %
Modulation Bandwidth BW — 10 — kHz
Vc Input Impedance ZVC — 100 — kΩ
Parameter Symbol Test Condition Min Typ Max Unit
Nominal Frequency FO CMOS, Dual CMOS 0.1 — 212.5 MHz
FO LVDS/LVPECL/HCSL
156.25
MHz
Temperature Stability ST TA= –40 to +85oC –20 — +20 ppm
Aging A Frequency drift over 10 year life — — ±8.5 ppm
Minimum Absolute Pull Range APR Ordering option ±30, ±50,±80, ±100 ppm
Startup Time TSU Minimum VDDto output fre-
quency (FO) within specification 		— — 10 ms
Disable Time TD FO> 10 MHz — — 5 µs
FO< 10 MHz 40 µs
Enable Time TE FO> 10 MHz — — 20 µs
FO< 10 MHz 60 µs

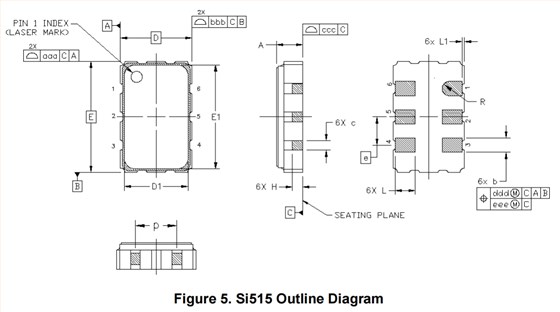

Japan3思佳讯VCXO压控晶振,Si515人工智能晶振,515BDA156M250BAGR尺寸图

Si515 5032

思佳讯VCXO压控晶振,Si515人工智能晶振,515BDA156M250BAGR

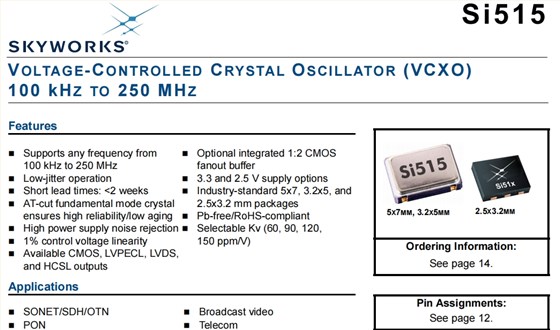

产品特性：

支持来自的任何频率100kHz至250MHz

低抖动操作

交付周期短：<2周

AT切基模晶体确保高可靠性/低老化

高电源噪声抑制

1%控制电压线性

可用CMOS、LVPECL、LVDS差分输出晶振，和HCSL输出

可选集成1:2 CMOS扇出缓存

3.3和2.5 V电源选项

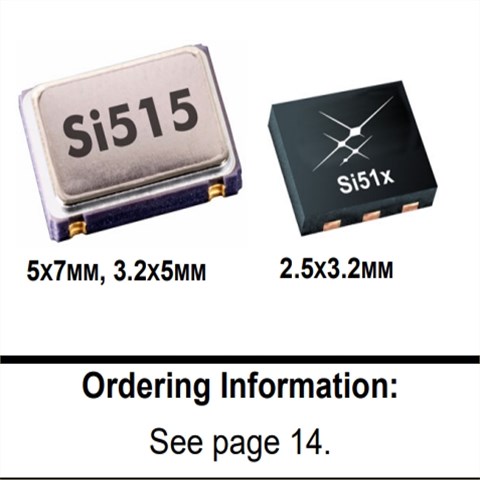

行业标准5x7、3.2x5和2.5x3.2 mm包装

无铅/符合RoHS

可选择的Kv（60、90、120，150 ppm/V）

Si515 1Si515 2

Mfr Part # Mfr Description Series Frequency Output Voltage - Supply
515FCA125M000BAG Skyworks有源晶振 XTAL OSC VCXO 125.0000MHZ LVDS Si515 125 MHz LVDS 2.5V
515BBA122M880BAG Skyworks有源晶振 XTAL OSCILLATOR Si515 122.88 MHz LVDS 3.3V
515BCA24M0000BAG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 24 MHz LVDS 3.3V
515FCB125M000BAG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 125 MHz LVDS 2.5V
515BCB27M0000CAG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 27 MHz LVDS 3.3V
515ACA27M0000BAG Skyworks Crystal DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 27 MHz LVPECL 3.3V
515ACA004723CAG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 24.545454 MHz LVPECL 3.3V
515BCB100M000CAG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 100 MHz LVDS 3.3V
515BAA100M000CAG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 100 MHz LVDS 3.3V
515BCB25M0000BAG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 25 MHz LVDS 3.3V
515ACA100M000CAG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 100 MHz LVPECL 3.3V
515ACA125M000CAG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 125 MHz LVPECL 3.3V
515BCA100M000CAG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 100 MHz LVDS 3.3V
515ACAM457000CAG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 457 kHz LVPECL 3.3V
515ACA122M880CAG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 122.88 MHz LVPECL 3.3V
515BCA10M0000BAG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 10 MHz LVDS 3.3V
515ACA10M0000CAG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 10 MHz LVPECL 3.3V
515BCA122M880CAG Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 122.88 MHz LVDS 3.3V
515ACA100M000BAG Skyworks有源晶振 XTAL OSC VCXO 100.0000MHZ LVPECL Si515 100 MHz LVPECL 3.3V
515ACA61M4400BAG Skyworks有源晶振 XTAL OSC VCXO 61.4400MHZ LVPECL Si515 61.44 MHz LVPECL 3.3V
515AAA161M132BAGR Skyworks有源晶振 XTAL OSC VCXO 161.1320MHZ LVPECL Si515 161.132 MHz LVPECL 3.3V
515AAB156M250BAGR Skyworks有源晶振 XTAL OSC VCXO 156.2500MHZ LVPECL Si515 156.25 MHz LVPECL 3.3V
515ABB155M520BAGR Skyworks有源晶振 XTAL OSC VCXO 155.5200MHZ LVPECL Si515 155.52 MHz LVPECL 3.3V
515ACA000292BAGR Skyworks有源晶振 XTAL OSC VCXO 292.0000KHZ LVPECL Si515 292 kHz LVPECL 3.3V
515ACB155M520BAGR Skyworks有源晶振 XTAL OSC VCXO 155.5200MHZ LVPECL Si515 155.52 MHz LVPECL 3.3V
515BAA000108BAGR Skyworks有源晶振 XTAL OSC VCXO 108.0000KHZ LVDS Si515 108 kHz LVDS 3.3V
515BAA155M520BAGR Skyworks有源晶振 XTAL OSC VCXO 155.5200MHZ LVDS Si515 155.52 MHz LVDS 3.3V
515BAA156M250BAGR Skyworks有源晶振 XTAL OSC VCXO 156.2500MHZ LVDS Si515 156.25 MHz LVDS 3.3V
515BBA155M520BAGR Skyworks有源晶振 XTAL OSC VCXO 155.5200MHZ LVDS Si515 155.52 MHz LVDS 3.3V
515BBA156M250BAGR Skyworks有源晶振 XTAL OSC VCXO 156.2500MHZ LVDS Si515 156.25 MHz LVDS 3.3V
515BBB153M600BAGR Skyworks有源晶振 XTAL OSC VCXO 153.6000MHZ LVDS Si515 153.6 MHz LVDS 3.3V
515BCA135M000BAGR Skyworks有源晶振 XTAL OSC VCXO 135.0000MHZ LVDS Si515 135 MHz LVDS 3.3V
515BDA153M600BAGR Skyworks有源晶振 XTAL OSC VCXO 153.6000MHZ LVDS Si515 153.6 MHz LVDS 3.3V
515BDA156M250BAGR Skyworks有源晶振 XTAL OSC VCXO 156.2500MHZ LVDS Si515 156.25 MHz LVDS 3.3V
515FBA148M352BAGR Skyworks有源晶振 XTAL OSC VCXO 148.3520MHZ LVDS Si515 148.352 MHz LVDS 2.5V
515FBA148M500BAGR Skyworks有源晶振 XTAL OSC VCXO 148.5000MHZ LVDS Si515 148.5 MHz LVDS 2.5V
515FCB135M000BAGR Skyworks有源晶振 XTAL OSC VCXO 135.0000MHZ LVDS Si515 135 MHz LVDS 2.5V
515FBA135M000BAGR Skyworks有源晶振 XTAL OSCILLATOR Si515 135 MHz LVDS 2.5V
515FBA135M000CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 135 MHz LVDS 2.5V
515BAA004636BAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 167.33165 MHz LVDS 3.3V
515ACA156M250CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 156.25 MHz LVPECL 3.3V
515BCA156M250CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 156.25 MHz LVDS 3.3V
515BAA155M520CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 155.52 MHz LVDS 3.3V
515BCA148M500CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 148.5 MHz LVDS 3.3V
515BDA156M250CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 156.25 MHz LVDS 3.3V
515BCA148M350CAGR Skyworks有源晶振 DIFFERENTIAL/SINGLE-ENDED SINGLE Si515 148.35 MHz LVDS 3.3V
515ACA77M7600AAG Skyworks有源晶振 XTAL OSC VCXO 77.7600MHZ LVPECL Si515 77.76 MHz LVPECL 3.3V
515ACAM614400AAG Skyworks有源晶振 XTAL OSC VCXO 6.1440MHZ LVPECL Si515 6.144 MHz LVPECL 3.3V
515BCA10M0000AAG Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVDS Si515 10 MHz LVDS 3.3V
515BCB70M6560AAG Skyworks有源晶振 XTAL OSC VCXO 70.6560MHZ LVDS Si515 70.656 MHz LVDS 3.3V
515BDA27M0000AAG Skyworks有源晶振 XTAL OSC VCXO 27.0000MHZ LVDS Si515 27 MHz LVDS 3.3V
515AAA125M000AAGR Skyworks有源晶振 XTAL OSC VCXO 125.0000MHZ LVPECL Si515 125 MHz LVPECL 3.3V
515AAA25M0000AAGR Skyworks有源晶振 XTAL OSC VCXO 25.0000MHZ LVPECL Si515 25 MHz LVPECL 3.3V
515AAA7M10000AAGR Skyworks有源晶振 XTAL OSC VCXO 7.1000MHZ LVPECL Si515 7.1 MHz LVPECL 3.3V
515ABA25M0000AAGR Skyworks有源晶振 XTAL OSC VCXO 25.0000MHZ LVPECL Si515 25 MHz LVPECL 3.3V
515ABA80M0000AAGR Skyworks有源晶振 XTAL OSC VCXO 80.0000MHZ LVPECL Si515 80 MHz LVPECL 3.3V
515ACA106M250AAGR Skyworks有源晶振 XTAL OSC VCXO 106.2500MHZ LVPECL Si515 106.25 MHz LVPECL 3.3V
515ACA10M0000AAGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVPECL Si515 10 MHz LVPECL 3.3V
515ACA10M7000AAGR Skyworks有源晶振 XTAL OSC VCXO 10.7000MHZ LVPECL Si515 10.7 MHz LVPECL 3.3V
515ACA54M0000AAGR Skyworks有源晶振 XTAL OSC VCXO 54.0000MHZ LVPECL Si515 54 MHz LVPECL 3.3V
515ACAM100000AAGR Skyworks有源晶振 XTAL OSC VCXO 100.0000KHZ LVPECL Si515 100 kHz LVPECL 3.3V
515ACB10M0000AAGR Skyworks有源晶振 XTAL OSC VCXO 10.0000MHZ LVPECL Si515 10 MHz LVPECL 3.3V
515ACB44M1000AAGR Skyworks有源晶振 XTAL OSC VCXO 44.1000MHZ LVPECL Si515 44.1 MHz LVPECL 3.3V
515ADA50M0000AAGR Skyworks有源晶振 XTAL OSC VCXO 50.0000MHZ LVPECL Si515 50 MHz LVPECL 3.3V
515BAA125M000AAGR Skyworks有源晶振 XTAL OSC VCXO 125.0000MHZ LVDS Si515 125 MHz LVDS 3.3V
515BAA25M0000AAGR Skyworks有源晶振 XTAL OSC VCXO晶振 25.0000MHZ LVDS Si515 25 MHz LVDS 3.3V
515BBA100M000AAGR Skyworks有源晶振 XTAL OSC VCXO 100.0000MHZ LVDS Si515 100 MHz LVDS 3.3V
515BBA122M880AAGR Skyworks有源晶振 XTAL OSC VCXO 122.8800MHZ LVDS Si515 122.88 MHz LVDS 3.3V
515BBA70M6560AAGR Skyworks有源晶振 XTAL OSC VCXO 70.6560MHZ LVDS Si515 70.656 MHz LVDS 3.3V
