ELM8-65.000MHz-10-D4Y-T,3225mm,65MHz,AEL超小型晶振

产品简介

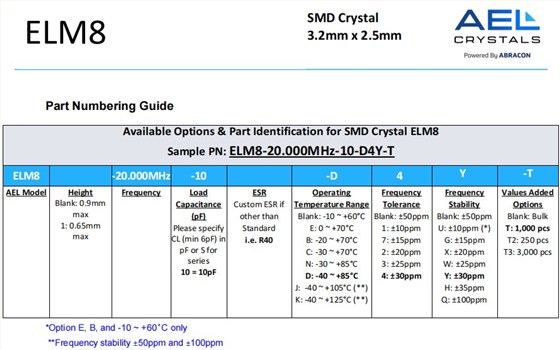

ELM8-65.000MHz-10-D4Y-T,3225mm,65MHz,AEL超小型晶振，英国进口晶振，AEL晶振，艾尔晶振，型号：ELM8晶振，编码为：ELM8-65.000MHz-10-D4Y-T，负载：10pF，频率为：65.000MHz，工作温度范围：-40℃至+85℃，精度：±30ppm，频率稳定性：±30ppm，小体积晶振尺寸：3.2x2.5mm封装，四脚贴片晶振，无源晶振，石英晶振，3225晶振，石英晶体谐振器，无铅环保晶振。具有超小型，轻薄型，高精度，高性能，高品质，高温度等特点。被广泛应用于：移动通讯设备晶振，汽车电子晶振，导航仪晶振，无线蓝牙晶振，智能手机晶振，平板电脑晶振，智能家居晶振应用等。

产品详情

ELM8-65.000MHz-10-D4Y-T,3225mm,65MHz,AEL超小型晶振，产品特点：

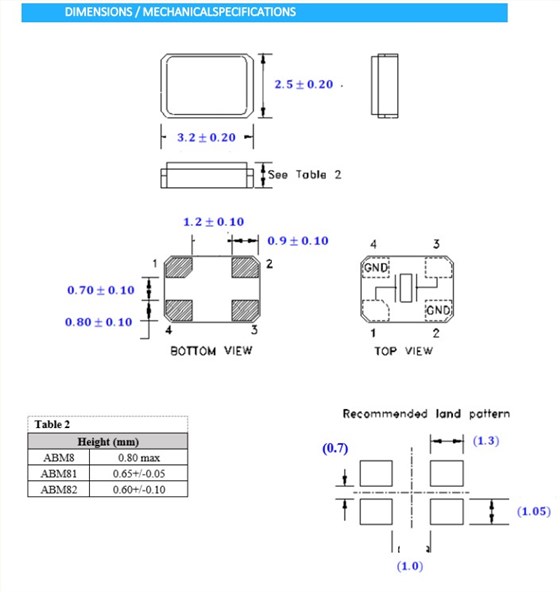

●小型尺寸：3.2x2.5mm
●SMD石英晶体谐振器
●公差： ±10ppm可用
●工作温度-10°C至+60°C至-40°C至+125°C

ELM8-65.000MHz-10-D4Y-T,3225mm,65MHz,AEL超小型晶振,参数表

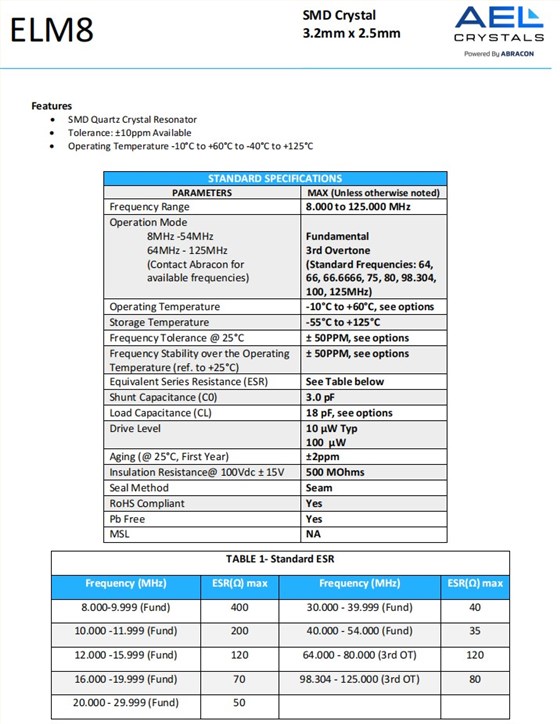

STANDARD SPECIFICATIONS
PARAMETERS						MAX (Unless otherwise noted)
Frequency Range						65.000MHz
Operation Mode 8MHz -54MHz 64MHz - 125MHz (Contact Abracon for available frequencies)						Fundamental 3rd Overtone (Standard Frequencies: 64, 66, 66.6666, 75, 80, 98.304, 100, 125MHz)
Operating Temperature						-10°C to +60°C, see options
Storage Temperature						-55°C to +125°C
Frequency Tolerance @ 25°C						± 50PPM, see options
Frequency Stability over the Operating Temperature (ref. to +25°C)						± 50PPM, see options
Equivalent Series Resistance (ESR)						See Table below
Shunt Capacitance (C0)						3.0 pF
Load Capacitance (CL)						18 pF, see options
Drive Level						10 μW Typ 100 μW
Aging (@ 25°C, First Year)						±2ppm
Insulation Resistance@ 100Vdc ± 15V						500 MOhms
Seal Method						Seam
RoHS Compliant						Yes
Pb Free						Yes
MSL						NA
