FOX温补晶振,FT1CNKRK38.4-T3,GPS定位器专用晶振，美国进口晶振，FOX晶振，福克斯晶振，型号：FT1CN，编码为：FT1CNKRK38.4-T3，频率为：38.400MHz，小体积晶振尺寸：2.0x1.6mm封装，四脚贴片晶振，TCXO晶振，温补晶振，有源晶体，石英贴片晶振，温度补偿晶体振荡器，SMD晶振。具有超小型，轻薄型，低抖动，低功耗，低相位噪声，低电源电压，低电平，高精度，高性能，高品质等特点。石英晶振，被广泛应用于：移动通讯设备，无线网络，蓝牙模块，GPS定位器，导航仪，物联网，罗拉LORA模块，汽车电子，医疗设备，安防设备，数码电子，智能家居等应用。

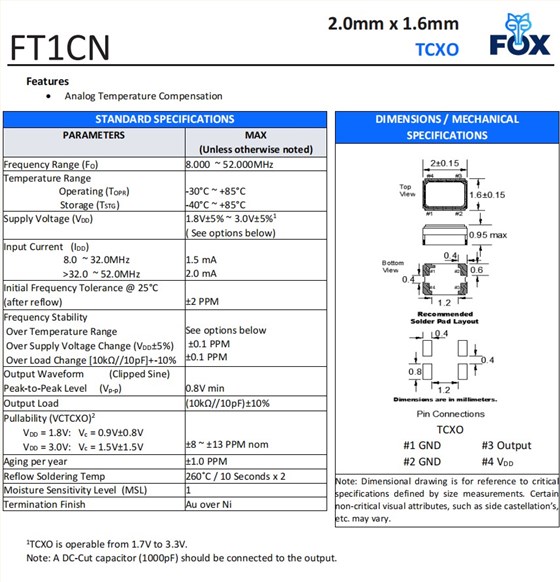

FOX温补晶振,FT1CNKRK38.4-T3,GPS定位器专用晶振,参数表
PARAMETERS
MAX
(Unless otherwise noted)
Frequency Range (FO)
38.400MHz
Temperature Range
Operating (TOPR)
Storage (TSTG)
-30°C ~ +85°C
-40°C ~ +85°C
Supply Voltage (VDD)
1.8V±5% ~ 3.0V±5%1
( See options below)
Input Current(IDD)
8.0~ 32.0MHz
>32.0~ 52.0MHz
1.5 mA
2.0 mA
Initial Frequency Tolerance @ 25°C
(after reflow)
±2 PPM
Frequency Stability
Over Temperature Range
Over Supply Voltage Change (VDD±5%)
Over Load Change [10k?//10pF]+-10%
See options below
±0.1 PPM
±0.1 PPM
Output Waveform(Clipped Sine)
Peak-to-Peak Level(Vp-p)
0.8V min
Output Load
(10k?//10pF)±10%
Pullability (VCTCXO)2
VDD= 1.8V:Vc= 0.9V±0.8V
VDD= 3.0V:Vc= 1.5V±1.5V
±8 ~ ±13 PPM nom
Aging per year
±1.0 PPM
Reflow Soldering Temp
260?C / 10 Seconds x 2
Moisture Sensitivity Level(MSL)
1
Termination Finish
Au over Ni

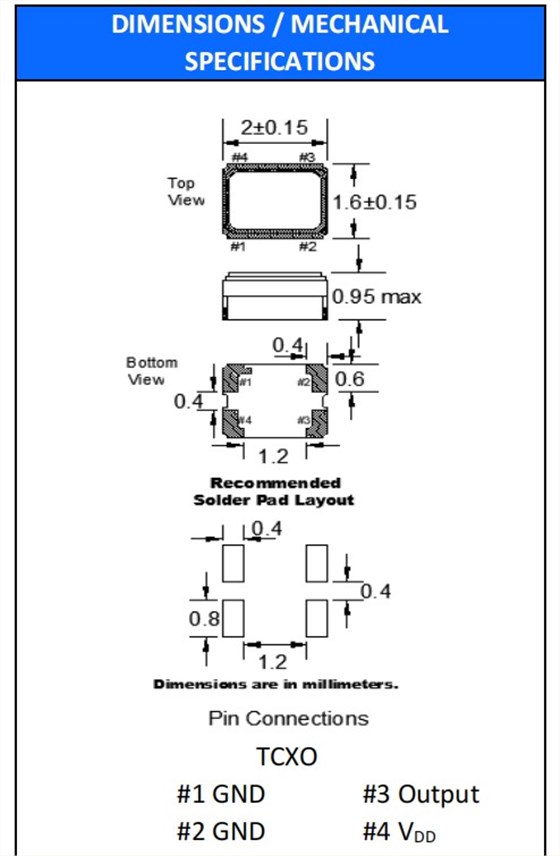

FOX温补晶振,FT1CNKRK38.4-T3,GPS定位器专用晶振,尺寸图
FOX温补晶振,FT1CNKRK38.4-T3,GPS定位器专用晶振
晶振是电子产品都得依赖的一款电子器件,它是通常应用到一些电子产品当中。削波正弦波形是TCXO温补晶振最受欢迎的输出选项,这是为什么呢,主要原因有两点.其一是低功耗,改善了热特性以及更好的老化和频率稳定性能;其二则是比CMOS输出更好的相位噪声性能.也就是说石英晶振在采用削波正玄波作为输出方式之后会减少谐波分量的数量,使得晶振产品具备低相位噪声的性能.
| 晶振料号 | 品牌 | 型号 | 类型 | 频率 | 电压 | 包装/封装 |
| FOX924B-12.000 | Fox晶振 | FOX924 | TCXO | 12MHz | 3.3V | 4-SMD, No Lead |
| FOX924B-16.000 | Fox晶振 | FOX924 | TCXO | 16MHz | 3.3V | 4-SMD, No Lead |
| FOX924B-20.000 | Fox晶振 | FOX924 | TCXO | 20MHz | 3.3V | 4-SMD, No Lead |
| FOX924B-27.000 | Fox晶振 | FOX924 | TCXO | 27MHz | 3.3V | 4-SMD, No Lead |
| FOX924B-10.000 | Fox晶振 | FOX924 | TCXO | 10MHz | 3.3V | 4-SMD, No Lead |
| FOX924B-14.7456 | Fox晶振 | FOX924 | TCXO | 14.7456MHz | 3.3V | 4-SMD, No Lead |
| FOX924B-25.000 | Fox晶振 | FOX924 | TCXO | 25MHz | 3.3V | 4-SMD, No Lead |
| F135-25 | Fox晶振 | F135 | XO (Standard) | 25MHz | 3.3V | 4-SMD, No Lead |
| F335-40 | Fox晶振 | F335 | XO (Standard) | 40MHz | 3.3V | 4-SMD, No Lead |
| F316R-20.000 | Fox晶振 | F310R | XO (Standard) | 20MHz | 1.8V | 4-SMD, No Lead |
| F316R-24.000 | Fox晶振 | F310R | XO (Standard) | 24MHz | 1.8V | 4-SMD, No Lead |
| FOX924B-12.288 | Fox晶振 | FOX924 | TCXO | 12.288MHz | 3.3V | 4-SMD, No Lead |
| F32K-327 | Fox晶振 | F32K | XO (Standard) | 32.768kHz | 3.3V | 4-SMD, No Lead |
| FOX924B-19.440 | Fox晶振 | FOX924 | TCXO | 19.44MHz | 3.3V | 4-SMD, No Lead |
| FOX914B-20.000 | Fox晶振 | FOX914 | TCXO | 20MHz | 3V | 4-SMD, No Lead |
| FOX914B-12.800 | Fox晶振 | FOX914 | TCXO | 12.8MHz | 3V | 4-SMD, No Lead |
| F535L-25 | Fox晶振 | F535L | XO (Standard) | 25MHz | 3.3V | 4-SMD, No Lead |
| F535L-33.333 | Fox晶振 | F535L | XO (Standard) | 33.333MHz | 3.3V | 4-SMD, No Lead |
| F235-40 | Fox晶振 | F235 | XO (Standard) | 40MHz | 3.3V | 4-SMD, No Lead |
| F235-48 | Fox晶振 | F235 | XO (Standard) | 48MHz | 3.3V | 4-SMD, No Lead |
| F535L-24.576 | Fox晶振 | F535L | XO (Standard) | 24.576MHz | 3.3V | 4-SMD, No Lead |
| F535L-24 | Fox晶振 | F535L | XO (Standard) | 24MHz | 3.3V | 4-SMD, No Lead |
| F535L-50 | Fox晶振 | F535L | XO (Standard) | 50MHz | 3.3V | 4-SMD, No Lead |
| F535L-27 | Fox晶振 | F535L | XO (Standard) | 27MHz | 3.3V | 4-SMD, No Lead |
| F535L-12 | Fox晶振 | F535L | XO (Standard) | 12MHz | 3.3V | 4-SMD, No Lead |
| F535L-48 | Fox晶振 | F535L | XO (Standard) | 48MHz | 3.3V | 4-SMD, No Lead |
| F535L-10 | Fox晶振 | F535L | XO (Standard) | 10MHz | 3.3V | 4-SMD, No Lead |
| F535L-40 | Fox晶振 | F535L | XO (Standard) | 40MHz | 3.3V | 4-SMD, No Lead |
| F316R-33.333 | Fox晶振 | F310R | XO (Standard) | 33.333MHz | 1.8V | 4-SMD, No Lead |
| F216R-24.000 | Fox晶振 | F210R | XO (Standard) | 24MHz | 1.8V | 4-SMD, No Lead |
| F235-12 | Fox晶振 | F235 | XO (Standard) | 12MHz | 3.3V | 4-SMD, No Lead |
| F235-50 | Fox晶振 | F235 | XO (Standard) | 50MHz | 3.3V | 4-SMD, No Lead |
| F235-24 | Fox晶振 | F235 | XO (Standard) | 24MHz | 3.3V | 4-SMD, No Lead |
| F335-25 | Fox晶振 | F335 | XO (Standard) | 25MHz | 3.3V | 4-SMD, No Lead |
| F335-50 | Fox晶振 | F335 | XO (Standard) | 50MHz | 3.3V | 4-SMD, No Lead |
| F335-48 | Fox晶振 | F335 | XO (Standard) | 48MHz | 3.3V | 4-SMD, No Lead |
| F335-12 | Fox晶振 | F335 | XO (Standard) | 12MHz | 3.3V | 4-SMD, No Lead |
| F335-16 | Fox晶振 | F335 | XO (Standard) | 16MHz | 3.3V | 4-SMD, No Lead |
| F316R-48.000 | Fox晶振 | F310R | XO (Standard) | 48MHz | 1.8V | 4-SMD, No Lead |
| F535L-16 | Fox晶振 | F535L | XO (Standard) | 16MHz | 3.3V | 4-SMD, No Lead |
| F316R-12.288 | Fox晶振 | F310R | XO (Standard) | 12.288MHz | 1.8V | 4-SMD, No Lead |
| F316R-14.31818 | Fox晶振 | F310R | XO (Standard) | 14.31818MHz | 1.8V | 4-SMD, No Lead |
| F316R-16.000 | Fox晶振 | F310R | XO (Standard) | 16MHz | 1.8V | 4-SMD, No Lead |
| F316R-18.432 | Fox晶振 | F310R | XO (Standard) | 18.432MHz | 1.8V | 4-SMD, No Lead |
| F316R-26.000 | Fox晶振 | F310R | XO (Standard) | 26MHz | 1.8V | 4-SMD, No Lead |
| F316R-27.000 | Fox晶振 | F310R | XO (Standard) | 27MHz | 1.8V | 4-SMD, No Lead |
| F316R-30.000 | Fox晶振 | F310R | XO (Standard) | 30MHz | 1.8V | 4-SMD, No Lead |
| F316R-44.000 | Fox晶振 | F310R | XO (Standard) | 44MHz | 1.8V | 4-SMD, No Lead |
| F216R-16.000 | Fox晶振 | F210R | XO (Standard) | 16MHz | 1.8V | 4-SMD, No Lead |
| F216R-24.576 | Fox晶振 | F210R | XO (Standard) | 24.576MHz | 1.8V | 4-SMD, No Lead |
| F216R-27.000 | Fox晶振 | F210R | XO (Standard) | 27MHz | 1.8V | 4-SMD, No Lead |
| F216R-40.000 | Fox晶振 | F210R | XO (Standard) | 40MHz | 1.8V | 4-SMD, No Lead |
| F216R-44.000 | Fox晶振 | F210R | XO (Standard) | 44MHz | 1.8V | 4-SMD, No Lead |
| F216R-48.000 | Fox晶振 | F210R | XO (Standard) | 48MHz | 1.8V | 4-SMD, No Lead |
| F316R-24.576 | Fox晶振 | F310R | XO (Standard) | 24.576MHz | 1.8V | 4-SMD, No Lead |
| F316R-50.000 | Fox晶振 | F310R | XO (Standard) | 50MHz | 1.8V | 4-SMD, No Lead |
| F4100-400 | Fox晶振 | F4100 | XO (Standard) | 40MHz | 3.3V | 4-SMD, No Lead |
| F4100-500 | Fox晶振 | F4100 | XO (Standard) | 50MHz | 3.3V | 4-SMD, No Lead |
| F235-16 | Fox晶振 | F235 | XO (Standard) | 16MHz | 3.3V | 4-SMD, No Lead |
| F235-25 | Fox晶振 | F235 | XO (Standard) | 25MHz | 3.3V | 4-SMD, No Lead |
| F335-24 | Fox晶振 | F335 | XO (Standard) | 24MHz | 3.3V | 4-SMD, No Lead |
| F135-12 | Fox晶振 | F135 | XO (Standard) | 12MHz | 3.3V | 4-SMD, No Lead |
| F135-16 | Fox晶振 | F135 | XO (Standard) | 16MHz | 3.3V | 4-SMD, No Lead |
| F135-24 | Fox晶振 | F135 | XO (Standard) | 24MHz | 3.3V | 4-SMD, No Lead |
| F135-40 | Fox晶振 | F135 | XO (Standard) | 40MHz | 3.3V | 4-SMD, No Lead |
| F135-48 | Fox晶振 | F135 | XO (Standard) | 48MHz | 3.3V | 4-SMD, No Lead |
| F135-50 | Fox晶振 | F135 | XO (Standard) | 50MHz | 3.3V | 4-SMD, No Lead |
| 819A-10-1 | Fox晶振 | F210R | XO (Standard) | 10MHz | 1.8V | 4-SMD, No Lead |
| FOX914B-19.200 | Fox晶振 | FOX914 | TCXO | 19.2MHz | 3V | 4-SMD, No Lead |
| FOX914B-19.440 | Fox晶振 | FOX914 | TCXO | 19.44MHz | 3V | 4-SMD, No Lead |
| FOX914B-26.000 | Fox晶振 | FOX914 | TCXO | 26MHz | 3V | 4-SMD, No Lead |
| F316R-12.000 | Fox晶振 | F310R | XO (Standard) | 12MHz | 1.8V | 4-SMD, No Lead |
| 840C-12-1 | Fox晶振 | FOX922 | VCTCXO | 12MHz | 3.3V | 6-SMD, No Lead |
| FOX465 | Fox晶振 | FOX465 | XO (Standard) | 32.768kHz | 3.3V | 4-SMD, No Lead |
| F254-327 | Fox晶振 | F254 | XO (Standard) | 32.768kHz | 3.3V | 4-SMD, No Lead |
