M1610-32.768kHz-±20ppm-12.5pF,1610mm,PETERMANN手表晶体

产品简介

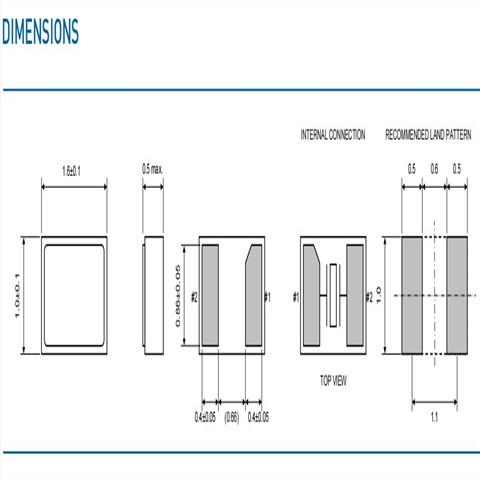

M1610-32.768kHz-±20ppm-12.5pF,1610mm,PETERMANN手表晶体，德国进口晶振，PETERMANN彼得曼晶振，型号：M1610，编码为：M1610-32.768kHz-±20ppm-12.5pF ，频率为：32.768KHz，负载电容：12.5pF，精度：±20ppm，工作温度范围：-40℃至+85℃，小体积晶振尺寸：1.6x1.0mm封装，两脚贴片晶振，石英晶振，手表晶体，无源晶振，音叉晶振，石英晶体谐振器。具有超小型，轻薄型，高性能，高品质，耐热及耐环境等特点。石英晶振，应用程序：无线应用晶振，可穿戴设备晶振，通信晶振，钟表电子晶振，汽车电子晶振，数字显示晶振等应用。

产品详情

M1610-32.768kHz-±20ppm-12.5pF,1610mm,PETERMANN手表晶体，产品特点：

最小的可用的低成本手表水晶
扩展工作温度范围高达-40℃至+125°C
优异的抗冲击性

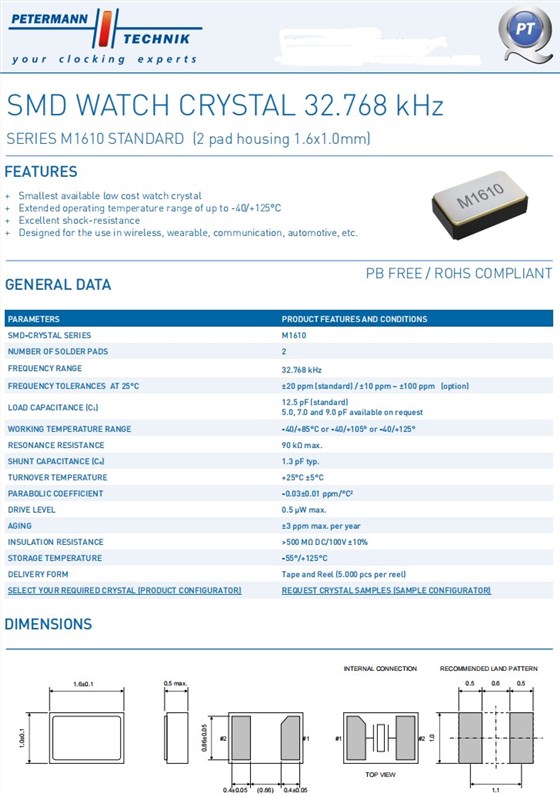

M1610-32.768kHz-±20ppm-12.5pF,1610mm,PETERMANN手表晶体,参数表

PARAMETERS	PRODUCT FEATURES AND CONDITIONS
SMD-CRYSTAL SERIES	M1610
NUMBER OF SOLDER PADS	2
FREQUENCY RANGE	32.768 kHz
FREQUENCY TOLERANCES AT 25°C	±20 ppm (standard) / ±10 ppm ~ ±100 ppm (option)
LOAD CAPACITANCE (CL)	12.5 pF (standard)
LOAD CAPACITANCE (CL)	5.0, 7.0 and 9.0 pF available on request
WORKING TEMPERATURE RANGE	-40/+85°C or -40/+105° or -40/+125°
RESONANCE RESISTANCE	90 kΩ max.
SHUNT CAPACITANCE (Co)	1.3 pF typ.
TURNOVER TEMPERATURE	+25°C ±5°C
PARABOLIC COEFFICIENT	-0.03±0.01ppm/°C²
DRIVE LEVEL	0.5 μW max.
AGING	±3 ppm max. per year
INSULATION RESISTANCE	>500 MΩ DC/100V ±10%
STORAGE TEMPERATURE	-55°/+125°C
DELIVERY FORM	Tape and Reel (5.000 pcs per reel)
