NX5032GA-12.288000MHZ-LN-CD-1,NX5032GA,汽车应用,50ppm

NX5032GA-12.288000MHZ-LN-CD-1,NX5032GA,汽车应用,50ppm，尺寸为5032mm,频率为12.288MHZ,频率稳定性为50ppm，日本进口晶振，SMD晶振,NDK晶振,陶瓷谐振器,无源晶体,音叉谐振器,5032mm贴片晶振，汽车应用晶振，MCU时钟晶振，智能手机晶振，平板电脑专用晶振，蓝牙耳机晶振，无线设备晶振，网络应用晶振，NX5032GA-27M-STD-CSK-4音叉晶体，NX5032GA-12.000000MHZ-LN-CD-1两脚贴片晶振。

无源贴片晶振产品主要应用：汽车设备，紧凑的表面贴装晶体单元，适用于汽车应用，智能手机，时钟应用，蓝牙耳机等领域。NX5032GA-12.288000MHZ-LN-CD-1,NX5032GA,汽车应用,50ppm.

NX5032GA-12.288000MHZ-LN-CD-1,NX5032GA,汽车应用,50ppm参数表

参数	SYM.	ElectricalSpec.				Notes
		min	typ	max	Units
标称频率	fnom	8	-	40	MHz	---
泛音的顺序	-	Fundamental			-	---
频率公差	-	--50	-	+50	×10-6	@ +25°C
频率和稳定度特点	-	--150	-	+150	×10-6	参考温度应为+25°C
等效电阻	-	-	-	*1	?	* 1。参见表1 (pi网络/系列)
负载电容	CL	-	8	-	pF	PI-network
驱动级别	-	-	10	500	µW	---
工作温度范围	Topr	--40	-	+150	°C	---
储存温度范围	Tstr	--40	-	+150	°C	---
绝缘电阻	-	500	-	-	M?	当终端对终端和终端对盖板在DC100V±15V下通电。
气密性	-	-	-	3.0×10-9	Pa m3/s	---

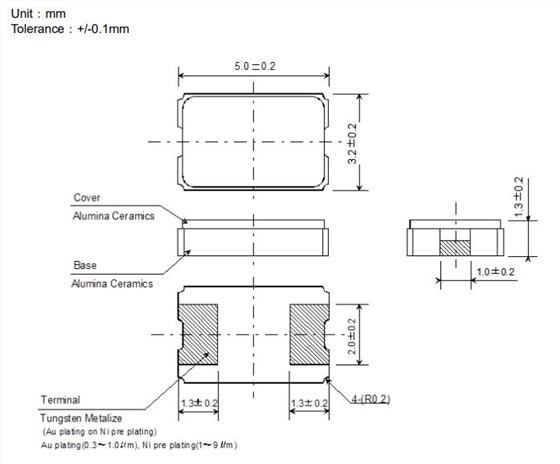

NX5032GA-12.288000MHZ-LN-CD-1,NX5032GA,汽车应用,50ppm尺寸图

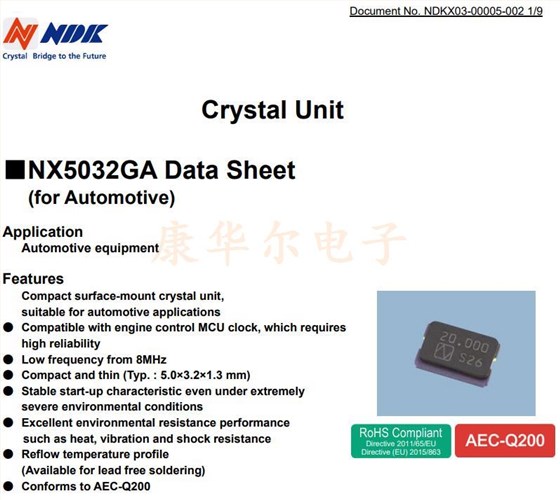

NX5032GA-12.288000MHZ-LN-CD-1晶振特点

紧凑的表面贴装晶体单元，

适用于汽车应用
●兼容发动机控制MCU时钟，这需要
高可靠性
●8MHz以内的低频
●紧凑、薄(型)。: 5.0×3.2×1.3 mm)
●即使在极端高压下，启动特性也稳定
恶劣的环境条件
●优异的耐环境性能
如耐热、耐振动、耐冲击
●回流温度曲线
(可进行无铅焊接)
●符合AEC-Q200标准

更多相关日本NDK晶振型号

原厂编码	厂家	型号	系列	频率	频率稳定度
NX5032GA-24.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	24MHz	±50ppm
NX5032GA-25.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	25MHz	±50ppm
NX5032GA-27.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	27MHz	±50ppm
NX5032GA-16.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	16MHz	±50ppm
NX5032GA-10.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	10MHz	±50ppm
NX5032GA-12.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	12MHz	±50ppm
NX5032GA-48.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	48MHz	±50ppm
NX5032GA-16.384000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	16.384MHz	±50ppm
NX5032GA-20.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	20MHz	±50ppm
NX5032GA-32.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	32MHz	±50ppm
NX5032GA-27M-STD-CSK-4	NDK晶振	NX5032GA	MHz Crystal	27MHz	±30ppm
NX5032GA-12.288M-STD-CSK-4	NDK晶振	NX5032GA	MHz Crystal	12.288MHz	±30ppm
NX5032GA-14.31818M-STD-CSK-4	NDK晶振	NX5032GA	MHz Crystal	14.31818MHz	±30ppm
NX5032GA-25.000M-STD-CSK-4	NDK晶振	NX5032GA	MHz Crystal	25MHz	±30ppm
NX5032GA-12MHZ-STD-CSK-4	NDK晶振	NX5032GA	MHz Crystal	12MHz	±30ppm
NX5032GA-10.000M-STD-CSU-1	NDK晶振	NX5032GA	MHz Crystal	10MHz	±150ppm
NX5032GA-20.000M-STD-CSU-2	NDK晶振	NX5032GA	MHz Crystal	20MHz	±150ppm
NX5032GA-12.000M-STD-CSU-2	NDK晶振	NX5032GA	MHz Crystal	12MHz	±150ppm
NX5032GA-20.000M-STD-CSK-4	NDK晶振	NX5032GA	MHz Crystal	20MHz	±30ppm
NX5032GA-13.56M-STD-CSK-4	NDK晶振	NX5032GA	MHz Crystal	13.56MHz	±30ppm
NX5032GA-12.288000MHZ-LN-CD-1	NDK日本进口晶振	NX5032GA	MHz Crystal	12.288MHz	±50ppm
NX5032GA-16MHZ-STD-CSK-8	NDK晶振	NX5032GA	MHz Crystal	16MHz	±50ppm
NX5032GA-16MHZ-STD-CSK-4	NDK晶振	NX5032GA	MHz Crystal	16MHz	±30ppm
NX5032GA- 9.84375M-STD-CSU-1	NDK晶振	NX5032GA	MHz Crystal	9.84375MHz	±150ppm
NX5032GA-10.000M-STD-CSK-3	NDK晶振	NX5032GA	MHz Crystal	10MHz	±30ppm
NX5032GA-30.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	30MHz	±50ppm
NX5032GA-40.000000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	40MHz	±50ppm
NX5032GA-12MHZ-STD-CSK-8	NDK晶振	NX5032GA	MHz Crystal	12MHz	±50ppm
NX5032GA-16.000M-STD-CSU-2	NDK晶振	NX5032GA	MHz Crystal	16MHz	±150ppm
NX5032GA-8.000M-STD-CSU-1	NDK晶振	NX5032GA	MHz Crystal	8MHz	±150ppm
NX5032GA-13.560000MHZ-LN-CD-1	NDK晶振	NX5032GA	MHz Crystal	13.56MHz	±50ppm
NX5032GA-11.0592M-STD-CSK-4	NDK晶振	NX5032GA	MHz Crystal	11.0592MHz	±30ppm
NX5032GA-30.000M-STD-CSK-4	NDK晶振	NX5032GA	MHz Crystal	30MHz	±30ppm
NX5032GA-24.000M-STD-CSK-4	NDK晶振	NX5032GA	MHz Crystal	24MHz	±30ppm
NX5032GA-40.000M-STD-CSU-2	NDK晶振	NX5032GA	MHz Crystal	40MHz	±150ppm
NX5032GA -13.56M-STD-CSU-2	NDK晶振	NX5032GA	MHz Crystal	13.56MHz	±150ppm
