QuartzCom小体积晶振,SMX-3C,5032mm,两脚贴片晶振

产品简介

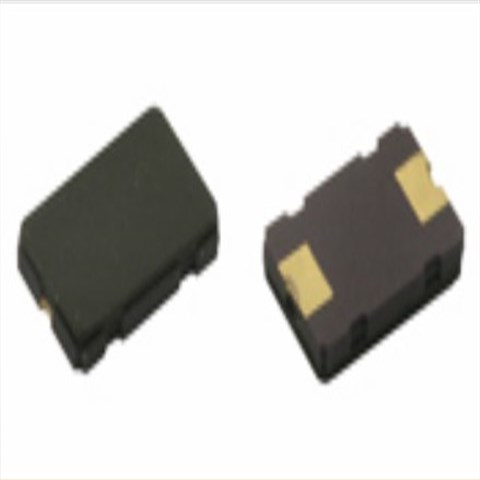

QuartzCom小体积晶振,SMX-3C,5032mm,两脚贴片晶振，瑞士进口晶振，QuartzCom石英通晶振，型号：SMX-3C，是一款小体积晶振，尺寸：5.0x3.2mm封装，两脚贴片晶振，无源晶振，石英晶振，SMD晶体，陶瓷晶振，石英晶体谐振器，无铅环保晶振，宽频率范围：8MHz至67MHz，回流焊@260°C，工作温度范围：-20℃至+70℃商业应用，-40℃至+85℃工业应用，-40℃至+125℃汽车和应用。石英晶振，具有超小型，轻薄型，高精度，高性能，高品质，耐热及耐环境特点。可靠、低成本的晶体，5032晶振，应用于：电信晶振，音频晶振，导航晶振，仪器设备晶振，蓝牙晶振，汽车电子，通讯设备，无线网络，数码电子等应用。

产品详情

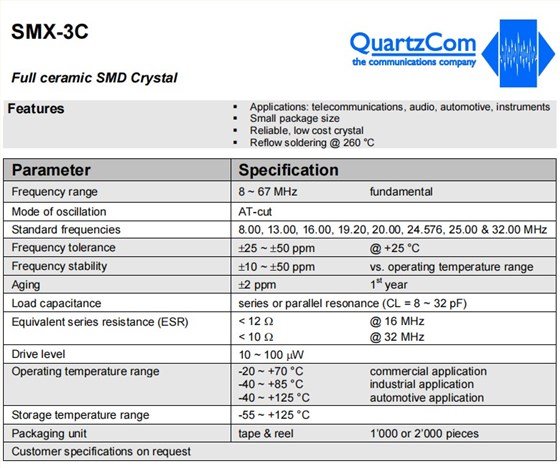

QuartzCom小体积晶振,SMX-3C,5032mm,两脚贴片晶振,参数表

Parameter	Specification
Frequency range	8 ~ 67 MHzfundamental
Mode of oscillation	AT-cut
Standard frequencies	8.00, 13.00, 16.00, 19.20, 20.00, 24.576, 25.00 & 32.00 MHz
Frequency tolerance	±25 ~±50 ppm@ +25 °C
Frequency stability	±10 ~±50 ppmvs. operating temperature range
Aging	±2ppm1styear
Load capacitance	series or parallel resonance (CL = 8 ~ 32 pF)
Equivalent series resistance (ESR)	< 12Ω@ 16 MHz
Equivalent series resistance (ESR)	< 10Ω@ 32 MHz
Drive level	10 ~ 100μW
Operating temperature range	-20 ~ +70°Ccommercial application
	-40 ~ +85°Cindustrial application
	-40 ~ +125°Cautomotive application
Storage temperature range	-55 ~ +125 °C
Packaging unit	tape & reel1’000 or 2’000 pieces
Customer specifications on request
