ILSI艾尔西无源晶振,IL3X2-HX5F12.5-32.768kHz,IL3X2仪器设备晶振

产品简介

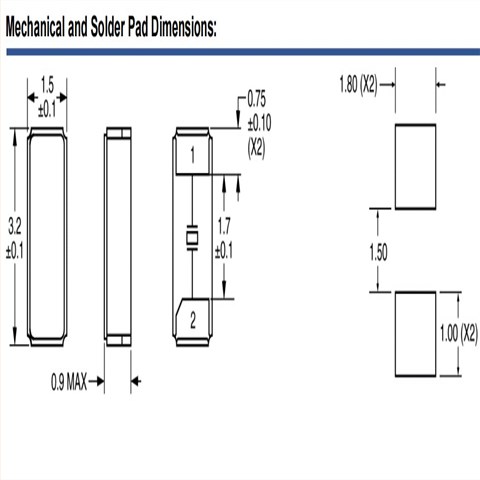

ILSI艾尔西无源晶振,IL3X2-HX5F12.5-32.768kHz,IL3X2仪器设备晶振，美国进口晶振，ILSI艾尔西晶振，型号：IL3X2，编码为：IL3X2-HX5F12.5-32.768kHz，频率：32.768KHz，小体积晶振尺寸：3.2x1.5x0.9mm，两脚贴片晶振，无源晶振，石英晶体，石英晶体谐振器，SMD晶振，无铅晶振，工作温度范围：-40℃至+85℃，具有超小型，轻薄型，高精度，高性能，高品质，耐热及耐环境特点。石英晶振，被广泛应用于：通讯设备，仪器仪表设备，时钟晶振，计量，钟表电子设备，智能手机，平板电脑，智能门锁，智能家居，无线网络，蓝牙模块，汽车电子，物联网，医疗设备等应用。

产品详情

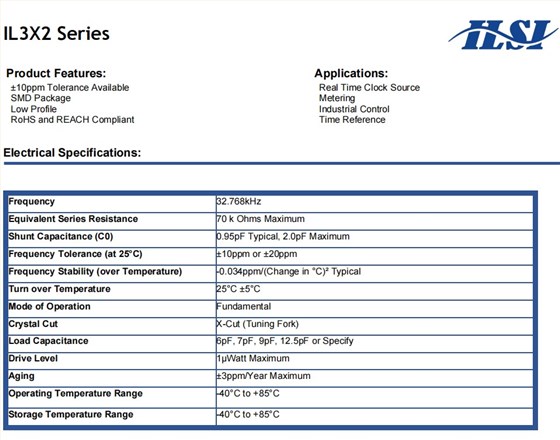

ILSI艾尔西无源晶振,IL3X2-HX5F12.5-32.768kHz,IL3X2仪器设备晶振,参数表

Frequency	32.768kHz
Equivalent Series Resistance	70 k Ohms Maximum
Shunt Capacitance (C0)	0.95pF Typical, 2.0pF Maximum
Frequency Tolerance (at 25°C)	±10ppm or ±20ppm
Frequency Stability (over Temperature)	-0.034ppm/(Change in °C)² Typical
Turn over Temperature	25°C ±5°C
Mode of Operation	Fundamental
Crystal Cut	X-Cut (Tuning Fork)
Load Capacitance	6pF, 7pF, 9pF, 12.5pF or Specify
Drive Level	1µWatt Maximum
Aging	±3ppm/Year Maximum
Operating Temperature Range	-40°C to +85°C
Storage Temperature Range	-40°C to +85°C
