ETST数字显示6G晶振,ETST00327000JE,鸿星32.768kHz晶振，台湾Hosonic鸿星晶振，ETST系列晶振，编码为：ETST00327000JE，频率为：32.768MHz，音叉石英晶体单元，小体积晶振尺寸：3.2x1.5mm封装，两脚贴片晶振，无源晶振，石英晶振，石英晶体谐振器，无铅晶振。具有超小型，轻薄型，高精度，高性能，高品质，耐热及耐环境特点。SMD石英晶体提供了最终的尺寸、性能和经济权衡。因此，它在通信设备、测量仪器、微处理器等时间管理应用中被用作时钟源。3215晶振被广泛应用于：实时时钟晶振，钟表电子晶振，时钟晶振，手表晶振，智能手机，仪器仪表，数字显示，记秒器，电话机表晶，数字游戏机晶振，电脑主板等应用。

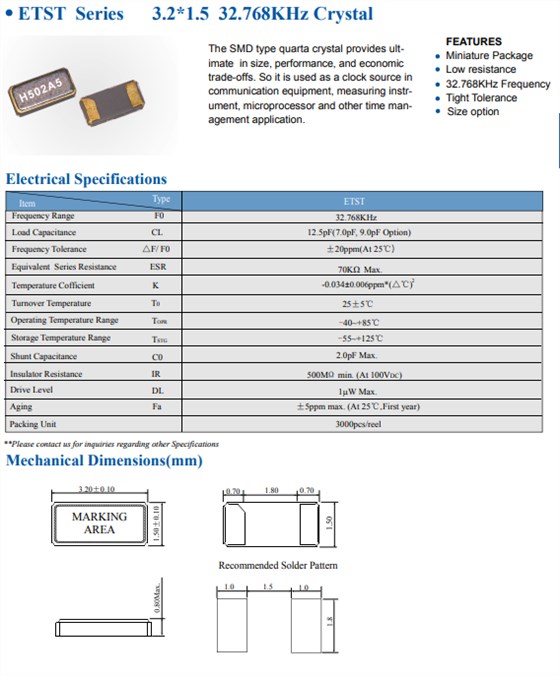

ETST数字显示6G晶振,ETST00327000JE,鸿星32.768kHz晶振，参数表
Item
Frequency Range
Type
F0
ETST
32.768KHz
Load Capacitance
CL
12.5pF(7.0pF, 9.0pF Option)
Frequency Tolerance
ΔF/ F0
±20ppm(At 25℃)
EquivalentSeries Resistance
ESR
70KΩ Max.
Temperature Cofficient
K
-0.034：0.006ppm*(Δ℃)2
Turnover Temperature
T0
25±5℃
Operating Temperature Range
TOPR
-40~+85℃
Storage Temperature Range
TSTG
-55~+125℃
Shunt Capacitance
C0
2.0pF Max.
Insulator Resistance
IR
500MΩmin. (At 100VDC)
Drive Level
DL
1μW Max.
Aging
Fa
±5ppm max. (At 25℃,First year)
Packing Unit
3000pcs/reel

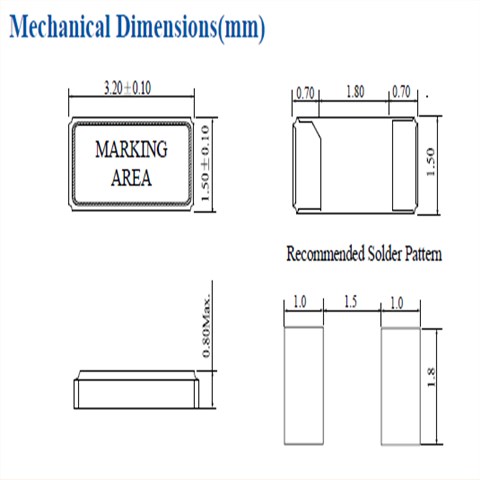

ETST数字显示6G晶振,ETST00327000JE,鸿星32.768kHz晶振，尺寸图

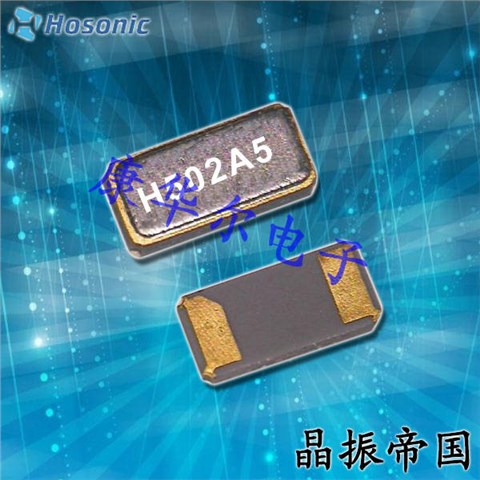

ETST数字显示6G晶振,ETST00327000JE,鸿星32.768kHz晶振
32.768K系列产品本身具有体积小,厚度薄,重量轻等特点,此音叉型石英晶体谐振器,晶振产品本身具备优良的耐热性,耐环境特性,在办公自动化,家电领域,移动通信领域可发挥优良的电气特性,符合无铅标准,满足无铅焊接的回流温度曲线要求,金属外壳的石英晶振使得产品在封装时能发挥比陶瓷晶振外壳更好的耐冲击性能.
| 晶振料号 | 品牌 | 系列 | 频率 | 频率稳定性 | 负载电容 |
| ETSB37E0X0014E | Hosonic鸿星 | ETSB | 37.4MHz | ±10ppm | 16pF |
| ETSB38E0X0005E | Hosonic鸿星 | ETSB | 38.4MHz | ±10ppm | 10pF |
| ETSB24E000003E | Hosonic鸿星 | ETSB | 24MHz | ±10ppm | 8pF |
| ETSB48E007500ECBB8 | Hosonic鸿星 | ETSB | 48MHz | ±15ppm | 10pF |
| ETSB48E007502E | Hosonic鸿星 | ETSB | 48MHz | ±15ppm | 10pF |
| ETSB32E000003E | Hosonic鸿星 | ETSB | 32MHz | ±10ppm | 8pF |
| ETSB60E003700E | Hosonic鸿星 | ETSB | 60MHz | ±20ppm | 9pF |
| ETSB27E0X0003E | Hosonic鸿星 | ETSB | 27.12MHz | ±10ppm | 10pF |
| ETSB25E004800E | Hosonic鸿星 | ETSB | 25MHz | ±15ppm | 8pF |
| ETST00327000JE | Hosonic鸿星 | ETST | 32.768kHz | ±20ppm | 12.5pF |
| E49A20E00000EE10C0 | Hosonic鸿星 | E49A | 20M | ±30ppm | 20PF |
| E5FA8E000000DE | Hosonic鸿星 | E5FA | 8MHz | ±20ppm | 20pF |
| E5SB8E0000000E | Hosonic鸿星 | E5SB | 8MHz | ±10ppm | 10pF |
| E5SB8E0000015E10C0 | Hosonic鸿星 | E5SB | 8MHz | ±20ppm | 10pF |
| E49A27E0X0000E10C0 | Hosonic鸿星 | E49A | 27.12M | ±20ppm | 20pF |
| E5SB8.00000F10E11 | Hosonic鸿星 | E5SB | 8MHz | 10ppm | 10pF |
| E49A12E00000WE10C0 | Hosonic鸿星 | E49A | 12M | ±20ppm | 20pF |
| E49A13E0X000CE10C0 | Hosonic鸿星 | E49A | 13.560MHz | ±30ppm | 20PF |
| E49A25E00000XE10C0 | Hosonic鸿星 | E49A | 25M | ±20ppm | 20pF |
| E49A11E0X000AE10C0 | Hosonic鸿星 | E49A | 11.0592M | ±20ppm | 20PF |
| E5FA8.00000F20E22 | Hosonic鸿星 | E5FA | 8MHz | ±20ppm | 20PF |
| E49A27E000009E10C0 | Hosonic鸿星 | E49A | 27MHz | ±30ppm | 20PF |
| E5FA8.00000F20E11 | Hosonic鸿星 | E5FA | 8MHz | ±20ppm | 20PF |
| E49A4E000000EE10C0 | Hosonic鸿星 | E49A | 4MHz | ±20ppm | 20pF |
| E49A16E00000DE10C0 | Hosonic鸿星 | E49A | 16MHz | ±30ppm | 20pF |
| E49A8E00000FE10CO | Hosonic鸿星 | E49A | 8MHz | ±20ppm | 20pF |
| E49A16E00000KE10CO | Hosonic鸿星 | E49A | 16M | ±20ppm | 20pF |
| E49A11E0X000JE | Hosonic鸿星 | E49A | 11.0592MHz | ±30ppm | 20pF |
| E49A12E00000ME | Hosonic鸿星 | E49A | 12MHz | ±30ppm | 20pF |
| E49A16E00000ME | Hosonic鸿星 | E49A | 16MHz | ±30ppm | 20pF |
| E49A24E00000HE | Hosonic鸿星 | E49A | 24MHz | ±30ppm | 20pF |
| E49A25E00001AE | Hosonic鸿星 | E49A | 25MHz | ±30ppm | 20pF |
| E49A25E000033E | Hosonic鸿星 | E49A | 20pF | ±30ppm | 20pF |
| E49A4E000000JE | Hosonic鸿星 | E49A | 4MHz | ±30ppm | 20pF |
| E49A7E00X0007E | Hosonic鸿星 | E49A | 7.3728MHz | ±30ppm | 20pF |
| E5FA10.0000F18E33 | Hosonic鸿星 | E5FA | 10MHz | ±30ppm | 18pF |
| E5FA12E00000ME | Hosonic鸿星 | E5FA | 12MHz | ±30ppm | 18pF |
| E5FA13.5600F18E33 | Hosonic鸿星 | E5FA | 13.56MHz | ±30ppm | 18pF |
| E5FA14.7456F18E33 | Hosonic鸿星 | E5FA | 14.7456MHz | ±30ppm | 18pF |
| E5FA16.0000F18E33 | Hosonic鸿星 | E5FA | 16MHz | ±30ppm | 18pF |
| E5FA18.4320F18E33 | Hosonic鸿星 | E5FA | 18.432MHz | ±30ppm | 18pF |
| E5FA24.0000F18E33 | Hosonic鸿星 | E5FA | 24MHz | ±30ppm | 18pF |
| E5FA24.0000F20D33 | Hosonic鸿星 | E5FA | 24MHz | ±30ppm | 20pF |
| E5FA24.5760F18E33 | Hosonic鸿星 | E5FA | 24.576MHz | ±30ppm | 18pF |
| E5FA25E00000KE | Hosonic鸿星 | E5FA | 25MHz | ±30ppm | 16pF |
| E5FA25E00000TE | 贴片晶振 | E5FA | 25MHz | ±30ppm | 18pF |
| E5SB11E0X0006E | Hosonic鸿星 | E5SB | 11.0592MHz | ±30ppm | 18pF |
| E5SB12.0000F18E33 | Hosonic鸿星 | E5SB | 12MHz | ±30ppm | 18pF |
| E5SB13.5600F18E33 | Hosonic鸿星 | E5SB | 13.56MHz | ±30ppm | 18pF |
| E5SB14.7456F18E33 | Hosonic鸿星 | E5SB | 14.7456MHz | ±30ppm | 18pF |
| E5SB20.0000F18E33 | Hosonic鸿星 | E5SB | 20MHz | ±30ppm | 18pF |
| E5SB24.0000F18M12 | Hosonic鸿星 | E5SB | 24MHz | ±30ppm | 18pF |
| E5SB24.5760F18E33 | Hosonic鸿星 | E5SB | 24.576MHz | ±30ppm | 18pF |
| E5SB25.0000F18E33 | Hosonic鸿星 | E5SB | 25MHz | ±30ppm | 18pF |
| E5SB25E00001LE | Hosonic鸿星 | E5SB | 25MHz | ±30ppm | 18pF |
| E5SB27.0000F18E33 | Hosonic鸿星 | E5SB | 27MHz | ±30ppm | 18pF |
| ESA10.0000F30C35F | Hosonic鸿星 | HC-49SA | 10MHz | ±30ppm | 10pF |
| ESA12.0000F20B35F | Hosonic鸿星 | HC-49SA | 12MHz | ±30ppm | 20pF |
| ESA12.0000F20E33F | Hosonic鸿星 | HC-49SA | 12MHz | ±30ppm | 20pF |
| ESA12.0000F30D35F | Hosonic鸿星 | HC-49SA | 12MHz | ±30ppm | 30pF |
| ESA12.000F30D55F | Hosonic鸿星 | HC-49SA | 12MHz | ±30ppm | 30pF |
| ESA14.7456F20E33F | Hosonic鸿星 | HC-49SA | 14.7456MHz | ±30ppm | 20pF |
| ESA16.0000F30M55F | Hosonic鸿星 | HC-49SA | 16MHz | ±30ppm | 30pF |
| ESA18.4320F20E33F | Hosonic鸿星 | HC-49SA | 18.432MHz | ±30ppm | 20pF |
| ESA20.0000F18M33F | Hosonic鸿星 | HC-49SA | 20MHz | ±50ppm | 18pF |
| ESA20.0000F20E33F | Hosonic鸿星 | HC-49SA | 20MHz | ±30ppm | 20pF |
| ESA20.0000F30M55F | Hosonic鸿星 | HC-49SA | 20MHz | ±30ppm | 18pF |
| ESA3.68640F20E33F | Hosonic鸿星 | HC-49SA | 3.6864MHz | ±30ppm | 20pF |
| ESA8.00000F20E33F | Hosonic鸿星 | HC-49SA | 8MHz | ±30ppm | 20pF |
