ELM3-20.000MHz-D2Y-T,5032mm,AEL品牌,20MHz

频率：20.000MHz

尺寸：5.0x3.2mm

ELM3-20.000MHz-D2Y-T,5032mm,AEL品牌,20MHz，英国进口晶振，AEL艾尔晶振，型号：ELM3晶振，编码为：ELM3-20.000MHz-D2Y-T，频率为：20.000MHz，工作温度范围：-40℃至+85℃，精度：±20ppm，频率稳定性：±30ppm，小体积晶振尺寸：5.0x3.2mm封装，两脚贴片晶振，石英晶体谐振器，无源贴片晶振，石英晶振，SMD晶振，无铅环保晶振。具有超小型，轻薄型，高精度，高性能，高品质，高温度等特点。被广泛应用于：移动通讯设备晶振，汽车电子晶振，导航仪晶振，无线蓝牙晶振，平板电脑晶振，智能手机晶振，智能家居晶振，安防设备等应用。

订购热线：0755-27838351

ELM3-20.000MHz-D2Y-T,5032mm,AEL品牌,20MHz，产品特点：

●SMD石英晶体谐振器
●公差： ±15ppm可用石英晶振
●工作温度-10°C至+60°C至-40°C至+125°C

ELM3-20.000MHz-D2Y-T,5032mm,AEL品牌,20MHz,参数表

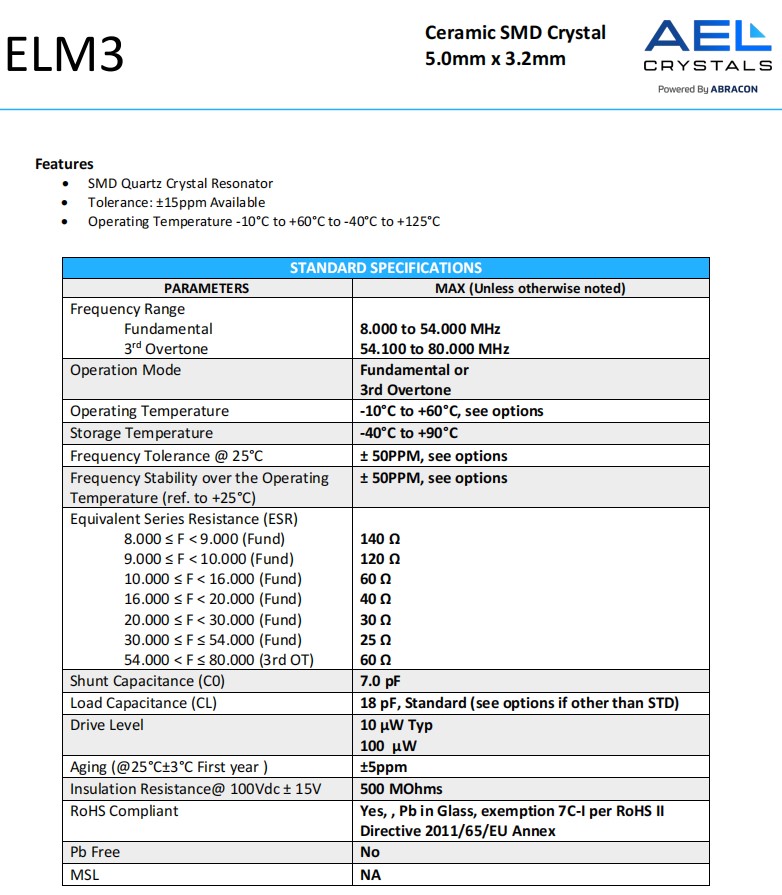

STANDARD SPECIFICATIONS

PARAMETERS

MAX (Unless otherwise noted)

Frequency Range
Fundamental
3rd Overtone

20.000MHz

Operation Mode

Fundamental or
3rd Overtone

Operating Temperature

-10°C to +60°C, see options

Storage Temperature

-40°C to +90°C

Frequency Tolerance @ 25°C

± 50PPM, see options

Frequency Stability over the Operating
Temperature (ref. to +25°C)

± 50PPM, see options

Equivalent Series Resistance (ESR)
               8.000 ≤ F < 9.000 (Fund)
               9.000 ≤ F < 10.000 (Fund)
               10.000 ≤ F < 16.000 (Fund)
               16.000 ≤ F < 20.000 (Fund)
               20.000 ≤ F < 30.000 (Fund)
               30.000 ≤ F ≤ 54.000 (Fund)
               54.000 < F ≤ 80.000 (3rd OT)

140 Ω
120 Ω
60 Ω
40 Ω
30 Ω
25 Ω
60 Ω

Shunt Capacitance (C0)

7.0 pF

Load Capacitance (CL)

18 pF, Standard (see options if other than STD)

Drive Level

10 μW Typ
100 μW

Aging (@25°C±3°C First year )

±5ppm

Insulation Resistance@ 100Vdc ± 15V

500 MOhms

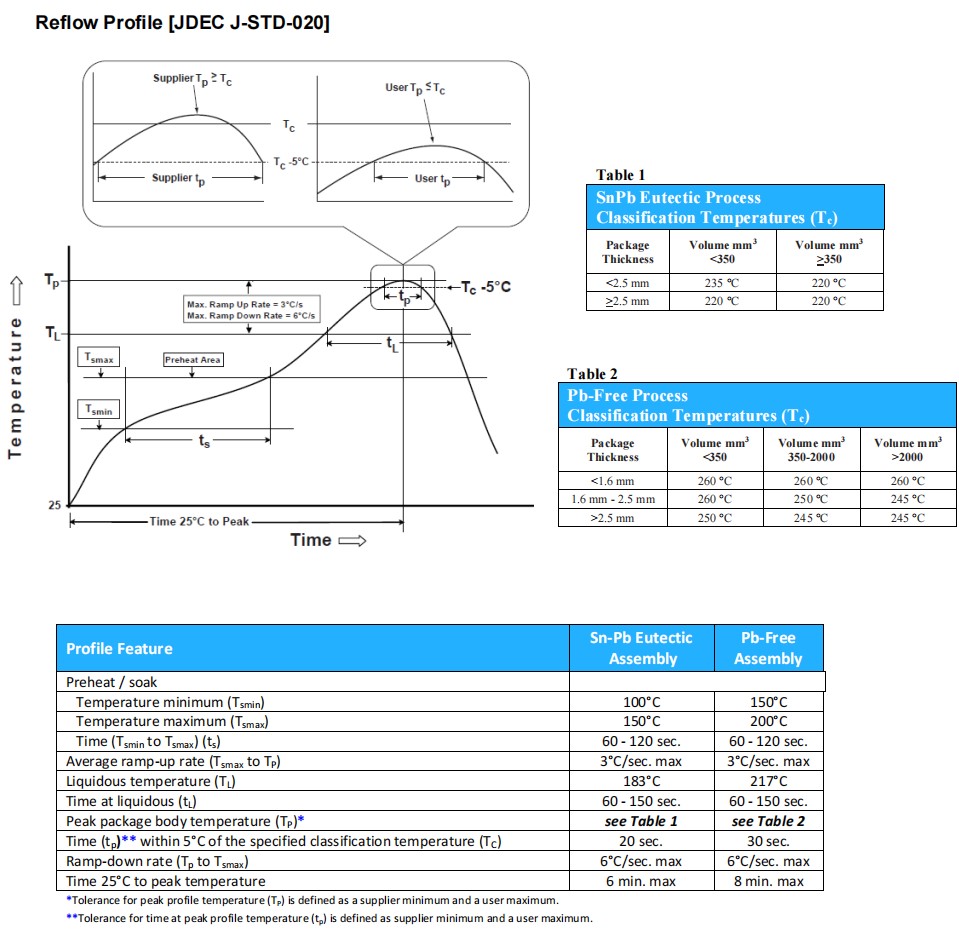

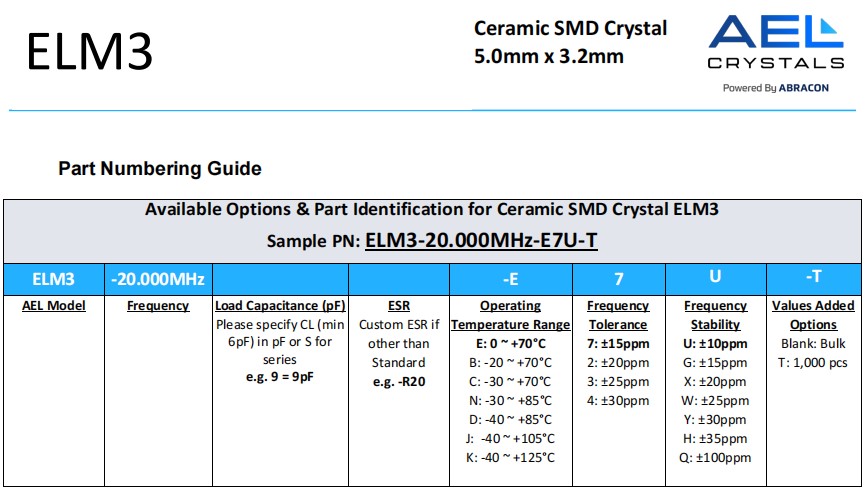

RoHS Compliant
