Aker超小型晶振,C1E-76.800-10-1012-X-M,可穿戴设备6G晶振

频率：76.800MHz

尺寸：2.0x1.6mm

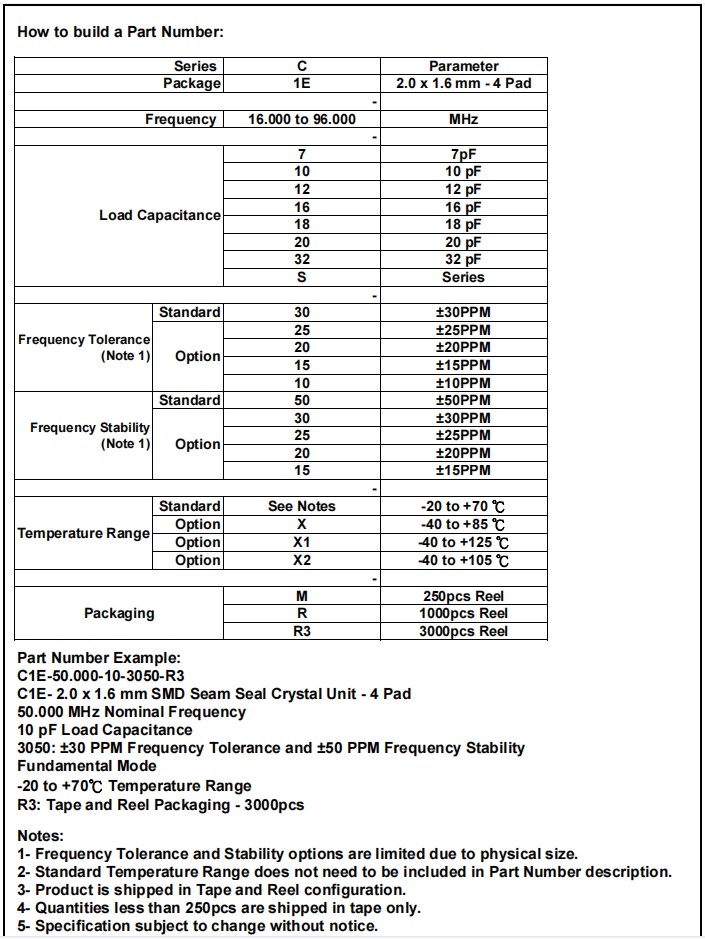

Aker超小型晶振,C1E-76.800-10-1012-X-M,可穿戴设备6G晶振，台湾AKER安碁晶振，C1E系列晶振，编码为：C1E-76.800-10-1012-X-M，频率为：76.800MHz，小体积晶振尺寸：2.0x1.6mm，四脚贴片晶振，无源晶振，石英晶体谐振器，石英晶振，SMD石英晶体，标称频率76.800MHz，负载电容10pF，1012：±10PPM频率容差和±12PPM频率稳定，X：-40℃至+85℃，M：磁带和卷轴包装- 250pcs卷轴。C1E系列具有超小型，轻薄型，高精度，高性能，高品质，耐热及耐环境等特点。贴片晶振应用于：可穿戴设备，小型便捷式设备，通讯设备，无线网络，蓝牙模块，智能手机，平板电脑，数码电子等应用。

订购热线：0755-27838351

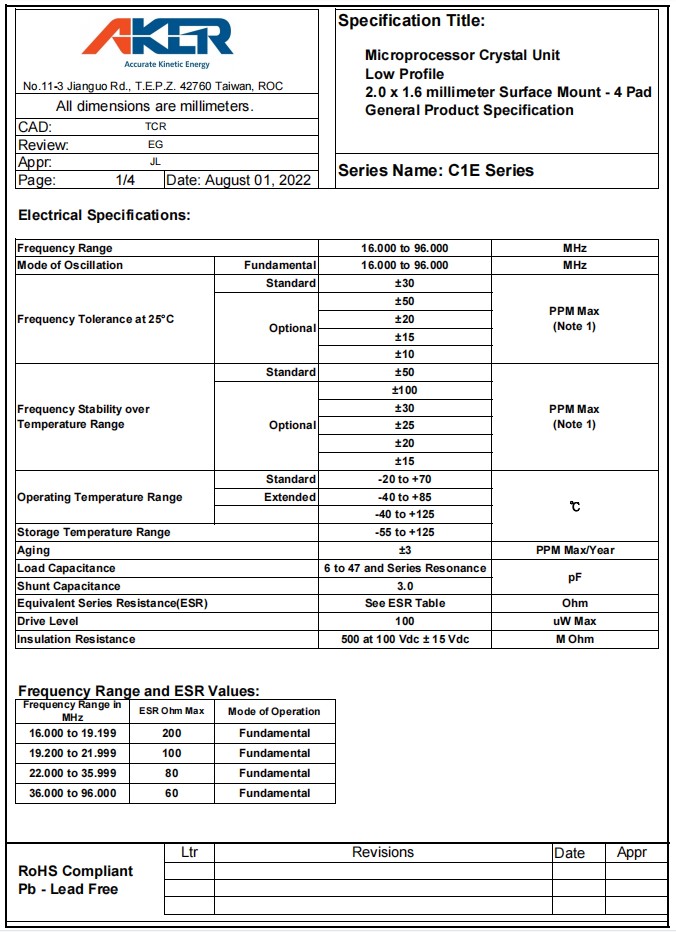

Aker超小型晶振,C1E-76.800-10-1012-X-M,可穿戴设备6G晶振，参数表

Frequency Range		16.000 to 96.000	MHz
Mode of Oscillation	Fundamental	16.000 to 96.000	MHz
Frequency Tolerance at 25°C	Standard	±30	PPM Max (Note 1)
	Optional	±50
		±20
		±15
		±10
Frequency Stability over Temperature Range	Standard	±50	PPM Max (Note 1)
	Optional	±100
		±30
		±25
		±20
		±15
Operating Temperature Range	Standard	-20 to +70	℃
	Extended	-40 to +85
		-40 to +125
Storage Temperature Range		-55 to +125
Aging		±3	PPM Max/Year
Load Capacitance		6 to 47 and Series Resonance	pF
Shunt Capacitance		3.0
Equivalent Series Resistance(ESR)		See ESR Table	Ohm
Drive Level		100	uW Max
Insulation Resistance		500 at 100 Vdc ± 15 Vdc	M Ohm

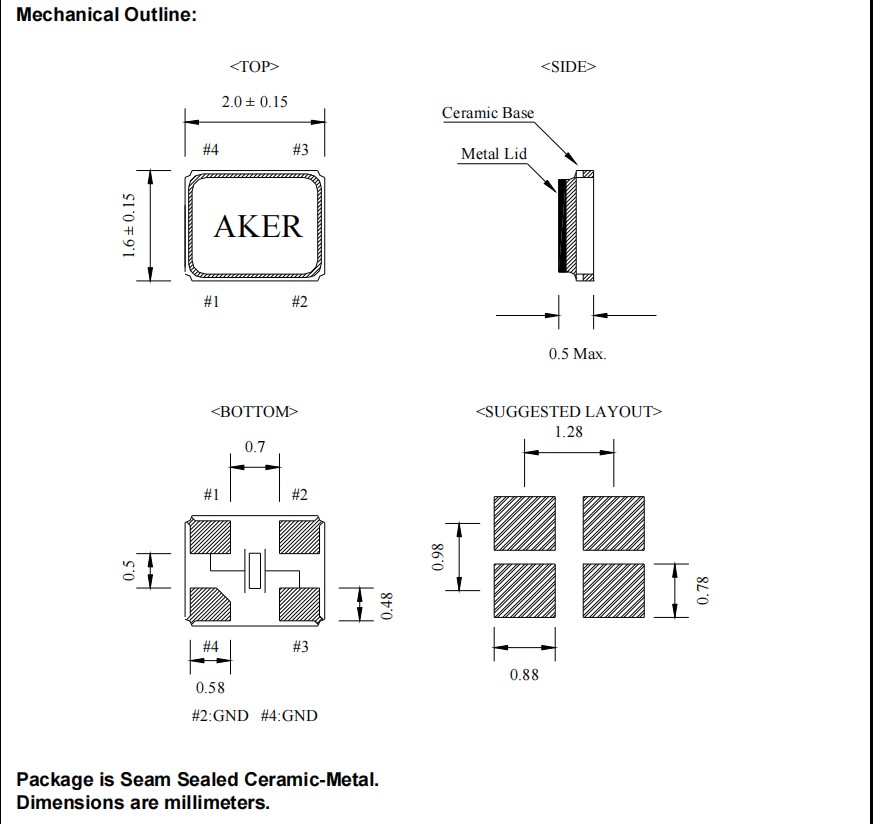

Aker超小型晶振,C1E-76.800-10-1012-X-M,可穿戴设备6G晶振，尺寸图
