MXO45HS-3C-25M0000/CTS晶振/6G以太网应用晶振

频率：25MHz

尺寸：13.20mmx13.20mm

MXO45HS-3C-25M0000/CTS晶振/6G以太网应用晶振，美国进口晶振，CTS晶振型号MXO45，编码为：MXO45HS-3C-25M0000，频率为：25.000Mhz，有源晶体，是传统的通孔时钟振荡器，提供了一个低成本的设计，支持旧的HCMOS/TTL应用程序。MXO45不推荐用于新的设计活动，但可用于支持为完整和半尺寸的金属DIP包开发的现有应用程序。标准14针或8针金属芯片封装，基本和第三泛音晶体设计，低相位抖动性能，+5.0V操作，输出启用选项可用，三种批准的包装方法。该振荡器应用于：计算机和外设，微控制器和FPGAs，存储区域网络，宽带接入，数据通信，网络设备，以太网/千兆以太网，光纤通道，测试和测量。

订购热线：0755-27838351

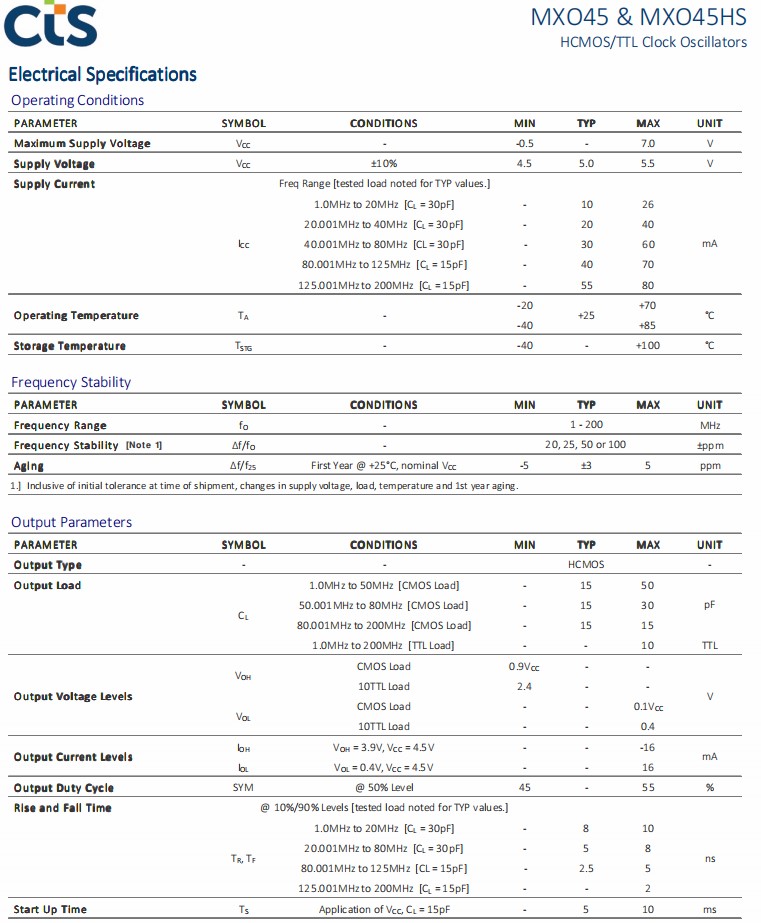

MXO45HS-3C-25M0000/CTS晶振/6G以太网应用晶振 ，参数表

ARAMETER	SYMBO L	CO NDITIO NS	MIN	TYP	MAX	UNIT
Frequenc y Range	fo			25		MHz
Frequenc y Stability [Note 1]	Δf/fO			20, 25, 50 or 100		±ppm
Aging	Δf/f25	First Year @ +25°C, nominal VCC	-5	±3	5	ppm
O utput Type				HCMOS
O utput Load	1.0MHz to 50MHz [CMOS Load]			15	50
	50.001MHz to 80MHz [CMOS Load]			15	30	pF
	80.001MHz to 200MHz [CMOS Load]			15	15
	1.0MHz to 200MHz [TTL Load]				10	TTL

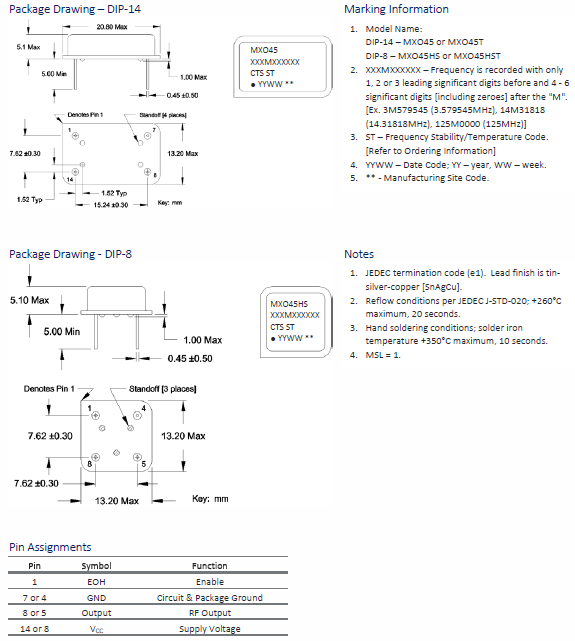

MXO45HS-3C-25M0000/CTS晶振/6G以太网应用晶振 尺寸图

MXO45HS-3C-25M0000/CTS晶振/6G以太网应用晶振

Features ：
Standard 14-Pin or 8-Pin Metal DIP Packages
Fundamental and 3rd Overtone Crystal Designs
Low Phase Jitter Performance
Frequency Range 25MHz 进口石英晶体振荡器
+5.0V Operation
Output Enable Option Available
Three Approved Packing Methods.

Applications ：
Computers and Peripherals
Microcontrollers and FPGAs
Storage Area Networking
Broadband Access
Data Communications
Networking Equipment
Ethernet/Gigabit Ethernet
Fiber Channel
Test and Measurement

晶振料号	品牌	型号	频率	频率稳定度	包装/封装	Size / Dimension 尺寸
MXO45HST-3C-40M0000	CTS晶振	MXO45HS	40MHz	±50ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-3C-4M0000	CTS晶振	MXO45HS	4MHz	±50ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-3C-25M0000	CTS晶振	MXO45HS	25MHz	±50ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-2C-40M0000	CTS晶振	MXO45HS	40MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-3C-3M6864	CTS晶振	MXO45HS	3.6864MHz	±50ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-3C-10M0000	CTS晶振	MXO45HS	10MHz	±50ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HST-3C-16M0000	CTS晶振	MXO45HS	16MHz	±50ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HST-3C-5M0000	CTS晶振	MXO45HS	5MHz	±50ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HST-3C-32M0000	CTS晶振	MXO45HS	32MHz	±50ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HST-3C-50M0000	CTS晶振	MXO45HS	50MHz	±50ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-3C-16M0000	CTS晶振	MXO45HS	16MHz	±50ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-3C-1M8432	CTS晶振	MXO45HS	1.8432MHz	±50ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-3C-24M0000	CTS晶振	MXO45HS	24MHz	±50ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HST-3C-1M0000	CTS晶振	MXO45HS	1MHz	±50ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-3C-40M0000	CTS晶振	MXO45HS	40MHz	±50ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-3C-32M0000	CTS晶振	MXO45HS	32MHz	±50ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-3C-4M9152	CTS晶振	MXO45HS	4.9152MHz	±50ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-3C-1M0000	CTS晶振	MXO45HS	1MHz	±50ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-3C-20M0000	CTS晶振	MXO45HS	20MHz	±50ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-3C-14M31818	CTS晶振	MXO45HS	14.31818MHz	±50ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-3C-50M0000	CTS晶振	MXO45HS	50MHz	±50ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-3C-7M3728	CTS晶振	MXO45HS	7.3728MHz	±50ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-3C-8M0000	CTS晶振	MXO45HS	8MHz	±50ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HST-3C-20M0000	CTS晶振	MXO45HS	20MHz	±50ppm	时钟振荡器	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-3C-80M0000	CTS晶振	MXO45HS	80MHz	±50ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-2C-1M0000	CTS晶振	MXO45HS	1MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-3C-5M0000	CTS晶振	MXO45HS	5MHz	±50ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HST-3C-6M0000	CTS晶振	MXO45HS	6MHz	±50ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HST-3C-18M4320	CTS晶振	MXO45HS	18.432MHz	±50ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-3C-25M1750	CTS晶振	MXO45HS	25.175MHz	±50ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-2C-2M0000	CTS晶振	MXO45HS	2MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-2C-18M4320	CTS晶振	MXO45HS	18.432MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-2C-19M6608	CTS晶振	MXO45HS	19.6608MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-2C-16M0000	CTS晶振	MXO45HS	16MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-2C-14M31818	CTS晶振	MXO45HS	14.31818MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-2C-12M0000	CTS晶振	MXO45HS	12MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-2C-10M0000	CTS晶振	MXO45HS	10MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-2C-8M0000	CTS晶振	MXO45HS	8MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-2C-7M3728	CTS晶振	MXO45HS	7.3728MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-2C-6M1440	CTS晶振	MXO45HS	6.144MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-2C-6M0000	CTS晶振	MXO45HS	6MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-2C-5M0688	CTS晶振	MXO45HS	5.0688MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-2C-5M0000	CTS晶振	MXO45HS	5MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-2C-4M9152	CTS晶振	MXO45HS	4.9152MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-2C-4M0000	CTS晶振	MXO45HS	4MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-2C-3M6864	CTS晶振	MXO45HS	3.6864MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-2C-2M4576	CTS晶振	MXO45HS	2.4576MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-2C-1M8432	CTS晶振	MXO45HS	1.8432MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-2C-20M0000	CTS晶振	MXO45HS	20MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-2C-24M0000	CTS晶振	MXO45HS	24MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-2C-25M0000	CTS晶振	MXO45HS	25MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-2C-28M3220	CTS晶振	MXO45HS	28.322MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-2C-32M0000	CTS晶振	MXO45HS	32MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-2C-50M0000	CTS晶振	MXO45HS	50MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HS-2C-25M1750	CTS晶振	MXO45HS	25.175MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HST-2C-1M0000	CTS晶振	MXO45HS	1MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HST-2C-1M8432	CTS晶振	MXO45HS	1.8432MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HST-2C-2M0000	CTS晶振	MXO45HS	2MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HST-2C-2M4576	CTS晶振	MXO45HS	2.4576MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HST-2C-3M6864	CTS晶振	MXO45HS	3.6864MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HST-2C-4M0000	CTS晶振	MXO45HS	4MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HST-2C-4M9152	CTS晶振	MXO45HS	4.9152MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HST-2C-5M0000	CTS晶振	MXO45HS	5MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HST-2C-5M0688	CTS晶振	MXO45HS	5.0688MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
MXO45HST-2C-6M0000	CTS晶振	MXO45HS	6MHz	±100ppm	8-DIP, 4 Leads (Half Size, Metal Can)	0.520" L x 0.520" W (13.20mm x 13.20mm)
