卡迪纳尔3225mm晶振,CX325Z-A2B3C5-50-25.0D18,蓝牙模块晶振

频率：25.000MHz

尺寸：3.2x2.5x0.7mm

卡迪纳尔3225mm晶振,CX325Z-A2B3C5-50-25.0D18,蓝牙模块晶振，美国进口晶振，Cardinal卡迪纳尔晶振，型号：CX325，编码为：CX325Z-A2B3C5-50-25.0D18，频率为：25.000MHz，小体积晶振尺寸：3.2x2.5x0.7mm封装，小型薄型表面贴装水晶，包装是自动表面安装的理想选择，四脚贴片晶振，石英晶振，无源晶振，石英晶体谐振器，3225晶振，SMD石英晶体，无铅晶振，工作温度范围：-40℃至+85℃。具有超小型，轻薄型，高精度，高性能，高品质，高质量，耐热及耐环境等特点。被广泛应用于：蓝牙模块，WiFi，无线局域网，物联网，通讯设备晶振，可穿戴设备，Zigbee，通讯设备，无线网络，汽车电子，小型便捷式设备，数码电子，智能家居等应用。

订购热线：0755-27838351

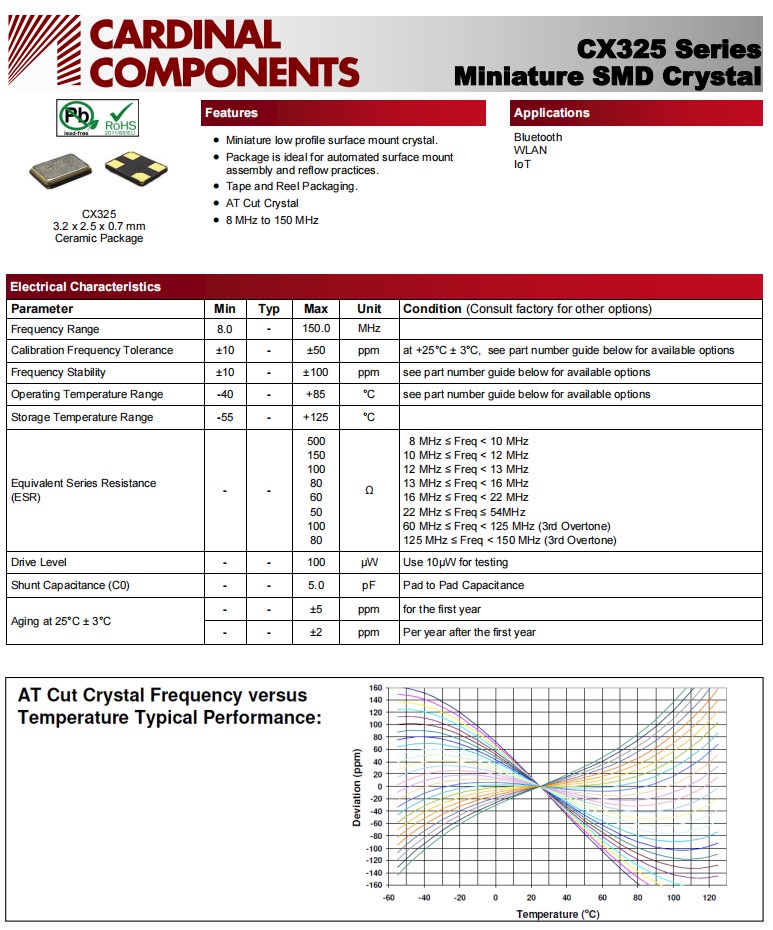

卡迪纳尔3225mm晶振,CX325Z-A2B3C5-50-25.0D18,蓝牙模块晶振,参数表

Parameter

Min

Typ

Max

Unit

Condition (Consult factory for other options)

Frequency Range

25.0

MHz

Calibration Frequency Tolerance

±10

±50

ppm

at +25°C ± 3°C, see part number guide below for available options

Frequency Stability

±10

±100

ppm

see part number guide below for available options

Operating Temperature Range

-40

+85

°C

see part number guide below for available options

Storage Temperature Range

-55

+125

°C

Equivalent Series Resistance
(ESR)

500
150
100
80
60
50
100
80

8 MHz ≤ Freq < 10 MHz
10 MHz ≤ Freq < 12 MHz
12 MHz ≤ Freq < 13 MHz
13 MHz ≤ Freq < 16 MHz
16 MHz ≤ Freq < 22 MHz
22 MHz ≤ Freq ≤ 54MHz
60 MHz ≤ Freq < 125 MHz (3rd Overtone)
125 MHz ≤ Freq < 150 MHz (3rd Overtone)

Drive Level

100

µW

Use 10µW for testing

Shunt Capacitance (C0)

5.0

Pad to Pad Capacitance

Aging at 25°C ± 3°C

±5

ppm

for the first year

±2

ppm

Per year after the first year

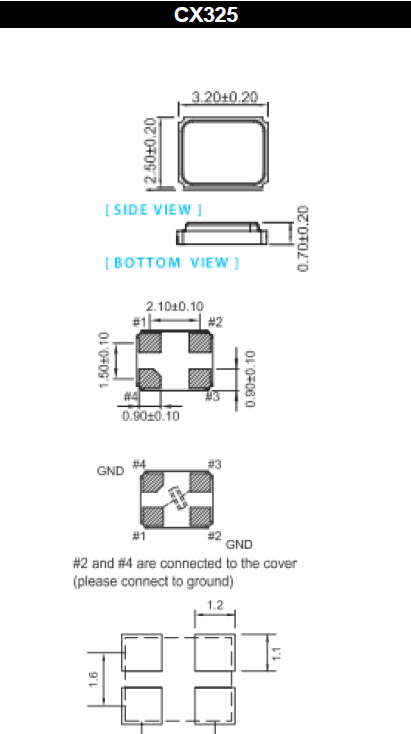

卡迪纳尔3225mm晶振,CX325Z-A2B3C5-50-25.0D18,蓝牙模块晶振,尺寸图

无源贴片晶振	厂家	型号	频率	频率稳定度	工作温度
CX5Z-A5B2C5-70-7.37280D18	Cardinal晶振	CX5	7.3728MHz	±50ppm	-20°C ~ 70°C
CX532Z-A2B3C5-70-12.288D18	Cardinal晶振	CX532	12.288MHz	±30ppm	-40°C ~ 85°C
CX532Z-A2B3C5-70-16.0D18	Cardinal晶振	CX532	16MHz	±30ppm	-40°C ~ 85°C
CX5Z-ARB2C5-70-7.3728D18	Cardinal晶振	CX5	7.3728MHz	±50ppm	-40°C ~ 125°C
CX325Z-A5B2C5-50-20.0D18	Cardinal晶振	CX325	20MHz	±50ppm	-20°C ~ 70°C
CX635A-A5B2C3-40-18.432D13	Cardinal晶振	CX635A	18.432MHz	±50ppm	-20°C ~ 70°C
CX532Z-A2B3C5-70-12.0D18	Cardinal晶振	CX532	12MHz	±30ppm	-40°C ~ 85°C
CX5Z-A5B2C5-40-27.0D18	Cardinal晶振	CX5	27MHz	±50ppm	-20°C ~ 70°C
CX5Z-A5B2C5-40-24.0D18	Cardinal晶振	CX5	24MHz	±50ppm	-20°C ~ 70°C
CX5Z-A5B2C5-40-24.576D18	Cardinal晶振	CX5	24.576MHz	±50ppm	-20°C ~ 70°C
CX5Z-A5B2C5-70-8.0D18	Cardinal晶振	CX5	8MHz	±50ppm	-20°C ~ 70°C
CX5Z-A1B2C5-40-24.0D18	Cardinal晶振	CX5	24MHz	±50ppm	-10°C ~ 70°C
CX5Z-A5B2C5-50-16.0D18	Cardinal晶振	CX5	16MHz	±50ppm	-20°C ~ 70°C
CX5Z-A0B2C5-50-16.0D18	Cardinal晶振	CX5	16MHz	±50ppm	-10°C ~ 60°C
CX5Z-A2B2C5-40-10.0D18	Cardinal晶振	CX5	10MHz	±50ppm	-40°C ~ 85°C
CX532Z-A2B3C5-70-1966080D18	Cardinal晶振	CX532	19.6608MHz	±30ppm	-40°C ~ 85°C
CX532Z-A2B3C5-70-33.0D18	Cardinal晶振	CX532	33MHz	±30ppm	-40°C ~ 85°C
CX532Z-A2B3C5-70-27.0D18	Cardinal晶振	CX532	27MHz	±30ppm	-40°C ~ 85°C
CX532Z-A5B3C5-70-20.0D18	Cardinal晶振	CX532	20MHz	±30ppm	-20°C ~ 70°C
CX532Z-A2B3C5-70-14.7456D18	Cardinal晶振	CX532	14.7456MHz	±30ppm	-40°C ~ 85°C
CX532Z-A5B3C5-70-12.0D18	Cardinal晶振	CX532	12MHz	±30ppm	-20°C ~ 70°C
CX532Z-A2B3C5-70-50.0D18	Cardinal晶振	CX532	50MHz	±30ppm	-40°C ~ 85°C
CX532Z-A2B3C5-70-30.0D18	Cardinal晶振	CX532	30MHz	±30ppm	-40°C ~ 85°C
CX532Z-A5B3C5-70-27.0D18	Cardinal晶振	CX532	27MHz	±30ppm	-20°C ~ 70°C
CX532AZ-A5B2C5-70-25.0D18	Cardinal晶振	CX532	25MHz	±50ppm	-20°C ~ 70°C
CX532Z-A5B3C5-70-25.0D18	Cardinal晶振	CX532	25MHz	±30ppm	-20°C ~ 70°C
CX532Z-A2B3C5-70-20.0D18	Cardinal晶振	CX532	20MHz	±30ppm	-40°C ~ 85°C
CX5Z-A2B2C5-70-8.0D18	Cardinal晶振	CX5	8MHz	±50ppm	-40°C ~ 85°C
CX5Z-A2B2C5-40-25D18	Cardinal晶振	CX5	25MHz	±50ppm	-40°C ~ 85°C
CX532Z-A2B3C5-70-8.0D18	Cardinal晶振	CX532	8MHz	±30ppm	-40°C ~ 85°C
CX5Z-A2B2C5-40-12.0D18	Cardinal晶振	CX5	12MHz	±50ppm	-40°C ~ 85°C
CX5Z-A5B2C5-40-12.0D18	Cardinal晶振	CX5	12MHz	±50ppm	-20°C ~ 70°C
CX5Z-A5B2C5-40-10.0D18	Cardinal晶振	CX5	10MHz	±50ppm	-20°C ~ 70°C
CX5Z-A5B2C5-40-25D18	Cardinal晶振	CX5	25MHz	±50ppm	-20°C ~ 70°C
CX635BZ-A1B2C3-80-14.31818D20	Cardinal晶振	CX635B	14.31818MHz	±50ppm	-10°C ~ 70°C
CX532Z-A5B3C5-70-18.432D18	Cardinal晶振	CX532	18.432MHz	±30ppm	-20°C ~ 70°C
CX532Z-A2B3C5-70-25.0D18	Cardinal晶振	CX532	25MHz	±30ppm	-40°C ~ 85°C
