EE14-511G-125.00MHz,ConnorWinfield振荡器,6G低相位噪声晶振

频率：125.000MHz

尺寸：20.27x12.62x6.60mm

EE14-511G-125.00MHz,ConnorWinfield振荡器,6G低相位噪声晶振，美国进口晶振，ConnorWinfield康纳温菲尔德晶振，型号：EE14-5xx系列振荡器，编码为：EE14-511G-125.00MHz，频率为：125.000MHz，尺寸为：20.27x12.62x6.60mm，有源晶振，石英晶体振荡器，是固定频率晶体控制振荡器（XO），设计用于需要低抖动和紧密的频率稳定性的应用。运行在3.3V电源电压，差分晶体振荡器EE14-5xx系列提供LVPECL差动输出，电源电压3.3V操作，低抖动<1pS RMS，温度范围：0℃至70°C，密封的14个PIN包装，符合RoHS标准。被广泛用于通讯设备，机顶盒，光端机，安防设备及各种频率控制设备上.

订购热线：0755-27838351

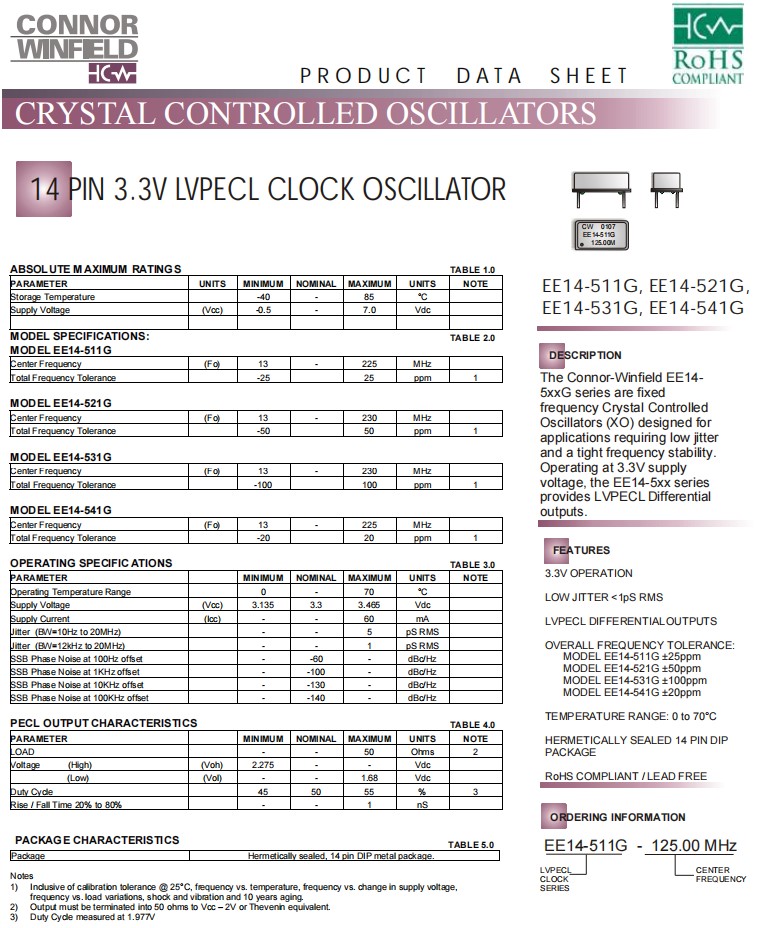

EE14-511G-125.00MHz,ConnorWinfield振荡器,6G低相位噪声晶振 ，参数表

PARAMETER	UNITS		MINIMUM	NOMINAL	MAXIMUM	UNITS	NOTE
Storage Temperature			--40	-	85	°C
Supply Voltage	(Vcc)		--0.5	-	7.0	Vdc

MODEL SPECIFICATIONS : MODEL EE14-511G							TABLE 2.0

Center Frequency Total Frequency Tolerance		(Fo)	13 -25	-	225 25	MHz ppm
								1
MODEL EE14-521G
Center Frequency Total Frequency Tolerance		(Fo)	13 -50	-	230 50	MHz ppm
								1
MODEL EE14-531G
Center Frequency Total Frequency Tolerance		(Fo)	13 - 100	-	230 100	MHz ppm
								1
MODEL EE14-541G
Center Frequency Total Frequency Tolerance		(Fo)	13 -20	-	225 20	MHz ppm
								1

OPERATING SPECIFIC ATIONS							TABLE 3.0
PARAMETER			MINIMUM	NOMINAL	MAXIMUM	UNITS	NOTE
Operating Temperature Range			0	-	70	°C
Supply Voltage	(Vcc)		3.135	3.3	3.465	Vdc
Supply Current	(Icc)		-	-	60	mA
Jitter (BW=10Hz to 20MHz)			-	-	5	pS RMS
Jitter (BW=12kHz to 20MHz)			-	-	1	pS RMS
SSB Phase Noise at 100Hz offset			-	--60	-	dBc/Hz
SSB Phase Noise at 1KHz offset			-	- 100	-	dBc/Hz
SSB Phase Noise at 10KHz offset			-	- 130	-	dBc/Hz
SSB Phase Noise at 100KHz offset			-	- 140	-	dBc/Hz
PECL OUTPUT CHARACTERISTICS							TABLE 4.0
PARAMETER			MINIMUM	NOMINAL	MAXIMUM	UNITS	NOTE
LOAD			-	-	50	Ohms	2
Voltage (High)	(Voh)		2.275	-	-	Vdc
(Low)	(Vol)		-	-	1.68	Vdc
Duty Cycle			45	50	55	%	3
Rise / Fall Time 20% to 80%			-	-	1	nS

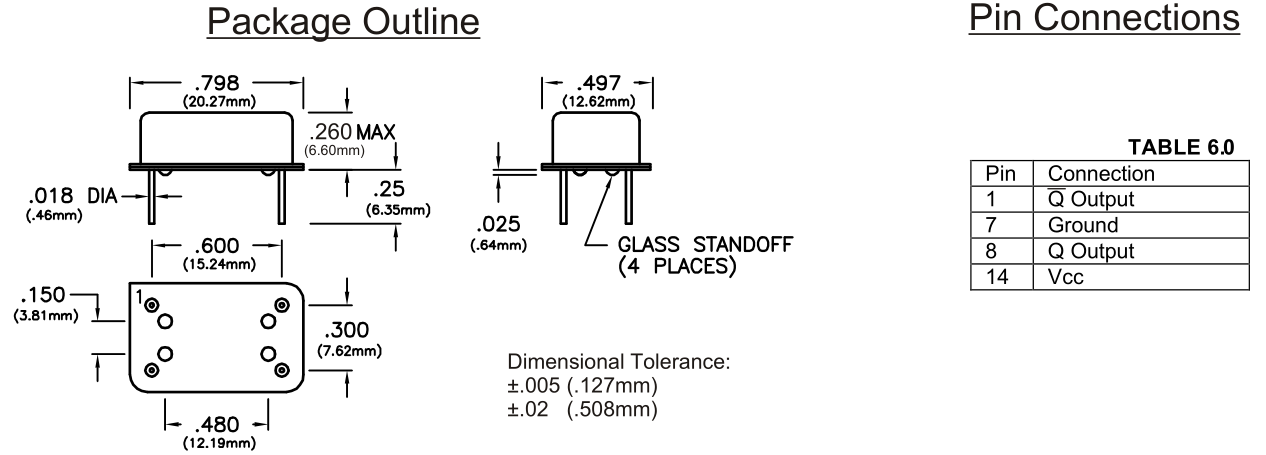

EE14-511G-125.00MHz,ConnorWinfield振荡器,6G低相位噪声晶振 尺寸图

EE14-511G-125.00MHz,ConnorWinfield振荡器,6G低相位噪声晶振

EE14-5xxG系列特征：
电源电压3.3V操作
低抖动<1pS RMS
LVPECL差分输出差分晶体
总体频率容差：
型号EE14-511G±25ppm
型号EE14-521G±50ppm
型号EE14-531G±100ppm
型号EE14-541G±20ppm
温度范围：0至70°C
密封的14针浸渍封装
符合RoHS标准/无铅
