美国ECS进口晶振,ECS-2100AX-196.6,HCMOS输出振荡器6G晶振

频率：19.6608MHz

尺寸：13.20mmx13.20mm

美国ECS进口晶振,ECS-2100AX-196.6,HCMOS输出振荡器6G晶振，美国进口晶振，ECS伊西斯晶振，型号ECS-2100X系列晶振，编码为ECS-2100AX-196.6，频率为：19.6608MHz，尺寸为：13.20mm x 13.20mm，ECS-2100X系列时钟振荡器，石英晶振，石英晶体振荡器，有源晶振，8引脚DIP时钟振荡器，提供低电流消耗，并兼容HCMOS/TTL逻辑。带有针#4外壳接地的金属包装作为屏蔽作用，以减少辐射。具有HCMOS/TTL逻辑兼容宽频范围，低功耗，电阻焊包3.3V操作（可选），符合无铅/RoHS标准。石英晶振应用于通讯设备，无线网络，蓝牙模块，GPS定位，物联网，数码电子，车载设备，医疗设备等应用.

订购热线：0755-27838351

美国ECS进口晶振,ECS-2100AX-196.6,HCMOS输出振荡器6G晶振 ，参数表

PARAMETERS		FREQUENCY RANGE	CONDITIONS	MINIMUM	TYPICAL	MAXIMUM	UNITS
FREQUENCY RANGE (fo)		1.000 ~ 150.000		19.6608			MHz
OPERATING TEMP. RANGE (TOPR)		1.000 ~ 150.000		0		70	℃
STORAGE TEMP. RANGE (TSTG)		1.000 ~ 150.000		-55		125	℃
FREQUENCY STABILITY		1.000 ~ 150.000	All conditions*	-100		100	PPM
		1.000 ~ 25.000			17	25	mA
INPUT CURRENT (IDD)		25.000 ~ 50.000			33	46	mA
		50.000 ~ 80.000			45	77	mA
		80.000 ~ 150.000			67	82	mA
OUTPUT SYMMETRY		1.000 ~ 80.000	50% VDD level	45	50 ±3	55	%
OUTPUT SYMMETRY		80.000 ~ 150.000	50% VDD level	40	50 ±3	60	%
RISE TIME (TR)		1.000 ~ 150.000	10% ~ 90% VDD level			5	nS
FALL TIME (TF)		1.000 ~ 150.000	90% ~ 10% VDD level			5	nS
OUTPUT VOLTAGE	(VOL )	1.000 ~ 150.000	IOL = 16 mA			0.5	V
OUTPUT VOLTAGE	(VOH)	1.000 ~ 150.000	IOH = - 16 mA	4.5			V
OUTPUT CURRENT	(IOL )	1.000 ~ 100.000	VOL = 0.5 V			16	mA
OUTPUT CURRENT	(IOH )	1.000 ~ 150.000	VOH = 4.5 V			-16	mA
OUTPUT LOAD		1.000 ~ 150.000	TTL			10	TTL
		1.000 ~ 80.000	HCMOS			50	pF
		80.000 ~ 150.000	HCMOS			30	pF
START-UP TIME (TS )		1.000 ~ 150.000	0.0V TO 5.0V			10	mS
SUPPLY VOLTAGE (VDC)			+5.0 ±0.25				VDC

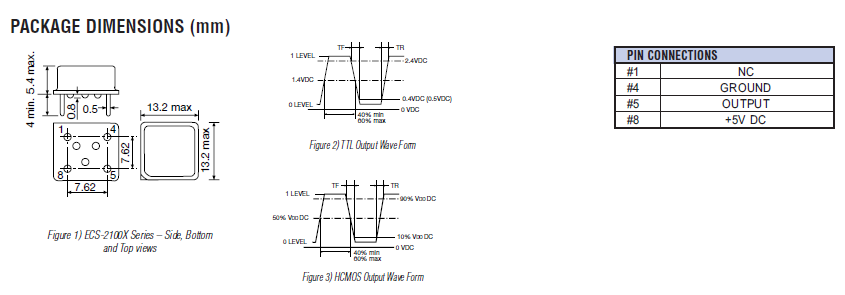

美国ECS进口晶振,ECS-2100AX-196.6,HCMOS输出振荡器6G晶振 尺寸图

美国ECS进口晶振,ECS-2100AX-196.6,HCMOS输出振荡器6G晶振

特性：
•HCMOS/TTL逻辑兼容
•频率范围广 有源晶体
•低功耗
•电阻焊包
•3.3V操作（可选）
•无铅/符合RoHS

晶振料号	品牌	型号	频率	工作温度	Size / Dimension 尺寸
ECS-2100AX-200	ECS晶振	ECS-2100X	20MHz	0°C ~ 70°C	0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-120	ECS晶振	ECS-2100X	12MHz	0°C ~ 70°C	0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-036	ECS晶振	ECS-2100X	3.6864MHz	0°C ~ 70°C	0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-400	ECS晶振	ECS-2100X	40MHz	0°C ~ 70°C	0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-300	ECS晶振	ECS-2100X	30MHz	0°C ~ 70°C	0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-147.4	ECS晶振	ECS-2100X	14.7456MHz	0°C ~ 70°C	0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-500	ECS晶振	ECS-2100X	50MHz	0°C ~ 70°C	0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-049	ECS晶振	ECS-2100X	4.9152MHz	0°C ~ 70°C	0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-040	ECS晶振	ECS-2100X	4MHz	0°C ~ 70°C	0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-098.3	ECS晶振	ECS-2100X	9.8304MHz	0°C ~ 70°C	0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-184	ECS晶振	ECS-2100X	18.432MHz	0°C ~ 70°C	0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-110.5	伊西斯晶振	ECS-2100X	11.0592MHz	0°C ~ 70°C	0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-480	ECS晶振	ECS-2100X	48MHz	0°C ~ 70°C	0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-100	ECS晶振	ECS-2100X	10MHz	0°C ~ 70°C	0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-196.6	ECS晶振	ECS-2100X	19.6608MHz	0°C ~ 70°C	0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-160	ECS晶振	ECS-2100X	16MHz	0°C ~ 70°C	0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-080	ECS晶振	ECS-2100X	8MHz	0°C ~ 70°C	0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-073.7	ECS晶振	ECS-2100X	7.3728MHz	0°C ~ 70°C	0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-283.2	ECS晶振	ECS-2100X	28.332MHz	0°C ~ 70°C	0.520" L x 0.520" W (13.20mm x 13.20mm)
ECS-2100AX-092.1	ECS晶振	ECS-2100X	9.216MHz	0°C ~ 70°C	0.520" L x 0.520" W (13.20mm x 13.20mm)
