12.000MHzMF/20/30/-10+60/18pF/60R,6035mm,EUROQUARTZ欧洲石英

频率：12.000MHz

尺寸：6.0x3.5mm

12.000MHzMF/20/30/-10+60/18pF/60R,6035mm,EUROQUARTZ欧洲石英，英国进口晶振，EUROQUARTZ欧洲石英晶振，型号：MF系列，编码为：12.000MHzMF/20/30/-10+60/18pF/60R，频率为：12.000MHz，四脚贴片晶振，较准公差：±20ppm，温度稳定性：±30ppm，工作温度范围：-0℃至+60℃，负载电容：18pF，等效串联电阻：60R，小体积晶振尺寸：6.0x3.5mm，微型表面安装的MF晶体包括一个陶瓷基板和密封的金属盖，紧凑的尺寸和低质量与高规格晶体的结合，石英晶振，石英晶体谐振器，无源晶振，6035晶振，无铅晶振。具有超小性，轻薄型，高精度，高抗冲击和振动性，高性能，高可靠性，高品质等特点，适用于：高密度应用，PDA、GPS、PCMCIA，手持设备和通信设备的理想选择。

订购热线：0755-27838351

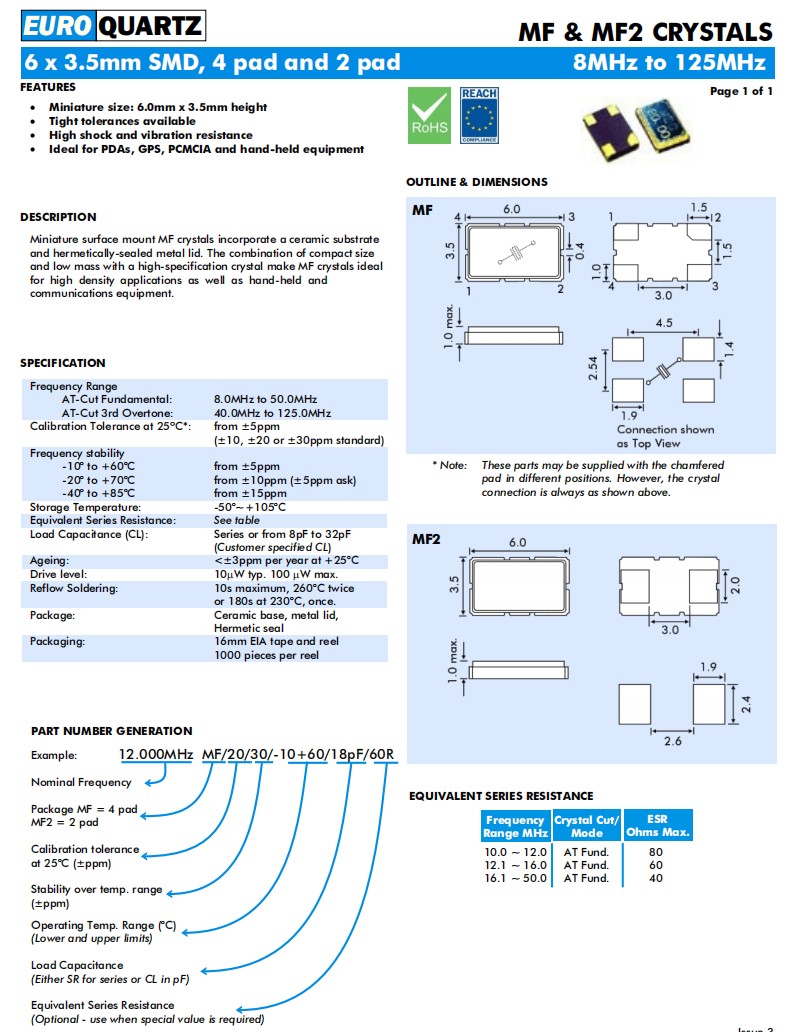

12.000MHzMF/20/30/-10+60/18pF/60R,6035mm,EUROQUARTZ欧洲石英,参数表

Frequency Range
AT-Cut Fundamental:	12.000MHz
AT-Cut 3rd Overtone:	40.0MHz to 125.0MHz
Calibration Tolerance at 25ºC*:	from ±5ppm
Calibration Tolerance at 25ºC*:	(±10, ±20 or ±30ppm standard)
Frequency stability
-10° to +60°C	from ±5ppm
-20° to +70°C	from ±10ppm (±5ppm ask)
-40° to +85°C	from ±15ppm
Storage Temperature:	-50°~+105°C
Equivalent Series Resistance:	See table
Load Capacitance (CL):	Series or from 8pF to 32pF
Load Capacitance (CL):	(Customer specified CL)
Ageing:	<±3ppm per year at +25°C
Drive level:	10μW typ. 100μW max.
Reflow Soldering:	10s maximum, 260°C twice
Reflow Soldering:	or 180s at 230°C, once.
Package:	Ceramic base, metal lid,
Package:	Hermetic seal
Packaging:	16mm EIA tape and reel
Packaging:	1000 pieces per reel
