FOX低功耗晶振,FT2CNBPM26.0-T3,FOX251通信设备晶振
频率：26.000MHz
尺寸：2.5x2.0mm
FOX低功耗晶振,FT2CNBPM26.0-T3,FOX251通信设备晶振，美国进口晶振，FOX晶振，福克斯晶振，型号：FT2CN，(Former FOX251)，编码为：FT2CNBPM26.0-T3，频率为：26.000MHz，小体积晶振尺寸：2.5x2.0mm封装，四脚贴片晶振，TCXO温补晶振，有源晶振，TCXO振荡器，2520晶振，石英晶振，SMD晶振，温度补偿晶体振荡器。具有超小型，轻薄型，低抖动，低功耗，低相位噪声，低电源电压，低电平，高精度，高性能，高品质等特点。被广泛应用于：移动通信设备，无线网络，蓝牙模块，物联网，GPS定位器，导航仪，罗拉LORA模块，汽车电子，医疗设备，安防设备，数码电子，智能家居等应用。

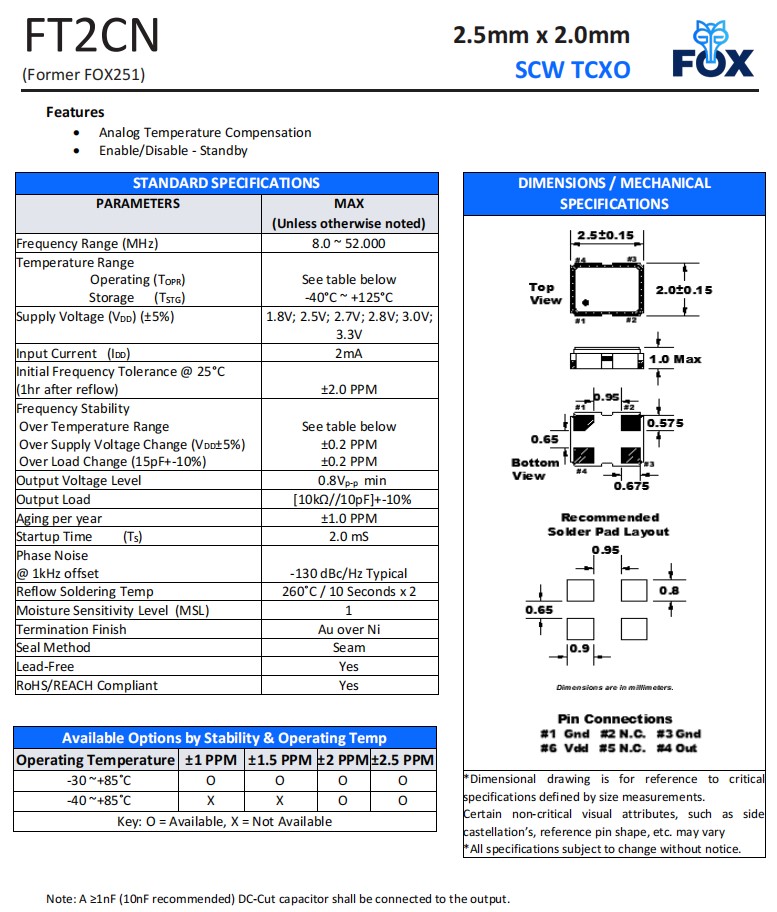

FOX低功耗晶振,FT2CNBPM26.0-T3,FOX251通信设备晶振,参数表
PARAMETERS
MAX
(Unless otherwise noted)
Frequency Range (MHz)
26.000MHz
Temperature Range
See table below
Operating (TOPR)
-40°C ~ +125°C
Storage (TSTG)
Supply Voltage (VDD) (±5%)
1.8V; 2.5V; 2.7V; 2.8V; 3.0V;
3.3V
Input Current (IDD)
2mA
Initial Frequency Tolerance @ 25°C
±2.0 PPM
(1hr after reflow)
Frequency Stability
See table below
Over Temperature Range
±0.2 PPM
Over Supply Voltage Change (VDD±5%)
±0.2 PPM
Over Load Change (15pF+-10%)
Output Voltage Level
0.8Vp-p min
Output Load
[10kΩ//10pF]+-10%
Aging per year
±1.0 PPM
Startup Time (TS)
2.0 mS
Phase Noise
-130 dBc/Hz Typical
@ 1kHz offset
Reflow Soldering Temp
260℃ / 10 Seconds x 2
Moisture Sensitivity Level (MSL)
1
Termination Finish
Au over Ni
Seal Method
Seam
Lead-Free
Yes
RoHS/REACH Compliant
Yes

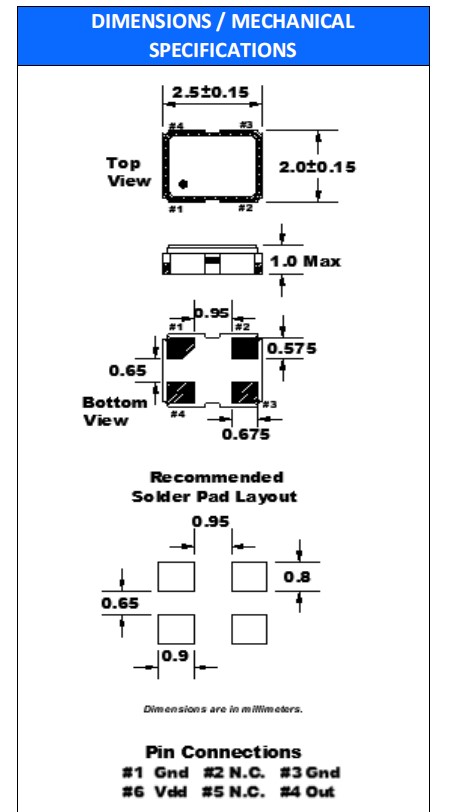

FOX低功耗晶振,FT2CNBPM26.0-T3,FOX251通信设备晶振,尺寸图
FOX低功耗晶振,FT2CNBPM26.0-T3,FOX251通信设备晶振
现代电子技术日新月异的发展,使得石英晶体振荡器广泛应用于现代通信,导航,测量等领域的电子设备中;工程实际应用中许多设备都工作在温度范围变化较大的环境中,由于石英晶体谐振器自身特殊的物理特性,温度的变化会导致晶体振荡器的频率发生偏移.此时晶体振荡器就不能为设备提供稳定时钟频率,导致工作异常,而经过温度补偿的石英晶体振荡器弥补了这一缺陷,从而其应用更加广泛.
| 进口有源晶体 | 品牌 | 型号 | 类型 | 频率 | 电压 | 包装/封装 |
| FOX924B-12.000 | Fox晶振 | FOX924 | TCXO | 12MHz | 3.3V | 4-SMD, No Lead |
| FOX924B-16.000 | Fox晶振 | FOX924 | TCXO | 16MHz | 3.3V | 4-SMD, No Lead |
| FOX924B-20.000 | Fox晶振 | FOX924 | TCXO | 20MHz | 3.3V | 4-SMD, No Lead |
| FOX924B-27.000 | Fox晶振 | FOX924 | TCXO | 27MHz | 3.3V | 4-SMD, No Lead |
| FOX924B-10.000 | Fox晶振 | FOX924 | TCXO | 10MHz | 3.3V | 4-SMD, No Lead |
| FOX924B-14.7456 | Fox晶振 | FOX924 | TCXO | 14.7456MHz | 3.3V | 4-SMD, No Lead |
| FOX924B-25.000 | Fox晶振 | FOX924 | TCXO | 25MHz | 3.3V | 4-SMD, No Lead |
| F135-25 | Fox晶振 | F135 | XO (Standard) | 25MHz | 3.3V | 4-SMD, No Lead |
| F335-40 | Fox晶振 | F335 | XO (Standard) | 40MHz | 3.3V | 4-SMD, No Lead |
| F316R-20.000 | Fox晶振 | F310R | XO (Standard) | 20MHz | 1.8V | 4-SMD, No Lead |
| F316R-24.000 | Fox晶振 | F310R | XO (Standard) | 24MHz | 1.8V | 4-SMD, No Lead |
| FOX924B-12.288 | Fox晶振 | FOX924 | TCXO | 12.288MHz | 3.3V | 4-SMD, No Lead |
| F32K-327 | Fox晶振 | F32K | XO (Standard) | 32.768kHz | 3.3V | 4-SMD, No Lead |
| FOX924B-19.440 | Fox晶振 | FOX924 | TCXO | 19.44MHz | 3.3V | 4-SMD, No Lead |
| FOX914B-20.000 | Fox晶振 | FOX914 | TCXO | 20MHz | 3V | 4-SMD, No Lead |
| FOX914B-12.800 | Fox晶振 | FOX914 | TCXO振荡器 | 12.8MHz | 3V | 4-SMD, No Lead |
| F535L-25 | Fox晶振 | F535L | XO (Standard) | 25MHz | 3.3V | 4-SMD, No Lead |
| F535L-33.333 | Fox晶振 | F535L | XO (Standard) | 33.333MHz | 3.3V | 4-SMD, No Lead |
| F235-40 | Fox晶振 | F235 | XO (Standard) | 40MHz | 3.3V | 4-SMD, No Lead |
| F235-48 | Fox晶振 | F235 | XO (Standard) | 48MHz | 3.3V | 4-SMD, No Lead |
| F535L-24.576 | Fox晶振 | F535L | XO (Standard) | 24.576MHz | 3.3V | 4-SMD, No Lead |
| F535L-24 | Fox晶振 | F535L | XO (Standard) | 24MHz | 3.3V | 4-SMD, No Lead |
| F535L-50 | Fox晶振 | F535L | XO (Standard) | 50MHz | 3.3V | 4-SMD, No Lead |
| F535L-27 | Fox晶振 | F535L | XO (Standard) | 27MHz | 3.3V | 4-SMD, No Lead |
| F535L-12 | Fox晶振 | F535L | XO (Standard) | 12MHz | 3.3V | 4-SMD, No Lead |
| F535L-48 | Fox晶振 | F535L | XO (Standard) | 48MHz | 3.3V | 4-SMD, No Lead |
| F535L-10 | Fox晶振 | F535L | XO (Standard) | 10MHz | 3.3V | 4-SMD, No Lead |
| F535L-40 | Fox晶振 | F535L | XO (Standard) | 40MHz | 3.3V | 4-SMD, No Lead |
| F316R-33.333 | Fox晶振 | F310R | XO (Standard) | 33.333MHz | 1.8V | 4-SMD, No Lead |
| F216R-24.000 | Fox晶振 | F210R | XO (Standard) | 24MHz | 1.8V | 4-SMD, No Lead |
| F235-12 | Fox晶振 | F235 | XO (Standard) | 12MHz | 3.3V | 4-SMD, No Lead |
| F235-50 | Fox晶振 | F235 | XO (Standard) | 50MHz | 3.3V | 4-SMD, No Lead |
| F235-24 | Fox晶振 | F235 | XO (Standard) | 24MHz | 3.3V | 4-SMD, No Lead |
| F335-25 | Fox晶振 | F335 | XO (Standard) | 25MHz | 3.3V | 4-SMD, No Lead |
| F335-50 | Fox晶振 | F335 | XO (Standard) | 50MHz | 3.3V | 4-SMD, No Lead |
| F335-48 | Fox晶振 | F335 | XO (Standard) | 48MHz | 3.3V | 4-SMD, No Lead |
| F335-12 | Fox晶振 | F335 | XO (Standard) | 12MHz | 3.3V | 4-SMD, No Lead |
| F335-16 | Fox晶振 | F335 | XO (Standard) | 16MHz | 3.3V | 4-SMD, No Lead |
| F316R-48.000 | Fox晶振 | F310R | XO (Standard) | 48MHz | 1.8V | 4-SMD, No Lead |
| F535L-16 | Fox晶振 | F535L | XO (Standard) | 16MHz | 3.3V | 4-SMD, No Lead |
| F316R-12.288 | Fox晶振 | F310R | XO (Standard) | 12.288MHz | 1.8V | 4-SMD, No Lead |
| F316R-14.31818 | Fox晶振 | F310R | XO (Standard) | 14.31818MHz | 1.8V | 4-SMD, No Lead |
| F316R-16.000 | Fox晶振 | F310R | XO (Standard) | 16MHz | 1.8V | 4-SMD, No Lead |
| F316R-18.432 | Fox晶振 | F310R | XO (Standard) | 18.432MHz | 1.8V | 4-SMD, No Lead |
| F316R-26.000 | Fox晶振 | F310R | XO (Standard) | 26MHz | 1.8V | 4-SMD, No Lead |
| F316R-27.000 | Fox晶振 | F310R | XO (Standard) | 27MHz | 1.8V | 4-SMD, No Lead |
| F316R-30.000 | Fox晶振 | F310R | XO (Standard) | 30MHz | 1.8V | 4-SMD, No Lead |
| F316R-44.000 | Fox晶振 | F310R | XO (Standard) | 44MHz | 1.8V | 4-SMD, No Lead |
| F216R-16.000 | Fox晶振 | F210R | XO (Standard) | 16MHz | 1.8V | 4-SMD, No Lead |
| F216R-24.576 | Fox晶振 | F210R | XO (Standard) | 24.576MHz | 1.8V | 4-SMD, No Lead |
| F216R-27.000 | Fox晶振 | F210R | XO (Standard) | 27MHz | 1.8V | 4-SMD, No Lead |
| F216R-40.000 | Fox晶振 | F210R | XO (Standard) | 40MHz | 1.8V | 4-SMD, No Lead |
| F216R-44.000 | Fox晶振 | F210R | XO (Standard) | 44MHz | 1.8V | 4-SMD, No Lead |
| F216R-48.000 | Fox晶振 | F210R | XO (Standard) | 48MHz | 1.8V | 4-SMD, No Lead |
| F316R-24.576 | Fox晶振 | F310R | XO (Standard) | 24.576MHz | 1.8V | 4-SMD, No Lead |
| F316R-50.000 | Fox晶振 | F310R | XO (Standard) | 50MHz | 1.8V | 4-SMD, No Lead |
| F4100-400 | Fox晶振 | F4100 | XO (Standard) | 40MHz | 3.3V | 4-SMD, No Lead |
| F4100-500 | Fox晶振 | F4100 | XO (Standard) | 50MHz | 3.3V | 4-SMD, No Lead |
| F235-16 | Fox晶振 | F235 | XO (Standard) | 16MHz | 3.3V | 4-SMD, No Lead |
| F235-25 | Fox晶振 | F235 | XO (Standard) | 25MHz | 3.3V | 4-SMD, No Lead |
| F335-24 | Fox晶振 | F335 | XO (Standard) | 24MHz | 3.3V | 4-SMD, No Lead |
| F135-12 | Fox晶振 | F135 | XO (Standard) | 12MHz | 3.3V | 4-SMD, No Lead |
| F135-16 | Fox晶振 | F135 | XO (Standard) | 16MHz | 3.3V | 4-SMD, No Lead |
| F135-24 | Fox晶振 | F135 | XO (Standard) | 24MHz | 3.3V | 4-SMD, No Lead |
| F135-40 | Fox晶振 | F135 | XO (Standard) | 40MHz | 3.3V | 4-SMD, No Lead |
| F135-48 | Fox晶振 | F135 | XO (Standard) | 48MHz | 3.3V | 4-SMD, No Lead |
| F135-50 | Fox晶振 | F135 | XO (Standard) | 50MHz | 3.3V | 4-SMD, No Lead |
| 819A-10-1 | Fox晶振 | F210R | XO (Standard) | 10MHz | 1.8V | 4-SMD, No Lead |
| FOX914B-19.200 | Fox晶振 | FOX914 | TCXO | 19.2MHz | 3V | 4-SMD, No Lead |
| FOX914B-19.440 | Fox晶振 | FOX914 | TCXO | 19.44MHz | 3V | 4-SMD, No Lead |
| FOX914B-26.000 | Fox晶振 | FOX914 | TCXO | 26MHz | 3V | 4-SMD, No Lead |
| F316R-12.000 | Fox晶振 | F310R | XO (Standard) | 12MHz | 1.8V | 4-SMD, No Lead |
| 840C-12-1 | Fox晶振 | FOX922 | VCTCXO | 12MHz | 3.3V | 6-SMD, No Lead |
| FOX465 | Fox晶振 | FOX465 | XO (Standard) | 32.768kHz | 3.3V | 4-SMD, No Lead |
| F254-327 | Fox晶振 | F254 | XO (Standard) | 32.768kHz | 3.3V | 4-SMD, No Lead |
