FOX压控晶振,FY7HCJM27.0-T2,HCMOS输出低电源电压晶振
频率：27.000MHz
尺寸：7.0x5.0mm
FOX压控晶振,FY7HCJM27.0-T2,HCMOS输出低电源电压晶振，美国进口晶振，FOX晶振，福克斯晶振，型号：FY7H，VCS系列，编码为：FY7HCJM27.0-T2，频率为：27.000MHz，小体积晶振尺寸：7.0x5.0mm封装，VCXO晶振，压控晶振，压控晶体振荡器，HCMOS输出石英晶体振荡器，六脚贴片晶振，有源晶振，石英晶振，SMD晶振，电压3.3V，工作温度范围：-40℃至+85℃。7050晶振，具有超小型，轻薄型，低抖动，低电源电压，低功耗，低相位噪声，低电平，低损耗，低耗能等特点。被广泛应用于：通讯设备，无线网络，蓝牙模块，GPS定位，导航仪，物联网，汽车电子，医疗设备，安防设备，数码电子，智能家居等应用。

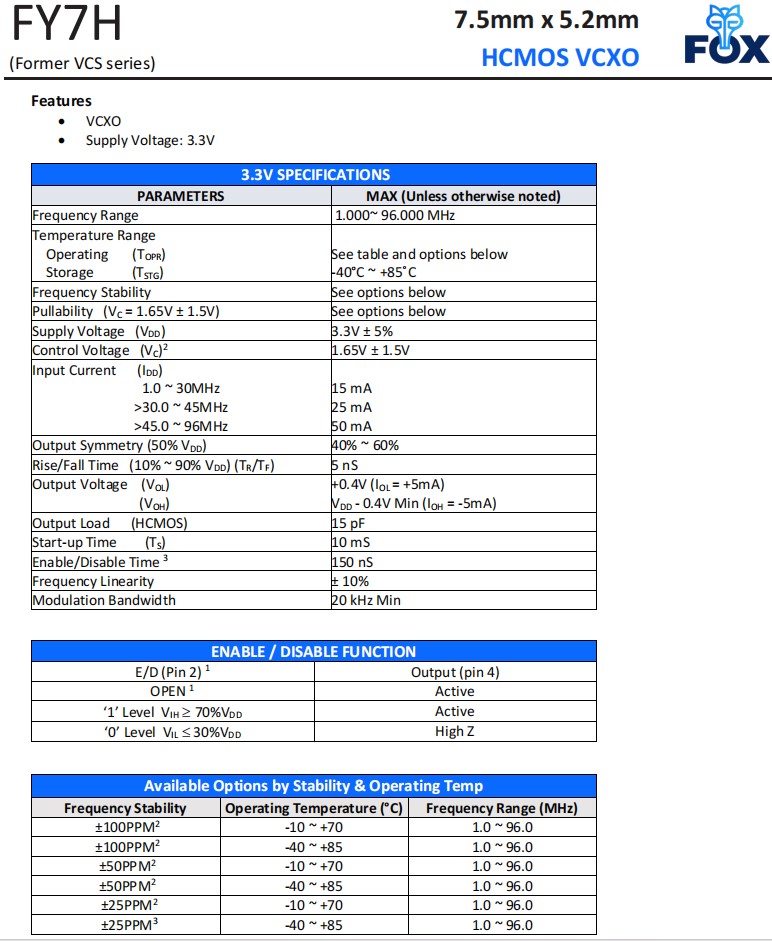

FOX压控晶振,FY7HCJM27.0-T2,HCMOS输出低电源电压晶振,参数表
PARAMETERS
MAX (Unless otherwise noted)
Frequency Range
27.000 MHz
Temperature Range
Operating (TOPR)
Storage (TSTG)
See table and options below
-40℃ ~ +85℃
Frequency Stability
See options below
Pullability (VC = 1.65V ± 1.5V)
See options below
Supply Voltage (VDD)
3.3V ± 5%
Control Voltage (VC)2
1.65V ± 1.5V
Input Current (IDD)
1.0 ~ 30MHz
>30.0 ~ 45MHz
>45.0 ~ 96MHz
15 mA
25 mA
50 mA
Output Symmetry (50% VDD)
40% ~ 60%
Rise/Fall Time (10% ~ 90% VDD) (TR/TF)
5 nS
Output Voltage (VOL)
(VOH)
+0.4V (IOL = +5mA)
VDD - 0.4V Min (IOH = -5mA)
Output Load (HCMOS)
15 pF
Start-up Time (TS)
10 mS
Enable/Disable Time 3
150 nS
Frequency Linearity
± 10%
Modulation Bandwidth
20 kHz Min

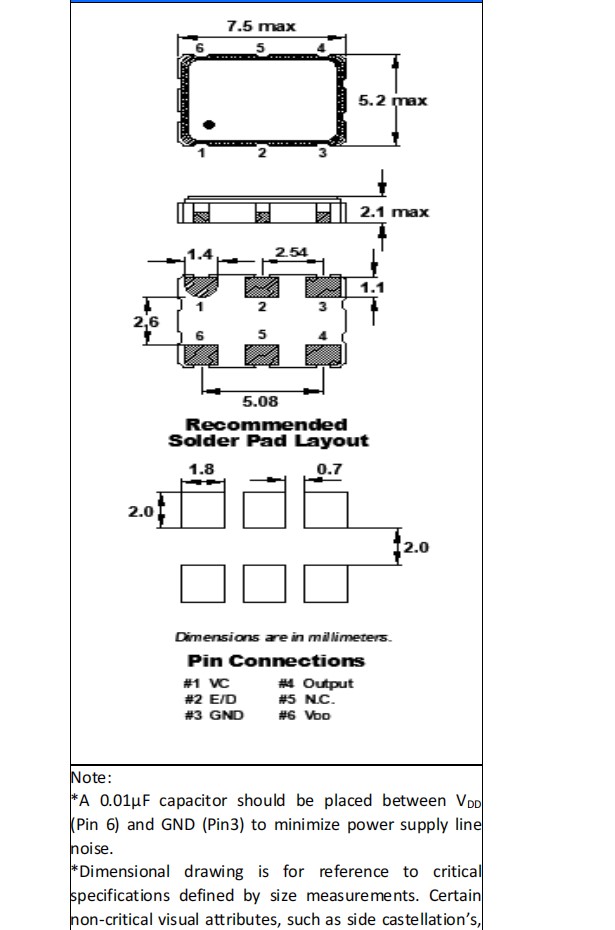

FOX压控晶振,FY7HCJM27.0-T2,HCMOS输出低电源电压晶振,尺寸图
FOX压控晶振,FY7HCJM27.0-T2,HCMOS输出低电源电压晶振
VCXO压控晶振主要由石英晶体谐振器、变容二极管和振荡电路组成，其工作原理是通过控制电压来改变变容二极管的电容，从而“牵引”石英谐振器的频率，以达到频率调制的目的。VCXO压控晶振大多用于锁相技术、频率负反馈调制的目的。
