ILSI艾尔西进口晶振,ILCX07–FB1F18–24.000MHz,无线WiFi应用晶振

频率：24.000MHz

尺寸：5.0x3.2x1.0mm

ILSI艾尔西进口晶振,ILCX07–FB1F18–24.000MHz,无线WiFi应用晶振，美国进口晶振，ILSI晶振，艾尔西晶振，型号：ILCX07系列，编码为：ILCX07–FB1F18–24.000MHz，频率：24.000MHz，小体积晶振尺寸：5.0x3.2x1.0mm，四脚贴片晶振，无源晶振，石英晶体谐振器，石英晶振，SMD晶振，无铅晶振，工作温度范围：0℃至+70℃，具有超小型，轻薄型，高精度，高性能，高品质，耐热及耐环境特点。被广泛应用于：蓝牙模块，无线网络，汽车电子，通讯设备晶振，服务器，存储，Sonet/SDH，802.11/WiFi，光纤通道，物联网，汽车电子，智能家居，仪器仪表设备，安防设备，医疗设备等应用。

订购热线：0755-27838351

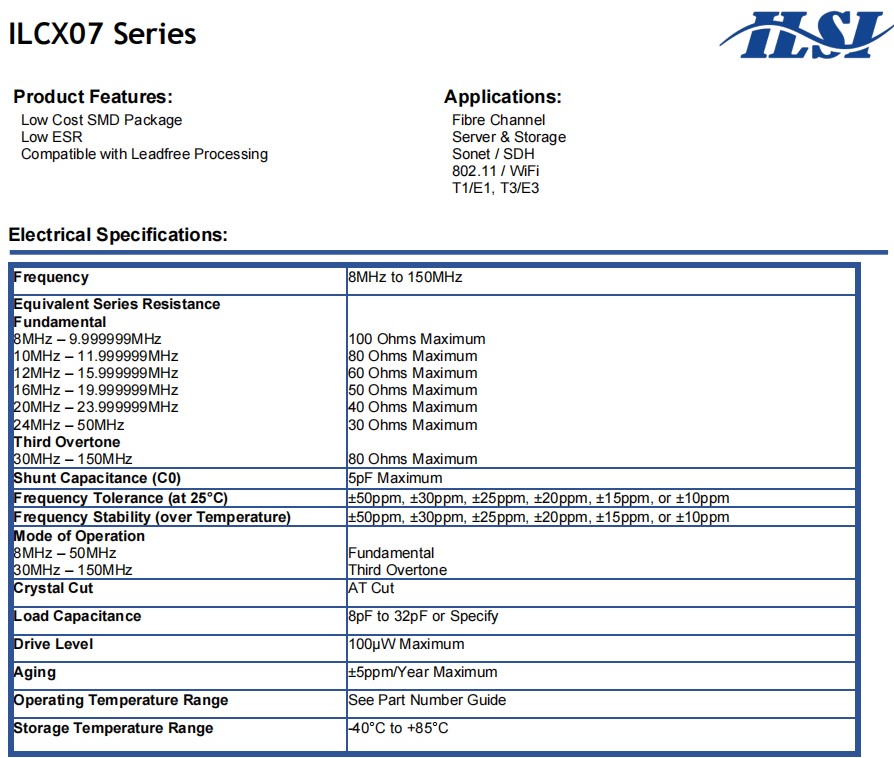

ILSI艾尔西进口晶振,ILCX07–FB1F18–24.000MHz,无线WiFi应用晶振,参数表

Frequency	24.000 MHz
Equivalent Series Resistance Fundamental 8MHz – 9.999999MHz 10MHz – 11.999999MHz 12MHz – 15.999999MHz 16MHz – 19.999999MHz 20MHz – 23.999999MHz 24MHz – 50MHz Third Overtone 30MHz – 150MHz	100 Ohms Maximum 80 Ohms Maximum 60 Ohms Maximum 50 Ohms Maximum 40 Ohms Maximum 30 Ohms Maximum 80 Ohms Maximum
Shunt Capacitance (C0)	5pF Maximum
Frequency Tolerance (at 25°C)	±50ppm, ±30ppm, ±25ppm, ±20ppm, ±15ppm, or ±10ppm
Frequency Stability (over Temperature)	±50ppm, ±30ppm, ±25ppm, ±20ppm, ±15ppm, or ±10ppm
Mode of Operation 8MHz – 50MHz 30MHz – 150MHz	Fundamental Third Overtone
Crystal Cut	AT Cut
Load Capacitance	8pF to 32pF or Specify
Drive Level	100µW Maximum
Aging	±5ppm/Year Maximum

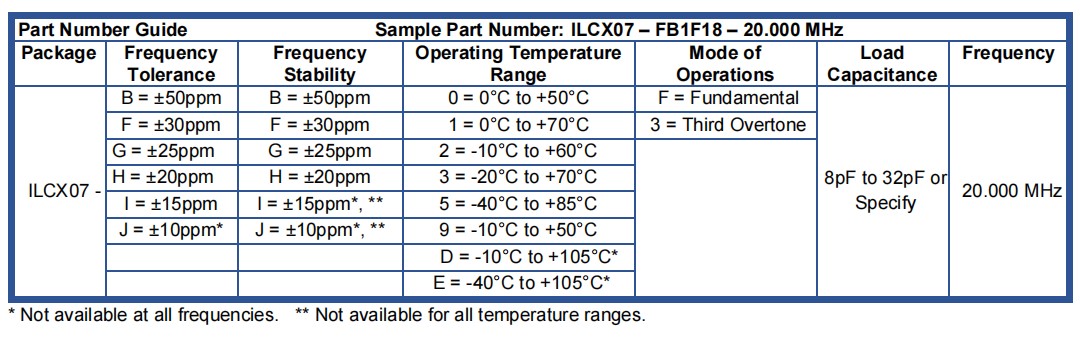

Operating Temperature Range	See Part Number Guide
Storage Temperature Range	-40°C to +85°C
