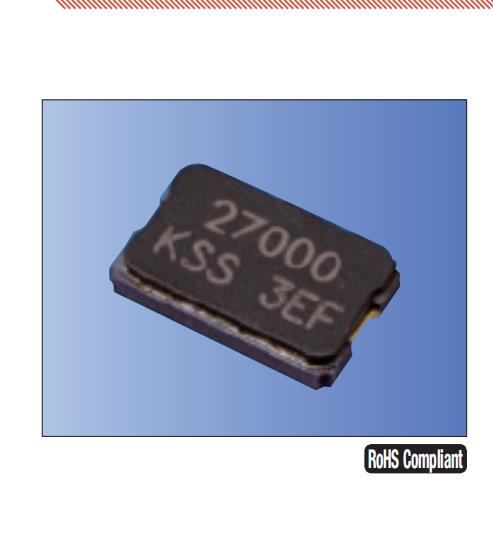

CX5032GB27000H0PESZZ 5032mm 27MHZ 汽车音响

频率：27MHZ

尺寸：5.0*3.2mm

CX5032GB27000H0PESZZ 5032mm 27MHZ 汽车音响,尺寸为5032mm,频率为27MHZ,日本进口晶振,京瓷晶振,5032mm晶振,无源贴片晶振，水晶振动子，贴片谐振器，Kyocera晶振，测试仪器晶振，移动通信晶振，智能家居专用晶振，数字电子晶振，汽车音响晶振，小尺寸晶振，高品质晶振，CX5032GB12000H0HPQZ1晶振，CX5032GB16000H0PESZZ晶振.CX5032GB27000H0PESZZ 5032mm 27MHZ 汽车音响.

音叉谐振器产品主要应用于测试仪器，移动通信，智能家居，数字电子，汽车音响以及配件，还可以广泛用于消费品，医疗产品，蓝牙灯控等.

订购热线：0755-27838351

Japan1

音叉谐振器产品主要应用于测试仪器，移动通信，智能家居，数字电子，汽车音响以及配件，还可以广泛用于消费品，医疗产品，蓝牙灯控等.

Japan2

CX5032GB27000H0PESZZ 5032mm 27MHZ 汽车音响 参数表

Item

Symbol

Specification

Units

Remarks

Frequency Range

f_nom

7372.8 to 54000

kHz

Overtone Order

Fundamental

―

Load Capacitance

Frequency Tolerance

f_tol

±20

× 10-6

25°C±3°C

Motional Series Resistance

Table 1

ohm

Drive Level

Table 2

Operating Temp. Range

T_use

-10 to +70

°C

Storage Temp. Range

T_stg

-40 to +85

°C

Frequency Temp. Characteristics

f_tem

±30

× 10-6

Freq. deviation from the value at 25°C

Frequency Range

Motional Series Resistance

Frequency Range

Level of Drive

7372.8≤f_nom< 9500kHz

300Ω max.

7372.8≤f_nom<16000kHz

10μW (500μW max.)

9500≤f_nom<10000kHz

200Ω max.

16000≤f_nom<25000kHz

10μW (300μW max.)

10000≤f_nom<14000kHz

150Ω max.

25000≤f_nom≤54000kHz

10μW (100μW max.)

14000≤f_nom<20000kHz

100Ω max.

20000≤f_nom<30000kHz

70Ω max.

30000≤f_nom≤54000kHz

50Ω max.

CX5032GB27000H0PESZZ 5032mm 27MHZ 汽车音响 尺寸图CX5032GB27000H0PESZZ晶振特点

水晶单位的消费产品
•小而低调(T=1.1mm max.)
(5.0×3.2×1.0毫米)
•陶瓷封装
•回流兼容

更多相关京瓷晶振型号

Manufacturer Part Number原厂编码	Manufacturer厂家	Series型号	Type 系列	Frequency	Operating Temperature 工作温度
CX5032GB10000H0PESZZ	Kyocera晶振	CX5032GB, Kyocera	MHz Crystal	10MHz	-10°C ~ 70°C
CX5032GB16000H0PESZZ	Kyocera晶振	CX5032GB, Kyocera	MHz Crystal	16MHz	-10°C ~ 70°C
CX5032GB20000H0PESZZ	Kyocera晶振	CX5032GB, Kyocera	MHz Crystal	20MHz	-10°C ~ 70°C
CX5032GB12000H0HPQZ1	Kyocera晶振	CX5032GB, Kyocera	MHz Crystal	12MHz	-40°C ~ 85°C
CX5032GB27000H0PESZZ	Kyocera晶振	CX5032GB, Kyocera	MHz Crystal	27MHz	-10°C ~ 70°C
CX5032GB14318H0PESZZ	Kyocera晶振	CX5032GB, Kyocera	MHz Crystal	14.31818MHz	-10°C ~ 70°C
CX2520SB24000D0PESZZ	Kyocera晶振	CX2520SB, Kyocera	MHz Crystal	24MHz	-10°C ~ 70°C
CX5032GB16000H0HPQZ1	Kyocera晶振	CX5032GB, Kyocera	MHz Crystal	16MHz	-40°C ~ 85°C
CX5032GB08000H0HPQZ1	Kyocera晶振	CX5032GB, Kyocera	MHz Crystal	8MHz	-40°C ~ 85°C
CX5032GB10000H0HPQZ1	Kyocera晶振	CX5032GB, Kyocera	MHz Crystal	10MHz	-40°C ~ 85°C
CX5032GB14745H0PESZZ	Kyocera晶振	CX5032GB, Kyocera	MHz Crystal	14.7456MHz	-10°C ~ 70°C
CX5032GB24576H0PESZZ	Kyocera晶振	CX5032GB, Kyocera	MHz Crystal	24.576MHz	-10°C ~ 70°C
CX2520SB13560D0GEJCC	Kyocera无源晶振	CX2520SB, Kyocera	MHz Crystal	13.56MHz	-10°C ~ 70°C
CX2520SB40000H0WZK06	Kyocera晶振	CX2520SB, Kyocera	MHz Crystal	40MHz	0°C ~ 85°C
CX2520SB40000H0DZF08	Kyocera晶振	CX2520SB, Kyocera	MHz Crystal	40MHz	-10°C ~ 85°C
CX5032GB08000H0HEQZ1	Kyocera晶振	CX5032GB, Kyocera	MHz Crystal	8MHz	-10°C ~ 70°C
CX5032GB12000H0PESZZ	Kyocera晶振	CX5032GB, Kyocera	MHz Crystal	12MHz	-10°C ~ 70°C
CX5032GB19200P0HEQZ1	Kyocera晶振	CX5032GB, Kyocera	MHz Crystal	19.2MHz	-10°C ~ 70°C
CX2520SB13560D0GEJZ1	Kyocera晶振	CX2520SB, Kyocera	MHz Crystal	13.56MHz	-10°C ~ 70°C
