拉隆贴片晶振,H13系列晶振,H13-6.000-16-5050-EXT-TR,无源晶振

频率：6 MHz

尺寸：7.0x5.0mm

拉隆贴片晶振,H13系列晶振,H13-6.000-16-5050-EXT-TR,无源晶振，四脚贴片晶振，石英晶体谐振器，无源贴片晶振，进口石英晶体，编码为：H13-6.000-16-5050-EXT-TR，频率：6 MHz，频率稳定为：±50ppm，频率公差为：±50ppm，负载电容为：16 PF，工作温度范围：-30℃至+85℃，晶振体积尺寸为：7.0x5.0mm，贴片石英晶振，欧美无源贴片晶振，美国拉隆无源晶体谐振器，H13系列石英晶振，该产品采用SMD编带盘装包装方式，焊接可以采用自动贴片系统，满足无铅高温回流焊接曲线，从而提高晶振生产效率，节省人工成本。

订购热线：0755-27838351

拉隆贴片晶振,H13系列晶振,H13-6.000-16-5050-EXT-TR,无源晶振，四脚贴片晶振，石英晶体谐振器，无源贴片晶振，进口石英晶体，编码为：H13-6.000-16-5050-EXT-TR，频率：6 MHz，频率稳定为：±50ppm，频率公差为：±50ppm，负载电容为：16 PF，工作温度范围：-30℃至+85℃，晶振体积尺寸为：7.0x5.0mm，贴片石英晶振，欧美无源贴片晶振，美国拉隆无源晶体谐振器，H13系列石英晶振，该产品采用SMD编带盘装包装方式，焊接可以采用自动贴片系统，满足无铅高温回流焊接曲线，从而提高晶振生产效率，节省人工成本。

Japan2 拉隆贴片晶振,H13系列晶振,H13-6.000-16-5050-EXT-TR,无源晶振，参数表

编码	品牌	型号	频率	频率稳定	频率公差	负载电容	工作温度	尺寸
H13-6.000-16-5050-EXT-TR	拉隆晶振	H13	6 MHz	±50ppm	±50ppm	16pF	-30°C ~ 85°C	7.00mm x 5.00mm

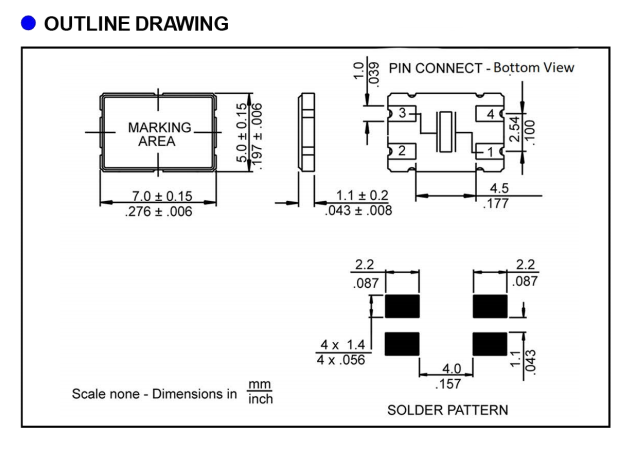

Japan3 拉隆贴片晶振,H13系列晶振,H13-6.000-16-5050-EXT-TR,无源晶振，尺寸图

H13-3

编码	品牌	型号	频率	频率稳定	频率公差	负载电容	工作温度
H13-6.000-16-5050-EXT-TR	Raltron Crystal	H13	6 MHz	±50ppm	±50ppm	16pF	-30°C ~ 85°C
AS-27.000-20-F-3030-SMD-TR	Raltron Crystal	AS-SMD	27 MHz	±30ppm	±30ppm	20pF	-20°C ~ 70°C
AS-24.576-18-F-SMD-TR	Raltron Crystal	AS-SMD	24.576 MHz	±50ppm	±30ppm	18pF	-20°C ~ 70°C
RH100-48.000-18-F-3030-TR	Raltron Crystal	RH100	48 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
R2520-26.000-9-F-1010-TR	Raltron Crystal	R2520	26 MHz	±10ppm	±10ppm	9pF	-10°C ~ 60°C
R2016-16.000-9-1010-TR-NS1	Raltron Crystal	R2016	16 MHz	±10ppm	±10ppm	9pF	-10°C ~ 60°C
RSE-32.768-7-H14-TR	Raltron Crystal	RSE H14	32.768 kHz	-	±50ppm	7pF	-20°C ~ 70°C
RT1210-32.768-9-TR	Raltron Crystal	RT1210	32.768 kHz	-	±20ppm	9pF	-40°C ~ 85°C
AS-5.000-18-EXT-SMD-TR	Raltron Crystal	AS-SMD	5 MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
RH100-26.000-9-F-1015-X-TR-NS2	Raltron Crystal	RH100	26 MHz	±15ppm	±10ppm	9pF	-40°C ~ 85°C
RH100-24.000-12-1020-EXT-TR-N1	Raltron Crystal	RH100	24 MHz	±20ppm	±10ppm	12pF	-40°C ~ 85°C
RH100-38.400-15-F-2030-EXT-TR-NS1	Raltron Crystal	RH100	38.4 MHz	±30ppm	±20ppm	15pF	-40°C ~ 85°C
RH100-27.120-18-F-3030-EXT-TR	Raltron Crystal	RH100	27.12 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
RH100-40.000-6-F-1010-EXT-TR	Raltron Crystal	RH100	40 MHz	±10ppm	±10ppm	6pF	-40°C ~ 85°C
RH100-30.000-10-F-1010-TR	Raltron Crystal	RH100	30 MHz	±10ppm	±10ppm	10pF	-20°C ~ 70°C
RH100-25.000-20-F-1010-TR	Raltron Crystal	RH100	25 MHz	±10ppm	±10ppm	20pF	-20°C ~ 70°C
RH100-32.000-9-F-1010-TR	Raltron Crystal	RH100	32 MHz	±10ppm	±10ppm	9pF	-20°C ~ 70°C
RH100-19.200-10-1010-TR-NS1	Raltron Crystal	RH100	19.2 MHz	±10ppm	±10ppm	10pF	-20°C ~ 70°C
RH100-12.000-9-1515-TR	Raltron Crystal	RH100	12 MHz	±15ppm	±15ppm	9pF	-20°C ~ 70°C
RH100-20.000-10-1010-TR	Raltron Crystal	RH100	20 MHz	±10ppm	±10ppm	10pF	-20°C ~ 70°C
RH100-27.000-10-F-1010-TR-NS2	Raltron Crystal	RH100	27 MHz	±10ppm	±10ppm	10pF	-20°C ~ 70°C
RH100-38.400-8.5-F-1010-TR-NS2	Raltron Crystal	RH100	38.4 MHz	±10ppm	±10ppm	8.5pF	-20°C ~ 75°C
AS-24.576-20-F-3030-SMD-TR	Raltron Crystal	AS-SMD	24.576 MHz	±30ppm	±30ppm	20pF	-20°C ~ 70°C
AS-3.6864-18-SMD-TR	Raltron Crystal	AS-SMD	3.6864 MHz	±50ppm	±30ppm	18pF	-20°C ~ 70°C
AS-6.144-22-2020-SMD-TR	Raltron Crystal	AS-SMD	6.144 MHz	±20ppm	±20ppm	22pF	-20°C ~ 70°C
AS-30.000-18-F-SMD-TR	Raltron Crystal	AS-SMD	30 MHz	±50ppm	±30ppm	18pF	-20°C ~ 70°C
AS-8.192-20-3030-SMD-TR	Raltron Crystal	AS-SMD	8.192 MHz	±30ppm	±30ppm	20pF	-20°C ~ 70°C
AS-4.9152-33-SMD-TR	Raltron Crystal	AS-SMD	4.9152 MHz	±50ppm	±30ppm	33pF	-20°C ~ 70°C
AS-25.000-20-F-3030-EXT-SMD-TR	Raltron Crystal	AS-SMD	25 MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
AS-12.288-18-EXT-SMD-TR	Raltron Crystal	AS-SMD	12.288 MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
AS-18.432-18-SMD-TR	Raltron Crystal	AS-SMD	18.432 MHz	±50ppm	±30ppm	18pF	-20°C ~ 70°C
RH100-26.000-10-F-2040-X-T-NS1	Raltron Crystal	RH100	26 MHz	±40ppm	±20ppm	10pF	-40°C ~ 85°C
RH100-27.000-8-F-1515-TR	Raltron Crystal	RH100	27 MHz	±15ppm	±15ppm	8pF	-20°C ~ 70°C
AS-14.7456-20-SMD-TR	Raltron Crystal	AS-SMD	14.7456 MHz	±50ppm	±30ppm	20pF	-20°C ~ 70°C
AS-12.000-18-SMD-TR	Raltron Crystal	AS-SMD	12 MHz	±50ppm	±30ppm	18pF	-20°C ~ 70°C
AS-14.31818-20-3030-SMD-H32-TR	Raltron Crystal	AS-SMD	14.31818 MHz	±30ppm	±30ppm	20pF	-20°C ~ 70°C
RH100-38.400-10-F-1010-TR	Raltron Crystal	RH100	38.4 MHz	±10ppm	±10ppm	10pF	-20°C ~ 70°C
AS-4.9152-20-EXT-3PIN-SP-TR	Raltron Crystal	AS	4.9152 MHz	±50ppm	±30ppm	20pF	-40°C ~ 85°C
RH100-54.000-19-F-1525-TR	Raltron Crystal	RH100	54 MHz	±25ppm	±15ppm	19pF	-20°C ~ 70°C
RH100-16.000-9-1010-EXT-TR	Raltron Crystal	RH100	16 MHz	±10ppm	±10ppm	9pF	-40°C ~ 85°C
RH100-12.288-18-2030-EXT-TR	Raltron Crystal	RH100	12.288 MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
AS-26.000-20-F-SMD-TR	Raltron Crystal	AS-SMD	26 MHz	±50ppm	±30ppm	20pF	-20°C ~ 70°C
AS-12.000-18-3030-EXT-SMD-TR	Raltron Crystal	AS-SMD	12 MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
RH100-24.000-10-1010-TR	Raltron Crystal	RH100	24 MHz	±10ppm	±10ppm	10pF	-20°C ~ 70°C
RH100-40.000-10-F-1010-TR	Raltron Crystal	RH100	40 MHz	±10ppm	±10ppm	10pF	-20°C ~ 70°C
AS-8.000-20	Raltron Crystal	AS	8 MHz	±50ppm	±30ppm	20pF	-20°C ~ 70°C
AS-40.000-18-F-EXT-SMD-TR	Raltron Crystal	AS-SMD	40 MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
AS-14.31818-20-SMD-TR	Raltron Crystal	AS-SMD	14.31818 MHz	±50ppm	±30ppm	20pF	-20°C ~ 70°C
AS-14.7456-18-EXT-SMD-TR	Raltron Crystal	AS-SMD	14.7456 MHz	±50ppm	±30ppm	18pF	-40°C ~ 85°C
AS-4.096-22-3030-EXT-SMD-TR	Raltron Crystal	AS-SMD	4.096 MHz	±30ppm	±30ppm	22pF	-40°C ~ 85°C
AS-25.000-18-F-SMD-TR	Raltron Crystal	AS-SMD	25 MHz	±50ppm	±30ppm	18pF	-20°C ~ 70°C
AS-16.000-20-SMD-TR	Raltron Crystal	AS-SMD	16 MHz	±50ppm	±30ppm	20pF	-20°C ~ 70°C
RH100-38.400-8.5-F-1010-TR-NS1	Raltron Crystal	RH100	38.4 MHz	±10ppm	±10ppm	8.5pF	-20°C ~ 85°C
RH100-24.000-8-1015-EXT-TR-NS1	Raltron Crystal	RH100	24 MHz	±15ppm	±10ppm	8pF	-30°C ~ 85°C
AS-6.000-18	Raltron Crystal	AS	6 MHz	±50ppm	±30ppm	18pF	-20°C ~ 70°C
RH100-24.000-12-1010-EXT-TR	Raltron Crystal	RH100	24 MHz	±10ppm	±10ppm	12pF	-40°C ~ 85°C
RH100-25.000-18-F-1020-EXT-TR	Raltron Crystal	RH100	25 MHz	±20ppm	±10ppm	18pF	-40°C ~ 85°C
RH100-32.000-9-F-1020-TR	Raltron Crystal	RH100	32 MHz	±20ppm	±10ppm	9pF	-20°C ~ 70°C
RH100-25.000-18-F-1020-TR-NS2	Raltron Crystal	RH100	25 MHz	±20ppm	±10ppm	18pF	-10°C ~ 85°C
RH100-26.000-12-F-1010-TR	Raltron Crystal	RH100	26 MHz	±10ppm	±10ppm	12pF	-20°C ~ 70°C
RH100-32.000-9-F-2020-EXT-TR	Raltron Crystal	RH100	32 MHz	±20ppm	±20ppm	9pF	-40°C ~ 85°C
RH100-40.000-10-F-2020-EXT-TR	Raltron Crystal	RH100	40 MHz	±20ppm	±20ppm	10pF	-40°C ~ 85°C
RH100-24.000-9-1010-TR-NS4	Raltron Crystal	RH100	24 MHz	±10ppm	±10ppm	9pF	-20°C ~ 85°C
RH100-16.000-9-1018-EXT-TR	Raltron Crystal	RH100	16 MHz	±18ppm	±10ppm	9pF	-40°C ~ 85°C
RH100-24.000-8-3030-EXT-TR	Raltron Crystal	RH100	24 MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
RH100-24.000-18-1030-TR	Raltron Crystal	RH100	24 MHz	±30ppm	±10ppm	18pF	-20°C ~ 70°C
