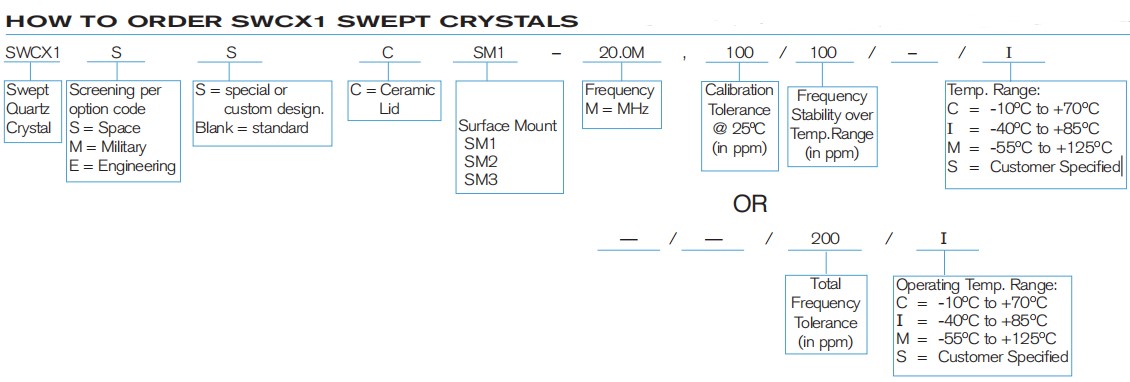

Statek斯塔克晶振,SWCX1SSCSM1-20.0M,100/100/I,航空航天6G晶振

频率：20.000MHz

尺寸：8.0 x 3.6mm

Statek斯塔克晶振,SWCX1SSCSM1-20.0M,100/100/I,航空航天6G晶振，美国进口晶振，Statek斯塔克晶振，型号：SWCX1，编码为：SWCX1SSCSM1-20.0M,100/100/I，频率为20.000MHz，小体积晶振尺寸：8.0 x 3.6mm，两脚贴片晶振，无源晶振，石英晶振，石英晶体谐振器。辐射耐受性高达100kRad总剂量，高抗冲击和振动性，超高可靠性，提供自定义设计，提供军事和太空筛查，低老化，制造和测试，在10级洁净室执行的关键流程。应用于：军事与航空航天，人造卫星，空间探索系统，深空探测器，遥测应用。

订购热线：0755-27838351

Statek斯塔克晶振,SWCX1SSCSM1-20.0M,100/100/I,航空航天6G晶振，美国进口晶振，Statek斯塔克晶振，型号：SWCX1，编码为：SWCX1SSCSM1-20.0M,100/100/I，频率为：20.000MHz，小体积晶振尺寸：8.0 x 3.6mm，两脚贴片晶振，无源晶振，石英晶振，石英晶体谐振器。辐射耐受性高达100kRad总剂量，高抗冲击和振动性，超高可靠性，提供自定义设计，提供军事和太空筛查，低老化，制造和测试，在10级洁净室执行的关键流程。应用于：军事与航空航天，人造卫星，空间探索系统，深空探测器，遥测应用。

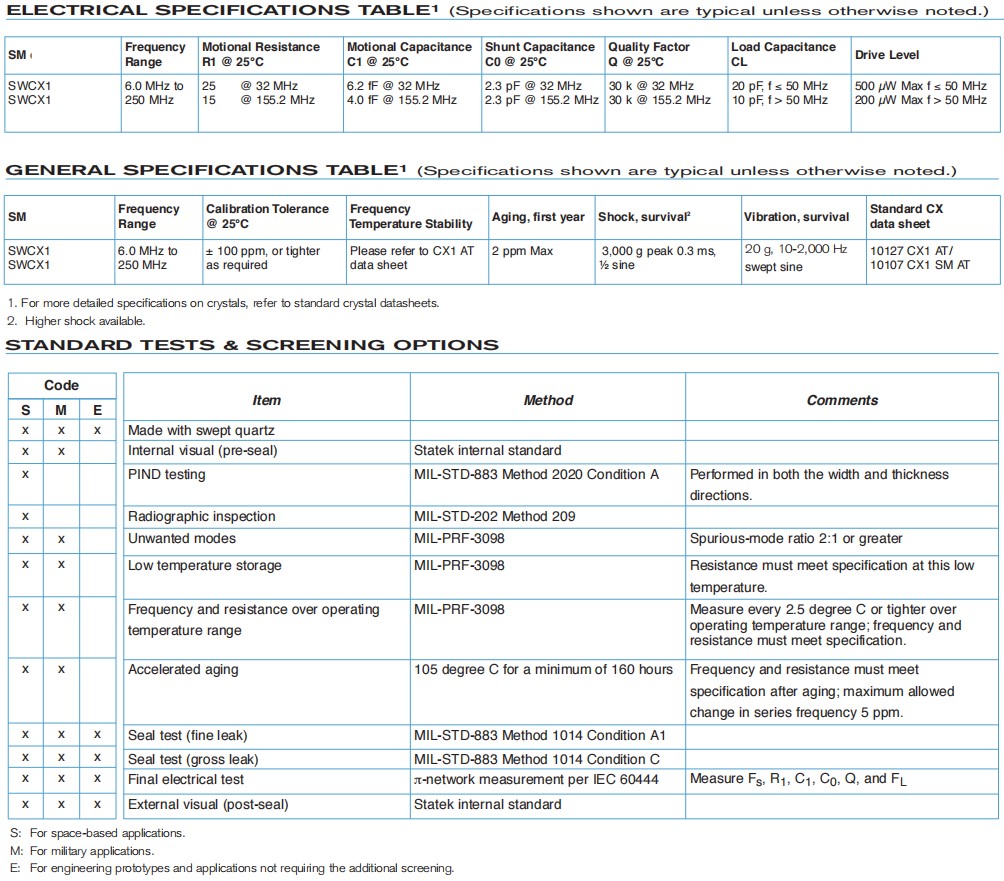

Statek斯塔克晶振,SWCX1SSCSM1-20.0M,100/100/I,航空航天6G晶振，参数表

Frequency
Range

Motional Resistance
R1 @ 25°C

Motional Capacitance
C1 @ 25°C

Shunt Capacitance
C0 @ 25°C

Quality Factor
Q @ 25°C

Load Capacitance
CL

Drive Level

SWCX1
SWCX1

6.0 MHz to
250 MHz

25 @ 32 MHz
15 @ 155.2 MHz

6.2 fF @ 32 MHz
4.0 fF @ 155.2 MHz

2.3 pF @ 32 MHz
2.3 pF @ 155.2 MHz

30 k @ 32 MHz
30 k @ 155.2 MHz

20 pF, f = 50 MHz
10 pF, f > 50 MHz

500 μW Max f = 50 MHz
200 μW Max f > 50 MHz

GENERAL SPECIFICATIONS TABLE1 (Specifications shown are typical unless otherwise noted.)

Frequency
Range

Calibration Tolerance
@ 25°C

Frequency
Temperature Stability

Aging, first year

Shock, survival2

Vibration, survival

Standard CX
data sheet

SWCX1
SWCX1

6.0 MHz to
250 MHz

± 100 ppm, or tighter
as required

Please refer to CX1 AT
data sheet

2 ppm Max

3,000 g peak 0.3 ms,
½ sine

20 g, 10-2,000 Hz
swept sine

10127 CX1 AT/
10107 CX1 SM AT

1. For more detailed specifications on crystals, refer to standard crystal datasheets.
2. Higher shock available.

STANDARD TESTS & SCREENING OPTIONS

Code

Item

Method

Comments

Made with swept quartz

Internal visual (pre-seal)

Statek internal standard

PIND testing

MIL-STD-883 Method 2020 Condition A

Performed in both the width and thickness
directions.

Radiographic inspection

MIL-STD-202 Method 209

Unwanted modes

MIL-PRF-3098

Spurious-mode ratio 2:1 or greater

Low temperature storage

MIL-PRF-3098

Resistance must meet specification at this low
temperature.

Frequency and resistance over operating
temperature range

MIL-PRF-3098

Measure every 2.5 degree C or tighter over
operating temperature range; frequency and
resistance must meet specification.

Accelerated aging

105 degree C for a minimum of 160 hours

Frequency and resistance must meet
specification after aging; maximum allowed
change in series frequency 5 ppm.

Seal test (fine leak)

MIL-STD-883 Method 1014 Condition A1

Seal test (gross leak)

MIL-STD-883 Method 1014 Condition C

Final electrical test

π-network measurement per IEC 60444

Measure Fs, R1, C1, C0, Q, and FL

External visual (post-seal)

Statek internal standard

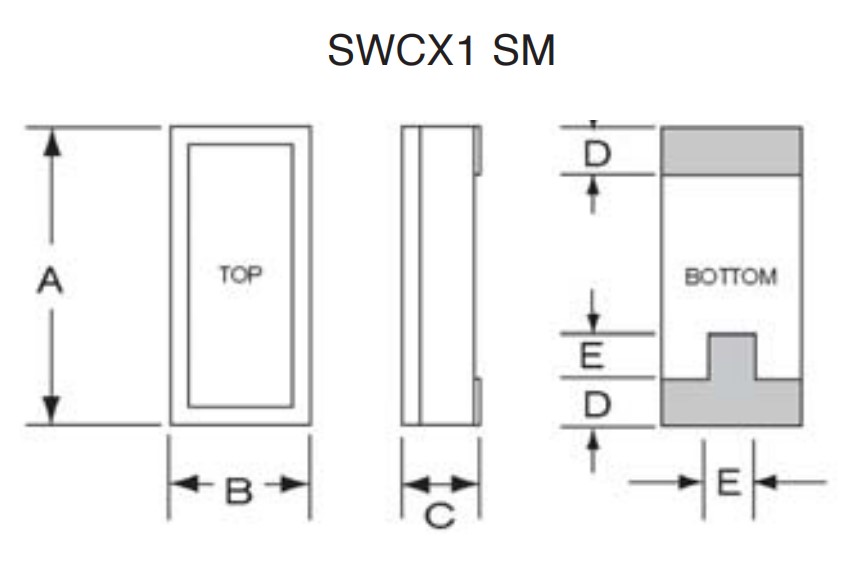

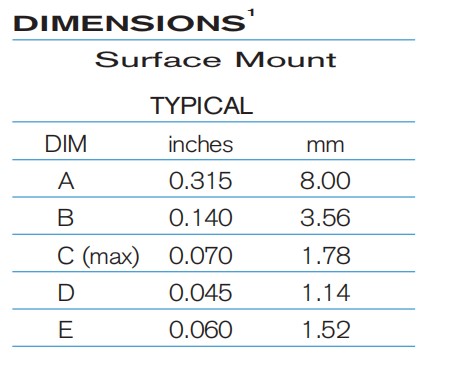

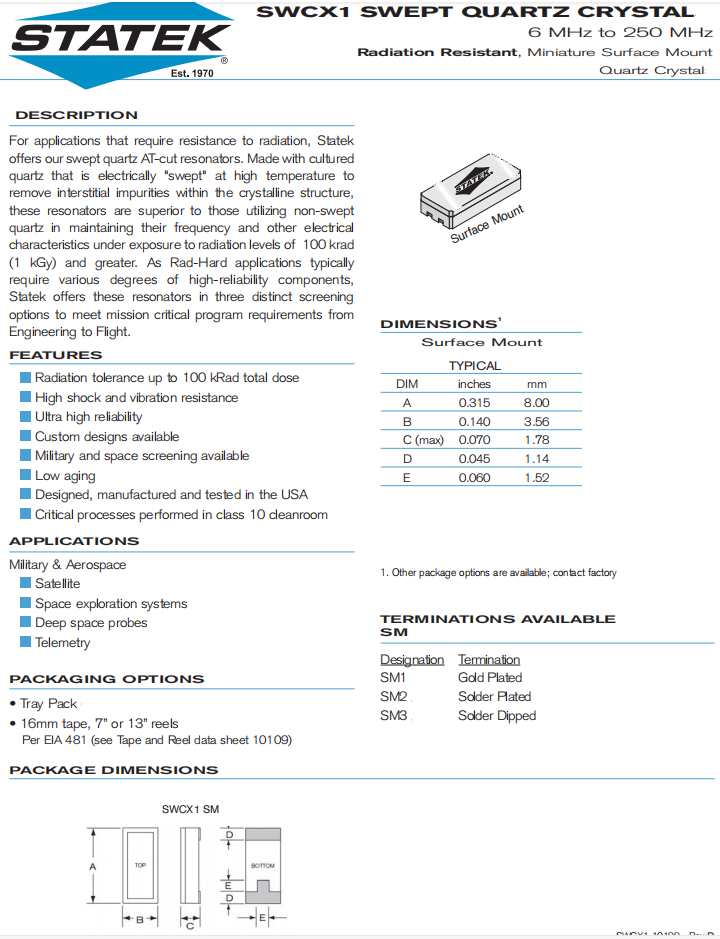

Statek斯塔克晶振,SWCX1SSCSM1-20.0M,100/100/I,航空航天6G晶振，尺寸图

Statek斯塔克晶振,SWCX1SSCSM1-20.0M,100/100/I,航空航天6G晶振

产品特点：
辐射耐受性高达100kRad总剂量
高抗冲击和振动性
超高可靠性无源贴片晶振
提供自定义设计
提供军事和太空筛查
低老化
在美国设计、制造和测试
在10级洁净室执行的关键流程
应用于：军事与航空航天，人造卫星，空间探索系统，深空探测器，遥测

Statek斯塔克晶振,SWCX1SSCSM1-20.0M,100/100/I,航空航天6G晶振

对于需要抗辐射的应用，Statek晶振公司提供了我们的扫描石英at切割谐振器。由培养石英制成，在高温下电“扫掠”以去除晶体结构中的间隙杂质，这些谐振器在100 krad（1 kGy）及更大的辐射水平下优于那些使用非扫掠石英的石英。由于Rad-Hard应用程序通常需要不同程度的高可靠性组件，Statek以三个不同的筛选选项提供这些谐振器，以满足从工程到飞行的关键任务项目要求。
