新一代创新型频率元器件制造商Statek，凭着自身对于晶体行业的热情，源源不断向市场提供高质量,性能出色，低成本的晶振产品，经过长期的日积月累，对于行业有了新的见解，并将自身的理解融合于产品的设计，针对市场需求研发出来高可靠性能高质量的产品，所打磨出来的产品品质为一流，外形更为细腻，而在微小细节之处的处理更是展现淋漓尽致，同时又以超越用户的满意为标准。

创新的内部设计、生产和测试能力不仅使新产品的快速开发和验证成为可能，而且使关键产品特性的持续改进成为可能，例如低加速度灵敏度、高冲击、严格的校准容差、低老化、抗辐射以及在越来越高的工作温度下的高度稳定的频率。

在1970年，Statek公司是第一家使用半导体技术的公司， 化学研磨和微机械加工来制造晶片形式的石英晶体谐振器。今天，史泰克仍然在 在高可靠性、超小型石英频率控制产品的设计、开发和制造方面处于创新的前沿.

50多年来，我们用最先进的晶体谐振器和振荡器支持军事项目。 我们提供按照军用标准制造和测试的完整频率控制产品组合: 振荡器符合MIL-PRF-55310产品等级B，谐振器符合MIL-PRF-3098。我们的专业服务 军事市场的苛刻要求使我们成为大多数主要国防承包商的首选供应商。

我们所有的产品都是在美国设计、制造和测试的。

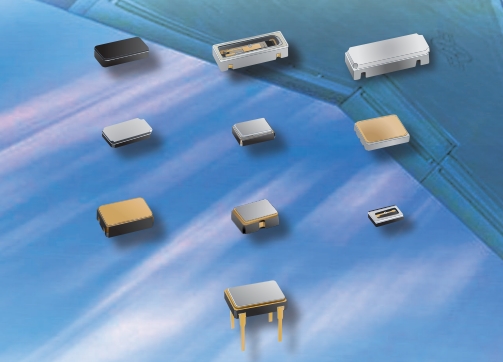

CRYSTAL MODEL		PACKAGE (mm)	FREQUENCY RANGE (Click for Data Sheet)
CX20		2.5 x 1.2	16 MHz to 100 MHz
CX18		1.6 x 1.0	30 MHz to 100 MHz
CX17		4.8 x 3.0	12 MHz to 200 MHz
CX16		2.0 x 1.2	24 MHz to 100 MHz 32 kHz to 180 kHz
CX11		3.2 x 1.5	32 kHz to 240 kHz 14.7456 MHz to 250 MHz
CX11L		3.2 x 1.5	16 MHz to 250 MHz (Telemetry Crystal)
CX11LHG High Shock		3.2 x 1.5	16 MHz to 50 MHz
CX9HT High Temperature		4.1 x 1.5	32 kHz to 160 kHz 14 MHz to 250 MHz
CX4		5.0 x 1.8	30 kHz to 250 kHz 600 kHz to 1.4 MHz 14 MHz to 250 MHz
CX4HG High Shock		5.0 x 1.8	14 MHz to 50 MHz
CX4HT High Temperature		5.0 x 1.8	30 kHz to 250 kHz 600 kHz to 2.5 MHz 14 MHz to 250 MHz
CX1		8.0 x 3.6	10 kHz to 600 kHz 530 kHz to 2.1 MHz 6 MHz to 250 MHz
CX1HG High Shock		8.0 x 3.6	6 MHz to 250 MHz
CX1HT High Temperature		8.0 x 3.6	10 kHz to 600 kHz 530 kHz to 2.1 MHz 6 MHz to 250 MHz
SWCX1 (swept quartz)		8.0 x 3.6	6 MHz to 250 MHz

Statek的核心竞争力是其利用以下材料设计和制造石英晶体超微型谐振器的能力 其获得专利的光刻和化学研磨工艺。

可变规模批处理使我们能够通过标准和 定制设备。

我们培养与我们的长期关系 国内供应商确保稳定的来源 高质量的材料。我们制造我们的 带有高等级培养α-石英的谐振器。 扫描石英也可用于应用 需要辐射硬度。为了简化和为了使SMD石英晶振器件电路最小化，我们使用振荡器专用集成电路。最后，我们设计我们自己的陶瓷封装，然后由我们的姐妹公司AdTech Ceramics生产。

整个Statek组织致力于确保其产品和服务达到或超过客户的期望。通过持续改进，Statek开发了一个质量体系，该体系包括 AS9100和ISO 9001。

In 1970, Statek Corporation was the first company to use semiconductor technologies such as photolithography, chemical milling and micromachining to manufacture quartz resonators in wafer form. Today, Statek remains at the forefront of innovation in the design, development and manufacturing of highly reliable, ultra-miniature quartzbased frequency control products.

For over 50 years, we have supported military programs with state-of-the-art crystal resonators and oscillators. We offer a complete portfolio of frequency control products manufactured and tested to military standards: oscillators to MIL-PRF-55310 Product Level B and resonators to MIL-PRF-3098. Our dedicated servicing of the demanding requirements of the military market makes us a preferred supplier to most major defense contractors.

All our products are designed, manufactured and tested in the United States

Statek’s core competence is its ability to design and manufacture ultra-miniature resonators in quartz wafers using its patented photolithographic and chemical milling processes.

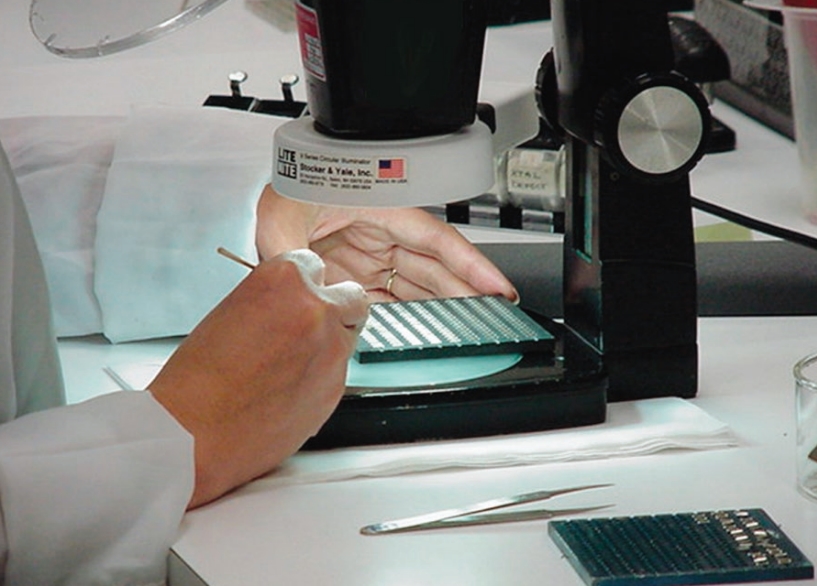

With complete vertical integration, Statek has total in-house control over the manufacturing of its products. From cutting quartz bars into wafers, to wafer lapping and polishing, to photolithographic processing and chemical milling in our Wafer Fab lines, to assembly and seal, Statek has the complete in-house capability to manufacture and test high-precision, extremely rugged and reliable ceramic-packaged quartz crystal resonators, oscillators and sensors.

Variable-size batch processing allows us to maintain efficient production with a high mix of both standard and custom devices.

We cultivate long-term relationships with our domestic suppliers to ensure stable sources of high-quality materials. We manufacture our resonators with high-grade cultured alpha-quartz. Swept quartz is also available for applications requiring radiation hardness. To simplify and minimize the device circuitry, we use oscillatorspecific integrated circuits. Lastly, we design our own ceramic packages, which are then manufactured by our sister company, AdTech Ceramics.

Statek provides the continuity of support required for long-term military programs. In addition to maintaining complete records and traceability, we are committed to supporting the life cycle of our customers’ products.

The entire Statek organization is committed to ensuring that its products and services meet or exceed its customers’ expectations. Through continuous improvement, Statek has developed a quality system that incorporates AS9100 and ISO 9001.
