MERCURY玛居礼品牌产品列表选型

MERCURY玛居礼电波工业(股)公司已有50年历史，是台湾第一家生产制造石英晶体的厂商。惟电子工业用石英晶振制品有极大之演变，体积小型化，套装也由引线型变成表面实装型，频率范围也扩大到几KHz到几百MHz，且精密度也以百万分之ㄧ计算，其功用也扩展到电子通信情报及航天技术之用。本公司随着市场之需求，不断改进及研究开发新产品及生产技术，并追求稳定精良之质量，以期符合顾客之要求。
MERCURY玛居礼贴片晶振公司已通过ISO9001/ISO14001/IATF-16949认证，在追求企业永续发展经营下，致力推行：
维护劳工权益
提供劳工安全健康的工作环境
恪守企业道德规范
禁用冲突矿产
落实ISO14001规范，杜绝资源浪费，节能减碳，保护自然环境，通讯设备晶振

石英晶体产品列表：

Part Number	Frequency Range	Dimensions L * W / type	Height (mm)	Load Capaciator	Operating Temperature (°C)
X11	24 ~ 48MHz (Fund)	1.6 x 1.2	0.4	8 ~ 32 pF	-40 to +85
X21	20 ~ 54MHz (Fund)	2.0 x 1.6	0.5	8 ~ 32 pF	-40 to +85
X22	12 ~ 60MHz (Fund)	2.5 x 2.0	0.6	8 ~ 32 pF	-40 to +85
X32	10 ~ 54MHz (Fund)	3.2 x 2.5	0.7	8 ~ 32 pF	-40 to +85
X32	40 ~ 125MHz (3rd overtone)	3.2 x 2.5	0.7	8 ~ 32 pF	-40 to +85
X42	12 ~ 54MHz (Fund)	4.0 x 2.5	0.7	8 ~ 32 pF	-40 to +85
MJ	8 ~ 52MHz (Fund)	5.0 x 3.2	0.8	8 ~ 32 pF	-40 to +85
MJ	40 ~ 200MHz (3rd overtone)	5.0 x 3.2	0.8	8 ~ 32 pF	-40 to +85
MF	8 ~ 50MHz (Fund)	6.0 x 3.5	1.0	8 ~ 32 pF	-40 to +85

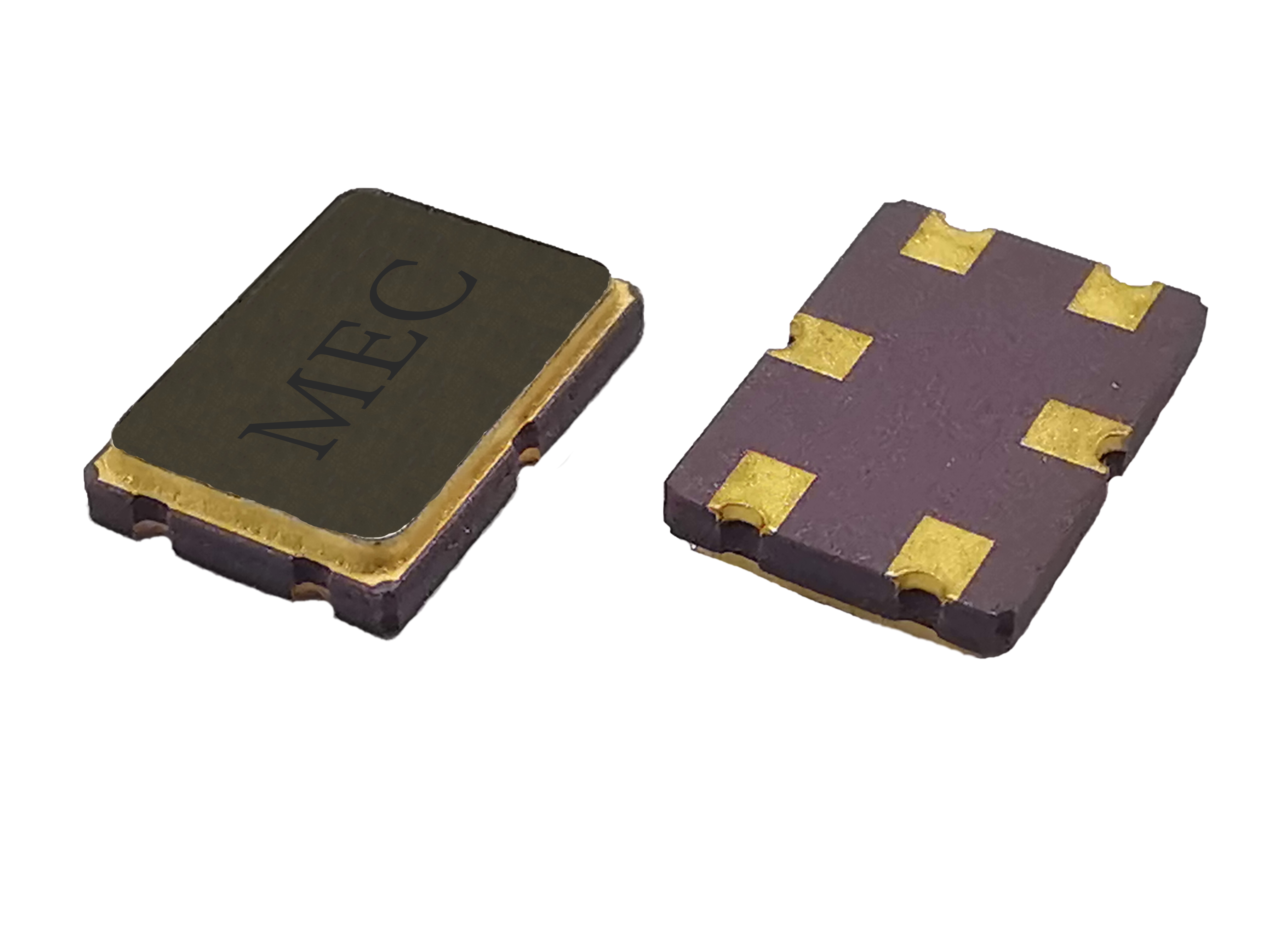

MQ	6 ~ 50MHz (Fund)	7.0 x 5.0	1.0	8 ~ 32 pF	-40 to +85
MQ	40 ~ 200MHz (3rd overtone)	7.0 x 5.0	1.0	8 ~ 32 pF	-40 to +85
M49	3.2 ~ 48MHz (Fund)	12.4 x 4.5	4.0	8 ~ 32 pF	-40 to +85
M49	27 ~ 70MHz (3rd overtone)	12.4 x 4.5	4.0	8 ~ 32 pF	-40 to +85
ML49	3.2 ~ 48MHz (Fund)	12.4 x 4.5	3.0	8 ~ 32 pF	-40 to +85
ML49	27 ~ 70MHz (3rd overtone)	12.4 x 4.5	3.0	8 ~ 32 pF	-40 to +85

时钟振荡器产品列表：

Part Number	Frequency Range	Supply Voltage (V)	Output Logic	Dimensions L * W / type	Height (mm)	Operating Temperature (°C)

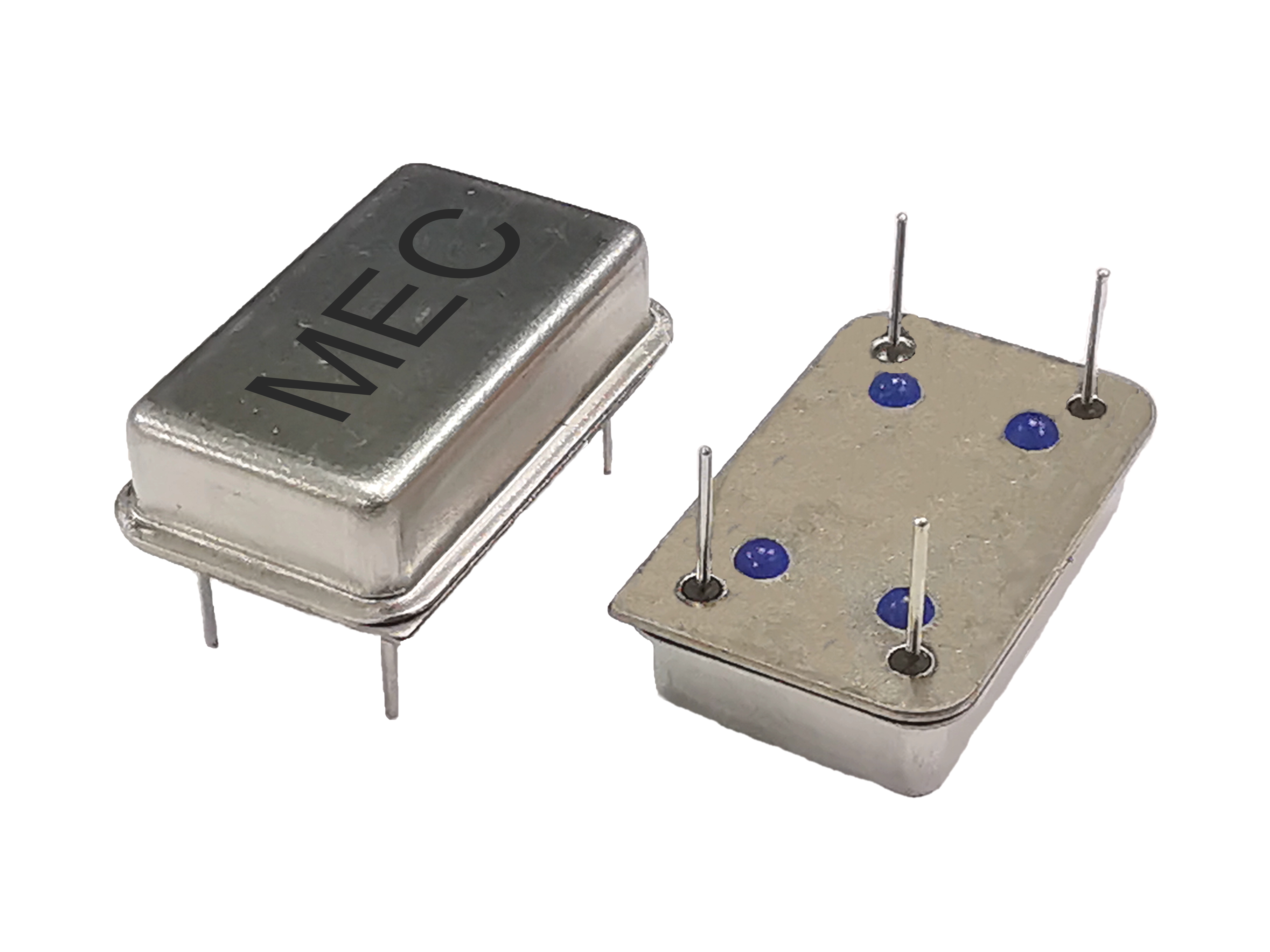

H14	312kHz ~ 50MHz	1.0	CMOS	20.2 x 12.8	5.08	-40 to +85
H14	312kHz ~ 50MHz	1.2	CMOS	20.2 x 12.8	5.08	-40 to +85
H14	25kHz ~ 200MHz	1.8	CMOS	20.2 x 12.8	5.08	-40 to +85
H14	25kHz ~ 200MHz	2.5	CMOS	20.2 x 12.8	5.08	-40 to +85
H14	25kHz ~ 200MHz	3.3	CMOS	20.2 x 12.8	5.08	-40 to +85
H14	187kHz~125MHz	5.0	CMOS	20.2 x 12.8	5.08	-40 to +85

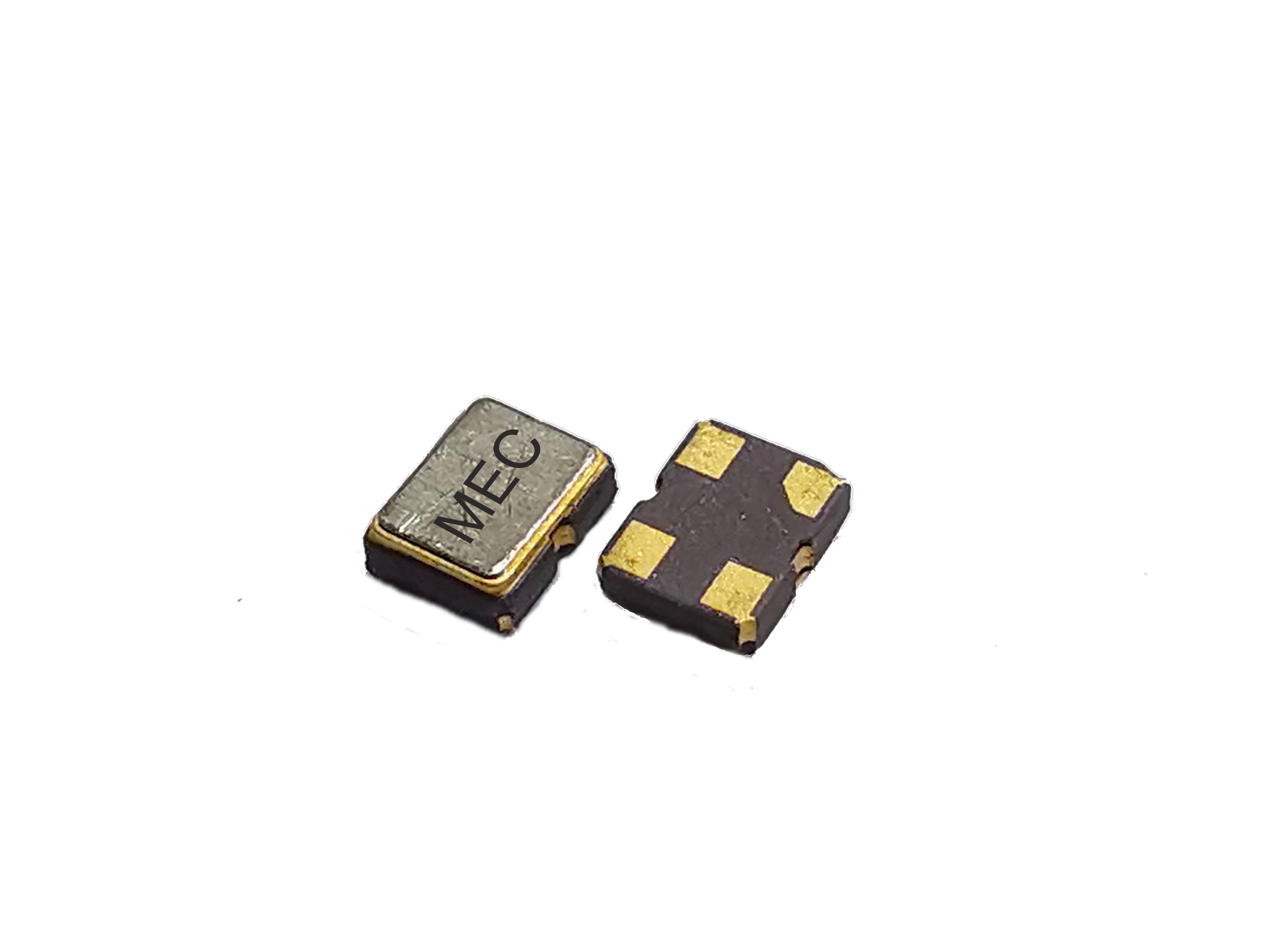

H22	75kHz ~ 50MHz	1.0	CMOS	2.5 x 2.0	0.9	-40 to +85
H22	75kHz ~ 50MHz	1.2	CMOS	2.5 x 2.0	0.9	-40 to +85
H22	156kHz ~ 160MHz	1.8	CMOS	2.5 x 2.0	0.9	-40 to +85
H22	156kHz ~ 160MHz	2.5	CMOS	2.5 x 2.0	0.9	-40 to +85
H22	156kHz ~ 160MHz	3.3	CMOS	2.5 x 2.0	0.9	-40 to +85

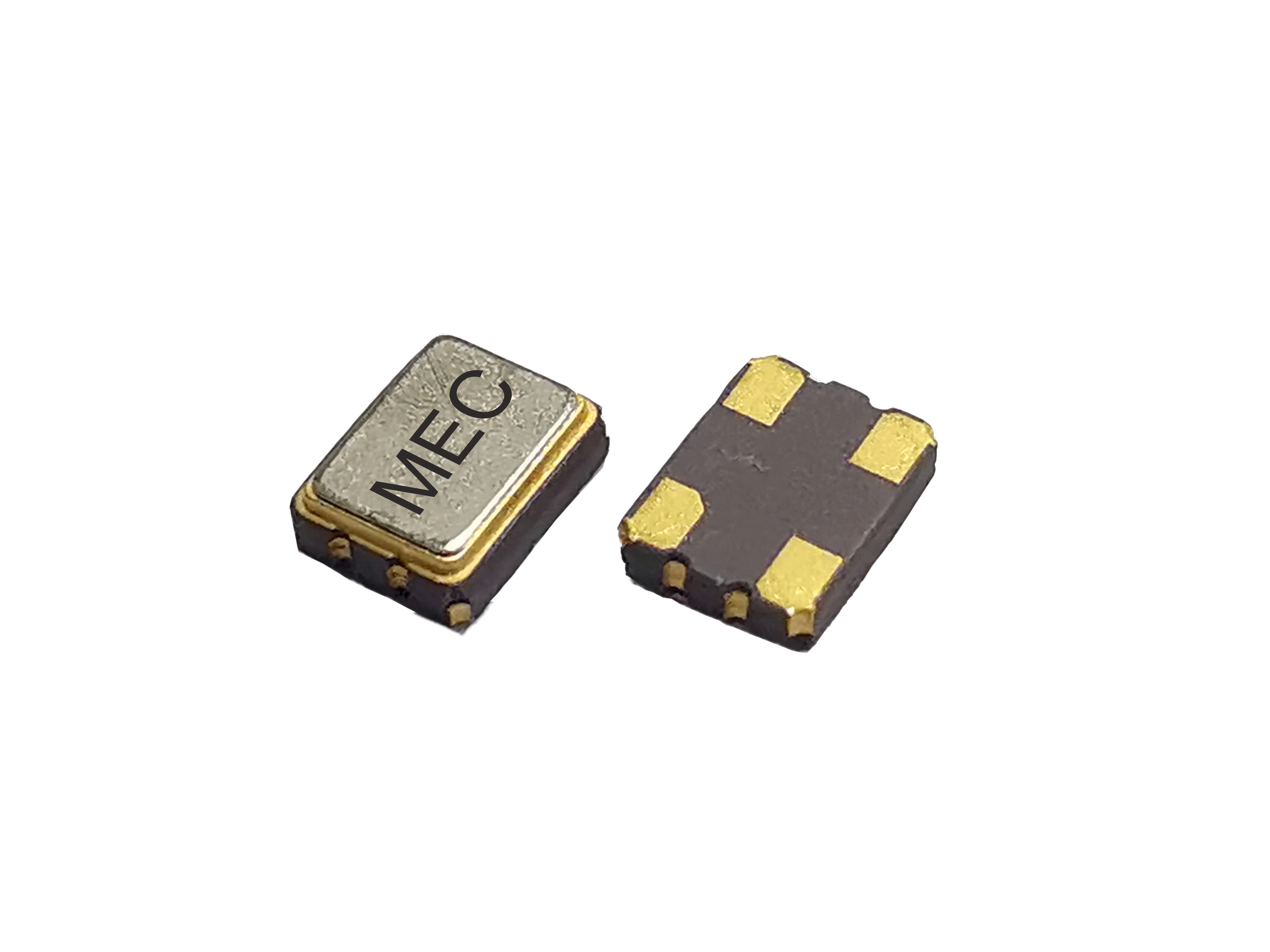

H32	25kHz ~ 50MHz	1.0	CMOS	3.2 x 2.5	1.0	-40 to +85
H32	25kHz ~ 50MHz	1.2	CMOS	3.2 x 2.5	1.0	-40 to +85
H32	25kHz ~ 160MHz	1.8	CMOS	3.2 x 2.5	1.0	-40 to +85
H32	25kHz ~ 160MHz	2.5	CMOS	3.2 x 2.5	1.0	-40 to +85

VCXO压控晶振产品类表：

Part Number	Frequency Range	Supply Voltage	Output Logic	Dimensions L * W / type	Height (mm)	Operating Temperature (°C)
G14	16 ~ 50MHz	1.8	CMOS	20.2 x 12.8	6.0	-40 to +85
G14	1.25 ~ 50MHz	3.3	CMOS	20.2 x 12.8	6.0	-40 to +85
G14	1.25 ~ 50MHz	5.0	CMOS	20.2 x 12.8	6.0	-40 to +85
G226	6.25 ~ 50MHz	3.3	CMOS	2.5 x 2.0	1.0	-40 to +85
G326	16 ~ 50MHz	1.8	CMOS	3.2 x 2.5	1.0	-40 to +85
G326	1.25 ~ 50MHz	3.3	CMOS	3.2 x 2.5	1.0	-40 to +85
G326	1.25 ~ 50MHz	5.0	CMOS	3.2 x 2.5	1.0	-40 to +85
G43	16 ~ 50MHz	1.8	CMOS	11.4 x 9.6	3.0	-40 to +85
G43	1.25 ~ 50MHz	3.3	CMOS	11.4 x 9.6	3.0	-40 to +85
G43	1.25 ~ 50MHz	5.0	CMOS	11.4 x 9.6	3.0	-40 to +85
G63	16 ~ 50MHz	1.8	CMOS	11.4 x 9.6	3.0	-40 to +85
G63	1.25 ~ 50MHz	3.3	CMOS	11.4 x 9.6	3.0	-40 to +85
G63	1.25 ~ 50MHz	5.0	CMOS	11.4 x 9.6	3.0	-40 to +85
G534	16 ~ 50MHz	1.8	CMOS	5.0 x 3.2	1.2	-40 to +85
G534	1.25 ~ 50MHz	3.3	CMOS	5.0 x 3.2	1.2	-40 to +85

TCXO / VCTCXO产品列表：

Part Number	Frequency Range	Supply Voltage ( V )	Output Logic	Dimensions L * W / type	Height ( mm )	Temp. Stabilit
(V)M21S	10 ~ 52MHz	1.8	Clipped Sine Wave	2.0 x 1.6	0.7	± 1ppm / -40 to +85℃
(V)M21S	10 ~ 52MHz	2.5	Clipped Sine Wave	2.0 x 1.6	0.7	± 1ppm / -40 to +85℃
(V)M21S	10 ~ 52MHz	2.8	Clipped Sine Wave	2.0 x 1.6	0.7	± 1ppm / -40 to +85℃
(V)M21S	10 ~ 52MHz	3.0	Clipped Sine Wave	2.0 x 1.6	0.7	± 1ppm / -40 to +85℃
(V)M21S	10 ~ 52MHz	3.3	Clipped Sine Wave	2.0 x 1.6	0.7	± 1ppm / -40 to +85℃
(V)M22S	10 ~ 52MHz	1.8	Clipped Sine Wave	2.5 x 2.0	0.8	± 1ppm / -40 to +85℃
(V)M22S	10 ~ 52MHz	2.5	Clipped Sine Wave	2.5 x 2.0	0.8	± 1ppm / -40 to +85℃
(V)M22S	10 ~ 52MHz	2.8	Clipped Sine Wave	2.5 x 2.0	0.8	± 1ppm / -40 to +85℃
(V)M22S	10 ~ 52MHz	3.0	Clipped Sine Wave	2.5 x 2.0	0.8	± 1ppm / -40 to +85℃
(V)M22S	10 ~ 52MHz	3.3	Clipped Sine Wave	2.5 x 2.0	0.8	± 1ppm / -40 to +85℃
(V)M32S	8.192 ~ 52MHz	1.8	Clipped Sine Wave	3.2 x 2.5	1.0	± 1ppm / -40 to +85℃
(V)M32S	8.192 ~ 52MHz	2.5	Clipped Sine Wave	3.2 x 2.5	1.0	± 1ppm / -40 to +85℃
(V)M32S	8.192 ~ 52MHz	3.0	Clipped Sine Wave	3.2 x 2.5	1.0	± 1ppm / -40 to +85℃
(V)M32S	8.192 ~ 52MHz	3.3	Clipped Sine Wave	3.2 x 2.5	1.0	± 1ppm / -40 to +85℃
(V)M43S	6.4 ~ 52MHz	1.8	Clipped Sine Wave	11.4 x 9.6	3.0	± 1ppm / -40 to +85℃

OCXO恒温晶振产品列表：

Part Number	Frequency Range	Supply Voltage (V)	Output Logic	Dimensions L * W / type	Height (mm)	Temp. Stabilit

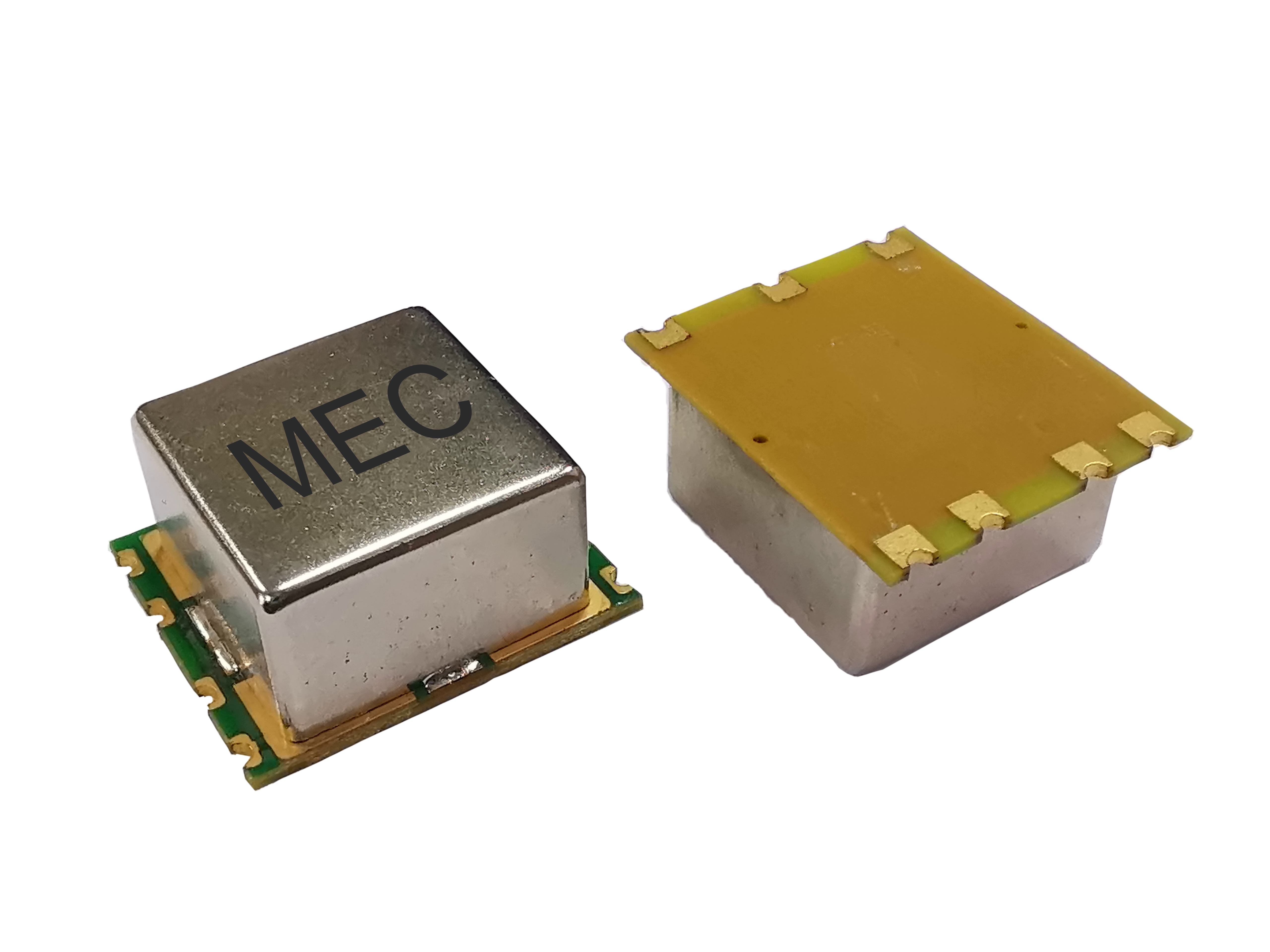

OC12	5 ~ 40MHz	3.3	Square Wave	25.4 x 22.1	12.0	± 10ppb / -40 to +85℃
OC12	5 ~ 40MHz	5.0	Square Wave	25.4 x 22.1	12.0	± 10ppb / -40 to +85℃
OC12	5 ~ 40MHz	3.3	true Sine Wave	25.4 x 22.1	12.0	± 10ppb / -40 to +85℃
OC12	5 ~ 40MHz	5.0	true Sine Wave	25.4 x 22.1	12.0	± 10ppb / -40 to +85℃

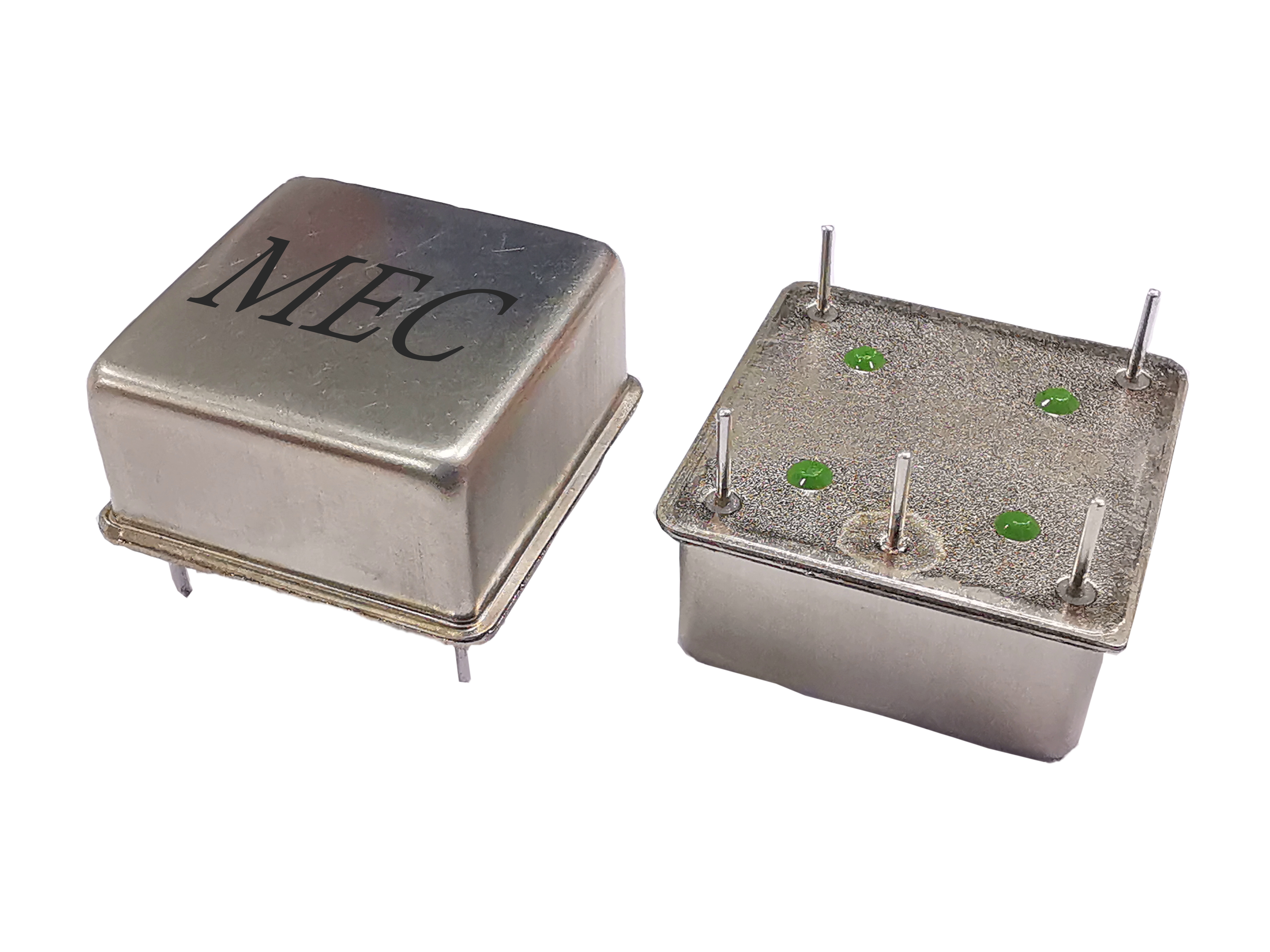

OC13	5 ~ 40MHz	3.3	Square Wave	25.4 x 25.4	12.7	± 5ppb / -40 to +85℃
OC13	5 ~ 40MHz	5.0	Square Wave	25.4 x 25.4	12.7	± 5ppb / -40 to +85℃
OC13	5 ~ 40MHz	3.3	true Sine Wave	25.4 x 25.4	12.7	± 5ppb / -40 to +85℃
OC13	5 ~ 40MHz	5.0	true Sine Wave	25.4 x 25.4	12.7	± 5ppb / -40 to +85℃

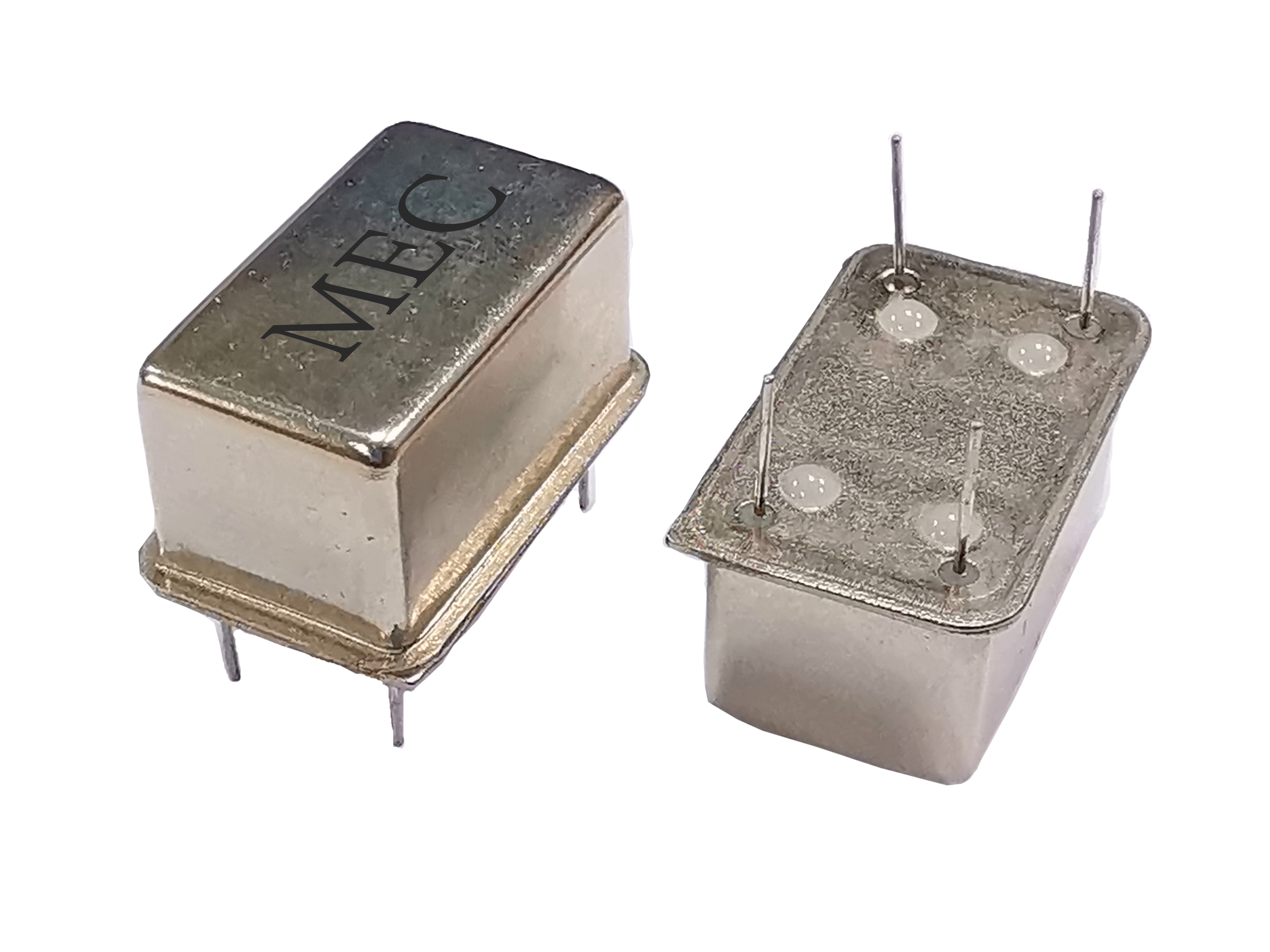

OC14	5 ~ 40MHz	3.3	Square Wave	20.3 x 12.7	11.0	± 100ppb / -40 to +85℃
OC14	5 ~ 40MHz	5.0	Square Wave	20.3 x 12.7	11.0	± 100ppb / -40 to +85℃
OC18	5 ~ 40MHz	3.3	Square Wave	20.6 x 20.6	11.0	± 10ppb / -40 to +85℃
OC18	5 ~ 40MHz	5.0	Square Wave	20.6 x 20.6	11.0	± 10ppb / -40 to +85℃

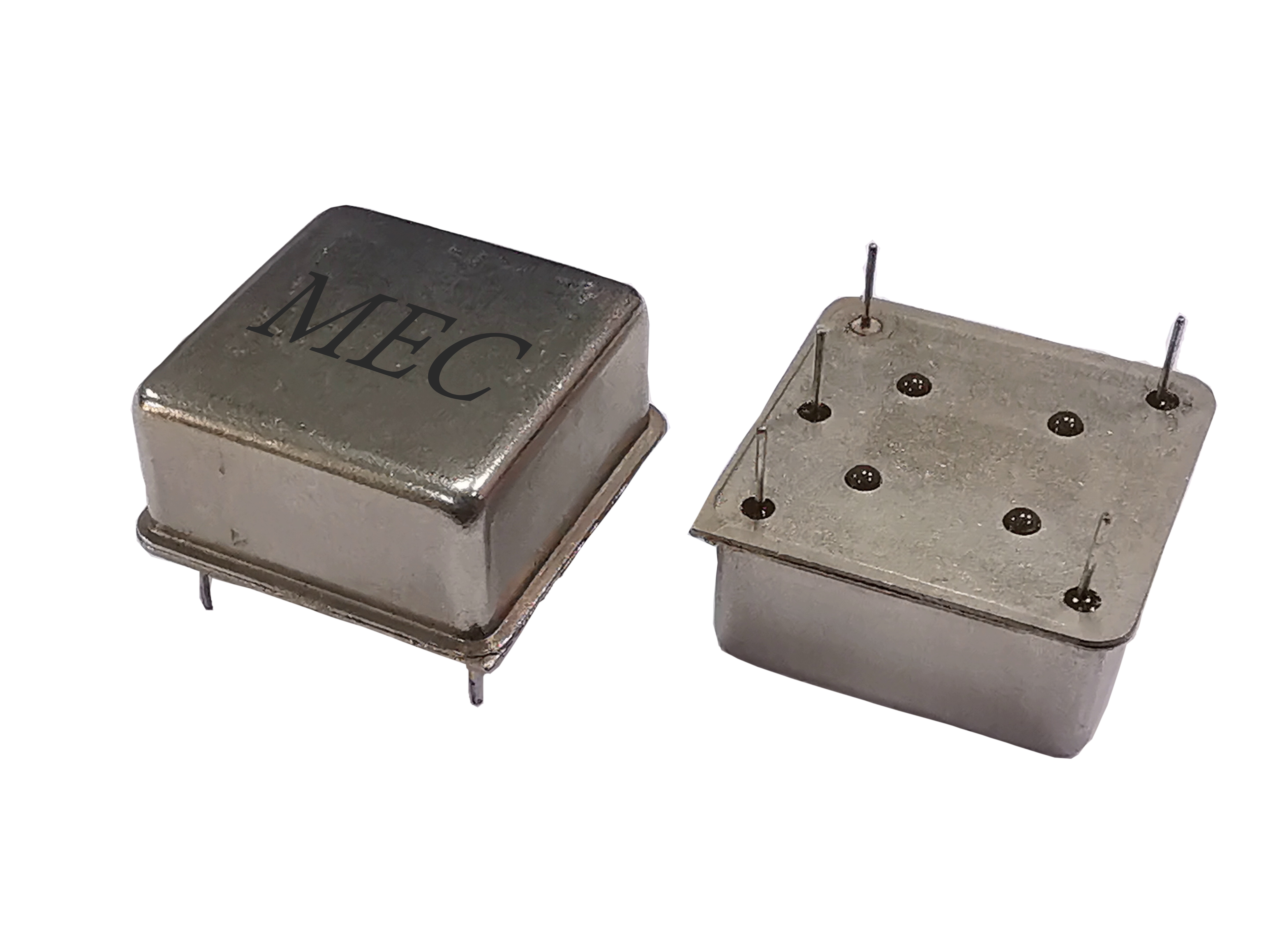

OC19	5 ~ 40MHz	3.3	Square Wave	20.6 x 20.6	11.0	± 10ppb / -40 to +85℃
OC19	5 ~ 40MHz	5.0	Square Wave	20.6 x 20.6	11.0	± 10ppb / -40 to +85℃

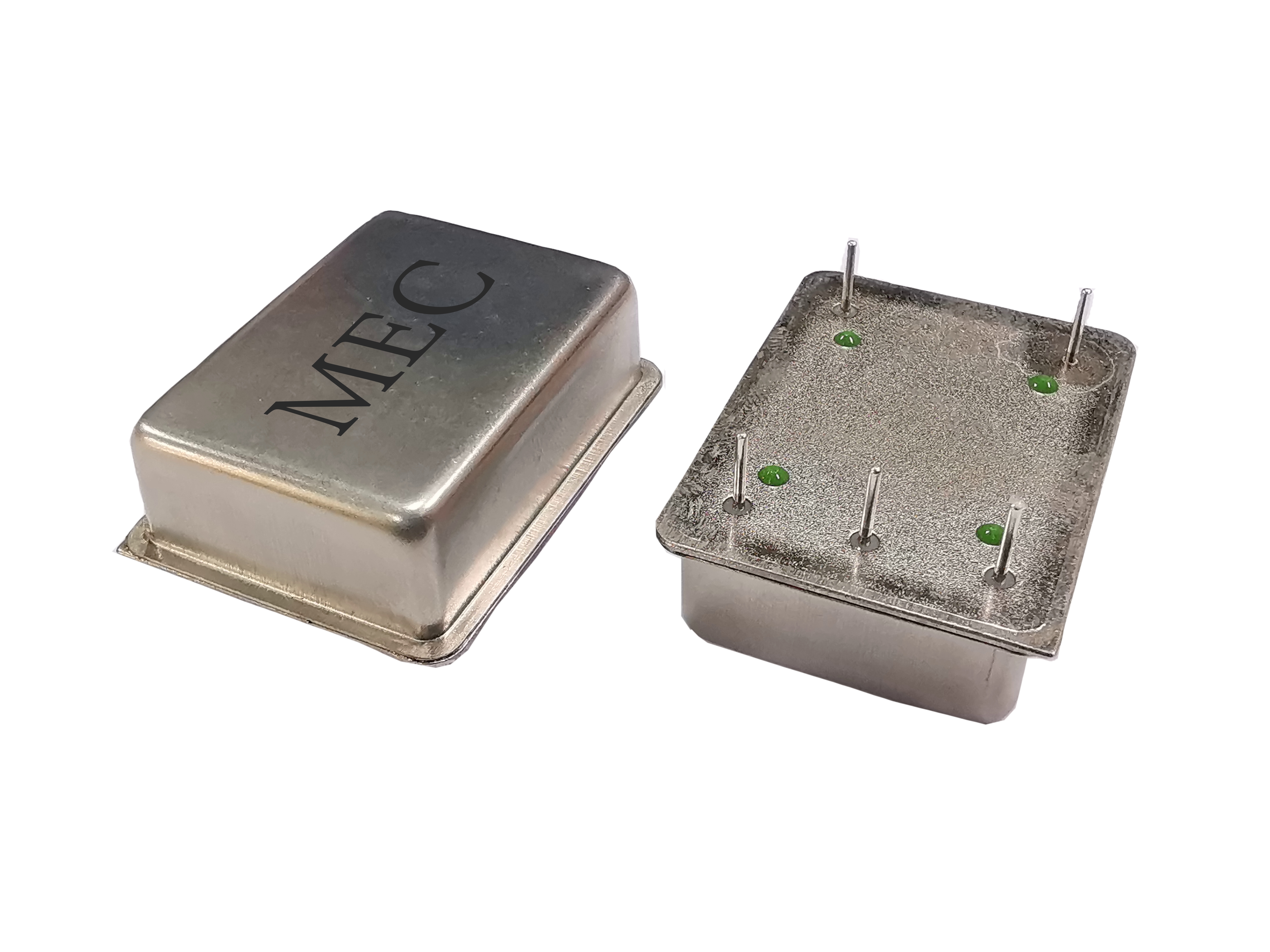

OC32	5 ~ 40MHz	3.3	Square Wave	36.3 x 27.2	12.7	± 10ppb / -40 to +85℃

晶体滤波器产品列表：

Part Number	Frequency Range	Dimensions (mm)	Height (mm)	Pass Bandwidth	poles / Tandem set
MQ	21.4MHz	7.0 x 5.0	1.3	±3.75 kHz ~ ±15 kHz	2
MQ	21.4MHz	7.0 x 5.0	1.3	±3.75 kHz ~ ±15 kHz	4
MQ	21.7MHz	7.0 x 5.0	1.3	±7.5 kHz ~ ±15 kHz	2
MQ	21.7MHz	7.0 x 5.0	1.3	±7.5 kHz ~ ±15 kHz	4
MQ	45MHz	7.0 x 5.0	1.3	±3.75 kHz ~ ±15 kHz	2
MQ	45MHz	7.0 x 5.0	1.3	±3.75 kHz ~ ±15 kHz	4
49T	10.7 MHz	11.5 x 4.5	11.2	±3.75 kHz ~ ±15 kHz	2
49T	10.7 MHz	11.5 x 4.5	11.2	±3.75 kHz ~ ±15 kHz	4 / a pair
49T	10.7 MHz	11.5 x 4.5	11.2	±3.75 kHz ~ ±15 kHz	6 / 49T 3 pcs
49T	10.7 MHz	11.5 x 4.5	11.2	±3.75 kHz ~ ±15 kHz	8 / 49T 4 pcs
49T	10.695 ~ 10.800 MHz	11.5 x 4.5	11.2	±3.75 kHz ~ ±15 kHz	2
49T	10.695 ~ 10.800 MHz	11.5 x 4.5	11.2	±3.75 kHz ~ ±15 kHz	4 / a pair
49T	10.695 ~ 10.800 MHz	11.5 x 4.5	11.2	±3.75 kHz ~ ±15 kHz	6 / 49T 3 pcs
49T	10.695 ~ 10.800 MHz	11.5 x 4.5	11.2	±3.75 kHz ~ ±15 kHz	8 / 49T 4 pcs
49TMJ	10.7 MHz	14.7 x 11.5	5.2	±3.75 kHz ~ ±15 kHz	2
