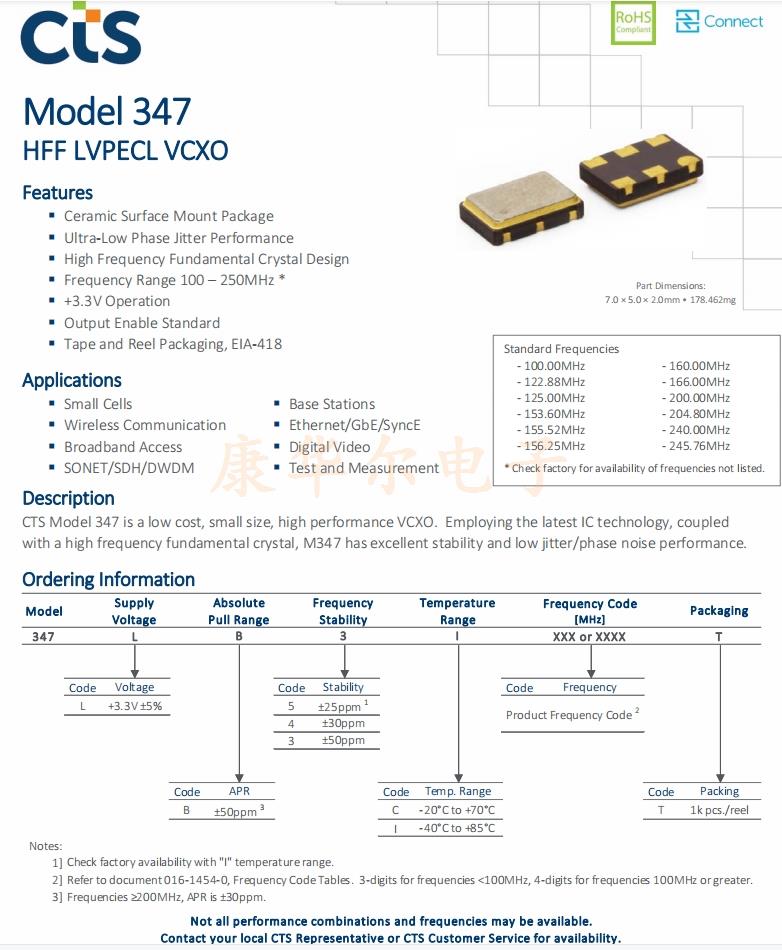

347LB3C1562T 156.25MHZ 7050mm 3.3V VCXO LVPECL
频率：156.25MHZ
尺寸：7.0*5.0mm
347LB3C1562T 156.25MHZ 7050mm 3.3V VCXO LVPECL,尺寸为7050mm,频率为156.25MHZ,电压3.3V,支持输出LVPECL，CTS晶振，美国西迪斯晶振，VCXO压控晶振，有源晶振，差分晶振，石英差分晶振，有源贴片晶振，无线通信晶振，数字视频晶振，测试测量专用晶振，TS Model 347是一款低成本、小尺寸、高性能的VCXO。采用最新的集成电路技术，结合M347采用高频基频晶体，具有优异的稳定性和低抖动/相位噪声性能。
差分晶体产品主要应用范围：小细胞，无线通信，宽带接入，SONET / SDH /密集波分复用，基站，对以太网/ GbE / SyncE数字视频，测试与测量等领域.347LB3C1562T 156.25MHZ 7050mm 3.3V VCXO LVPECL.
差分晶体产品主要应用范围：小细胞，无线通信，宽带接入，SONET / SDH /密集波分复用，基站，对以太网/ GbE / SyncE数字视频，测试与测量等领域.347LB3C1562T 156.25MHZ 7050mm 3.3V VCXO LVPECL.
订购热线：0755-27838351
347LB3C1562T 156.25MHZ 7050mm 3.3V VCXO LVPECL,尺寸为7050mm,频率为156.25MHZ,电压3.3V,支持输出LVPECL，CTS晶振，美国西迪斯晶振，VCXO压控晶振，有源晶振，差分晶振，石英差分晶振，有源贴片晶振，无线通信晶振，数字视频晶振，测试测量专用晶振，TS Model 347是一款低成本、小尺寸、高性能的VCXO。采用最新的集成电路技术，结合M347采用高频基频晶体，具有优异的稳定性和低抖动/相位噪声性能。
差分晶体产品主要应用范围：小细胞，无线通信，宽带接入，SONET / SDH /密集波分复用，基站，对以太网/ GbE / SyncE数字视频，测试与测量等领域.347LB3C1562T 156.25MHZ 7050mm 3.3V VCXO LVPECL.
347LB3C1562T 156.25MHZ 7050mm 3.3V VCXO LVPECL 参数表
| PARAMETER | S YMBO L | COND ITIO NS | MIN | TYP | MAX | UNIT | ||||||||||||||||||||
| Frequency Ran ge |
 O
|
- | 100 - 250 | MHz | ||||||||||||||||||||||
|
Frequency Stabi l i ty [Note 1] |
Δf/fO | ±25ppm stability, -20°C to +70°C only | 25, 30 or 50 | ±ppm | ||||||||||||||||||||||
|
Absolute Pu l l Ran ge [Note 2] |
APR APR |
Frequencies <200MHz Frequencies ≥200MHz |
50 30 |
- - |
- - |
±ppm ±ppm |
||||||||||||||||||||
| Agi n g | Δf/f25 | First Year @ +25°C, nominal VCC and VC | --3 | - | 3 | ppm | ||||||||||||||||||||
|
1.] Inclusive of initial tolerance at time of shipment, changes in supply voltage, load, temperature and 1st year aging. 2.] Minimum guaranteed frequency shift from f O over variations in temperature, aging, power supply and load. |
||||||||||||||||||||||||||
| Output Parameters | ||||||||||||||||||||||||||
| P ARAMETER | S YMBO L | CO ND ITIO NS | MIN | TYP | MAX | UNIT | ||||||||||||||||||||
| Output Ty p e | - | - | LVPECL | - | ||||||||||||||||||||||
| Output Voltage Level s |
VOH VOL |
LVPECL Load, -40°C to +85°C LVPECL Load, -40°C to +85°C |
VCC - 1.085 VCC - 1.810 |
- - |
VCC - 0.880 VCC - 1.620 |
V | ||||||||||||||||||||
| Output Duty Cycle | SYM | @ VCC - 1 .3V | 45 | - | 55 | % | ||||||||||||||||||||
| Rise an d Fall Time | TR, TF | @ 20%/80% Levels | - | 0.3 | 1.0 | ns | ||||||||||||||||||||
| Start Up Ti me | TS | Application of VCC | - | 5 | 10 | ms | ||||||||||||||||||||
|
Enab l e Fu n c ti o n Enab l e In p u t Vo l tage D i sab l e In p u t Vo l tage S tan d b y Cu rren t Enab l e Ti me |
VIH VIL ISTB TPLZ |
Pin 2 Logic '1', Output Enabled Pin 2 Logic '0', Output Disabled Pin 2 Logic '0', Output Standby Pin 2 Logic '1' |
0 .7VCC - - - |
- - - - |
- 0 .3VCC 10 20 |
V V µA µs |
||||||||||||||||||||
| Phase Jitter, RMS | tjrms | Bandwidth 12kHz - 20MHz | - | 90 | 200 | fs | ||||||||||||||||||||
| P hase Noise | - | See Typical Plots | - | - | - | - | ||||||||||||||||||||
347LB3C1562T 156.25MHZ 7050mm 3.3V VCXO LVPECL 尺寸图
特性:
陶瓷表面贴装封装
·超低相位抖动性能
高频基本晶体设计
频率范围100-250MHz *
+3.3V操作
·输出使能标准
磁带和卷轴包装，EIA-418
更多相关美国CTS晶振型号
| 原厂代码 | 品牌 | 型号 | 频率 | 频率稳定度 |
| 347LB3I1228T | CTS振荡器 | 347 | 122.88MHz | ±50ppm |
| 347LB3I1562T | CTS振荡器 | 347 | 156.25MHz | ±50ppm |
| 347LB3C1228T | CTS-Frequency Controls | 347 | 122.88MHz | ±50ppm |
| 347LB5C1000T | CTS-Frequency Controls | 347 | 100MHz | ±25ppm |
| 347LB3C1000T | CTS-Frequency Controls | 347 | 100MHz | ±50ppm |
| 347LB5I1000T | CTS-Frequency Controls | 347 | 100MHz | ±25ppm |
| 347LB6C1000T | CTS-Frequency Controls | 347 | 100MHz | ±20ppm |
| 347LB5C1228T | CTS-Frequency Controls | 347 | 122.88MHz | ±25ppm |
| 347LB3I1000T | CTS-Frequency Controls | 347 | 100MHz | ±50ppm |
| 347LB3C1250T | CTS-Frequency Controls | 347 | 125MHz | ±50ppm |
| 347LB5C1250T | CTS-Frequency Controls | 347 | 125MHz | ±25ppm |
| 347LB5I1228T | CTS-Frequency Controls | 347 | 122.88MHz | ±25ppm |
| 347LB6C1228T | CTS-Frequency Controls | 347 | 122.88MHz | ±20ppm |
| 347LB3I1250T | CTS-Frequency Controls | 347 | 125MHz | ±50ppm |
| 347LB5I1250T | CTS-Frequency Controls | 347 | 125MHz | ±25ppm |
| 347LB6C1250T | CTS-Frequency Controls | 347 | 125MHz | ±20ppm |
| 347LB3C1536T | CTS-Frequency Controls | 347 | 153.6MHz | ±50ppm |
| 347LB3C1555T | CTS-Frequency Controls | 347 | 155.52MHz | ±50ppm |
| 347LB3C1562T | CTS-Frequency Controls | 347 | 156.25MHz | ±50ppm |
| 347LB5C1536T | CTS-Frequency Controls | 347 | 153.6MHz | ±25ppm |
| 347LB3I1536T | CTS-Frequency Controls | 347 | 153.6MHz | ±50ppm |
| 347LB3I1555T | CTS-Frequency Controls | 347 | 155.52MHz | ±50ppm |
| 347LB5I1536T | CTS-Frequency Controls | 347 | 153.6MHz | ±25ppm |
| 347LB6C1536T | CTS-Frequency Controls | 347 | 153.6MHz | ±20ppm |
| 347LB5C1555T | CTS-Frequency Controls | 347 | 155.52MHz | ±25ppm |
| 347LB5I1555T | CTS-Frequency Controls | 347 | 155.52MHz | ±25ppm |
| 347LB6C1555T | CTS-Frequency Controls | 347 | 155.52MHz | ±20ppm |
| 347LB3C1660T | CTS-Frequency Controls | 347 | 166MHz | ±50ppm |
| 347LB5C1562T | CTS有源晶体 | 347 | 156.25MHz | ±25ppm |
| 347LB5I1562T | CTS-Frequency Controls | 347 | 156.25MHz | ±25ppm |
| 347LB6C1562T | CTS-Frequency Controls | 347 | 156.25MHz | ±20ppm |
| 347LB3I1660T | CTS-Frequency Controls | 347 | 166MHz | ±50ppm |
| 347LB5C1660T | CTS-Frequency Controls | 347 | 166MHz | ±25ppm |
| 347LB5I1660T | CTS-Frequency Controls | 347 | 166MHz | ±25ppm |
| 347LB6C1660T | CTS-Frequency Controls | 347 | 166MHz | ±20ppm |
| 347LB3C2000T | CTS-Frequency Controls | 347 | 200MHz | ±50ppm |
| 347LB3I2000T | CTS-Frequency Controls | 347 | 200MHz | ±50ppm |
| 347LB3C2048T | CTS-Frequency Controls | 347 | 204.8MHz | ±50ppm |
| 347LB3I2048T | CTS-Frequency Controls | 347 | 204.8MHz | ±50ppm |
| 347LB5C2000T | CTS-Frequency Controls | 347 | 200MHz | ±25ppm |
| 347LB5I2000T | CTS-Frequency Controls | 347 | 200MHz | ±25ppm |
| 347LB6C2000T | CTS-Frequency Controls | 347 | 200MHz | ±20ppm |
| 347LB5C2048T | CTS-Frequency Controls | 347 | 204.8MHz | ±25ppm |
| 347LB5I2048T | CTS-Frequency Controls | 347 | 204.8MHz | ±25ppm |
| 347LB6C2048T | CTS-Frequency Controls | 347 | 204.8MHz | ±20ppm |
| 347LB3C2457T | CTS-Frequency Controls | 347 | 245.76MHz | ±50ppm |
| 347LB3I2457T | CTS-Frequency Controls | 347 | 245.76MHz | ±50ppm |
| 347LB5C2457T | CTS-Frequency Controls | 347 | 245.76MHz | ±25ppm |
| 347LB5I2457T | CTS-Frequency Controls | 347 | 245.76MHz | ±25ppm |
| 347LB6C2457T | CTS-Frequency Controls | 347 | 245.76MHz | ±20ppm |
