Q24FA20H00097数据手册/FA-20H/2520mm/10pF/40MHZ

频率：40MHZ

尺寸：2.5*2.0mm

Q24FA20H00097数据手册/FA-20H/2520mm/10pF/40MHZ，尺寸为2520mm,频率为40MHZ,负载电容10pF,频率公差10ppm,日本爱普生晶振，EPSON晶振，进口晶振，无源谐振器，SMD晶振，SMD石英晶振，石英谐振器，手机专用晶振，蓝牙晶振，无线局域网晶振，主控板时钟晶振，Q24FA20H00087无源谐振器，Q24FA20H00079石英贴片晶振。

无源晶振产品主要应用范围:手机、蓝牙、无线局域网,ISM波段无线电，主控板时钟,电子数码，无线设备，网络产品等领域。Q24FA20H00097数据手册/FA-20H/2520mm/10pF/40MHZ.

订购热线：0755-27838351

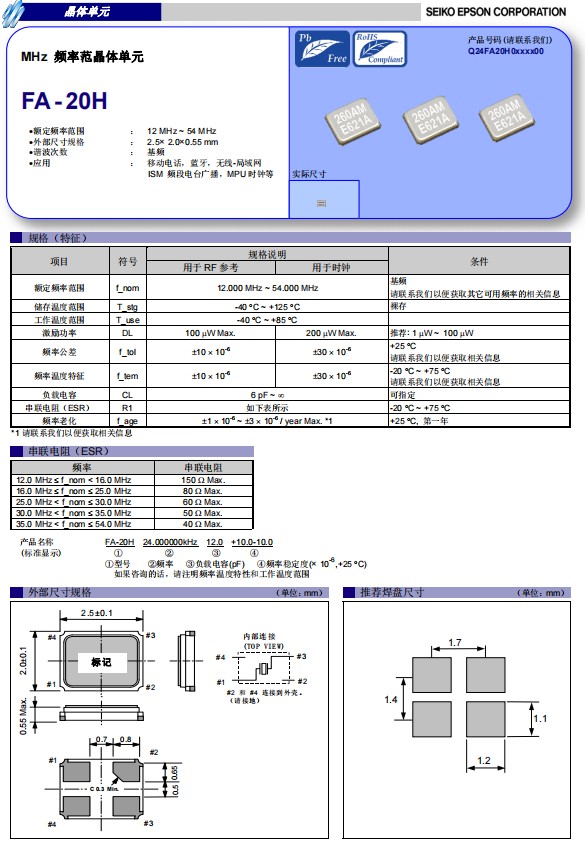

Q24FA20H00097数据手册/FA-20H/2520mm/10pF/40MHZ 参数表

Item

Symbol

Specifications

Conditions / Remarks

For RF Reference

For Clock

Nominal frequency range

f_nom

12MHz to 54MHz

Fundamental
Please contact us about available
frequencies.

Storage temperature range

T_stg

-40 °C to + 125 °C

Storage as single product.

Operating temperature range

T_use

-40 °C to +85 °C (+105 °C)

Please contact us about +85 °C < T_use

Level of drive

100 µW Max.

200 µW Max.

Recommended: 10 µW

Frequency tolerance

f_tol

± 10 × 10-6

±30 × 10-6

+25 °C
Please contact us for inquiries.

Frequency versus temperature
characteristics

f_tem

± 10 × 10-6

±30 × 10-6

-20 °C to +75 °C
Please contact us for inquiries.

Load capacitance

6 pF to ∞

Please specify.

Motional resistance (ESR)

As per table below

-20 °C to +75 °C

Frequency aging

f_age

± 1 × 10-6 to ±3 × 10-6 / year Max. *1

+25 °C, First year

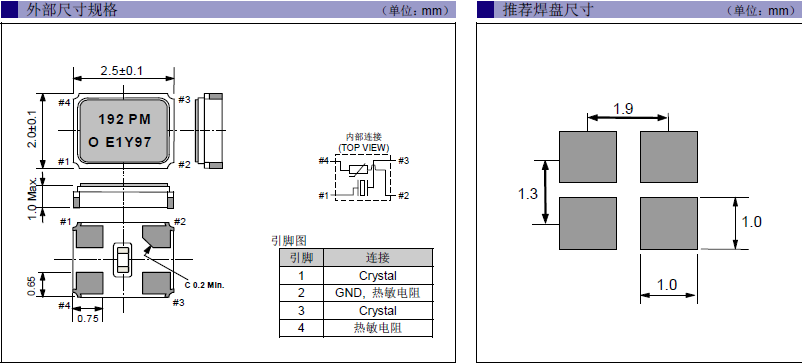

Q24FA20H00097数据手册/FA-20H/2520mm/10pF/40MHZ 尺寸图

Q24FA20H00097晶振特点

•标称频率范围:12mhz至54mhz
•外部尺寸:2.5×2.0×0.55mm
•泛音顺序:基本
•应用范围:手机、蓝牙、无线局域网
: ISM波段无线电，主控板时钟

更多相关日本精工爱普生晶振型号

编码	尺寸	型号	频率	负载	频率 @+25°C
Q24FA20H00001	2.5 x 2 x 0.55mm	FA-20H	18.000000 MHz	10 pF	+/-10 ppm
Q24FA20H00003	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	9 pF	+/-10 ppm
Q24FA20H00005	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	9 pF	+/-10 ppm
Q24FA20H00006	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	10 pF	+/-10 ppm
Q24FA20H00008	2.5 x 2 x 0.55mm	FA-20H	48.000000 MHz	7 pF	+/-50 ppm
Q24FA20H00029	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	8 pF	+/-10 ppm
Q24FA20H00031	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	9 pF	+/-10 ppm
Q24FA20H00036	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	11.5 pF	+/-10 ppm
Q24FA20H00038	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	12 pF	+/-10 ppm
Q24FA20H00039	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	9 pF	-9/+11 ppm
Q24FA20H00044	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	9 pF	+/-10 ppm
Q24FA20H00047	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	8.5 pF	+/-15 ppm
Q24FA20H00050	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	16 pF	+/-10 ppm
Q24FA20H00051	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	12 pF	+/-10 ppm
Q24FA20H00052	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	9 pF	+/-10 ppm
Q24FA20H00053	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	9 pF	+/-20 ppm
Q24FA20H00054	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	12 pF	+/-30 ppm
Q24FA20H00059	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	6 pF	+/-10 ppm
Q24FA20H00066	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	9 pF	+/-30 ppm
Q24FA20H00069	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	10 pF	+/-10 ppm
Q24FA20H00070	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	8 pF	+/-10 ppm
Q24FA20H00073	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	10 pF	+/-10 ppm
Q24FA20H00074	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	10.5 pF	+/-10 ppm
Q24FA20H00077	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	12 pF	+/-10 ppm
Q24FA20H00079	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	16 pF	+/-10 ppm
Q24FA20H00085	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	10 pF	+/-10 ppm
Q24FA20H00086	2.5 x 2 x 0.55mm	FA-20H	24.576000 MHz	8 pF	+/-15 ppm
Q24FA20H00087	2.5 x 2 x 0.55mm	FA-20H	30.000000 MHz	10 pF	+/-10 ppm
Q24FA20H00092	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	10 pF	+/-10 ppm
Q24FA20H00093	2.5 x 2 x 0.55mm	FA-20H	12.000000 MHz	10 pF	+/-30 ppm
Q24FA20H00095	2.5 x 2 x 0.55mm	FA-20H	27.000000 MHz	7 pF	+/-10 ppm
Q24FA20H00097	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	10 pF	+/-10 ppm
Q24FA20H00100	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	20 pF	+/-20 ppm
Q24FA20H00106	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	12 pF	+/-10 ppm
Q24FA20H00114	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	10 pF	+/-10 ppm
Q24FA20H00115	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	8 pF	+/-30 ppm
Q24FA20H00116	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	18 pF	+/-30 ppm
Q24FA20H00118	2.5 x 2 x 0.55mm	FA-20H	27.120000 MHz	18 pF	+/-10 ppm
Q24FA20H00122	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	9 pF	+/-10 ppm
Q24FA20H00126	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	15 pF	+/-10 ppm
Q24FA20H00128	2.5 x 2 x 0.55mm	FA-20H	20.000000 MHz	8 pF	+/-10 ppm
Q24FA20H00132	2.5 x 2 x 0.55mm	FA-20H	24.576000 MHz	8 pF	+/-10 ppm
Q24FA20H00137	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	8 pF	+/-10 ppm
Q24FA20H00139	2.5 x 2 x 0.55mm	FA-20H	30.000000 MHz	8 pF	+/-30 ppm
Q24FA20H00147	2.5 x 2 x 0.55mm	FA-20H	27.000000 MHz	10 pF	+/-10 ppm
Q24FA20H00150	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	8 pF	+/-30 ppm
Q24FA20H00151	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	16 pF	+/-10 ppm
Q24FA20H00152	2.5 x 2 x 0.55mm	FA-20H	12.000000 MHz	10 pF	+/-30 ppm
Q24FA20H00153	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	12 pF	+/-10 ppm
Q24FA20H00155	2.5 x 2 x 0.55mm	FA-20H	27.000000 MHz	8 pF	+/-10 ppm
Q24FA20H00156	2.5 x 2 x 0.55mm	FA-20H	24.000000 MHz	7 pF	+/-10 ppm
Q24FA20H00166	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	18 pF	+/-10 ppm
Q24FA20H00169	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	12 pF	+/-10 ppm
Q24FA20H00172	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	20 pF	+/-10 ppm
Q24FA20H00175	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	10 pF	+/-30 ppm
Q24FA20H00176	2.5 x 2 x 0.55mm	FA-20H	20.000000 MHz	9 pF	+/-10 ppm
Q24FA20H00193	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	10 pF	+/-10 ppm
Q24FA20H00196	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	8 pF	+/-10 ppm
Q24FA20H00201	2.5 x 2 x 0.55mm	FA-20H	25.000000 MHz	10 pF	+/-10 ppm
Q24FA20H00202	2.5 x 2 x 0.55mm	FA-20H日本进口晶振	25.000000 MHz	14 pF	+/-30 ppm
Q24FA20H00208	2.5 x 2 x 0.55mm	FA-20H	32.000000 MHz	13 pF	+/-10 ppm
Q24FA20H00209	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	9 pF	+/-10 ppm
Q24FA20H00214	2.5 x 2 x 0.55mm	FA-20H	40.000000 MHz	10 pF	+/-10 ppm
Q24FA20H00223	2.5 x 2 x 0.55mm	FA-20H	30.000000 MHz	12 pF	+/-10 ppm
Q24FA20H00225	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	8 pF	+/-10 ppm
Q24FA20H00228	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	10 pF	+/-30 ppm
Q24FA20H00229	2.5 x 2 x 0.55mm	FA-20H	26.000000 MHz	6 pF	+/-10 ppm
Q24FA20H00232	2.5 x 2 x 0.55mm	FA-20H	16.000000 MHz	12 pF	+/-10 ppm
Q24FA20H00233	2.5 x 2 x 0.55mm	FA-20H	27.000000 MHz	12 pF	+/-10 ppm
