X1E0002510123 FA-118T 通信模块 1612mm 24MHZ 10ppm

频率：24MHZ

尺寸：1.6*1.2mm

X1E0002510123 FA-118T 通信模块 1612mm 24MHZ 10ppm，尺寸为1612mm,频率为24MHZ,负载电容9pF,频率公差10ppm，日本进口晶振，爱普生晶振，EPSON晶振，无源贴片晶振，SMD晶体，石英晶体谐振器，石英晶体，无源晶振，通信模块晶振，小型化晶振，智能手表晶振，可穿戴设备晶振，消费产品晶振。

无源贴片晶振产品主要应用范围：小型通信模块，用于消费和工业应用，可穿戴设备，MCU时钟，小型化设备，智能手表等领域。X1E0002510123 FA-118T 通信模块 1612mm 24MHZ 10ppm.

订购热线：0755-27838351

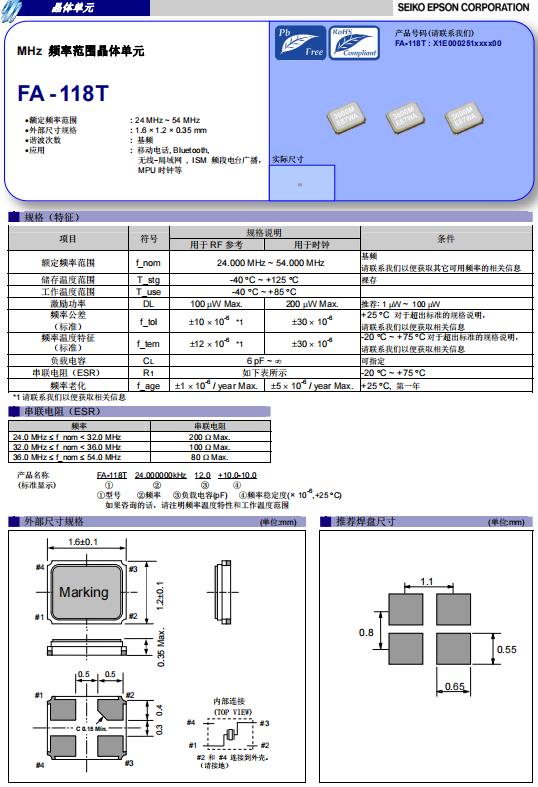

无源贴片晶振产品主要应用范围：小型通信模块，用于消费和工业应用，可穿戴设备，MCU时钟，小型化设备，智能手表等领域。X1E0002510123 FA-118T 通信模块 1612mm 24MHZ 10ppm.X1E0002510123 FA-118T 通信模块 1612mm 24MHZ 10ppm 参数表

Item

Symbol

Specifications

Unit

Condition / Remarks

Nominal frequency range

f_nom

24.000 to 54.000

MHz

Frequency tolerance
(Standard)

f_tol

±10 / ±30

x10-6

T_use = +25 °C ± 3 °C
DL = 100 μW
Does not include
frequency aging
Please contact Epson for
requirements not listed in the
specifications

Frequency vs.
temperature characteristics
(Standard)

f_tem

±12 / ±30

x10-6

Reference at
t_use = +25 °C ± 3 °C
-20 °C to +75 °C
Please contact Epson for
requirements not listed in the
specifications

Load capacitance

6 to ?

Please specify

Motional resistance (ESR)

Table 1.

π circuit IEC 60444-2
T_use = Operating
temperature range
DL = 100 μW

Shunt capacitance

3.0 Max.

Frequency aging

f_age

±1 Max. / ±5 Max.

x10-6

T_use = +25 °C ± 3 °C

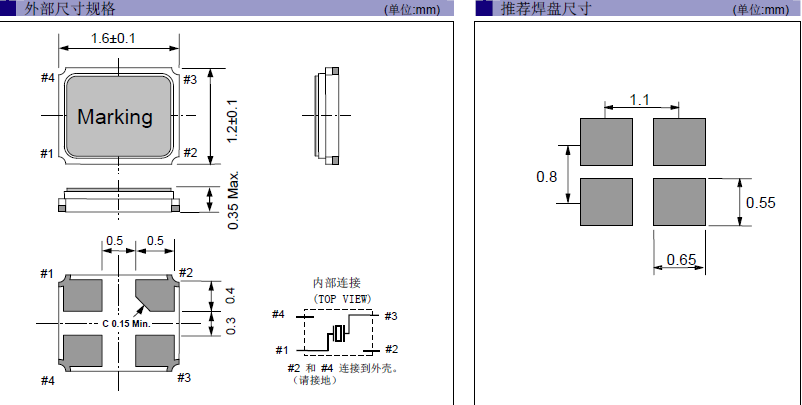

X1E0002510123 FA-118T 通信模块 1612mm 24MHZ 10ppm 尺寸图

X1E0002510123晶振特点：

FA-118T已作为通信模块的参考时钟商业化要求精度高，并作为时钟用于无线通信和微型计算机的应用

需要小型化(TWS(真无线立体声)，智能手表等)。采用多年培养的高精度加工技术打造的产品，帮助改进客户系统的性能。

更多相关日本爱普生晶振型号

编码	尺寸	型号	频率	负载	频率 @+25°C	工作温度
X1E0002510009	1.6 x 1.2 x 0.35mm	FA-118T	27.120000 MHz	10 pF	+/-30 ppm	-20 to +75 °C
X1E0002510011	1.6 x 1.2 x 0.35mm	FA-118T	26.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
X1E0002510013	1.6 x 1.2 x 0.35mm	FA-118T	27.120000 MHz	10 pF	+/-50 ppm	-20 to +85 °C
X1E0002510014	1.6 x 1.2 x 0.35mm	FA-118T	26.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
X1E0002510016	1.6 x 1.2 x 0.35mm	FA-118T	37.400000 MHz	16 pF	+/-10 ppm	-20 to +85 °C
X1E0002510017	1.6 x 1.2 x 0.35mm	FA-118T	37.400000 MHz	16 pF	+/-10 ppm	-20 to +70 °C
X1E0002510031	1.6 x 1.2 x 0.35mm	FA-118T	37.400000 MHz	16 pF	+/-7 ppm	-30 to +85 °C
X1E0002510032	1.6 x 1.2 x 0.35mm	FA-118T	40.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
X1E0002510034	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	9 pF	+/-30 ppm	-20 to +75 °C
X1E0002510035	1.6 x 1.2 x 0.35mm	FA-118T	30.000000 MHz	8 pF	+/-20 ppm	-20 to +75 °C
X1E0002510046	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	12 pF	+/-10 ppm	-20 to +75 °C
X1E0002510050	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
X1E0002510056	1.6 x 1.2 x 0.35mm	FA-118T	52.000000 MHz	9 pF	+/-15 ppm	-20 to +75 °C
X1E0002510057	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	7 pF	+/-30 ppm	-20 to +75 °C
X1E0002510058	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	8 pF	+/-15 ppm	-30 to +85 °C
X1E0002510059	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
X1E0002510060	1.6 x 1.2 x 0.35mm	FA-118T	48.000000 MHz	10 pF	+/-30 ppm	-20 to +75 °C
X1E0002510064	1.6 x 1.2 x 0.35mm	FA-118T	26.000000 MHz	12 pF	+/-10 ppm	-20 to +75 °C
X1E0002510068	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	8 pF	+/-30 ppm	-20 to +75 °C
X1E0002510069	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	10 pF	+/-30 ppm	-20 to +75 °C
X1E0002510071	1.6 x 1.2 x 0.35mm	FA-118T	40.000000 MHz	12 pF	+/-8 ppm	-30 to +85 °C
X1E0002510075	1.6 x 1.2 x 0.35mm	FA-118T	26.000000 MHz	8 pF	+/-10 ppm	-30 to +85 °C
X1E0002510077	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
X1E0002510078	1.6 x 1.2 x 0.35mm	FA-118T	40.000000 MHz	7 pF	+/-10 ppm	-20 to +75 °C
X1E0002510079	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
X1E0002510080	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	6 pF	+/-10 ppm	-20 to +75 °C
X1E0002510086	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	8 pF	+/-20 ppm	-20 to +75 °C
X1E0002510092	1.6 x 1.2 x 0.35mm	FA-118T	27.000000 MHz	10 pF	+/-30 ppm	-20 to +75 °C
X1E0002510093	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	8 pF	+/-30 ppm	-20 to +70 °C
X1E0002510100	1.6 x 1.2 x 0.35mm	FA-118T	27.120000 MHz	9 pF	+/-10 ppm	-20 to +75 °C
X1E0002510102	1.6 x 1.2 x 0.35mm	FA-118T	50.000000 MHz	8 pF	+/-30 ppm	-40 to +85 °C
X1E0002510104	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	10 pF	+/-20 ppm	-40 to +85 °C
X1E0002510110	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	12.5 pF	+/-30 ppm	-20 to +75 °C
X1E0002510111	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	10 pF	+/-50 ppm	-20 to +75 °C
X1E0002510113	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	8 pF	+/-10 ppm	-30 to +85 °C
X1E0002510121	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	8 pF	+/-10 ppm	-20 to +85 °C
X1E0002510123	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	9 pF	+/-10 ppm	-40 to +85 °C
X1E0002510126	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	7 pF	+/-30 ppm	-20 to +75 °C
X1E0002510136	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	8 pF	+/-15 ppm	-20 to +105 °C
X1E0002510138	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	6 pF	+/-10 ppm	-20 to +70 °C
X1E0002510141	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	8 pF	+/-20 ppm	-40 to +85 °C
X1E0002510144	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	20 pF	+/-30 ppm	-20 to +75 °C
X1E0002510145	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	20 pF	+/-30 ppm	-20 to +75 °C
X1E0002510148	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	8 pF	+/-10 ppm	-20 to +75 °C
X1E0002510150	1.6 x 1.2 x 0.35mm	FA-118T	38.400000 MHz	20 pF	+/-10 ppm	-20 to +75 °C
X1E0002510152	1.6 x 1.2 x 0.35mm	FA-118T	48.000000 MHz	8 pF	+/-10 ppm	-40 to +85 °C
X1E0002510153	1.6 x 1.2 x 0.35mm	FA-118T	24.000000 MHz	8 pF	+/-10 ppm	-40 to +85 °C
X1E0002510154	1.6 x 1.2 x 0.35mm	FA-118T	50.000000 MHz	12 pF	+/-30 ppm	-40 to +85 °C
X1E0002510155	1.6 x 1.2 x 0.35mm	FA-118T石英晶体	32.000000 MHz	9 pF	+/-30 ppm	-20 to +75 °C
X1E0002510157	1.6 x 1.2 x 0.35mm	FA-118T	26.000000 MHz	8 pF	+/-10 ppm	-40 to +85 °C
X1E0002510158	1.6 x 1.2 x 0.35mm	FA-118T	50.000000 MHz	12 pF	+/-10 ppm	-40 to +85 °C
X1E0002510159	1.6 x 1.2 x 0.35mm	FA-118T	48.000000 MHz	8 pF	+/-15 ppm	-40 to +85 °C
X1E0002510160	1.6 x 1.2 x 0.35mm	FA-118T	30.000000 MHz	4 pF	+/-70 ppm	-40 to +85 °C
X1E0002510161	1.6 x 1.2 x 0.35mm	FA-118T	37.400000 MHz	8 pF	+/-10 ppm	-30 to +85 °C
X1E0002510166	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	10 pF	+/-10 ppm	-30 to +85 °C
X1E0002510169	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	10 pF	+/-50 ppm	-40 to +85 °C
X1E0002510033	1.6 x 1.2 x 0.35mm	FA-118T	25.000000 MHz	10 pF	+/-30 ppm	-20 to +75 °C
X1E0002510065	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	10 pF	+/-10 ppm	-20 to +75 °C
X1E0002510099	1.6 x 1.2 x 0.35mm	FA-118T	48.000000 MHz	6 pF	+/-30 ppm	-20 to +75 °C
X1E0002510134	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	8 pF	+/-10 ppm	-20 to +85 °C
X1E0002510190	1.6 x 1.2 x 0.35mm	FA-118T	40.000000 MHz	12 pF	+/-10 ppm	-30 to +85 °C
X1E0002510197	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	6 pF	+/-10 ppm	-20 to +75 °C
X1E0002510201	1.6 x 1.2 x 0.35mm	FA-118T	38.400000 MHz	8 pF	+/-10 ppm	-20 to +85 °C
X1E0002510212	1.6 x 1.2 x 0.35mm	FA-118T	40.000000 MHz	6 pF	+/-10 ppm	-40 to +85 °C
X1E0002510215	1.6 x 1.2 x 0.35mm	FA-118T	32.000000 MHz	6 pF	+/-20 ppm	-40 to +85 °C
X1E0002510219	1.6 x 1.2 x 0.35mm	FA-118T	40.000000 MHz	10 pF	+/-10 ppm	-40 to +85 °C
